Replication & Consistency Models

1.1How a copy follows the original

A single server holding your profile row has two weaknesses. If it dies, the row is gone until someone restores a backup, and if a million people read profiles at once, one machine has to answer all of them. The usual remedy is a second server holding a copy of the same data. We'll call the original the primary, because it's the one that accepts changes, and the copy a replica. (Postgres calls it a standby, and we'll use both words.) Reads can be sent to the replica, which takes load off the primary, and if the primary dies the replica can take its place.

A replica needs a way to follow the primary. Copying the whole table after every change would be far too slow, so databases reuse a log they already keep. Before the primary changes a row, it appends a short description of the change to a file called the write-ahead log, or WAL. Record 7, say, reads "set name to New Name in row 1 of profile". (Chapter 08's journal did the same job for a filesystem.)

The primary streams this log to the replica, and the replica does two things with each record. First it saves the record in its own copy of the log and flushes it, meaning it asks the disk to store the bytes permanently so they survive a power cut (the fsync call from chapter 08). Later it replays the record, meaning it repeats the change on its own copy of the table. Queries on the replica read the table and not the log, so until a record has been replayed, a query on the replica can't see it.

That gap between "the record has arrived" and "the record has been replayed" is where your stale reload comes from. Here is your Save followed through both servers. When the primary has made a change final and told the client, we say the change is committed.

On a quiet system the lag is short, and it grows when the replica is busy or the network is slow. It never quite reaches zero, because the primary commits first and tells the replica afterwards. Since the primary doesn't wait for the replica, this arrangement is called asynchronous replication. To see the effect on real servers we'll stretch the lag until we can watch it.

1.2Trying it: update on the primary, read from the replica

You need Docker. The script below starts two Postgres containers on one network (docker network create makes the network, and docker run -d starts a container in the background). The first is the primary. It starts with wal_level=replica, which makes it keep in its WAL the detail a replica needs, and max_wal_senders=5, which allows up to five streaming connections to it. The pg_hba.conf line lets a replica connect with a password, and pg_reload_conf() makes the server re-read its configuration so the line takes effect. (docker exec runs a command inside a running container, and the until … pg_isready loop waits for the server to start accepting connections.) The second container is the replica. pg_basebackup copies the primary's data files to give the replica a starting point, and its -R option writes the settings that tell it to keep following the primary afterwards. We start the replica with hot_standby=on, so that it answers queries while it follows, and with recovery_min_apply_delay=3s, which makes it wait three seconds after a record arrives before replaying it. A real replica lags by much less, but it lags the same way, and three seconds makes the gap easy to see. The last lines create the row, change it on the primary, and read it from the replica once a second. (psql -qAt prints only the value, with no headers or borders.)

# primary, and a replica that takes a base backup from it and applies WAL 3 s late
docker network create pgnet
docker run -d --name pgp --network pgnet -e POSTGRES_PASSWORD=x postgres:16-alpine \
  -c wal_level=replica -c max_wal_senders=5 -c hot_standby=on
until docker exec pgp pg_isready -U postgres; do sleep 1; done; sleep 2
docker exec pgp sh -c 'echo "host replication all all scram-sha-256" >> /var/lib/postgresql/data/pg_hba.conf'
docker exec pgp psql -U postgres -c "select pg_reload_conf()"
docker run -d --name pgr --network pgnet -e PGPASSWORD=x --entrypoint sleep postgres:16-alpine infinity
docker exec pgr sh -c 'mkdir -p /var/lib/postgresql/data2 && chown postgres /var/lib/postgresql/data2 && chmod 700 /var/lib/postgresql/data2'
docker exec -u postgres -e PGPASSWORD=x pgr pg_basebackup -h pgp -U postgres -D /var/lib/postgresql/data2 -R -X stream
docker exec -u postgres pgr pg_ctl -D /var/lib/postgresql/data2 \
  -o "-c recovery_min_apply_delay=3s -c hot_standby=on -p 5433" -l /tmp/pgr.log start

# then: create a row, change it on the primary, and poll the replica
docker exec pgp psql -U postgres -c "CREATE TABLE profile (id int PRIMARY KEY, name text); INSERT INTO profile VALUES (1,'Old Name')"
sleep 5                                          # let the replica replay the setup
docker exec pgp psql -U postgres -c "UPDATE profile SET name='New Name' WHERE id=1"
for i in 1 2 3 4 5; do docker exec pgr psql -U postgres -p 5433 -qAt -c "select name from profile where id=1"; sleep 1; done

Old Name
Old Name
Old Name
New Name
New Name

The setup commands print container ids and status lines, and only the poll results are shown. The update committed on the primary at time zero. The five reads happened about 0.1, 1.2, 2.4, 3.5 and 4.6 seconds after it. The first three returned Old Name and the last two returned New Name, so the replica switched somewhere between 2.4 and 3.5 seconds, once its three-second delayed replay caught up. That matches the Scene: the replica had the record long before it replayed it, and for those three seconds every read saw the old row.

1.3Is that a bug?

Not by itself. The primary's answer was correct the whole time, and so was the replica's, for the state it had reached. The problem arises when the application reads from the replica right after writing and assumes it will see its own change. A user who saves their profile, reloads the page and sees the old name has hit exactly that gap.

Whether the gap is acceptable depends on what's being read. A profile page that shows the old name for a few milliseconds is fine. A page that says "this seat is still free" for a few milliseconds is not. So we need a precise way to say how far behind a reader may be, and before that, a fair question: why does anyone accept the gap at all? Why not make the primary wait until the replica has caught up before it says "committed"?

2.1Four reasons to keep copies

Making the primary wait would close the gap, and section 4 shows what that costs. First, though, it's worth being clear about what the second copy buys. A single server has no gap at all, since every read sees every write that finished before it and there's only one place to look. Replication gives that up on purpose. There are four different reasons to keep more than one copy, and each asks something different of the copies.

Those rows pull in different directions. Durability wants the copies updated before the write is acknowledged. Latency and availability want each copy to answer without waiting for the others. Every design in this chapter picks a point between those two.

?Why not just copy every write everywhere before replying?

Because then every write waits for the slowest copy, and a write can't finish at all while any copy is unreachable. You'd have built a system that's less available than one server. The whole subject is about waiting for some of the copies, and being precise about what readers can see as a result.

2.2Three ways to arrange the copies

The next decision is which copies may accept a write. Three arrangements are common. Before the table, two words. A leader is a node that accepts writes (the primary of section 1 is one), and the nodes that copy it are its followers. A conflict is two writes to the same key made without either one knowing about the other.

Failover, in the first row, is what happens when the leader dies and a follower is promoted to take its place.

Single leader is the default for a reason: one node orders all writes, so there are no conflicts to resolve. The other two exist because a single leader is one place, in one region, and it has to be up. We'll follow single leader in section 4 and the other two in sections 5 and 6. Whichever arrangement you pick, though, copies disagree for some time after a write, and the next section gives us the words to say exactly how long, and for whom.

3.1Linearizability: one copy, one moment

The strongest promise we could ask for is that the system behaves as though there were only one copy of your profile, whatever it does underneath. A system is linearizable if every operation appears to take effect at one instant somewhere between the moment it was called and the moment it returned. Herlihy and Wing defined it in 1990.

What you'll feel is recency. Once your Save has returned, or once any reader has seen the new name, every read that starts later must see that name or a newer one. That holds across clients, with no sessions or sticky routing involved.

?Why does "starts later" matter so much?

Because it ties the order of operations to real time. When your Save returns and you phone your friend, who then reloads, your friend must see the new name. Weaker models allow your friend's read to go to a replica that hasn't heard of the change yet. Linearizability is the only model on this list where the phone call is safe.

That's why the things that need a single truth are built on it: leader election, distributed locks, unique usernames, and "is this seat still free". The price comes in section 3.5, and it's paid on every request.

3.2Sequential and causal consistency

Linearizability is expensive, so the next step is to drop one property and see what we keep. The first property to drop is the tie to real time. Sequential consistency (Lamport, 1979) keeps a single order of operations that all clients agree on, and keeps each client's own operations in the order that client issued them. But a read may return an old value. Your friend, after the phone call, might still see Old Name, as long as every client sees the operations in the same order.

Causal consistency drops the single order as well. It only promises that if one operation could have influenced another, everyone sees them in that order. You read a comment and then reply to it, so nobody may see your reply before the comment. Two unrelated writes, say your name change and a stranger's comment elsewhere, can appear in different orders to different readers.

?Why would anyone want causal instead of linearizable?

Because causal consistency can stay available during a network partition, and linearizability can't. A network partition is a failure in which some nodes can't reach others, and a system is available when every request to a live node still gets a real answer. A replica cut off from the others can keep serving causally consistent reads and writes, because it only has to respect the causality it already knows about. Mahajan, Alvisi and Dahlin proved that a slightly stronger variant is the strongest model that can.

3.3Eventual consistency and session guarantees

At the weak end, eventual consistency promises only this: if writes stop, all replicas will converge on the same value. It says nothing about what you read in the meantime. That's all the stranger on another continent needs: at some point they should see the new name. Werner Vogels' Eventually Consistent is the classic description of the model as Amazon used it.

That's too weak for the stale reload, so a middle layer exists. Between eventual and causal sit four session guarantees, from Terry et al.'s Session Guarantees for Weakly Consistent Replicated Data (1994), written for Bayou, a replicated database for mobile devices built at Xerox PARC. They're promises to one client, which makes them cheap to give.

Read your writes and monotonic reads cover the stale reload we started with and the flicker between two states. You can often give them to the one user who would notice, without paying for linearizability for everyone.

3.4The models side by side

Raft and Paxos are consensus algorithms, which let several nodes agree on one order of operations even when some fail. Chapter 27 builds them. Sticky routing means always sending one user's reads to the same replica, so that user can't see time go backwards, and a session token is a note the client carries saying how far into the log its own writes and reads have got, so that a replica can wait until it has caught up to that position before answering. Section 4.4 builds that wait on Postgres.

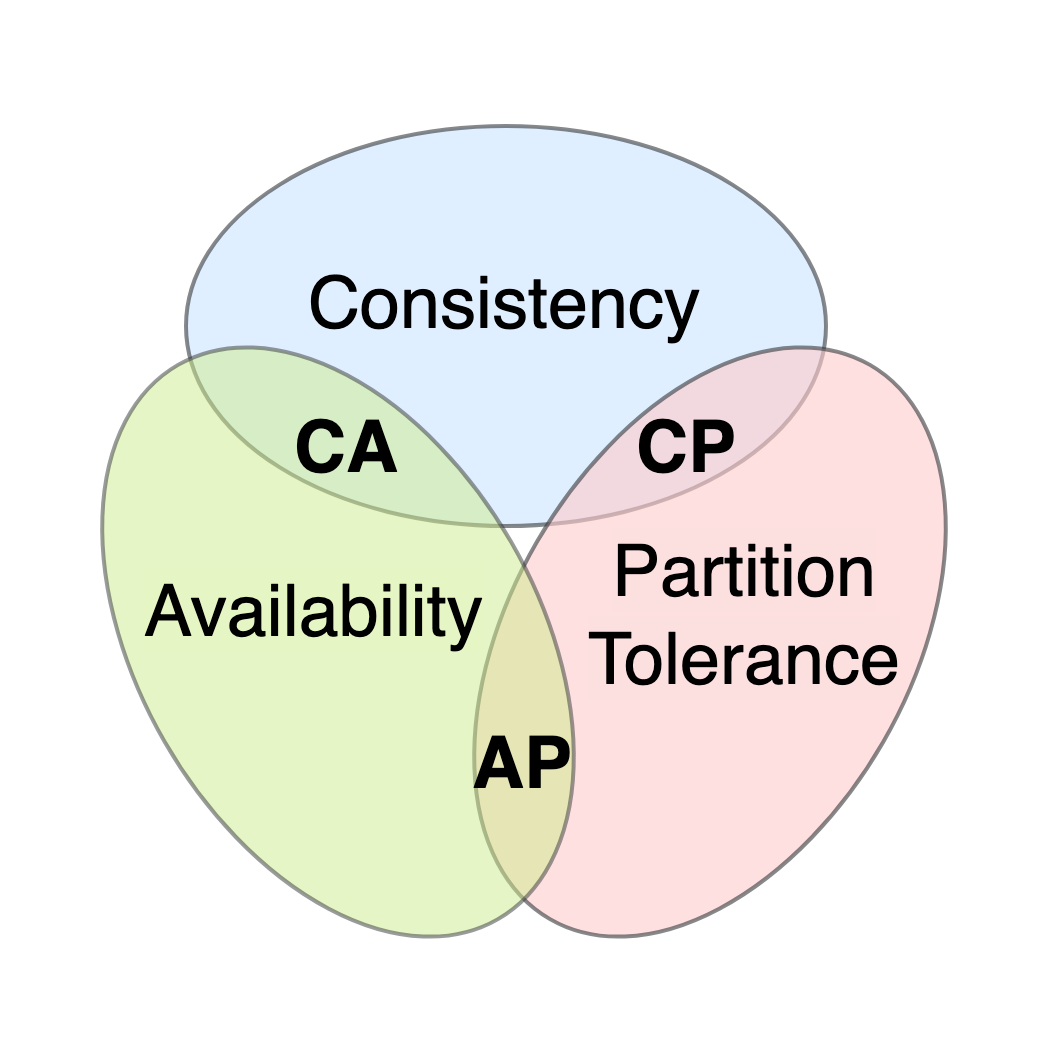

3.5What CAP says, and what it leaves out

Gilbert and Lynch's proof of the CAP theorem is narrower than its reputation. It says a system can't be both linearizable and available while the network is partitioned. A node that's cut off from the others must either refuse to answer, because it can't be sure it has the latest value, or answer and risk being stale.

That's all it says. It doesn't cover latency, it doesn't cover the weaker models, and it says nothing about the system when there's no partition. Abadi's PACELC fills that gap: if there's a Partition, choose Availability or Consistency; Else, choose Latency or Consistency.

That's the vocabulary. The next step is to see what one real system lets you buy with it. The Postgres pair from section 1 has to answer a single question on every write, and the answer is where the price is set: when does the primary say "committed"?

4.1Five answers to “when is it committed?”

In single-leader replication the primary writes each change to its WAL, as in section 1, and streams the log to its standbys. The choice is how long the primary waits for them before it tells the client. Postgres makes that choice per transaction with synchronous_commit. A synchronous standby is one the primary waits for, and the ones to wait for are named in synchronous_standby_names. The setting has five values, and once that list names at least one standby they differ in how much of the standby's work the primary waits for.

The last column is the one people miss. The default, on, makes the write durable on the standby, meaning it would survive a crash. It doesn't make the write visible there, because replay is a separate step that runs after the flush. That's the same gap we watched in the Scene in section 1.

Step through one commit with a synchronous standby. The log is numbered by position, and a position in the WAL is called a log sequence number, or LSN. Three Postgres processes take part. The backend serves your connection, the walsender runs on the primary and streams the log, and the walreceiver is its counterpart on the standby.

Every level below remote_apply leaves a window in which the client has heard "committed" and the standby still shows the old row. The next question is what it costs to shrink that window.

4.2What each level costs

The cost is latency, the time one commit takes. We can measure it with pgbench, Postgres's own benchmarking tool. With one client running a single-row UPDATE in autocommit mode (each statement is its own transaction), each run lasted 4 seconds, and seven rounds were interleaved across the five modes. The primary and the standby ran on one host, talking over loopback (the machine's internal network interface, so there's no real network in the way). The ranges are wide and overlap, so read the medians as an ordering and not as exact values.

On one host the network round trip costs roughly nothing, so what you're seeing is mostly the second fsync and the replay. Across availability zones (separate data centres in one region), add the network round trip to every row from remote_write down. AWS documents inter-AZ latency as single-digit milliseconds, and that goes on top of every commit.

?Why is off safe to use at all?

Because it can lose recent commits, but it can't corrupt anything. The docs say a crash leaves the database "just the same as if those transactions had been aborted cleanly". For a click counter or a log of page views, losing the last few hundred milliseconds in a crash is often a fine trade for a commit about five times faster than local in the table above. You can set it per transaction, so the important writes can keep on.

Waiting for a standby buys durability, and it creates a new way to get stuck. What happens when the standby you're waiting for isn't there?

4.3Trying it: the escape hatch in synchronous replication

Stop the standby, and every commit on the primary waits for it, with no time limit. A CREATE TABLE sent to the primary while its synchronous standby is stopped shows wait_event = SyncRep in the list of sessions, and 80 seconds later it's still there, waiting for a standby that isn't coming back. An operator looking at a hung system will try to cancel the stuck statement, so the question is what the primary does when the wait is cancelled. This is the code that handles it:

		/*
		 * It's unclear what to do if a query cancel interrupt arrives.  We
		 * can't actually abort at this point, but ignoring the interrupt
		 * altogether is not helpful, so we just terminate the wait with a
		 * suitable warning.
		 */
		if (QueryCancelPending)
		{
			QueryCancelPending = false;
			ereport(WARNING,
					(errmsg("canceling wait for synchronous replication due to user request"),
					 errdetail("The transaction has already committed locally, but might not have been replicated to the standby.")));
			SyncRepCancelWait();
			break;
		}

The comment is candid. The commit record is already in the primary's WAL by the time the backend starts waiting, so it can't be rolled back, and a cancel just stops the waiting. The client gets a warning and a success. We can watch it happen with the containers from section 1, which should still be running. The block below makes every commit wait for a standby (ALTER SYSTEM SET synchronous_standby_names = '*' names any standby, and pg_reload_conf() applies it), creates a table while the replica is still up so that the CREATE TABLE can finish, and then stops the replica with pg_ctl stop. The INSERT runs in the background (the trailing &). Three seconds later the first query looks in pg_stat_activity, Postgres's list of current sessions, to show what the insert is waiting on, and the second sends that session a cancel with pg_cancel_backend. The last line counts the row on the primary.

# make every commit on the primary wait for a standby, then stop the replica
docker exec pgp psql -U postgres -c "ALTER SYSTEM SET synchronous_standby_names = '*'"
docker exec pgp psql -U postgres -c "select pg_reload_conf()"
docker exec pgp psql -U postgres -c "CREATE TABLE orders (id int)"
docker exec -u postgres pgr pg_ctl -D /var/lib/postgresql/data2 stop

# this insert commits on the primary, then waits for a standby that is gone
docker exec pgp psql -U postgres -c "INSERT INTO orders VALUES (42)" &
sleep 3
docker exec pgp psql -U postgres -Atc "select wait_event from pg_stat_activity where query like 'INSERT%'"
docker exec pgp psql -U postgres -Atc "select pg_cancel_backend(pid) from pg_stat_activity where wait_event = 'SyncRep'"
wait
docker exec pgp psql -U postgres -Atc "select count(*) from orders where id = 42"

SyncRep
t
INSERT 0 1
WARNING:  canceling wait for synchronous replication due to user request
DETAIL:  The transaction has already committed locally, but might not have been replicated to the standby.
1

The setup commands print their own status lines (ALTER SYSTEM, CREATE TABLE and so on), and only the output of the last four commands is shown. SyncRep is the wait event after three seconds, the backend sitting in the wait we saw in the diagram in 4.1. The t is pg_cancel_backend reporting that it delivered the cancel. Then the insert returned INSERT 0 1, a success, together with the warning that most drivers never surface. (The warning goes to the error stream and the INSERT 0 1 line to standard output, so your terminal may show them in either order.) The final 1 says the row is committed on the primary, where it exists and nowhere else.

Keeping one named standby and accepting that writes block has its own problem, because any restart of that standby becomes a write outage. The usual answer is to let any one of several standbys do the job. With synchronous_standby_names = 'ANY 1 (s1, s2)', a commit finishes once either of two standbys confirms, so losing one blocks nothing. FIRST 1 (s1, s2) instead prefers s1 and falls back to s2, in that order.

4.4Reading your own writes from a replica

Back to the reload that started the chapter. How often would it happen with each setting, and how do we stop it? To find out, a client updated one row on the primary and then immediately read it from the standby, 2,000 times in a row. A read counts as stale, as in section 1, if it returns anything other than the value just written.

With the standby asynchronous, almost every immediate read is stale, because the read arrives long before the replica replays the record. With remote_apply none is, because the commit doesn't return until replay is done. The middle row is the surprising one.

?Why does on still give stale reads?

Because, as the table in 4.1 said, a flushed record isn't a replayed record. The window between the standby's fsync and its replay is short on an idle server, and it caught roughly 3% of reads here. Under a heavy write load, or while replay waits on a conflicting query, that window grows.

There are three standard fixes, from cheapest to most expensive.

The LSN approach gives read your writes to one session, built from two functions: the write hands back its position in the log, and the reader refuses to answer until its replica has replayed past that position. It also degrades well. If the replica is far behind, the reader can give up waiting and go to the primary.

Postgres counts the standbys you name. A system built around replication from the start has to decide who counts without a list.

4.5Kafka's version: in-sync replicas

Suppose the profile service also publishes every name change to Kafka, so that other services can hear about it. Kafka stores messages in partitions, each of which is an ordered log kept by several brokers (Kafka servers). One broker is the partition's leader and the others are its followers. A producer, the program sending messages, chooses how long to wait with the setting acks: acks=0 doesn't wait at all, acks=1 waits for the leader alone, and acks=all waits for the followers that are keeping up.

Kafka doesn't count a fixed set of standbys. It keeps a dynamic in-sync replica set, or ISR: the followers that have recently caught up with the leader. With acks=all, a produce waits for every member of the current ISR, and min.insync.replicas sets how small the ISR may shrink before writes are refused. Here is the check, in Kafka's source:

          val minIsr = effectiveMinIsr(leaderLog)
          val inSyncSize = partitionState.isr.size

          // Avoid writing to leader if there are not enough insync replicas to make it safe
          if (inSyncSize < minIsr && requiredAcks == -1) {
            throw new NotEnoughReplicasException(s"The size of the current ISR ${partitionState.isr} " +
              s"is insufficient to satisfy the min.isr requirement of $minIsr for partition $topicPartition")
          }

Note the requiredAcks == -1 condition (-1 is how acks=all is represented): the check applies only to acks=all. A producer with acks=1 writes happily to a leader whose ISR is just itself. The Kafka chapter follows the high watermark (the point up to which messages count as committed) and leader epochs (numbers that identify each leader's term) through a failover.

Postgres and Kafka share one limit. Every write passes through a single leader, which is one machine in one place that has to be up. Dynamo's designers asked what a store would look like if no machine had that job.

5.1N, W and R

Three numbers describe a leaderless configuration:

• N: how many replicas hold each key.
• W: how many must acknowledge a write before it succeeds.
• R: how many must answer a read before it returns.

Take N = 3 replicas of your profile, with W = 2 and R = 2. A write reached at least two of the three, and a read asks at least two of the three. Two groups of two chosen from three always share at least one replica, so a read always reaches at least one replica that has the latest completed write, and can return it by picking the value with the highest version. In general, if W + R > N, every read set overlaps every write set in at least one replica, and groups of replicas big enough to guarantee that are called quorums. Dynamo's paper gives (3, 2, 2) as the common configuration. A node that handles a request on the client's behalf, sending it to the replicas and collecting their answers, is called the coordinator.

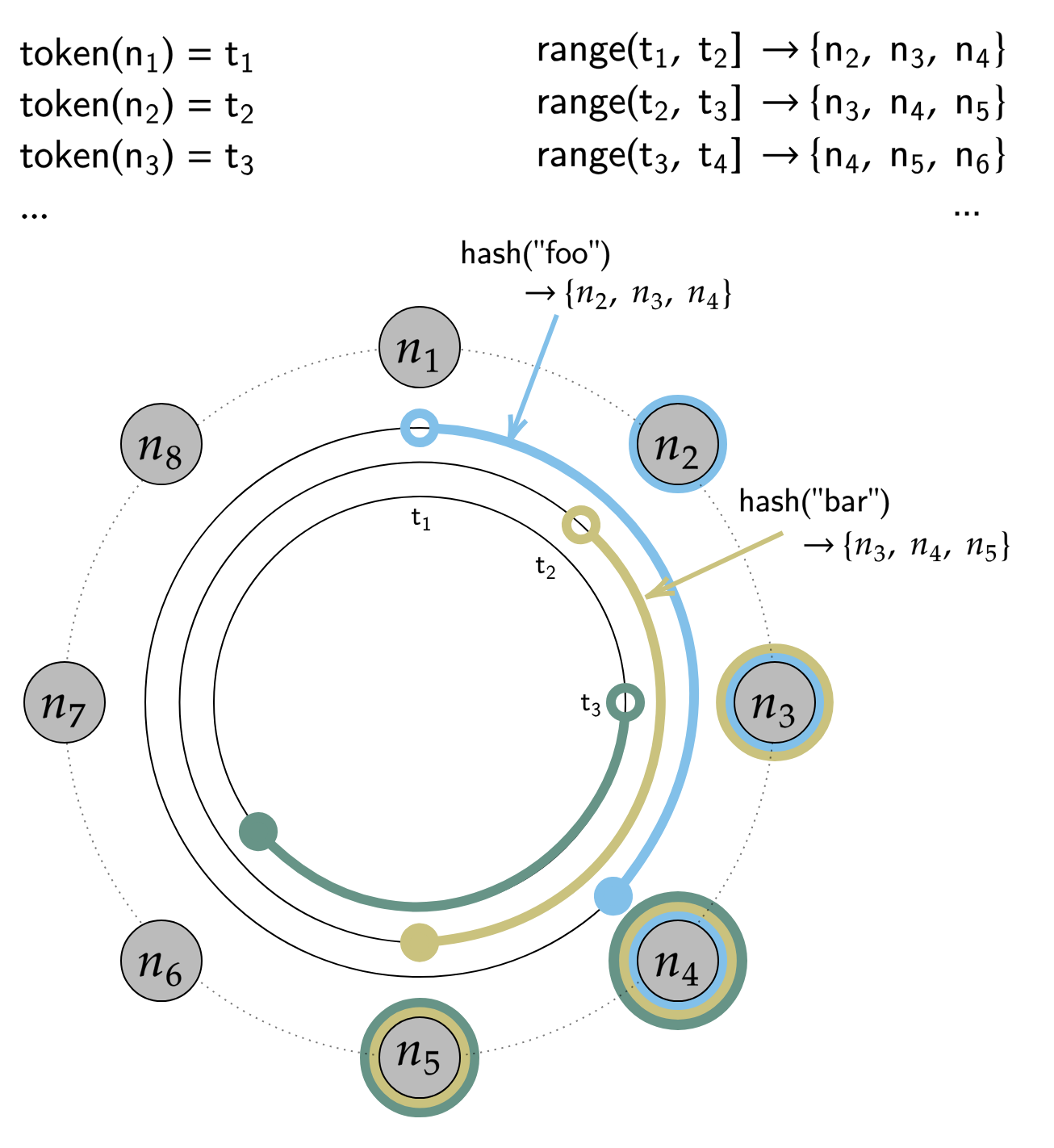

Cassandra lets each request name how many replicas it waits for, and calls that number the request's consistency level. Its QUORUM is exactly that ⌊RF/2⌋ + 1 (RF is its name for N, the replication factor), ONE waits for a single replica, and LOCAL_QUORUM counts only replicas in the coordinator's datacenter, so it doesn't pay a cross-region round trip.

Quorums also tolerate slow nodes well, because the client waits for the fastest W or R replies and ignores the rest. One replica in a garbage-collection pause (a stretch in which its runtime freezes the process to reclaim memory) adds no latency at all to a W = 2 write with N = 3. A single leader can't do that: if the leader is slow, every write is slow.

5.2A quorum read

Step through a read at R = 2 when one replica missed the latest write of your new name.

The overlap rule promises that a read sees the latest completed write. The word completed is carrying weight, and the next subsection shows what happens when a write is still in flight.

5.3Why W + R > N isn't linearizable

Is a system with W + R > N linearizable? Let's test it on the profile. A writer is setting the name from Old Name (version 1) to New Name (version 2) with W = 2, and the messages to two of the three replicas are slow. Two readers come along while it's in flight.

Nothing in the overlap rule covers a write in flight, and that gap is enough to break linearizability.

?Why does making readers write back fix it?

Because it makes a reader finish the write it saw. Suppose reader 1, before returning New Name, writes it back to a quorum. Then reader 2's quorum must overlap at least one replica that holds New Name, and reader 2 can't be told the old value. That's the ABD algorithm (Attiya, Bar-Noy and Dolev, 1995). Cassandra does the same thing and calls it read repair. Its default is blocking read repair (read_repair = 'BLOCKING' since Cassandra 4.0): when the replies disagree, the coordinator writes the newest value to the stale replica before answering the client. The Cassandra docs call the resulting property monotonic quorum reads, and setting read_repair = 'NONE' gives it up.

Even ABD only gives a linearizable register, a single value that's read and overwritten. It can't do compare-and-set (change the value only if it still equals what I last read), because two writers can each pass a quorum with different values. For that, Cassandra has lightweight transactions (LWTs), which run Paxos. The consensus chapter covers why that step needs consensus and not just overlap.

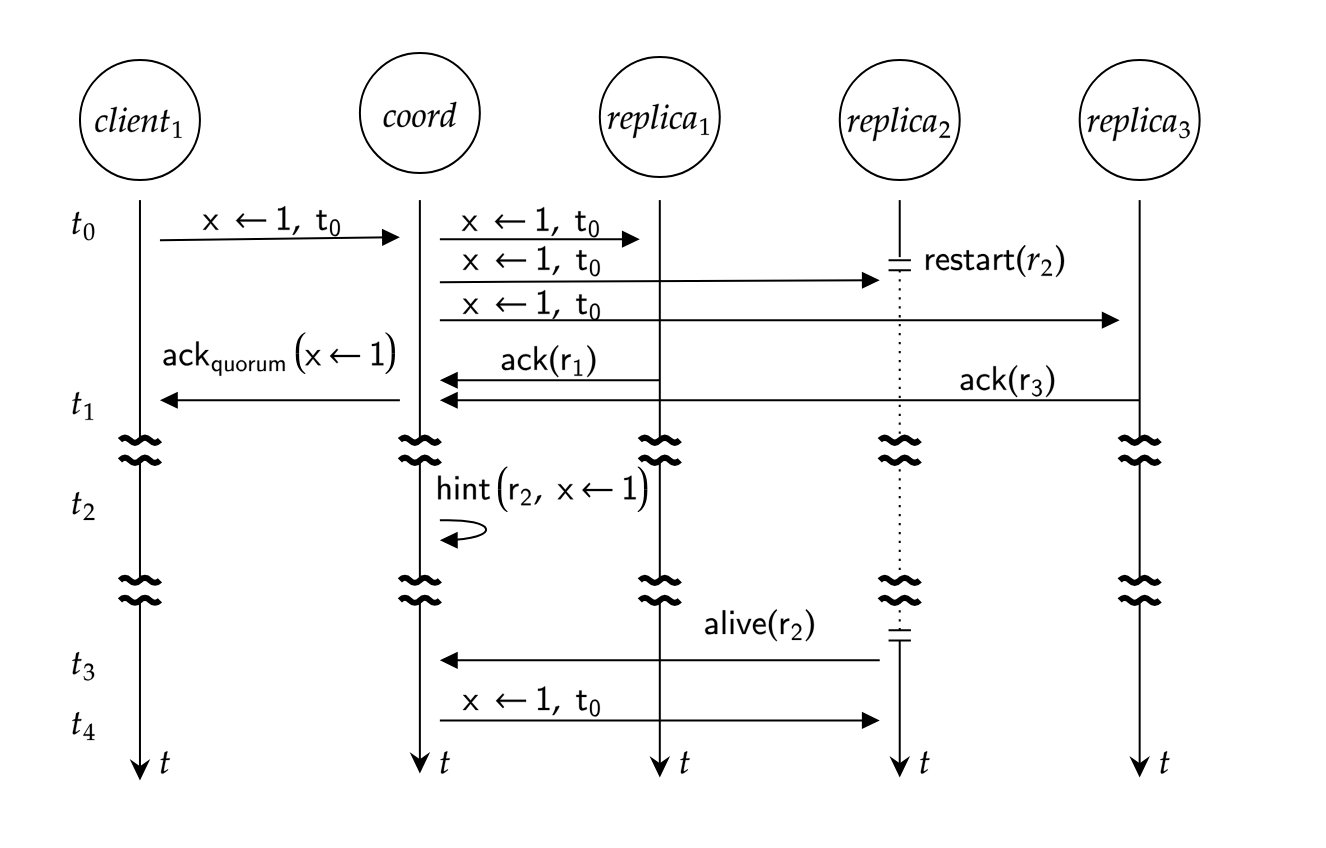

5.4Sloppy quorums, hinted handoff and anti-entropy

Quorums assume the key's N home replicas are reachable. What should a write do when some aren't? Dynamo's answer was to keep accepting it. Nodes sit on a circle called the ring, each key lives on N consecutive nodes of it, and the next healthy node along the ring can stand in for a home replica that's down. The stand-in keeps the data together with a hint saying whose it is, and hands it over when the home replica returns. This is hinted handoff, and a write acknowledged partly by stand-ins is a sloppy quorum. (Chapter 29 explains how keys are placed on the ring.)

A sloppy quorum breaks the overlap argument. The W acknowledgements came from stand-in nodes, and the R replies come from the home nodes, so the two groups needn't share a replica. A write can succeed and a following quorum read can miss it entirely until the hints are delivered. Sloppy quorums buy write availability and give up the W + R > N argument to get it.

Replicas that missed writes and never got hints are fixed by anti-entropy: a background comparison of Merkle trees (trees of hashes), so that two replicas can find their differences by exchanging hashes and not the data itself. In Cassandra that's nodetool repair.

5.5Quorums in a storage engine: Aurora

Quorum arithmetic isn't only for key-value stores. Amazon Aurora (SIGMOD 2017) is a relational database that splits its storage into small pieces and stores six copies of each piece across three availability zones, with a write quorum of 4 and a read quorum of 3. What happens as copies are lost?

4 + 3 > 6, so reads overlap writes. And 4 + 4 > 6, so two writes overlap too, which stops two writers from both succeeding on disjoint copies. The paper's argument for six copies is exactly the last row: "AZ+1" failures must not lose data.

Leaderless stores and quorums give every replica the power to accept a write. That raises a question that a single leader never had to answer: what if two replicas accept different names for the same user at the same time?

6.1Last writer wins, and what it throws away

Say you rename yourself to "Name A" from your phone, connected to a replica in Frankfurt, while a laptop you left logged in renames you to "Name B" through a replica in Oregon. Neither replica has heard of the other write. When they exchange them, something has to decide what your name is afterwards.

The simplest rule is to stamp every write with the time it was made and keep the write with the highest timestamp. This is last-writer-wins, and Cassandra applies it to every column. Last-writer-wins converges, but it silently discards every concurrent write except one. And "last" is decided by wall clocks on different machines, so a node whose clock runs a few seconds fast wins every conflict for as long as it's fast, even against writes made later in real time.

?Why not just use better clocks?

Because two writes that happen at "the same time" on different replicas aren't ordered, whatever the clocks say. Neither saw the other. Picking one by timestamp is a policy and not a fact. (Chapter 26 looks at what clocks can and can't tell you.) What you need first is a way to detect that two writes were concurrent.

6.2Detecting concurrency with version vectors

A version vector keeps one counter per replica. Each replica increments its own entry when it accepts a write, and a write carries the vector it was based on. Compare two vectors entry by entry:

Try it on "Name A" and "Name B". Both writes started from the same version, {Frankfurt: 0, Oregon: 0}. Frankfurt accepts "Name A" and stamps it {Frankfurt: 1, Oregon: 0}, and Oregon accepts "Name B" and stamps it {Frankfurt: 0, Oregon: 1}. Each vector has one entry bigger than the other's, so neither came before the other, and the store knows the writes were concurrent. It keeps both values, which are called siblings. Dynamo returned the siblings to the application, which merged them. For Amazon's shopping cart, the service Dynamo was built for, the merge was a union of the items. The paper is candid about the consequence: "deleted items can resurface", because a union can't tell a removed item from one the other replica never had.

Merging by hand in every application is a lot to ask. What if the data type merged itself?

6.3CRDTs: data types that merge themselves

A conflict-free replicated data type, or CRDT, is a data structure whose merge function needs no application help and always converges. Shapiro, Preguiça, Baquero and Zawirski formalised them in 2011.

The design requirement is that merge must be commutative, associative and idempotent: merging in a different order, in different groupings, or twice gives the same result. Then it doesn't matter in which order replicas exchange state, how often, or whether messages are duplicated, because they all reach the same value. (Mathematically, the states form a join-semilattice and merge is the join.)

The simplest example is a grow-only counter. Suppose your profile counts page views in two data centres, A and B. Each replica keeps a vector with one slot per replica, and only ever increments its own slot.

Per-entry max is idempotent, since merging twice changes nothing, and commutative, since the order doesn't matter, and those two properties are what make it safe to merge any number of times in any order. Subtraction breaks them, so a counter that can go down is built from two G-counters, one for increments and one for decrements (a PN-counter).

6.4Trying it: an OR-set keeps the list honest

Dynamo's cart problem has a CRDT answer. Suppose your profile has a list of interests, kept on two replicas. The observed-remove set, or OR-set, gives each add a unique tag, and a remove deletes only the tags it has seen. If someone adds "chess" at the same moment someone else removes it, the add carries a tag the remove never saw, so it survives. An add wins over a concurrent remove, and a remove that wasn't concurrent with anything sticks.

The script below builds a G-counter and an OR-set from a few lines each. merge is the only way state travels between replicas. It first counts views on a and b and merges them in both directions and then once more, to show repeated merges change nothing. Then replica x removes "chess" while replica y adds it again, and both merge. The last lines apply last-writer-wins to the same two writes, with a timestamp that puts the remove just ahead because one clock runs a little fast.

import uuid

class GCounter:
    def __init__(self, me): self.me, self.p = me, {}
    def inc(self, n=1): self.p[self.me] = self.p.get(self.me, 0) + n
    def value(self): return sum(self.p.values())
    def merge(self, o):
        for r, n in o.p.items(): self.p[r] = max(self.p.get(r, 0), n)

class ORSet:
    def __init__(self): self.adds, self.removes = set(), set()   # (element, tag)
    def add(self, e): self.adds.add((e, uuid.uuid4().hex[:6]))
    def remove(self, e): self.removes |= {t for t in self.adds if t[0] == e}
    def value(self): return {e for e, t in self.adds - self.removes}
    def merge(self, o): self.adds |= o.adds; self.removes |= o.removes

# profile views counted in two regions, each only bumping its own entry
a, b = GCounter("a"), GCounter("b")
a.inc(3); b.inc(2)
a.merge(b); b.merge(a); a.merge(b)          # repeated merges change nothing
print("views a =", a.value(), " views b =", b.value())

# the profile's list of interests, edited on two replicas at the same time
x, y = ORSet(), ORSet()
x.add("chess"); y.merge(x)                  # both replicas list chess
x.remove("chess")                           # replica x: the user removes it
y.add("chess")                              # replica y, concurrently: it is added again
x.merge(y); y.merge(x)
print("interests x =", x.value(), " interests y =", y.value())

# last-writer-wins, given the same two writes with timestamps
lww = max([(1001, "remove chess"), (1000, "add chess again")])
print("last-writer-wins keeps only:", lww[1])

views a = 5  views b = 5
interests x = {'chess'}  interests y = {'chess'}
last-writer-wins keeps only: remove chess

Both counters report 5, the sum of 3 and 2, which no plain number with last-writer-wins would reach. Both replicas end with "chess" in the list, because the concurrent add carried a tag the remove had never seen. Last-writer-wins, given the same two writes and a clock that's one tick ahead on the remover, keeps only the remove, and the add is lost without any error.

The removes set only ever grows in this naive version, because a replica can't know when every other replica has seen a remove. Production CRDTs spend much of their complexity on garbage-collecting that metadata safely.

You'll meet CRDTs in Riak's data types, Redis Enterprise's Active-Active databases, and the collaborative-editing libraries Automerge and Yjs.

We now have a single leader, quorums and CRDTs, each paying for a different promise. The practical question is which to reach for.

7.1Match the requirement to the mechanism

Start from what the feature needs a reader to be able to rely on, find the weakest model that gives it, and pay only for that.

?Why not just make everything linearizable to be safe?

Because you pay for it on every request. Linearizable reads have to reach the leader, or a quorum, or wait out a lease (a time-limited right to act as the leader), and in a multi-region deployment that's a cross-region round trip per read. And the price in DynamoDB is literal: eventually consistent reads are half the cost of strongly consistent ones, and reads from global secondary indexes (GSIs) can only be eventually consistent.

(In the table, etcd is a small key-value store built on Raft, often used to hold locks and leader elections for other systems.) Whichever row you pick, its gap is still there in production: replicas lag, standbys go away, hints pile up. The last section is about watching for those gaps on a running system.

8.1Watching the gap

Each question the chapter raised has something you can query on a running system.

-- How far behind is each standby, in time and in bytes? (sections 1 and 4.4)
-- Postgres, on the primary: one row per standby
select application_name, state, sync_state,
       write_lag, flush_lag, replay_lag,
       pg_wal_lsn_diff(pg_current_wal_lsn(), replay_lsn) as replay_bytes_behind
from pg_stat_replication;

-- How stale does this standby look? (section 1)
-- Postgres, on a standby
select now() - pg_last_xact_replay_timestamp() as apparent_lag;

-- Which commits are waiting on a synchronous standby right now? (section 4.3)
select pid, now() - query_start as waiting, query
from pg_stat_activity where wait_event = 'SyncRep';

pg_last_xact_replay_timestamp() is the time of the last replayed commit, so on an idle primary the "lag" grows even though the standby is fully caught up. Measure lag in bytes, or write a heartbeat row every second and measure its age.

For Kafka (section 4.5), the two to alert on are UnderReplicatedPartitions (followers falling out of the ISR) and UnderMinIsrPartitionCount (partitions now refusing acks=all writes). For Cassandra (section 5.4), watch hint backlog and when each table was last repaired.

8.2Rules that hold up

1. Choose the promise per feature. Use the table in 7.1, and don't make everything linearizable.
2. Give one user read-your-writes cheaply. Pin that user to the primary after a write, or have the reader wait for the write's LSN, before reaching for remote_apply for everyone.
3. If you rely on a synchronous standby for durability, use a quorum of standbys (ANY 1 (s1, s2)), alert on sessions waiting in SyncRep, and never cancel them.
4. For Kafka with replication factor 3, use acks=all with min.insync.replicas=2.
5. Measure lag in bytes or with a heartbeat row, and not with the replay timestamp on a quiet primary.
6. Run Cassandra repair well inside gc_grace_seconds if you delete data.
7. Don't use last-writer-wins where a lost concurrent write matters. Use version vectors with a merge, a CRDT, or conditional writes.

8.3What you trade for what

8.4Symptom, cause, fix
