Virtualization, Hypervisors & microVMs

1.1Looking for the virtual machine

Docker Desktop on a Mac needs a Linux kernel, and macOS doesn't have one, so it must be getting one from somewhere. Four commands let us ask both sides what they are. uname -sr prints a kernel's name and release. sysctl kern.hv_support asks macOS whether the CPU supports running guests ("hv" stands for hypervisor). docker run --rm alpine … runs a command in a fresh container built from alpine, a tiny Linux image, and --rm deletes the container afterwards. The last command adds --privileged, which lets the container see the kernel's own messages, then runs dmesg, which prints the kernel's boot log, and keeps the first three lines that mention virtio-pci.

uname -sr                                    # the Mac
sysctl kern.hv_support                       # can this Mac's CPU run guests?
docker run --rm alpine uname -sr             # a container
docker run --rm --privileged alpine sh -c 'dmesg | grep virtio-pci | head -3'

Darwin 25.5.0
kern.hv_support: 1
Linux 6.10.14-linuxkit
[    0.049820] virtio-pci 0000:00:01.0: enabling device (0000 -> 0002)
[    0.052534] virtio-pci 0000:00:05.0: enabling device (0000 -> 0002)
[    0.055603] virtio-pci 0000:00:06.0: enabling device (0000 -> 0002)

The first line says the Mac runs Darwin. The third says a container on that same Mac reports Linux. Chapter 11 said containers share the host's kernel, so this container must be sharing a Linux kernel that is running somewhere other than on the Mac's own: inside a virtual machine. The second line, kern.hv_support: 1, says the CPU offers the hardware features a hypervisor needs, and section 3 looks at what those are.

The last three lines are the Linux guest's boot log. Each one is a virtio-pci device: a network card or a disk, attached the way real cards are attached (over PCI, the standard bus that connects devices to a computer), but existing only as software provided by the hypervisor. The name "virtio" is the standard these virtual devices follow, and section 5 opens it up. The guest kernel boots as if it had real hardware, finds these devices and loads drivers for them. Every time it touches one, the hypervisor gets a call. We'll come back to what a call costs; first we need to see why it works at all.

1.2What the guest believes

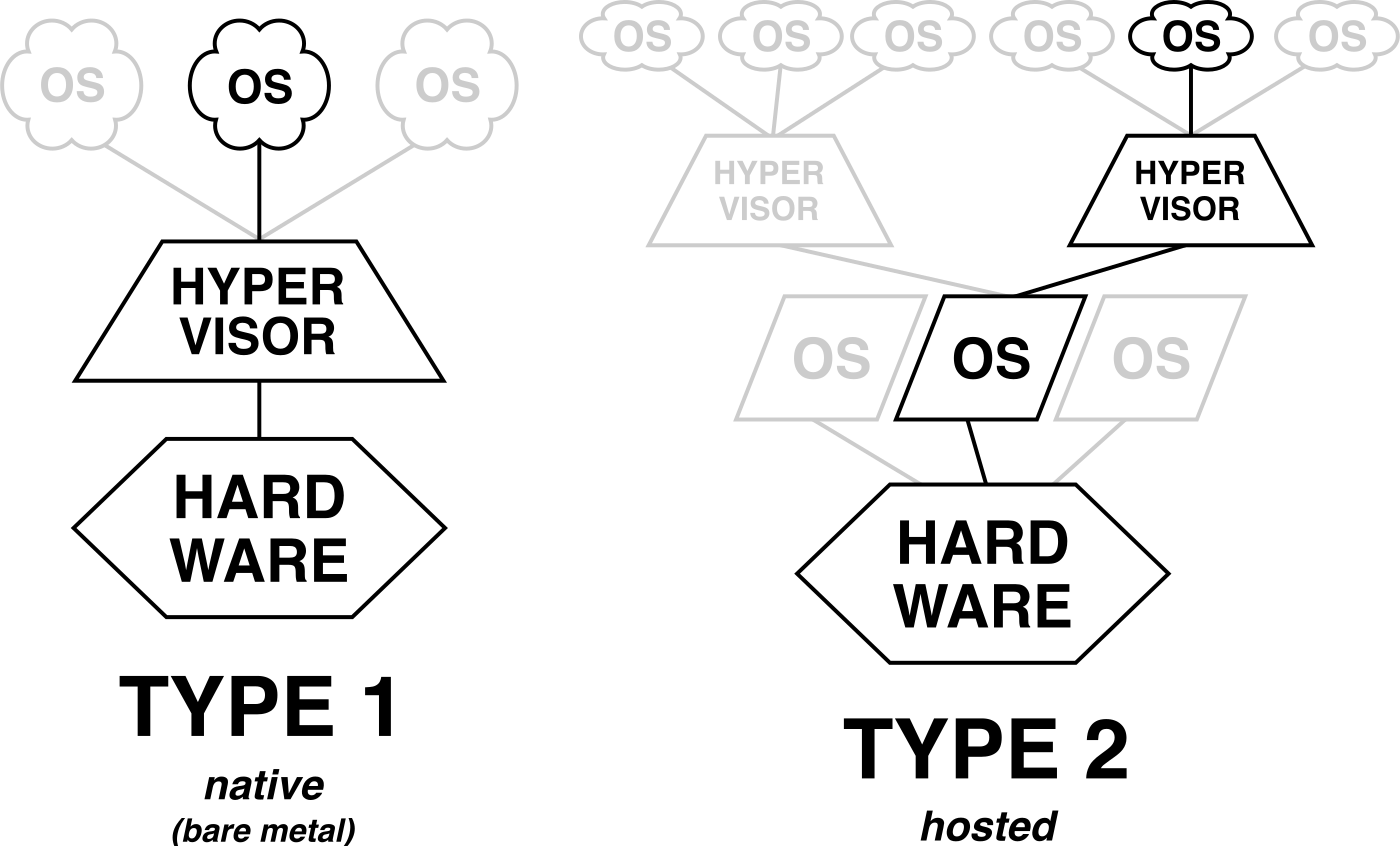

Let's fix the words we'll use. The operating system running inside the virtual machine is the guest. The real machine, together with the software that is in charge of it, is the host. The hypervisor is the part of the host that owns the hardware and decides what each guest gets to do with it.

Why not give every kernel its own real machine? Because machines are expensive. A cloud provider with ten customers' Linux kernels to run would need ten servers, mostly idle, and you couldn't run Linux next to macOS on one laptop at all. Sharing one machine is the whole point, and sharing is hard for a particular reason. Every kernel was written believing it owns the hardware. It builds page tables, the tables that translate the addresses programs use into real memory addresses (chapter 04). It switches interrupts on and off, where an interrupt is a signal from a device ("a packet arrived") that makes the CPU stop what it's doing and run the kernel's handler for it. It talks to the disk controller directly. If two kernels did these things to the same machine, each would overwrite the other's page tables and swallow the other's interrupts.

So the hypervisor has to let each kernel keep believing it owns a machine while the real machine stays under control. There are two ways to do that, and one of them is far better than the other.

2.1Simulate, or deprivilege

?Why not just simulate the CPU?

You can. A program that reads each of the guest's instructions and does in software what the CPU would have done never lets the guest touch real hardware. That's correct, and it's many times slower than running natively, because every addition the guest kernel does takes many instructions of the simulator.

The better idea is from 1974, when Gerald Popek and Robert Goldberg wrote down the conditions for doing it properly. Most of what a kernel does is ordinary: additions, loads, stores and branches. Let all of that run directly on the real CPU at full speed. Only a few instructions touch machine state that has to stay under control, like the register holding the address of the page tables or the flag that switches interrupts on and off.

A CPU already has a way to stop the wrong code from running those instructions. It has privilege levels: the kernel runs at the most privileged one and your programs run at a lower one. When a lower-level program tries a privileged instruction, the CPU refuses to run it and jumps instead to a handler the kernel set up, which is called a trap (chapter 07 shows the same mechanism at work for system calls). The hypervisor reuses this. It runs the guest kernel with less privilege than the guest thinks it has, so every one of those instructions traps, this time into the hypervisor. The hypervisor then does what the instruction would have done, but to the guest's virtual copy of the machine's state, and resumes the guest at the next instruction. Doing the instruction's work in software is called emulating it, and the whole scheme is trap-and-emulate. One trip out of the guest and back is a VM exit.

Think of a hotel. Inside the room a guest can do what they like: move the furniture, cook, sleep with the lights on. When they want something that belongs to the whole building, like the safe, the front door or an outside phone line, they call the front desk, which does it and lets them carry on. The guest kernel is the guest, the hypervisor is the front desk, and each call is an exit. Nearly all the performance questions about virtual machines come down to how often the guest calls and how long the desk takes to answer.

Here's a case where we can reason about the cost. Apple provides an interface for writing a hypervisor on a Mac, called Hypervisor.framework. Suppose we write the smallest possible VM with it, whose guest does nothing but add numbers in a loop.

2.2What a hypervisor has to promise

Popek and Goldberg's CACM paper still reads well. It calls the hypervisor a virtual machine monitor and names three properties it has to provide:

The 246 ms against 245 ms loop is the efficiency property in action. Their theorem is the part people cite. A machine can be virtualized by plain trap-and-emulate if every sensitive instruction (one that reads or changes machine state the monitor owns) is also privileged, meaning it traps when run outside the most privileged mode. Run the guest kernel deprivileged, let every sensitive instruction trap, emulate it, resume.

Notice what the three properties leave out: timing. Popek and Goldberg exempted it explicitly, and it's probably the part tenants notice first, as stolen CPU time and jittery I/O (section 9 returns to both).

The theorem has a condition, and hardware has to meet it: every sensitive instruction must trap. For one very popular architecture, that wasn't true for a long time.

3.1Seventeen instructions that did not trap

The original x86 failed the test. In 2000, John Robin and Cynthia Irvine went through the Pentium instruction set and found seventeen sensitive instructions that run in user mode without trapping. A guest kernel can't be deprivileged cleanly if some of its sensitive instructions just run and the hypervisor never hears about them.

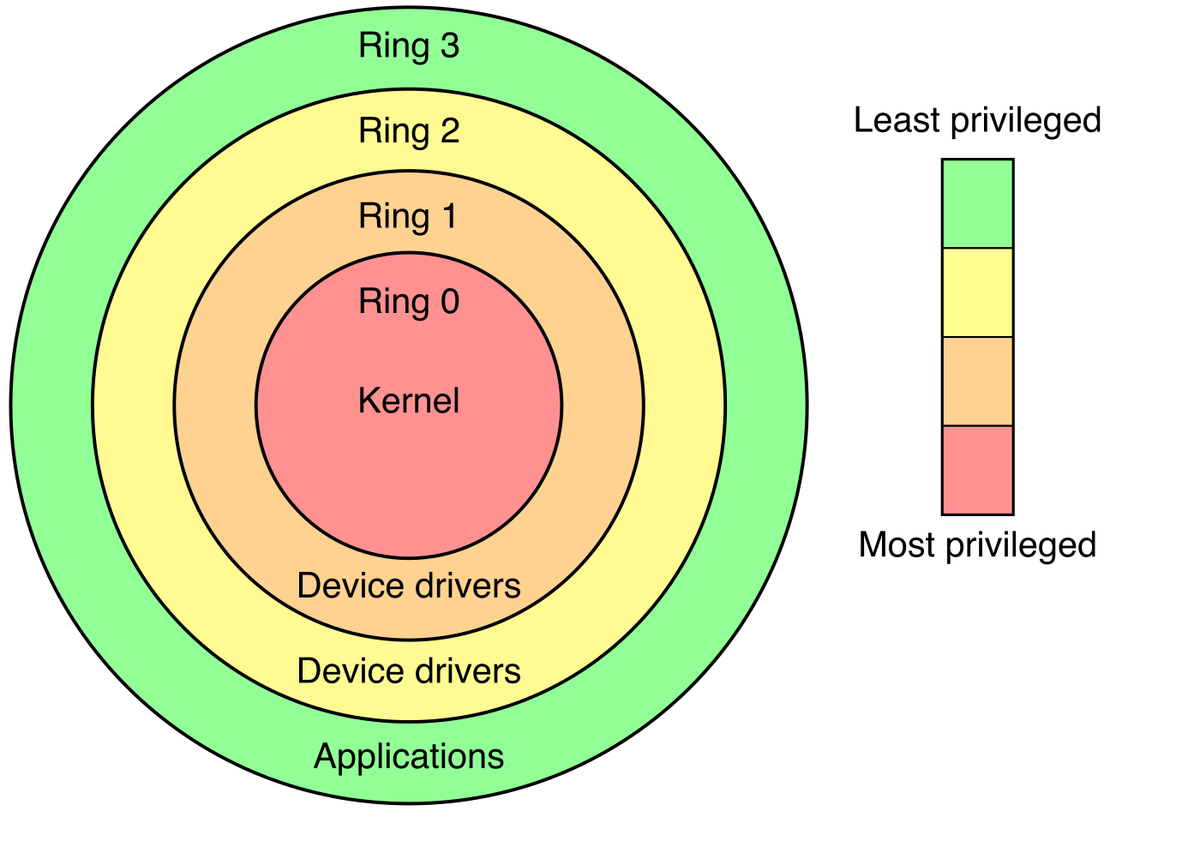

x86 numbers its privilege levels as rings 0 to 3. Kernels run in ring 0 and programs in ring 3, so a deprivileged guest kernel has to run in a less privileged ring, such as ring 3.

?Why was popf the famous one?

popf loads the CPU's flags register from the stack, and one of those flags, IF, is the switch that turns interrupts on and off. In ring 0 the instruction changes IF. Run the same guest kernel in ring 3 and popf silently ignores the IF bit, so the hypervisor never learns the guest tried to disable interrupts, and the guest believes it succeeded.

In the words of VMware's Keith Adams and Ole Agesen (ASPLOS 2006): "a deprivileged popf, like any user-mode popf, … suppresses attempts to modify IF; no trap happens."

Three workarounds followed, roughly in this order:

Hardware assist sounds like the clear winner, since the CPU does the work. It wasn't, at first.

?Why did first-generation VT-x lose to binary translation?

That's the surprise in the Adams and Agesen paper: on real workloads, it did. Their table has a VM entry costing 2,409 cycles on a 3.8 GHz Pentium 4, where a cycle is one tick of the CPU's clock, so the entry alone took about 0.6 µs.

Worse, VT-x did nothing for the MMU, the part of the CPU that translates addresses with page tables. Every guest page table write still had to be tracked in software, now with an expensive exit attached. Hardware only won once the MMU got help too, which is the subject of section 4.

3.2VMX root, non-root, and the VMCS

Intel's VT-x leaves the four rings alone and gives the CPU a second complete set of them. A hypervisor runs in VMX root mode, a guest runs in VMX non-root mode, and each mode has its own rings 0 to 3. So a guest kernel sits in non-root ring 0 and believes it owns the machine, while the CPU watches for the moments it reaches beyond it.

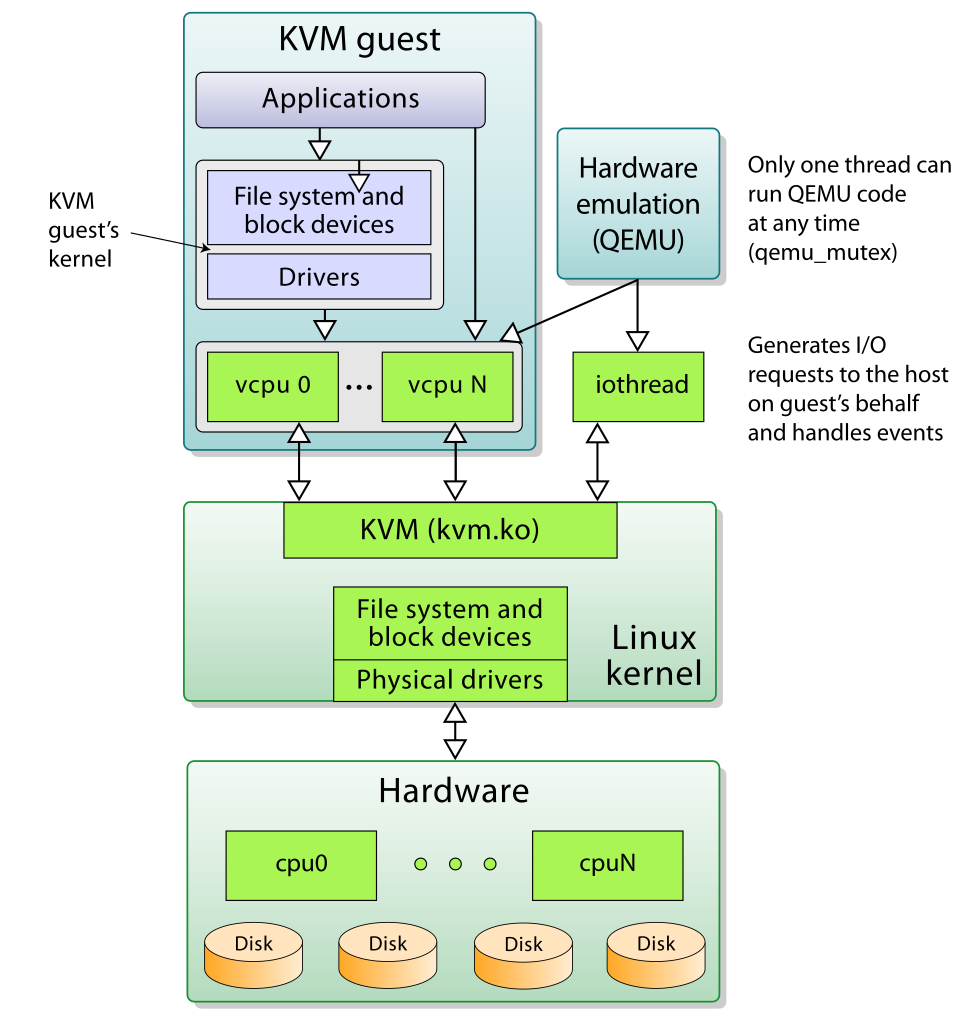

Two more names before we look at one of those moments. On Linux the hypervisor is part of the kernel itself and is called KVM (Kernel-based Virtual Machine). KVM handles the exits it can on its own and hands the rest to an ordinary program running on the host, which today is what people mean by a VMM (virtual machine monitor). Popek and Goldberg used that name for the whole hypervisor; on Linux the job is split, with KVM in the kernel and a VMM such as QEMU or Firecracker creating the VM and emulating its devices. The guest's processor is a vCPU, a virtual CPU that the host schedules like a thread.

How does the CPU know which moments to stop at? The switch between the two modes is governed by an in-memory structure for each vCPU, the VMCS (virtual machine control structure). You don't read it with ordinary loads; you use the instructions VMREAD and VMWRITE. It has four parts:

VMLAUNCH and VMRESUME enter the guest. An exit is the CPU saving the guest's state into the VMCS and jumping to the host's saved instruction address.

Now we can follow one exit on ping's own path. Devices are controlled by storing numbers into their registers, small control cells at fixed addresses. Modern devices put those registers at ordinary-looking memory addresses, which is called memory-mapped I/O (MMIO), because to the CPU each one looks like a plain store to memory. Once the guest kernel has built ping's packet it stores to the virtual network card's notify register to say "there's a packet to send". No memory sits behind that address, so the CPU can't complete the store and it exits.

Your Mac's guest runs on ARM, which section 3.3 covers, but the steps are the same there. Here they are on Intel's hardware, where the names are best known:

The table in the middle of that picture is real. KVM's exit dispatch is a plain array indexed by the exit reason:

static int (*kvm_vmx_exit_handlers[])(struct kvm_vcpu *vcpu) = {
	[EXIT_REASON_EXCEPTION_NMI]           = handle_exception_nmi,
	[EXIT_REASON_EXTERNAL_INTERRUPT]      = handle_external_interrupt,
	[EXIT_REASON_IO_INSTRUCTION]          = handle_io,      /* in/out */
	[EXIT_REASON_CR_ACCESS]               = handle_cr,
	[EXIT_REASON_CPUID]                   = kvm_emulate_cpuid,
	[EXIT_REASON_MSR_READ]                = kvm_emulate_rdmsr,
	[EXIT_REASON_MSR_WRITE]               = kvm_emulate_wrmsr,
	[EXIT_REASON_HLT]                     = kvm_emulate_halt,
	[EXIT_REASON_VMCALL]                  = kvm_emulate_hypercall,
	[EXIT_REASON_EPT_VIOLATION]	      = handle_ept_violation,
	[EXIT_REASON_EPT_MISCONFIG]           = handle_ept_misconfig, /* MMIO */
	[EXIT_REASON_PAUSE_INSTRUCTION]       = handle_pause,   /* spinning guest */
	/* ... 52 entries in all at v6.12 ... */
};

This is an excerpt, and the /* … */ comments are annotations. The list is the whole boundary between guest and host written down as a table, which matters in section 8. Two of the entries mention EPT, the hypervisor's own page table, which is the subject of the next section. For now, notice EPT_MISCONFIG, marked "MMIO": it's how KVM spots a guest's device access cheaply. MMIO pages get a deliberately invalid entry in that second table, so an access exits with a reason KVM can recognise without walking anything.

3.3ARM: a separate exception level, and VHE

The Docker VM on an Apple-silicon Mac is an ARM guest, so it's worth seeing how ARM does the same job. ARMv8 was designed with virtualization in mind. It has a dedicated exception level for the hypervisor, EL2, above the kernel's EL1 and the user programs' EL0.

A trap from the guest lands at EL2 with a syndrome register (ESR_EL2) saying what happened. The Mac test in section 6.2 reads exactly that field: exception class 0x16 for hvc (a deliberate call from the guest to the hypervisor), 0x24 for a data abort from a lower level (a memory access that failed).

KVM itself was the awkward part. Linux is a normal kernel that runs at EL1, so the original KVM on ARM had to bounce between a small stub at EL2 and the kernel for every exit.

ARMv8.1 added the Virtualization Host Extensions (VHE): set HCR_EL2.E2H and the host kernel runs directly at EL2, with its EL1 register accesses redirected to their EL2 twins. Linux gained VHE support in 2016, and KVM on ARM became what it is on x86: pretty much a kernel module.

That settles the CPU. Every sensitive instruction can now trap. The next problem is memory, where the guest believes it controls the page tables but the hypervisor can't allow that.

4.1Guest-physical isn't physical

Chapter 04 walked one 4-level page table. When a program reads an address, the CPU consults that table: four reads, one per level, to find the page's physical address. Because that is slow, the CPU keeps recent answers in a small cache called the TLB, and only when the address isn't there (a TLB miss) does it walk the table.

Now put ping inside a guest. Its buffer has a virtual address, and the guest kernel's page tables map that to what the kernel believes is physical memory, a guest-physical address. But the guest-physical address isn't real either. If it were, the guest could read any memory on the host. A second table, owned by the hypervisor, maps guest-physical to host-physical, the real thing. It's called EPT on Intel, NPT on AMD and stage-2 on ARM.

There are two ways to arrange the two tables, and the first was tried first.

Nested paging removes the exits, and it has a price that shows up on every TLB miss.

4.2The two-dimensional walk

With nested paging the hardware walks both tables. Here's the catch: every pointer in the guest's page table is a guest-physical address, so each one needs its own trip through the host's table before the CPU can read it. Follow one TLB miss for a byte of ping's buffer, with four levels in the guest's table and four in the host's:

Written as a sum, the same walk looks like this (gPA and hPA are short for guest-physical and host-physical address):

In general it's (n + 1)(m + 1) − 1 for n guest levels and m host levels, the shape Bhargava and colleagues at AMD analysed in ASPLOS 2008. Native is 4. A guest and a host each add a level and the cost grows by far more than one.

4.3Cutting the walk down

Twenty-four references would make every TLB miss in a guest painful, so how do real guests get by?

?Why doesn't every TLB miss cost 24 references?

Because hardware caches the pieces. Page-walk caches hold the upper levels of recent walks, and TLB entries carry a tag saying which guest they belong to (VPID on Intel, VMID on ARM), so one guest's entries survive while another guest runs. The full worst-case walk is the rare case.

Huge pages cut it from both ends. A huge page is a larger page, 2 MB or 1 GB in place of 4 KB, and it needs fewer levels of table to describe, so each level removed on either side shortens the walk:

With the CPU and the memory sorted out, one kind of exit is left that hardware can't make cheaper by itself: the guest talking to devices.

5.1A virtqueue, as bytes

The kernel's last step with ping's packet is to hand it to the network card, and we've seen that a single store to a card's register costs one exit. A real network card driver touches a lot of registers per packet. If the guest drove an emulated copy of such a card one register at a time, every packet would cost a pile of exits.

So modern guests use paravirtual devices, devices designed to be driven from inside a VM, and the standard one is virtio. Instead of poking registers one at a time, the guest and the host share a region of memory and pass whole batches of requests through it, exiting only to say "there's more". Rusty Russell's 2008 paper introduced it, and it's now an OASIS standard. Its unit is the virtqueue, a queue of requests in guest memory that both sides can read. In virtio's original layout, called split (a later packed layout merges the pieces), a virtqueue is three arrays.

The first array holds descriptors. A descriptor is a 16-byte entry that says where one buffer sits in guest memory and how long it is, so the device can find ping's packet without being told byte by byte:

The other two arrays are rings, arrays used as circular queues, and they carry the hand-offs. The guest offers work in one and the device reports finished work in the other:

Each side owns exactly one ring's write side, so there's no lock. What's left is telling the other side that something changed, and that's where the exits come back.

5.2The guest's side of a transmit

Here is ping's packet going out through a virtqueue, and then a second packet following it. The "device side" in the picture is the host software playing the network card. Once the guest has put a packet in the rings, it has to wake that software up with one store to the card's notify register, the same store whose exit we followed in section 3.2. That wake-up store is called a kick. Watch for the one kick that happens, and for the one that could have and doesn't:

In the code, the driver fills a descriptor, publishes its index in the available ring, bumps avail->idx, and then has to decide whether to wake the device at all:

static bool virtqueue_kick_prepare_split(struct virtqueue *_vq)
{
	...
	/* We need to expose available array entries before checking avail
	 * event. */
	virtio_mb(vq->weak_barriers);

	old = vq->split.avail_idx_shadow - vq->num_added;
	new = vq->split.avail_idx_shadow;
	vq->num_added = 0;
	...
	if (vq->event) {
		needs_kick = vring_need_event(virtio16_to_cpu(_vq->vdev,
					vring_avail_event(&vq->split.vring)),
					      new, old);
	} else {
		needs_kick = !(vq->split.vring.used->flags &
					cpu_to_virtio16(_vq->vdev,
						VRING_USED_F_NO_NOTIFY));
	}
	...
	return needs_kick;
}

?Why doesn't the guest kick the device for every packet?

Because a kick is an exit, and the device may not need one. This is the most important optimisation in virtio, and it's a few lines long. If the device is already busy draining the ring, it says so (NO_NOTIFY, or an event index further ahead), and the guest skips the kick. Under load a thousand packets can go out on one exit.

When a kick is needed, it's one 16-bit store:

bool vp_notify(struct virtqueue *vq)
{
	/* we write the queue's selector into the notification register to
	 * signal the other end */
	iowrite16(vq->index, (void __iomem *)vq->priv);
	return true;
}

That iowrite16 targets an address with no RAM behind it in the second-level table. So the store can't complete, and the CPU exits.

5.3From the store to the host, and back

The exit in the scene reaches KVM, and the interesting question is how far it has to travel before the packet is on its way. KVM can be told in advance that a store to a particular address should only signal an eventfd, a kernel counter that another thread can wait on, and should not go back to the VMM at all. That registration is an ioeventfd. The reverse is an irqfd: a thread signals it, and KVM injects an interrupt into the guest. A kernel thread called vhost-net uses both to do the network device's work for the VMM, and a tap device is the virtual network interface it hands packets to. Here's the whole transmit with vhost-net on KVM/x86:

The ioeventfd mechanism is in the KVM API docs, and the data plane is in drivers/vhost/net.c.

Without vhost, the right-hand lane moves out of the kernel. KVM still signals the eventfd and resumes the guest, but the thread waiting on that eventfd belongs to the VMM process, which reads the ring and does the device work in ordinary user code. Firecracker works this way. It registers an ioeventfd and an irqfd per queue (device_manager/mmio.rs) and does the device work in its own process.

Any other MMIO access, a config register read for instance, has no eventfd registered for it. KVM hands it all the way up to the VMM, whose vCPU thread was waiting in a call named KVM_RUN (section 6 opens it up). The call returns with exit_reason = KVM_EXIT_MMIO, and in Firecracker it lands here, the userspace mirror of KVM's table:

fn handle_kvm_exit(
    peripherals: &mut Peripherals,
    emulation_result: Result<VcpuExit, errno::Error>,
) -> Result<VcpuEmulation, VcpuError> {
    match emulation_result {
        Ok(run) => match run {
            VcpuExit::MmioRead(addr, data) => {
                if let Some(mmio_bus) = &peripherals.mmio_bus {
                    let _metric = METRICS.vcpu.exit_mmio_read_agg.record_latency_metrics();
                    mmio_bus.read(addr, data);
                    METRICS.vcpu.exit_mmio_read.inc();
                }
                Ok(VcpuEmulation::Handled)
            }
            VcpuExit::MmioWrite(addr, data) => {
                if let Some(mmio_bus) = &peripherals.mmio_bus {
                    let _metric = METRICS.vcpu.exit_mmio_write_agg.record_latency_metrics();
                    mmio_bus.write(addr, data);
                    METRICS.vcpu.exit_mmio_write.inc();
                }
                Ok(VcpuEmulation::Handled)
            }
            VcpuExit::Hlt => {
                info!("Received KVM_EXIT_HLT signal");
                Ok(VcpuEmulation::Stopped)
            }
            ...

Notice the latency metric wrapped around every MMIO exit. Firecracker records exit timing for every microVM, which is probably the cheapest observability anyone ever got.

That Rust function is the VMM's side of the exit. Underneath it, the whole conversation between a VMM and KVM takes only a handful of system calls, and we can write them out.

6.1A handful of ioctls

An ioctl is a system call that sends a device-specific command to an open file or device, and the KVM API is built from a handful of them. Josh Triplett's Using the KVM API (LWN, 2015) builds a complete VM in one short C file; its guest adds two numbers and writes the result to a serial port.

Here's the program condensed and quoted from the article. It needs /dev/kvm, which only exists on a Linux machine with KVM enabled:

kvm    = open("/dev/kvm", O_RDWR | O_CLOEXEC);
ioctl(kvm, KVM_GET_API_VERSION, NULL);             /* must return 12 */
vmfd   = ioctl(kvm, KVM_CREATE_VM, 0);             /* new EPT, no vCPUs yet */

struct kvm_userspace_memory_region region = {
    .slot = 0, .guest_phys_addr = 0x1000,
    .memory_size = 0x1000, .userspace_addr = (uint64_t)mem,
};
ioctl(vmfd, KVM_SET_USER_MEMORY_REGION, &region); /* guest RAM = our mmap */

vcpufd = ioctl(vmfd, KVM_CREATE_VCPU, 0);
run    = mmap(NULL, ioctl(kvm, KVM_GET_VCPU_MMAP_SIZE, NULL),
              PROT_READ | PROT_WRITE, MAP_SHARED, vcpufd, 0);
/* ...KVM_SET_SREGS / KVM_SET_REGS: rip = 0x1000, rax = rbx = 2 ... */

while (1) {
    ioctl(vcpufd, KVM_RUN, NULL);                  /* returns on an exit */
    switch (run->exit_reason) {
    case KVM_EXIT_HLT: return 0;
    case KVM_EXIT_IO:                              /* the guest's out to 0x3f8 */
        putchar(*(((char *)run) + run->io.data_offset));
        break;
    }
}

The loop at the bottom is the entire relationship between a VMM and the hypervisor. KVM_RUN enters the guest and returns only when the guest does something the kernel won't handle alone; the VMM looks at why, deals with it and calls KVM_RUN again.

QEMU, Firecracker and crosvm are, at the bottom, this loop. The loop makes one thing easy to ask: how long does one trip around it take?

6.2The same loop on a Mac, and what one exit costs

Hypervisor.framework has the same shape as the KVM API: hv_vm_create, hv_vm_map, hv_vcpu_create, then hv_vcpu_run in a loop. So it's easy to time an exit on a Mac, where there's no /dev/kvm.

The guest in this program is two instructions. One version runs hvc #0, a deliberate call from the guest to the hypervisor (the ARM instruction that plays the part of a syscall one level up), followed by a branch back to the start. The other stores to an unmapped guest-physical address, which is the same event as ping's store to the notify register, followed by a branch back. On the host side the loop calls hv_vcpu_run 200,000 times, reads the exception class out of the syndrome register to see why the guest stopped, and for the store case "emulates" it by advancing the program counter (PC, the address of the next instruction) past it. The total time divided by 200,000 gives the cost of one round trip. It's a bit of a toy, and that's the point.

// Build: clang++ -std=c++20 -O2 hvexit.cpp -framework Hypervisor -o hvexit
//        codesign -s - --entitlements ent.plist -f hvexit   (com.apple.security.hypervisor)
const uint32_t hvc_loop[]  = {0xd4000002, 0x17ffffff};  // hvc #0      ; b .-4
const uint32_t mmio_loop[] = {0xf9000020, 0x17ffffff};  // str x0,[x1] ; b .-4

hv_vm_create(nullptr);
hv_vm_map(mem, 0x10000, 16384, HV_MEMORY_READ | HV_MEMORY_WRITE | HV_MEMORY_EXEC);
hv_vcpu_create(&vcpu, &exit, nullptr);
hv_vcpu_set_reg(vcpu, HV_REG_PC, 0x10000);
hv_vcpu_set_reg(vcpu, HV_REG_CPSR, 0x3c5);      // EL1h, interrupts masked
hv_vcpu_set_reg(vcpu, HV_REG_X1, 0x100000);     // nothing mapped here

for (int i = 0; i < 200000; i++) {
    hv_vcpu_run(vcpu);                          // enter guest, return on exit
    uint64_t ec = exit->exception.syndrome >> 26;   // 0x16 hvc, 0x24 data abort
    if (advance_pc) {                           // "emulate" the store: skip it
        uint64_t pc; hv_vcpu_get_reg(vcpu, HV_REG_PC, &pc);
        hv_vcpu_set_reg(vcpu, HV_REG_PC, pc + 4);
    }
}

hypercall (hvc) round trip:      661 ns
MMIO store round trip:           733 ns
hypercall (hvc) round trip:      656 ns
MMIO store round trip:           727 ns
hypercall (hvc) round trip:      644 ns
MMIO store round trip:           749 ns

Across six runs the hvc round trip ranged from 644 to 706 ns and the MMIO store from 727 to 803 ns. The store costs about 80 ns more, probably because of the two extra register calls to move the PC. Both are full round trips to userspace, the equivalent of KVM_RUN returning to the VMM, and not an exit that the kernel absorbs by itself. So a store like ping's kick, when a userspace VMM has to handle it, costs roughly 0.7 µs on Hypervisor.framework.

(To run this yourself you must sign the binary with the hypervisor entitlement; the Build this section at the end says what happens if you don't.)

?Why does one exit cost about two syscalls?

About 670 ns is roughly 2,700 cycles, if the billion-iteration loop from section 2 ran one iteration per clock (245 ms implies about 4.1 GHz). That's almost exactly twice a write() syscall on an Apple-silicon Mac, which chapter 07 puts at 348 ns.

That seems about right if you count crossings. A syscall crosses into the kernel once and back. An exit lands in the kernel, returns up to the VMM process, and then both of those steps run again in reverse when the VMM re-enters the guest: two trips through the kernel where a syscall makes one.

We now know what one exit costs. The next question is which of the things a guest does exit and which don't, because a guest that exits rarely barely notices it's in a VM.

7.1The cost of touching a device

Here are the numbers from the Docker VM and from the minimal VM of section 6.2, side by side. Docker Desktop builds its VM with Apple's Virtualization.framework, a higher-level layer over Hypervisor.framework that comes with ready-made virtio devices. The Docker guest is a Linux kernel with 4 KB pages and transparent huge pages (THP, which lets the kernel back memory with 2 MB pages automatically) set to always; the Mac's own pages are 16 KB. The guest figures depend on the VM's history, a VM that had been up for two days under host memory pressure versus a freshly restarted one, and both are listed where they differ.

Look at the register read. It's a plain 16-bit load of num_queues from the configuration registers of the virtio random-number device (harmless to read), through an mmap of /sys/bus/pci/devices/0000:00:0e.0/resource0, the file through which Linux lets a program map a PCI device's registers into its own memory. A load from ordinary RAM in the same loop took 0.3 ns. This one took a microsecond, about three thousand times slower, because each load is a fault on the hypervisor's own page table (the stage-2 table of section 4) that Apple's device model handles in a host process. It's slower than the bare hvc too, which is roughly what you'd expect from a real VMM doing real decoding.

clock_gettime is the counterexample. On arm64 the guest reads the virtual counter CNTVCT_EL0 directly, with no exit, so it costs the same in a VM as out of one. So some things a guest does never reach the hypervisor at all, and the next benchmark shows how badly that can mislead us.

7.2A syscall inside the guest is not a VM exit

Say we run the same small benchmark twice, once natively on macOS and once inside the Linux guest. It times clock_gettime, times a one-byte write() to /dev/null, and times the first touch of each page of 512 MB of fresh memory against the second touch, which hits the same pages again.

for (long i = 0; i < 5'000'000; i++) clock_gettime(CLOCK_MONOTONIC, &ts);
for (long i = 0; i < 1'000'000; i++) write(fd_devnull, &c, 1);

// first touch vs second touch: 512 MB anonymous, one write per page
char* p = (char*)mmap(nullptr, 512ul << 20, PROT_READ | PROT_WRITE,
                      MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);
for (size_t off = 0; off < len; off += pagesize) p[off] = 1;    // faults
for (size_t off = 0; off < len; off += pagesize) p[off] += 1;   // no faults

The guest's write() is three times faster than the Mac's. It would be easy to read that as virtualization making things faster, which can't be right, since a VM can only add work.

?Is the guest's write() three times faster than the host's?

It is, and virtualization has nothing to do with it. A syscall inside a guest goes from guest user mode to guest kernel mode without the hypervisor knowing, so you're comparing Linux 6.10's syscall path against XNU's, the kernel inside macOS. Adams and Agesen saw the same thing in 2006: under VT-x, "system calls execute without VMM intervention".

Fault numbers hide the same trap. With THP on, the guest takes one fault per 2 MB (about 23 µs, spread over 512 small pages), so it looks eight times cheaper per byte. None of that is about the hypervisor's second table: the fresh VM's memory was presumably already backed by the host. Only the old VM's runs in section 9.2 look like stage-2 costs.

7.3One ping through virtio-net

Now we can time the thing we've been following. Run ping from inside a container to Docker Desktop's host-side address, 192.168.65.254. The packet crosses the virtio-net queue in both directions: out through the container's virtual interface and the VM's bridge and address translation, then a kick, then the host's network stack, and then an injected interrupt on the way back. Pinging the guest's own loopback address never leaves the guest kernel, so it shows what the same program costs with no exits at all.

A word on the columns. Latency varies from ping to ping, so we report the median (p50, half the pings were faster) and the p99, the time that 99 of every 100 pings beat. Three runs of 500 pings each:

That's about 25× at the median, and the tail is where the shared machine shows: p99 moved by 26× between runs while p50 barely changed.

A few microseconds of that are exits. A likely explanation for most of the rest is that the packet is handled by a userspace network stack in a Mac process (Docker's own logs call it com.docker.backend.gvisor), which is exactly the hop vhost exists to remove. Nobody has timed the exact split, so treat this as the probable cause.

7.4What kicks add up to

The ping shows one packet. A busy guest sends many, so let's put the kick cost from section 6.2 next to the suppression from section 5.2. Say a guest sends 100,000 packets a second, a plausible load for a busy network service. For the price of one kick, take the 0.73 µs that an MMIO store round trip cost on the Mac in section 6.2. A KVM host's figure will differ, but it's the same order of magnitude. If the driver kicked for every packet, the exits alone would eat several percent of a CPU. Under load the device is usually busy draining the ring, and a thousand packets can share one kick.

Cost in a VM follows the number of exits, so the first fix for slow I/O is to make the guest exit less, and a faster handler comes second. Batching (virtio) and suppression (NO_NOTIFY) cut the count, and vhost shortens the trip.

7.5Taking devices off the exit path

Batching and suppression reduce the number of exits, but the packet's bytes still go through host software. Two designs avoid even that.

The first is SR-IOV: a network card exposes several virtual functions, small slices of itself that each look like a complete card. The IOMMU, a chip that does for devices what the MMU does for the CPU, maps one slice directly into a guest. The guest's driver then talks to real hardware with no hypervisor on the data path. You lose easy live migration, since a guest holding a slice of a physical card can't just move to another host.

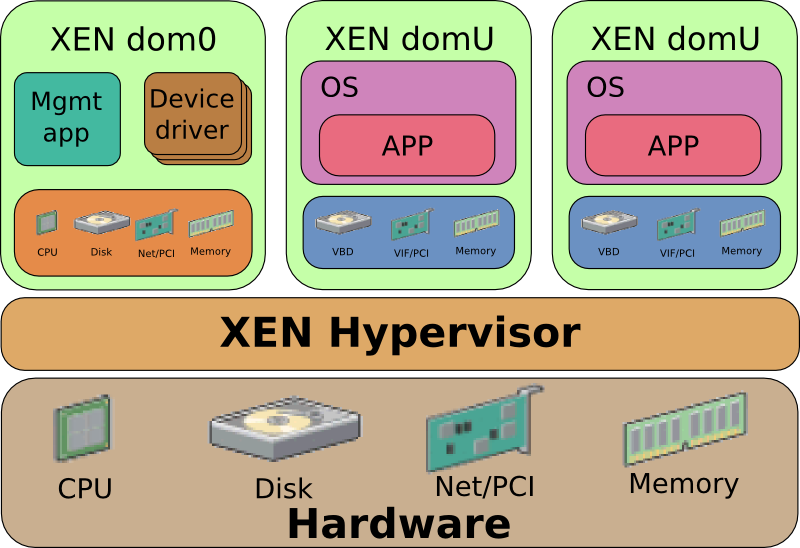

The second is AWS's. Starting with C5 in 2017, AWS removed Xen's dom0 (Xen was the hypervisor AWS used, and dom0 was a privileged helper VM that ran the device emulation for every guest) and moved network, EBS (AWS's network-attached disks) and instance storage onto dedicated Nitro cards, leaving a minimal KVM-based hypervisor. Brendan Gregg measured its overhead as "miniscule, often less than 1% (it's hard to measure)".

So far we've counted time. The other thing the list of exits decides is safety, because everything on that list is code the guest can reach.

8.1Where the boundary sits, compared with a container

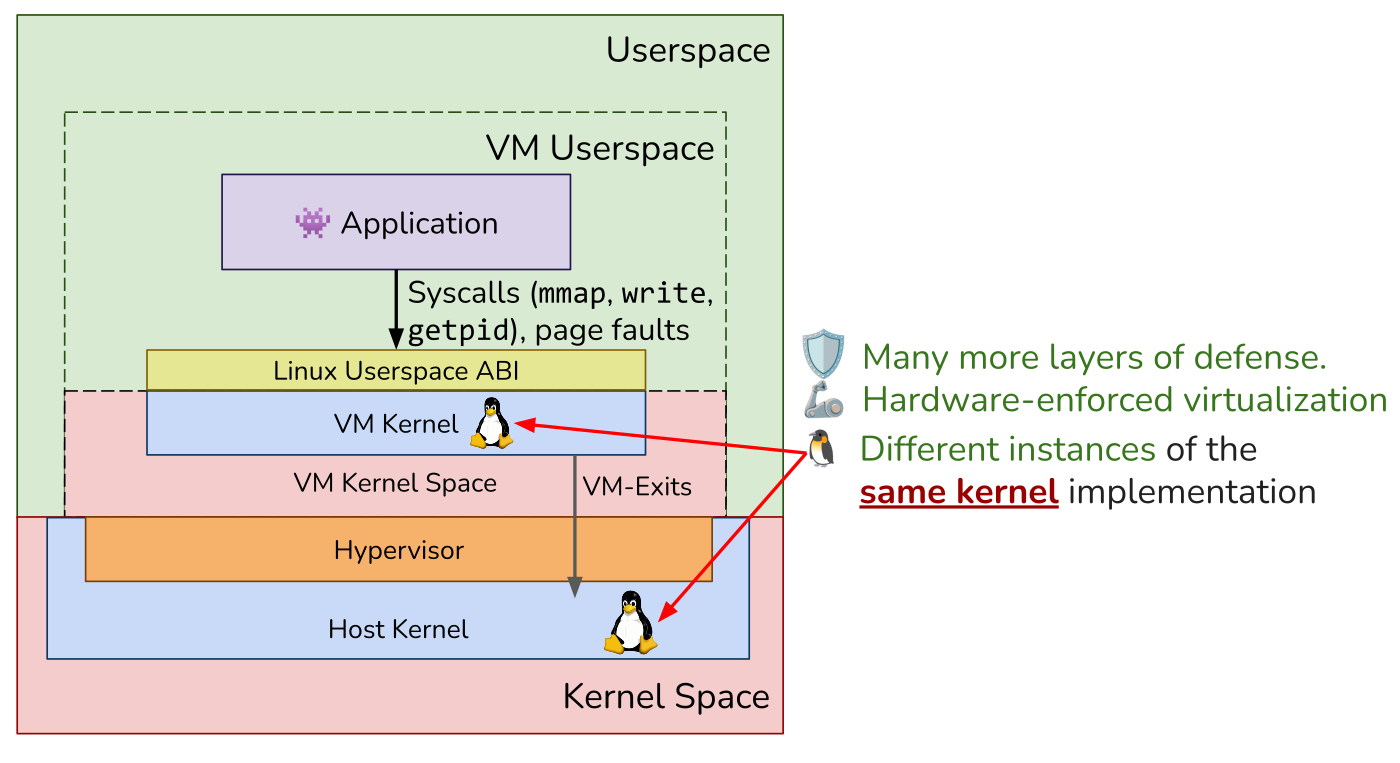

Containers and VMs both claim to isolate a workload, and they draw the line in very different places. Chapter 11 has the container side: a process with namespaces (which give it its own view of things like process IDs and network interfaces) and cgroups (which cap the CPU and memory it can use), talking to the same kernel as its neighbours. A VM's guest talks to virtual hardware instead.

The fourth row is the whole argument for VMs in multi-tenant systems. A container's attack surface, the code an attacker's program can reach and try to break, is the Linux syscall table plus everything behind it: filesystems, networking, the page cache. A VM's attack surface is the set of things that cause an exit and whatever code handles them. That's the table of section 3.2 again, and the device emulators behind the exits.

8.2VENOM: the floppy drive nobody had

On 13 May 2015 Jason Geffner at CrowdStrike disclosed VENOM, CVE-2015-3456, a buffer overflow in QEMU's emulated floppy disk controller. A guest with enough privilege to talk to the controller's I/O ports could overflow a buffer in the host's QEMU process and, per Red Hat's advisory, potentially run code there. That code had been in QEMU since 2004, and it was reachable on KVM and Xen setups using QEMU's device model.

?Why was a floppy controller reachable at all?

Nobody uses a floppy drive, and that's the point. It was reachable because it was emulated, and emulation is code that parses attacker-controlled input on every exit.

If the lesson is that every emulated device is attack surface, the fix is to emulate fewer of them.

8.3A smaller VMM

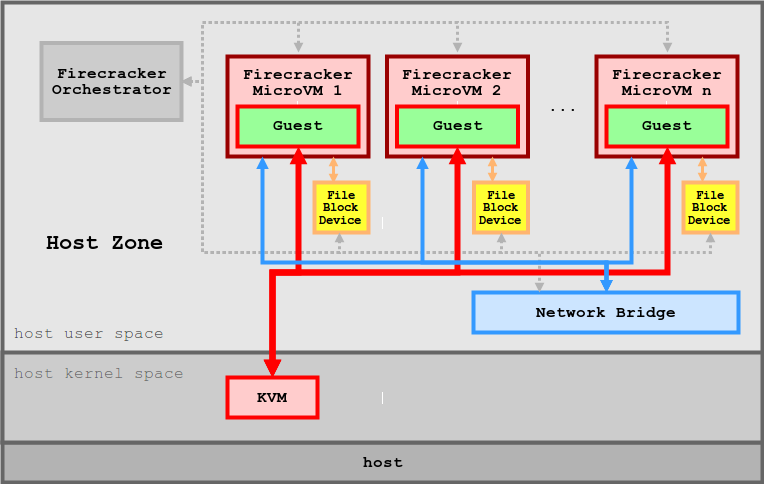

Firecracker is a VMM built on that idea, and its paper names the result. A microVM is a virtual machine stripped to the few devices a workload needs, so it boots fast and has little code to attack:

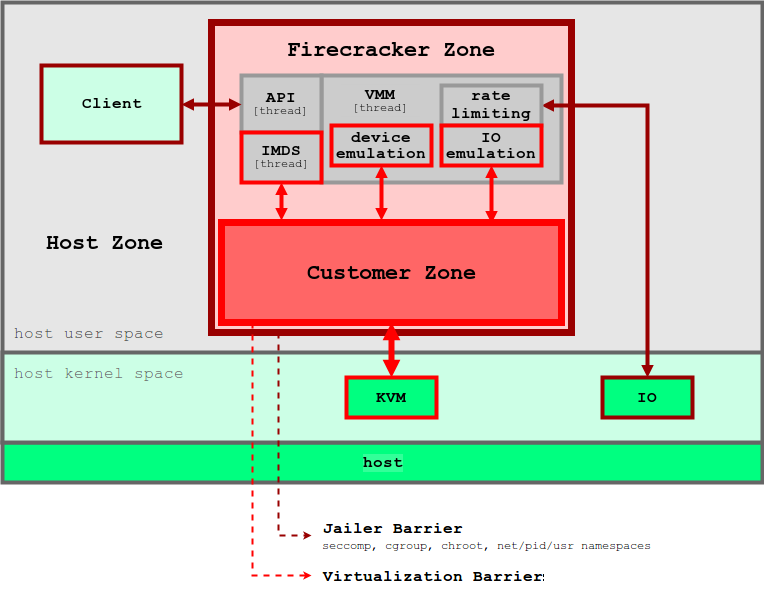

Fewer devices is fewer exits, and fewer exits is fewer places for the next VENOM. Firecracker also fences itself in: its jailer allows the VMM 24 syscalls and 30 ioctls.

It's VM isolation at container density, and Amazon uses it that way. Lambda used to run each customer's functions in containers inside that customer's own VM. Firecracker replaced that, and per the NSDI paper it "powers millions of workloads and trillions of requests per month". When AWS released Firecracker in 2018, it described it as the technology under both Lambda and Fargate.

8.4Firecracker's numbers

A container starts in milliseconds, since it's a fork and some setup, and adds almost no memory. A microVM has to boot a kernel, so the interesting question is how close it gets. Here are the numbers from the NSDI 2020 paper (Agache et al.; the paper's tests ran on EC2 m5d.metal with a Linux 4.14 guest):

Two terms in the table: iperf3 is a network throughput benchmark (RX is the receiving direction), and QD1 means one request outstanding at a time, so the figure is pure latency. The first three rows are what buy density. The last two are the honest part: the paper says outright that virtio "will not yield the near-bare-metal performance offered by PCI pass-through".

8.5Other ways to draw the line

Two more projects give a container a boundary that isn't the host kernel, in different ways.

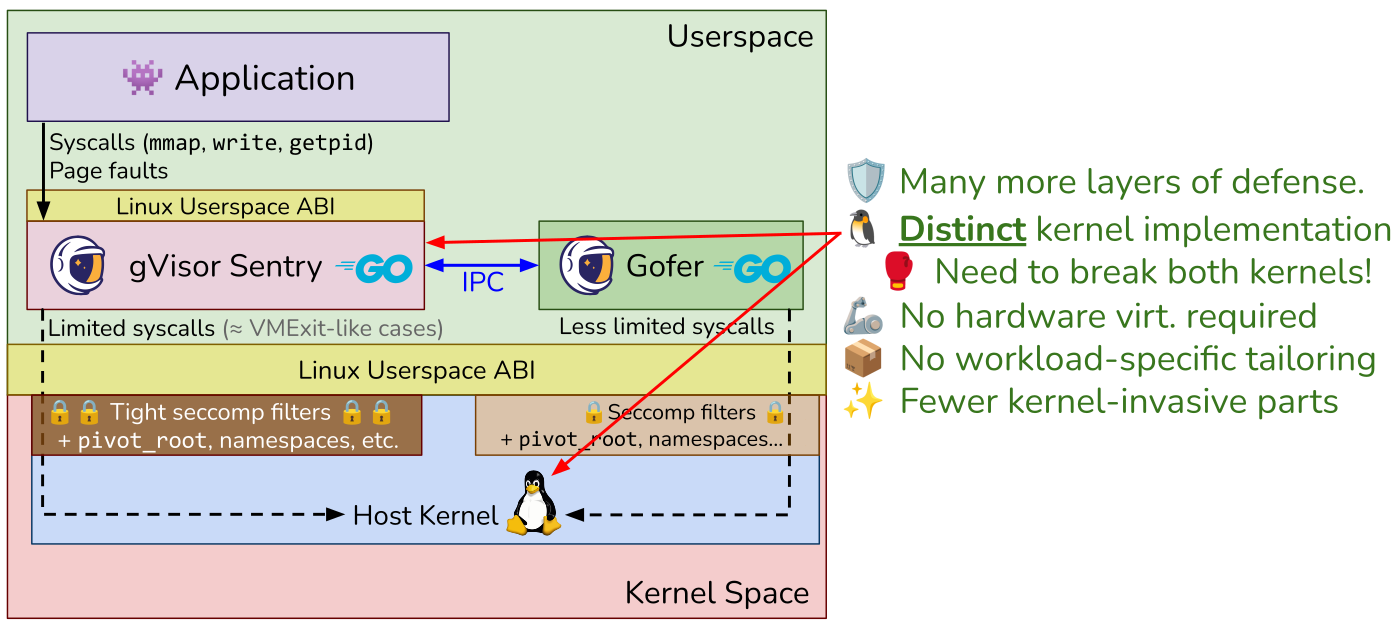

gVisor shrinks the attack surface by running a small kernel in userspace between the container and the host's, and Kata does it with a real VM. Either way many tenants now share one host, and that sharing brings its own problems.

9.1Steal time, and when %st lies

Density means many guests on one set of physical CPUs. When the host runs something else on the physical CPU your vCPU was using, your guest's clock keeps advancing and its work doesn't. The guest can't see this unless the hypervisor tells it. KVM tells a cooperating guest how long it was descheduled through a shared page (MSR_KVM_STEAL_TIME on x86, arm64's paravirtual-time interface, SMCCC PV time), and Linux reports it as steal: the st column in top, the eighth number on the cpu line of /proc/stat.

A rising %st is the one signal inside a guest that says "your neighbour is busy". Firecracker's rate limiters exist partly for "preventing a small number of busy MicroVMs on a server from affecting the performance of other MicroVMs", in the paper's words.

Here's the catch. In Docker Desktop's Linux guest, steal stayed at zero even after two days up:

$ grep '^cpu ' /proc/stat        # 8th number is steal
cpu  36035 0 20977 27010020 998 0 13880 0 0 0
$ dmesg | grep -c arm-pv
0

Linux prints arm-pv: using stolen time PV at boot (arch/arm64/kernel/paravirt.c) when the hypervisor offers stolen-time accounting. This guest never did.

9.2Two kernels managing the same memory

CPU time is shared by scheduling, and memory is shared by both sides making decisions about it at once. A guest kernel thinks its free memory is free. Meanwhile the host sees a process with gigabytes of anonymous memory (memory with no file behind it) that it can reclaim, compress or swap. Neither can see the other's decisions, and that produced the strangest numbers in this chapter.

Timing first-touch faults over 512 MB inside Docker's VM (the benchmark of section 7.2), the results depended on the VM's history:

Ten to twenty times apart on the old VM, and no gap at all on the fresh one.

A likely explanation is host-side reclaim. The macOS compressor may have squeezed pages the guest considered free, so each "fresh" guest frame cost a host fault and a decompression. That isn't proven. Host faults on the VM process moved by roughly the right amount on some runs and not on others, and a dozen other containers were sharing that VM. Settling it needs one VM with nothing else in it, and the host's fault count on the VM process sampled before and after each pass.

Virtio has a device meant to close this gap. A balloon driver in the guest lets the host ask for memory back, and one of its optional features, free-page reporting, lets the guest tell the host which pages it isn't using so the host can drop them instead of compressing them. This guest's balloon doesn't negotiate that feature: bit 5 is clear in /sys/bus/virtio/devices/virtio11/features.

9.3Nested virtualization

Running a hypervisor inside a VM (CI runners, Kata on a cloud VM) multiplies every exit. A guest hypervisor's VMRESUME is itself a sensitive instruction that the real hypervisor must emulate, so one nested exit is several.

We've now seen what a guest costs and what it can reach. What's left is how to find these things on a real host.

10.1Where am I, and what can I see

Inside a guest, find out what you're running on before you trust any number:

# What am I running on? (section 1)
systemd-detect-virt                 # kvm, amazon, microsoft, none...
lscpu | grep -i hypervisor          # x86: "Hypervisor vendor: KVM"
ls -l /dev/kvm                      # can *this* machine run VMs? (section 6)

# Does my hypervisor report stolen time? (section 9.1)
grep -E '^cpu ' /proc/stat          # 8th field is steal, in USER_HZ ticks
dmesg | grep -i -E 'arm-pv|kvm-clock|steal'   # is steal even reported?

# Where do the device interrupts land? (section 5)
grep virtio /proc/interrupts        # which CPU takes the device interrupts

The last one turned up something in Docker's VM: all twelve virtio devices use level-triggered INTx, the original PCI interrupt lines, which can't be spread across CPUs the way the newer message-based interrupts (MSI-X) can, and every interrupt landed on CPU 0. On a busy network guest that's a hot CPU you'd want to find early.

On the host, the exit counters are the tool. These commands run on a Linux machine that is itself running KVM guests:

# Which exits dominate, and how long do they take? (sections 3 and 5)
perf kvm stat live                  # exits by reason, with time spent in each
perf kvm stat record -p $QEMU_PID   # then: perf kvm stat report
bpftrace -e 'tracepoint:kvm:kvm_exit { @[args->exit_reason] = count(); }'
cat /sys/kernel/debug/kvm/*/exits   # per-VM exit counters (debugfs)

10.2Rules that hold up

When a workload is slower in a VM than on metal, look at exits before you look at anything else.

1. Count exits by reason first. The reason says which part of the chapter you're in: a device, memory, or a spinning guest.
2. Put I/O on virtio, then vhost. An emulated copy of a real device, such as Intel's e1000 network card or an old IDE disk controller, exits per register, while virtio exits per batch and vhost keeps that exit in the kernel.
3. Time something that exits when you want the hypervisor's cost. Syscalls and page faults in a guest don't exit.
4. Check that steal exists before you trust %st. A zero can mean nobody is counting.
5. Use huge pages on both sides for random access over large memory. They cut the nested walk from 24 references to 11.
6. Reduce CPU overcommit when PAUSE_INSTRUCTION exits climb. A guest is spinning on a lock whose holder lost its CPU.
7. Give a guest the devices it needs and no others. Every device model is code reachable from the guest.

10.3What you give up

10.4Symptom, cause, fix
