Designing Stripe

1.1What it has to do

Stripe does many things, but the part that moves money for a shop like Inkwell comes down to a short list:

1. Accept a payment: take Maya's card details and ask her bank whether she can pay $20.
2. Collect the money: once the bank agrees, take the money, now or a few days later.
3. Tell the shop what happened, including things that happen later, such as a refund or a dispute.
4. Pay the shop out to its own bank account, minus Stripe's fee.
5. Keep the books: be able to say, for every cent, where it came from and where it went.

And the qualities it needs while doing that:

• Never charge twice: whatever the network does, one tap on Pay takes the money once.
• Never lose money: a payment that succeeded must be recorded, paid out and accounted for, even if a server crashes in the middle.
• Available: when Stripe is down, its customers can't sell anything, so the API has to stay up through failures and traffic spikes.
• Auditable: banks, regulators and the shops themselves need to check the numbers, years later.

This list differs from the Uber case study in an important way. Uber could afford to be approximate about most of its data: a driver's location four seconds old was fine, and a lost one was replaced by the next. Here almost nothing can be approximate. A payment either happened or it didn't, and the system has to know which, every time.

1.2How big is it?

Stripe's own reports give the scale. In its annual letter of February 2026, Stripe said businesses on its platform processed $1.9 trillion in 2025, up 34% from 2024 and roughly 1.6% of global GDP, for more than 5 million businesses. Over the four days from Black Friday to Cyber Monday 2025, they processed more than 578 million transactions worth more than $40 billion, with a peak of more than 152,000 transactions a minute, and Stripe reported its API's availability over that weekend as above 99.9999%.

"Six nines" means fewer than one failed request in a million. For scale, five nines (99.999%), the figure Stripe gave for 2023, allows roughly five minutes of downtime in a year.

2.1Five parties and one card

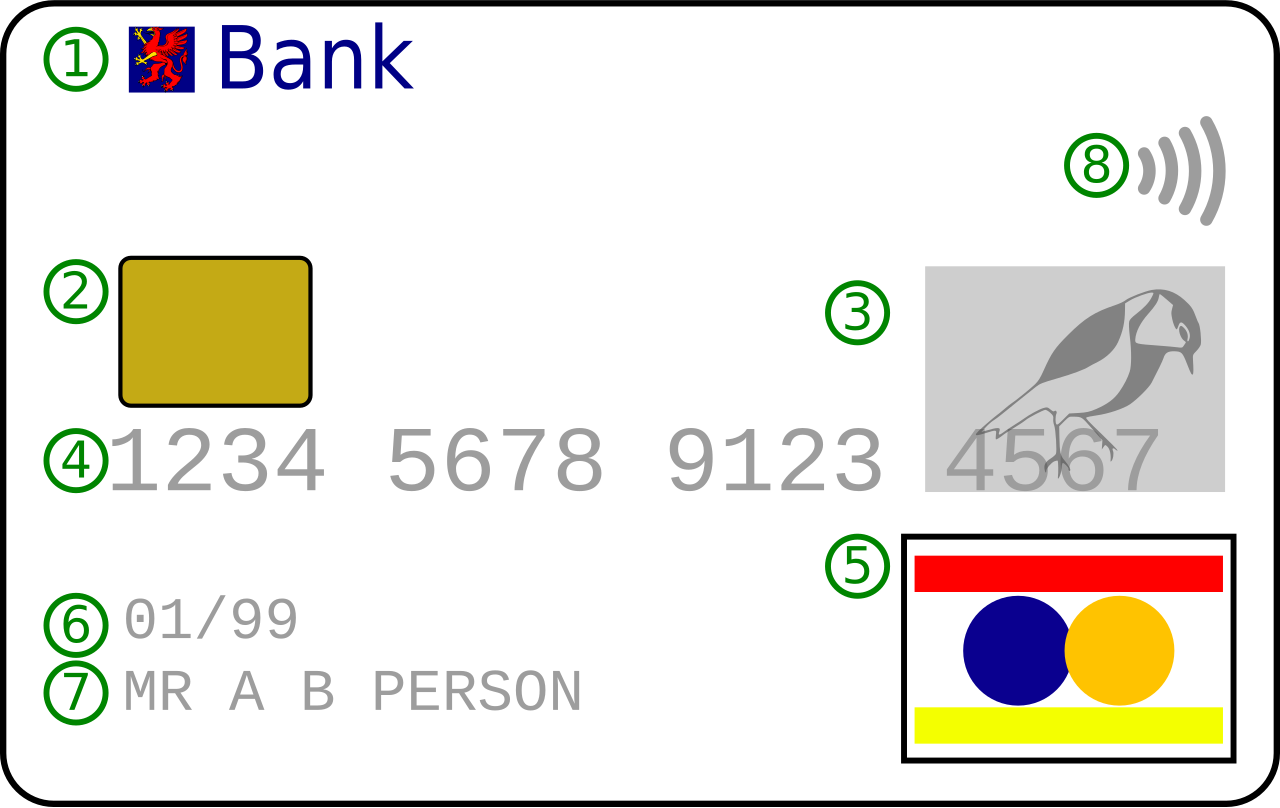

Before designing anything, we need to know what "charging a card" means, because Stripe can't move money out of Maya's bank by itself. A card payment involves five parties, and each has a name worth learning once:

• Maya, the cardholder, who owns the card.
• Inkwell, the merchant, who sells the print.
• Maya's bank, the issuer, which issued her card and holds her money or her credit line. It's the only party that can say yes or no to spending it.
• The acquirer, the bank or processor that works for the merchant: it sends the merchant's payments into the card system and receives the money on the merchant's behalf. For Inkwell, Stripe plays this role, working with acquiring banks.
• The card network, Visa or Mastercard for example, which connects thousands of acquirers to thousands of issuers, routes messages between them and settles the money they owe each other.

The network is the switchboard in the middle; Visa's fact sheets in 2017 and 2019 gave VisaNet's capacity as more than 65,000 transaction messages a second. When Inkwell calls Stripe, Stripe's request becomes a message travelling from acquirer to network to issuer and back.

2.2Ask first, take later, settle in days

What surprises most programmers is that a card payment isn't one step. It's several, spread over days:

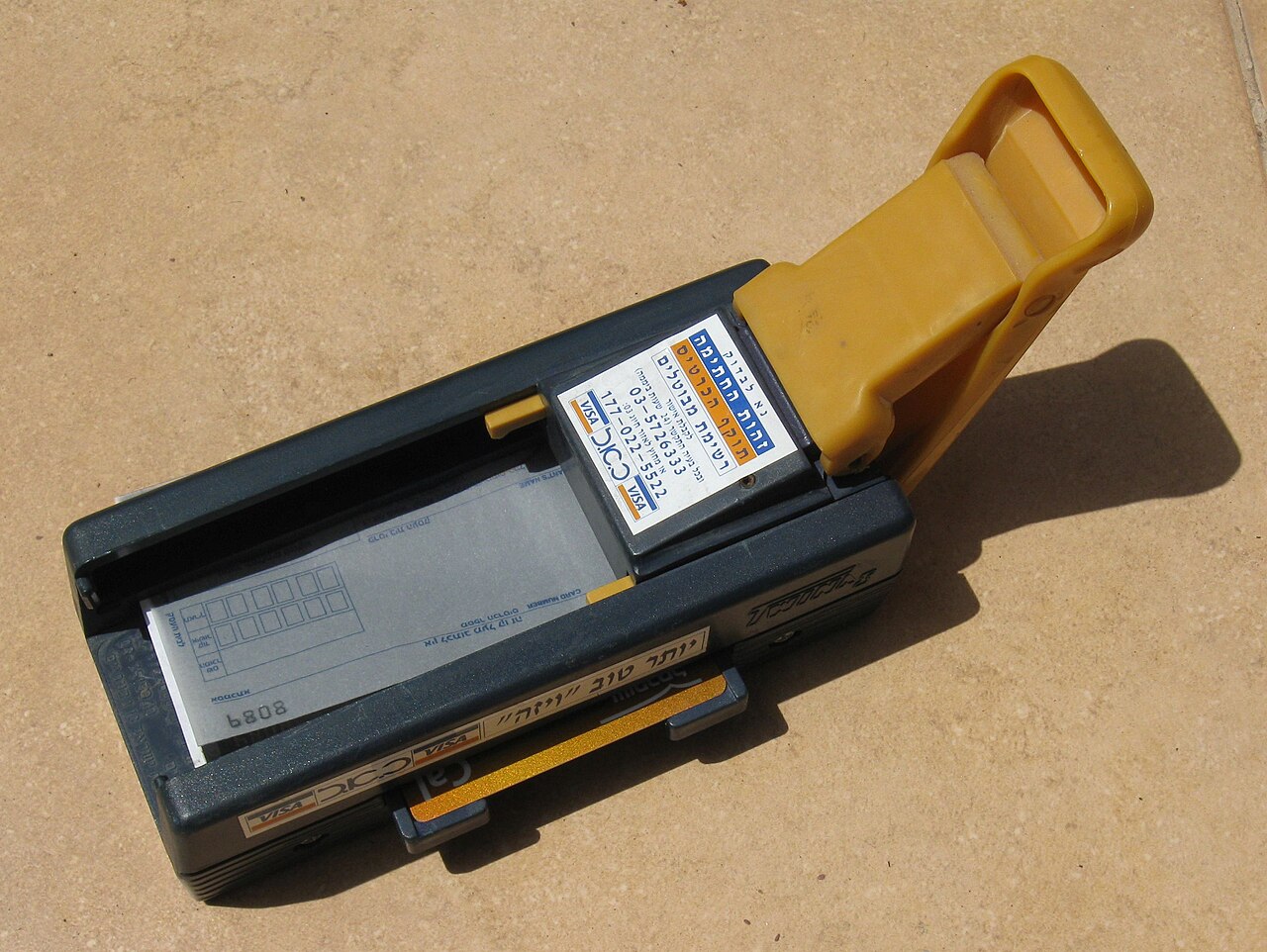

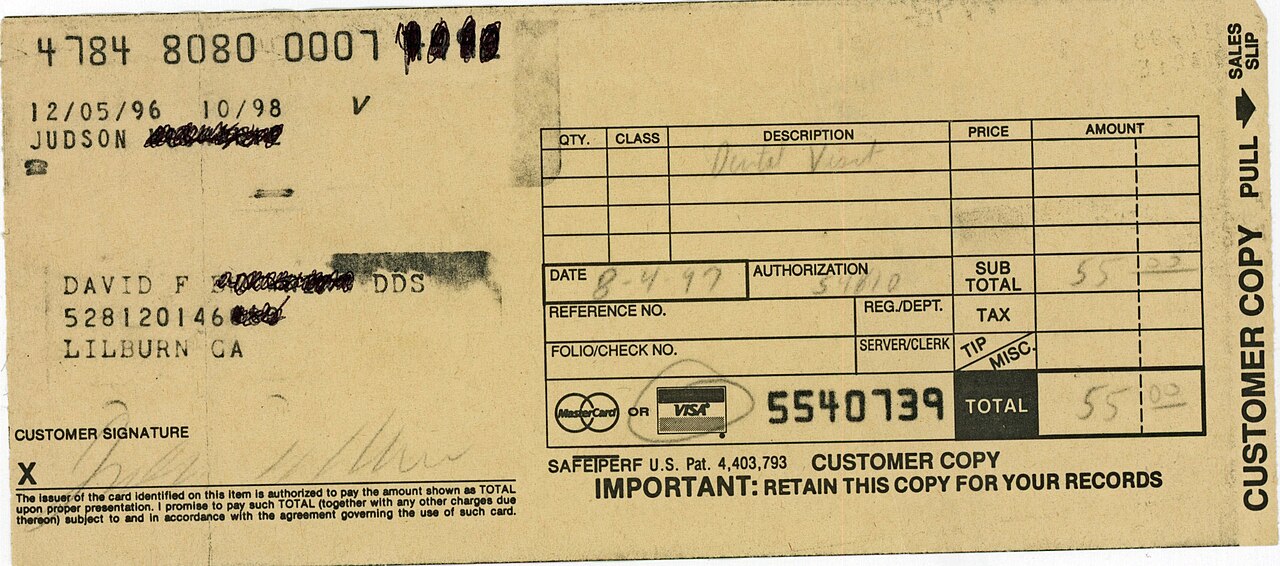

Authorisation used to be visible on paper. Before card terminals were online, a shop pressed the card's raised digits onto a carbon slip with a hand-operated imprinter, phoned the bank for large amounts, and wrote down the approval code it was given. The slips were collected and sent in later to get paid, which is capture and clearing done by post.

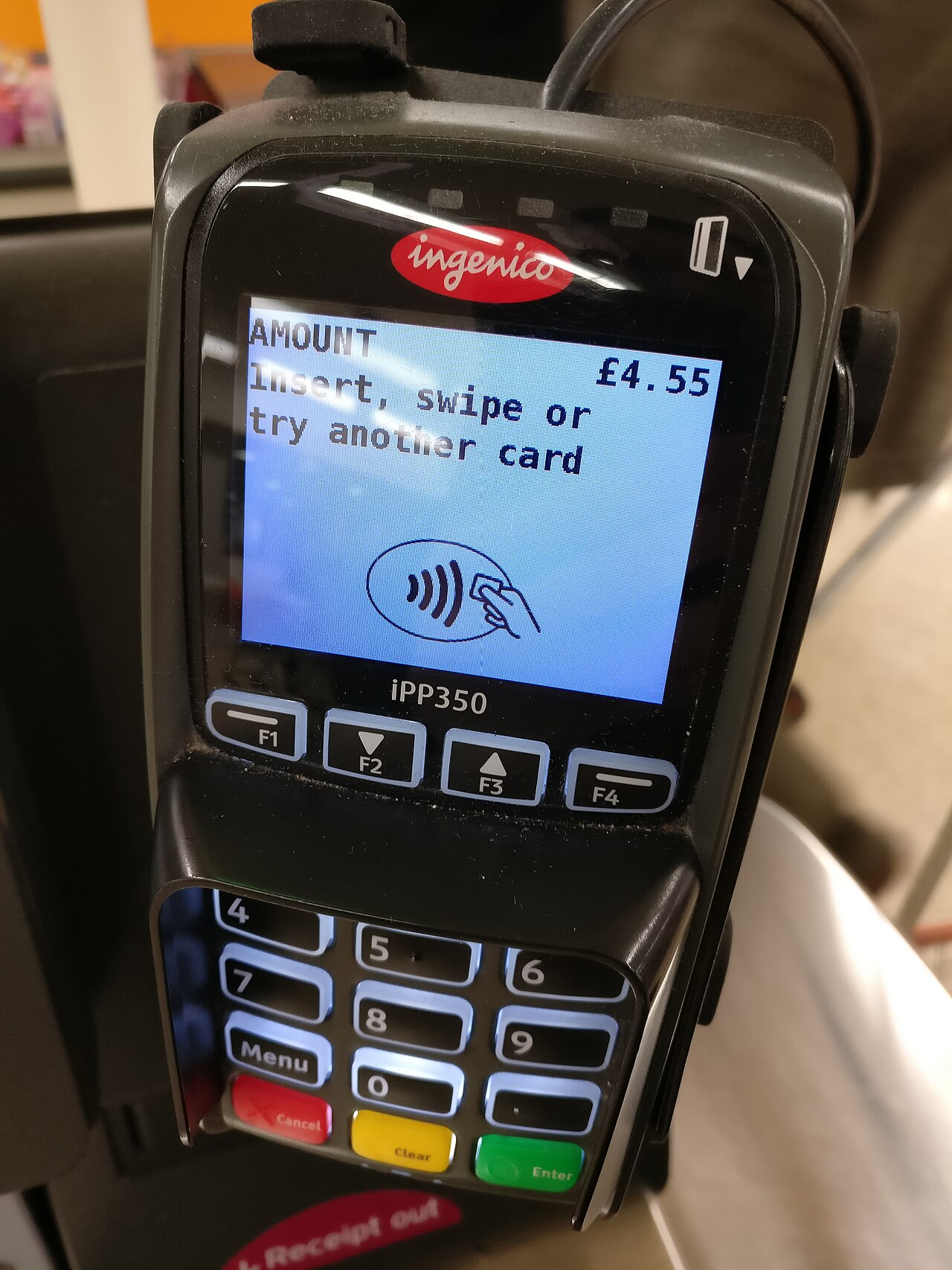

Today the steps are the same, done by messages in milliseconds instead of phone calls and couriers. So "the payment succeeded" can mean several different things: the issuer said yes (authorised), the merchant asked for the money (captured), the banks exchanged it (settled), or the merchant received it (paid out). An authorisation is also a promise with an expiry date. Stripe's documentation in 2026 says an authorisation for an online card payment usually holds for 7 days, after which the hold is released and the payment is cancelled if it hasn't been captured.

3.1The obvious design

Let's design the simplest thing that could work. Inkwell's server sends Stripe an HTTP request, POST /v1/charges with an amount and Maya's card. Stripe's API server sends an authorisation and capture to the card network, waits for the answer, writes a row to a charges table, and replies "succeeded" or "declined". Inkwell shows Maya a receipt.

On a perfect network this design is fine, and in 2011 Stripe's first API looked much like it: a few lines of curl created a Charge, and the reply said whether it worked. Trouble hides in the phrase "when every message arrives".

3.2Three ways the tunnel can strike

Go back to Maya's train, but move the tunnel to the link between Inkwell's server and Stripe, which can drop out just like a phone signal (a restarted load balancer, a full network queue, a timeout). Brandur Leach, writing on Stripe's blog in 2017, listed the three ways a request can fail, and they're worth walking through one by one on Inkwell's call:

1. The request never arrives. The connection fails before Stripe sees anything. No charge was made, and retrying is safe.
2. The request arrives, and the server fails midway. Stripe started the work, perhaps sent the authorisation to the network, then crashed. Maya's bank may have put a hold on her $20, or may not. Either way, the work is in limbo.
3. The work succeeds, and the reply is lost. Stripe charged the card, wrote the row and sent "succeeded", but the reply died in the tunnel. Inkwell sees a timeout, exactly as in case 1.

From Inkwell's side, all three look identical: the request went out and no answer came back. That's the core difficulty. The client can't tell "nothing happened" from "it all happened and I wasn't told".

4.1The two generals

It's tempting to think a cleverer protocol would fix this: Stripe could acknowledge the request, Inkwell could acknowledge the acknowledgement, and so on. Computer scientists proved in the 1970s that no such protocol exists. Its classic form is the Two Generals' Problem, described by Akkoyunlu, Ekanadham and Huber in 1975 and named by Jim Gray in 1978.

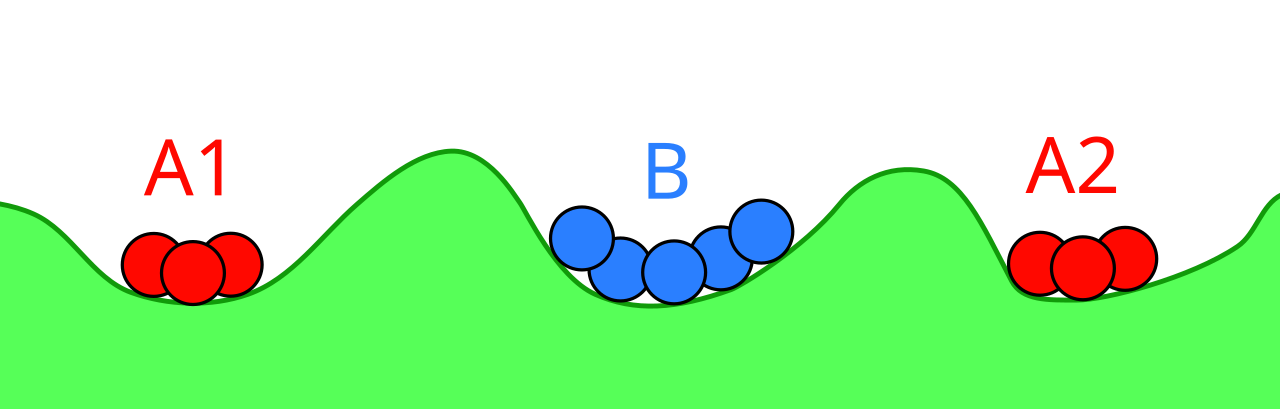

Two allied armies, A1 and A2, camp on either side of a valley held by a stronger enemy, B. They win only if they attack at the same time, and they can communicate only by messengers who cross the valley and may be captured. A1's general sends "attack at dawn". A1 can't attack until it knows A2 got the message, so A2 sends back an acknowledgement. But now A2 can't be sure the acknowledgement arrived, so A2 wants an acknowledgement of the acknowledgement, and so on forever. Whatever the last message in the protocol is, its sender doesn't know it arrived, and the protocol must work even if it didn't, which means it wasn't needed, which means the one before it is now the last. Following that back, no finite number of messages gives both sides certainty.

Inkwell and Stripe are the two generals, and the messages are HTTP requests and replies. However the API is designed, there's always a last message whose loss leaves one side unsure.

4.2At most once, at least once, and the way out

If certainty is impossible, the client is left with two policies, and each has a name:

• At-most-once: send once and never retry. A lost request means the payment never happens. Maya doesn't get her print; Inkwell loses a sale.
• At-least-once: retry until an answer comes back. The payment always happens, but a lost reply (case 3) means it can happen twice.

Neither is what a payment needs. One way out remains: stop trying to make the delivery exactly once and instead make the effect exactly once. The client retries until it hears back (at-least-once), and the server makes repeats harmless: when it receives a request it has already carried out, it doesn't do the work again; it returns the result it gave the first time. An operation that has the same effect however many times it's applied is called idempotent. Pressing a lift's call button is idempotent: pressing it five times calls one lift. "Charge $20" isn't, on its own.

So exactly-once processing is at-least-once delivery plus idempotent handling. The server needs a way to recognise "I've seen this one before", and this program shows what's at stake. It sends 10,000 orders across a network that loses 5% of requests and 5% of replies, with a client that retries until it gets an answer. First the server treats every request as new; then it recognises repeats by a key the client attaches to each order and replays the saved answer:

import random, uuid
random.seed(7)

LOSS = 0.05          # 5% of requests or responses vanish on the way
ORDERS = 10_000

def run(use_keys):
    charges = []        # every charge the server made
    seen = {}           # idempotency key -> saved response
    for order in range(ORDERS):
        key = str(uuid.UUID(int=random.getrandbits(128)))
        while True:                                   # retry until we hear back
            if random.random() < LOSS:                # request lost: server never saw it
                continue
            if use_keys and key in seen:
                response = seen[key]                  # replay the saved answer
            else:
                charges.append(order)                 # move the money
                response = f"ch_{len(charges)}"
                seen[key] = response
            if random.random() < LOSS:                # response lost: client can't tell
                continue
            break
    overcharged = len(charges) - len(set(charges))   # charges beyond the first per order
    return len(charges), overcharged

for label, keys in [("retry, no key", False), ("retry with key", True)]:
    total, extra = run(keys)
    print(f"{label:15} {ORDERS:,} orders -> {total:,} charges ({extra} extra)")

retry, no key   10,000 orders -> 10,547 charges (547 extra)
retry with key  10,000 orders -> 10,000 charges (0 extra)

Without a key, every lost reply turned into another charge: 547 extra charges on 10,000 orders, roughly the 5% you'd expect from the reply-loss rate. With a key, the server spotted each retry and returned the saved answer, so every order was charged exactly once even though the network lost just as many messages. Those two lines differ only in whether the server remembers the key, and that memory is what the next section builds.

5.1The client names the request

The server can't recognise a retry by its contents. Two requests to charge $20 to the same card might be one retry, or Maya buying two prints on purpose. So the client gives each operation a name: a random string generated once per payment and sent with every attempt at it. Stripe calls this an idempotency key, and it travels in an HTTP header:

curl https://api.stripe.com/v1/payment_intents \
  -u sk_live_...: \
  -H "Idempotency-Key: 6f1c2a4e-8b0d-4f3e-9a51-2c7d8e4b1f90" \
  -d amount=2000 \
  -d currency=usd

(amount=2000 is $20. Stripe counts money as integers in the currency's smallest unit, here cents, which avoids the rounding errors of floating-point numbers.)

Stripe's API documentation, as of 2026, sets out the contract. The client picks the key; Stripe suggests a version 4 UUID, a 128-bit random identifier, so two keys never collide. Stripe saves the status code and body of the first response for each key, success or failure, and returns the same response to any later request with that key, even a 500 error. A request that reuses a key with different parameters gets an error, because that's probably a client bug. Keys can be removed once they're 24 hours old. Every POST accepts a key; GET and DELETE don't need one, because reading and deleting are already idempotent.

Inkwell's server generates one key when Maya presses Pay, stores it with her order, and uses it for every retry. Back in the tunnel: in case 1, Stripe has never seen the key and processes the request normally. In case 3, Stripe finds the key with a saved "succeeded" response and returns it without charging again. Case 2, a crash midway, is harder, and we'll come to it in 5.4.

5.2Inside the idempotency key record

What does the server store for each key? Stripe hasn't published its internal schema, but Brandur Leach, then a Stripe engineer, published a complete reference design in October 2017 ("Implementing Stripe-like Idempotency Keys in Postgres"). Here's its record, filled in for Inkwell's request:

Two details carry most of the weight. A unique index on (user_id, idempotency_key) means the database itself refuses a second row for the same account and key, so even two retries racing each other can't both create one. And the saved response sits in the same row as the key, so replaying it is one lookup. A background job, a reaper, deletes records past the retention horizon; Brandur's post suggests 24 hours in one place and about 72 in another, to let a broken integration be fixed over a weekend.

5.3Two attempts at once

Suppose Inkwell's first attempt is slow, not lost. Stripe is still waiting on the card network when Inkwell's client times out, probably after a few seconds, and sends the retry. Now two requests with the same key are inside Stripe at once, and if both ask "have I seen this key?" before either has saved a response, both will charge.

A lock on the key record fixes this. The first request sets locked_at in the same transaction that creates the record. A second request that finds the record locked doesn't run; it gets 409 Conflict and is expected to retry later, by which time there's a saved response to replay. The lock needs a timeout, so that if the first request's server dies holding it, a later attempt can take over. Stripe's documentation reflects this: a request that collided with a concurrent one never started executing, so no result is saved for it, and can be retried.

5.4Crashing halfway: atomic phases and recovery points

Now case 2: the server crashes midway. Creating Maya's payment is a sequence inside Stripe: record the payment, send the authorisation to the card network, record the answer, build the response. Most steps change only Stripe's own database, where a transaction bundles several changes so they all happen or none do. One changes the outside world: once Maya's bank has put a hold on $20, no rollback in Stripe's database can take it back.

Brandur's design calls a change to another system a foreign state mutation and splits the request at those points. Each stretch of local work between two foreign calls is an atomic phase, one database transaction that makes its changes and records how far the request has got, a named checkpoint called a recovery point. Each atomic phase commits before the next foreign call starts, so a retry can read the recovery point and resume from there.

These recovery point names are illustrative (Brandur's example, a ride-sharing app called Rocket Rides, uses started, ride_created, charge_created and finished), but the shape is general: a crash always leaves the request at a named point that says what's done and what's next.

?What if the crash happens during the call to the network?

That's the fourth frame, and it hides the hardest question in payments. The server crashed during a foreign call, so it doesn't know whether the bank authorised the $20, and sending the authorisation again might place a second hold. The foreign call itself has to be safe to repeat or to look up, which pushes the same problem one level down. Card networks and acquirers handle it with their own identifiers on each message and with reversal messages that cancel an authorisation whose outcome is in doubt; how Stripe's systems use them isn't published. It's the principle from section 4: a call to another system is safe to retry only if that system can recognise the retry.

Two more pieces close the gaps. If Inkwell gives up and never retries, the request would sit at payment_created forever, so Brandur's design adds a completer, a background process that finds abandoned keys and pushes them to the end through the same code. And work that can happen later, such as a receipt email, is written to a job table inside the phase that triggers it, so it's queued exactly when that phase commits.

6.1When one call stopped being enough

Idempotency keys make one request safe to repeat. But section 2 showed that a payment is many steps: an authorisation, a capture, perhaps a pause for Maya to prove to her bank that she's the one paying, and days of settlement. Something has to remember where each payment is.

Stripe's 2020 post "Stripe's payments APIs: the first 10 years" tells how it learned this. The 2011 API had a Token, made in the browser from the card details so the card number never touched the merchant's server, and a Charge, made from the token by the merchant's server. For US card payments that was enough, because a card payment is decided on the spot.

Then came payment methods that didn't fit. ACH bank debits, added in 2015, take days to finish, so Charge gained a pending state. Methods like iDEAL in the Netherlands send the customer to their bank's website to approve the payment, so the customer decides when the money moves. Cards joined this group when banks began asking for 3D Secure, an extra step where the bank checks that the cardholder is the one paying. Each new method bolted more onto Charge, which grew from 11 properties in 2011 to 36 by 2018.

Its failures were concrete. A customer could approve an iDEAL payment at their bank, then close the tab before the browser told the merchant's server. The server never created the Charge, so Stripe returned the money, and the shop lost a sale the customer believed they'd paid for. Stripe's post compares the approach to building a spaceship by adding parts to a car.

6.2The PaymentIntent

In late 2017 a team of five, four engineers and a product manager, spent three months in a conference room designing a replacement from first principles, and it launched in 2018 as two objects. A PaymentMethod describes how to pay: the card, or the bank account. A PaymentIntent describes what is being paid, $20 to Inkwell, and tracks every attempt to pay it until one succeeds. Its status field is a state machine: a fixed set of states, and a fixed set of allowed moves between them, so the payment's position in the process is always one of a few named values.

Here's Maya's payment, assuming her bank asks for 3D Secure:

What changed most is where the state lives. With Charge, the merchant's server had to piece together the state of a payment from its own requests and the browser's reports, and a dropped connection could lose the thread. With a PaymentIntent, Stripe holds the state, the merchant creates the intent before anything can go wrong, and every party (Maya's browser, Inkwell's server, Stripe's own background jobs) moves the same object forward through allowed transitions. A disconnected browser leaves an intent in requires_action, waiting, instead of a payment nobody recorded.

?Why have a requires_capture state at all?

Because some merchants shouldn't take the money until they've done their part. A hotel authorises the full stay when you book and captures it at checkout; a shop might capture only when the parcel ships, perhaps for less than it authorised if an item is out of stock. Setting capture_method=manual makes the intent stop in requires_capture after authorisation, and a later capture call takes up to the authorised amount. The clock matters: as of 2026, Stripe's documentation gives most card brands 7 days for online customer-initiated payments, after which the authorisation expires, the hold is released, and the intent becomes canceled.

7.1A balance column isn't enough

The PaymentIntent knows that Maya's payment succeeded. Now Stripe owes Inkwell $20, minus its fee, and must keep track of that until it pays out. An obvious way is a column: give each merchant a balance and run UPDATE merchants SET balance = balance + 1912 WHERE id = 'inkwell' when a payment succeeds (the amounts are in cents, so that's $19.12, after an 88-cent fee used here for illustration).

That works until someone asks a question. Which payments make up Inkwell's balance? A bug credited some payments twice last March; which merchants were affected, and by how much? A balance column can't answer, because each update overwrote the number before it. If two servers update the same balance at once without care, one update can overwrite the other, the lost update problem from chapter 19. And nothing checks that the money Stripe says it owes merchants matches the money it has received.

7.2Double-entry bookkeeping

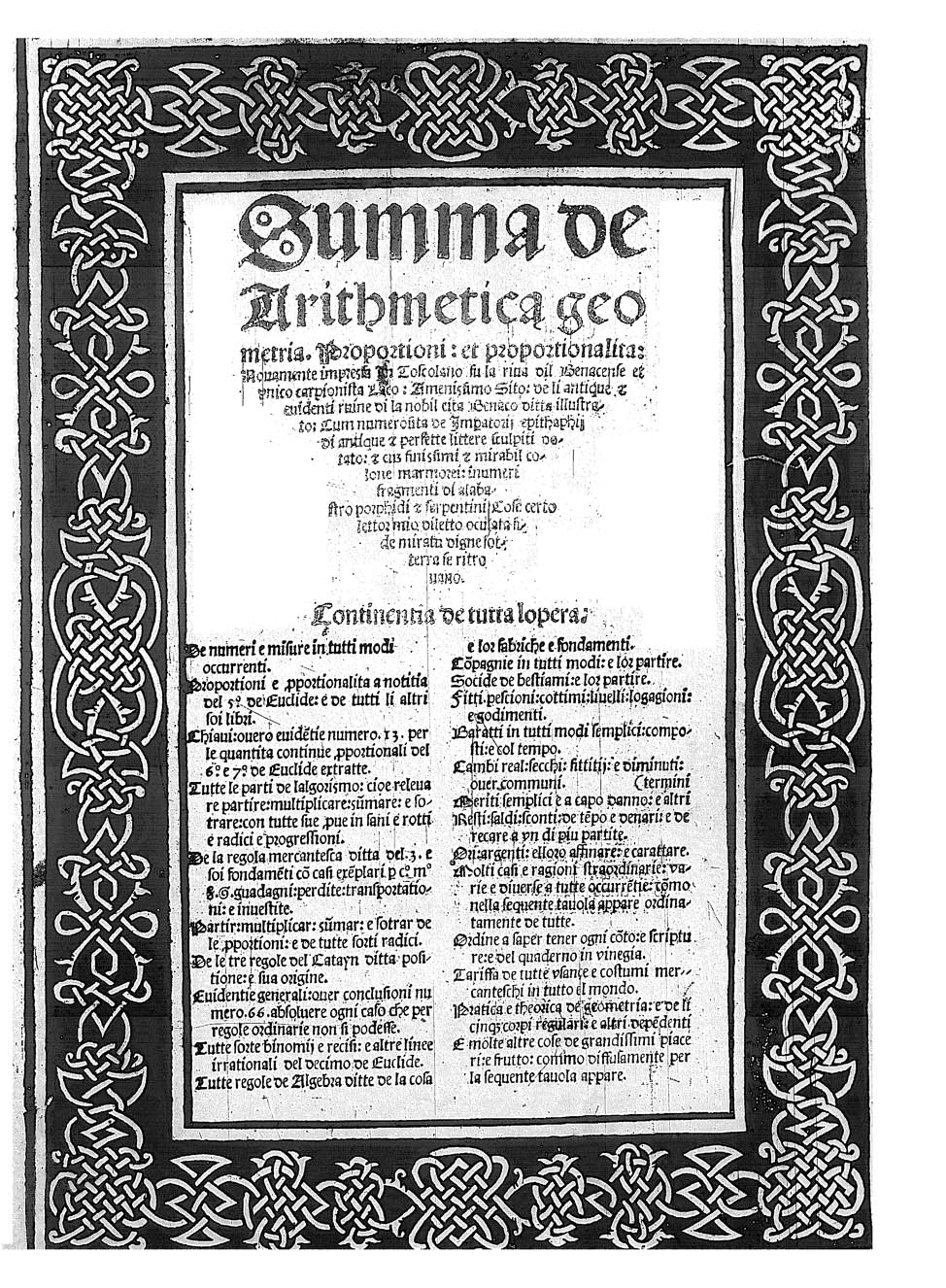

Accountants solved this five centuries ago. The method was in use among Italian merchants by the 1300s, and the friar and mathematician Luca Pacioli published the first printed description in his Summa de arithmetica in 1494.

The idea fits in two rules. First, money is always somewhere: every place it can be is an account, a named bucket such as "cash in Stripe's bank" or "owed to Inkwell". Second, money is never created or destroyed by bookkeeping, only moved: every transaction is recorded as two or more entries, each adding to or taking from one account, and the entries of one transaction must cancel out. Accountants call the two sides of each transaction debits and credits, and the rule is that each transaction's debits equal its credits. In a database it's simpler to store each entry as a signed amount, debits positive and credits negative, so the rule becomes: the entries of every transaction sum to zero.

Because no transaction can break that rule, the whole ledger always sums to zero too. If it doesn't, something has been recorded wrongly, and the mistake shows up immediately, which is the property a payment company needs most.

7.3Maya's $20, entry by entry

Let's follow Maya's payment through a small ledger. Stripe's internal schema isn't public, so these accounts are a minimal design, named after the kinds of account Stripe's 2024 post describes. Five accounts are enough:

• network_receivable: money the card network owes Stripe for captured payments, not yet received.
• cash: money in Stripe's bank account.
• inkwell_pending: money Stripe owes Inkwell that isn't available to pay out yet (Stripe's post calls this kind of account "charge undisbursed").
• inkwell_available: Inkwell's balance, ready to be paid out ("business balance" in the post).
• fee_revenue: Stripe's fees.

Each entry is one row, and this is the data structure at the bottom of everything:

Entries are only ever inserted, never updated or deleted. Now the four transactions that Maya's payment produces:

Add up each account after all four: network_receivable 0, inkwell_pending 0, inkwell_available 0, cash +88 and fee_revenue −88. Everything Maya paid has gone where it should, and what remains is Stripe's 88 cents, sitting in cash and recorded as revenue. A balance is now never stored as the truth; it's the sum of an account's entries, which can be cached for speed but always recomputed.

Now the questions the balance column couldn't answer are easy. Inkwell's dashboard balance is the sum of inkwell_available entries, each pointing at the payment that caused it. The balance on any past date is the sum of entries up to that date. Last March's bug is a set of entries that can be found and corrected. Corrections, too, are new entries: because nothing is edited, a mistake is fixed by a reversing transaction, so the history of the mistake and of its fix both remain.

7.4Clearing accounts and reconciliation

Look again at network_receivable and inkwell_pending. Each one goes up when a process starts and comes back to zero when it finishes. Accounts like these are called clearing accounts, and they're the ledger's alarm system. If the network never pays for Maya's capture, network_receivable stays at +2000. If a release never runs, inkwell_pending stays at −1912. A single query, "find clearing accounts with a non-zero balance older than they should be", lists every stuck payment in the company.

Stripe's 2024 post on Ledger, its system of record for financial data ("an immutable and auditable log"), describes exactly this. It compares money to water flowing through pipes (processes) into reservoirs (balances): at steady state the clearing accounts are empty, and water left in the pipes means a problem. Its example has a charge.creation event placing funds in a charge_undisbursed account and a charge.release event moving them to the business's balance. As of early 2024 Ledger saw five billion events a day, and Stripe reported that 99.99% of dollar volume was fully ingested and checked within four days, and that over 99.9999% of money movement was explained.

The last link is reconciliation: comparing Stripe's ledger with records kept by someone else. The card networks and banks send their own reports of what they settled. Every line in them should match entries in the ledger, and every receivable in the ledger should eventually match a line in a report. Where the two disagree, either Stripe or its partner has made a mistake, and the clearing account that didn't clear says where to look.

8.1The shop has to find out

Back on the train, Maya approved the 3D Secure check just as the signal died, and her browser never reported back to Inkwell. Stripe knows the PaymentIntent succeeded, and the ledger knows Inkwell is owed $19.12. Inkwell doesn't know, so it won't ship the print.

Inkwell could ask Stripe every few seconds about every open payment, but most of the answers would be "no change", and some changes (a dispute, a refund, a bank debit that clears after four days) happen long after anyone is watching. So Stripe tells Inkwell instead. When something happens, Stripe creates an event, such as payment_intent.succeeded, and sends it as an HTTP POST to a URL Inkwell registered in advance. A request that a service sends to your server to tell you something happened is called a webhook. It's the same push-over-polling choice WhatsApp and Uber made for phones, applied between servers.

8.2At least once, in any order

Delivering a webhook is the same problem as section 3 in reverse. Now Stripe is the client, Inkwell's server is the one that can be slow, down or unreachable, and Stripe can't know whether a delivery that timed out was processed. So the webhook system chooses at-least-once delivery: it retries until Inkwell answers with a 2xx status, and accepts that Inkwell will sometimes see an event twice.

Stripe's documentation sets out the rules, as of 2026. In live mode a failed delivery (a timeout, a redirect, any non-2xx answer) is retried for up to three days with exponential backoff, which section 9 explains. Events may arrive more than once, so merchants should log the IDs of events they've processed and skip repeats: idempotency again, on the merchant's side. Events may arrive out of order, so handlers mustn't depend on order and can fetch the current object from the API. And handlers should answer quickly, returning 2xx before any slow work, or the delivery times out and is retried.

Stripe hasn't published the internals of its webhook system, so the left half of this diagram is a design that meets the rules, not a description of Stripe's. One step deserves copying: writing the event in the same transaction as the state change it reports. If the server wrote the state and then crashed before queueing the event, Inkwell would never hear about Maya's payment; writing them together means every committed change has its event. This is called the transactional outbox pattern, and it's the same move as 5.4's job table.

8.3Proving the webhook came from Stripe

Inkwell's webhook URL is just a URL, and anyone who learns it can POST a fake payment_intent.succeeded to it and get a print for free. So every webhook carries a signature. Stripe and Inkwell share a secret, shown in Stripe's dashboard and starting whsec_. For each delivery, Stripe computes an HMAC, a keyed hash that only someone holding the secret can produce, over the current timestamp, a dot and the raw request body, using the standard SHA-256 hash function. It sends the result in a header:

Stripe-Signature: t=1492774577,v1=5257a869e7ecebeda32affa62cdca3fa51cad7e77a0e56ff536d0ce8e108d8bd

Inkwell recomputes the HMAC from the same timestamp and body with its copy of the secret and compares. Any change to the body changes the hash. The timestamp is inside the signed data too, which defeats a replay attack, where an attacker records a genuine webhook and sends it again later: Stripe's libraries reject signatures more than 5 minutes old by default. Each retry gets a fresh timestamp and signature. This short program checks a genuine webhook, one with its body altered, and a genuine one replayed an hour later:

import hashlib, hmac

secret = b"whsec_example_secret"                        # shared by Stripe and the shop
body = b'{"id":"evt_1","type":"payment_intent.succeeded"}'

def sign(body, t):
    signed_payload = str(t).encode() + b"." + body      # timestamp, a dot, the raw body
    return hmac.new(secret, signed_payload, hashlib.sha256).hexdigest()

def verify(header, body, now, tolerance=300):
    parts = dict(p.split("=", 1) for p in header.split(","))
    t = int(parts["t"])
    ok_sig = hmac.compare_digest(sign(body, t), parts["v1"])  # constant-time compare
    fresh = abs(now - t) <= tolerance                         # within 5 minutes
    return ok_sig and fresh

t = 1_760_000_000
header = f"t={t},v1={sign(body, t)}"
for label, b, now in [("genuine", body, t + 2),
                      ("body changed", body.replace(b"succeeded", b"failed"), t + 2),
                      ("replayed an hour later", body, t + 3600)]:
    print(f"{label:24} {verify(header, b, now)}")

It prints True for the genuine webhook and False for the other two. Two details in it come straight from Stripe's documentation. The comparison uses compare_digest, which takes the same time whether the first byte or the last one differs, so an attacker can't guess the signature a byte at a time by timing the responses. And the body is signed as raw bytes, so Stripe warns that a web framework that parses and re-serialises the JSON before verification will break every signature.

9.1When everyone retries at once

Idempotency keys made retries safe. They didn't make them polite. Suppose one of Stripe's database shards fails over and, for two seconds, every request touching it returns an error. Thousands of clients, Inkwell among them, get errors at the same moment. If each one retries immediately, the recovering system receives the whole load again at once, plus the new traffic, and may fall over again. If each waits exactly one second, they all come back at the same instant one second later. This is the thundering herd problem: identical clients, failing together, retry together.

Half the fix is exponential backoff: wait a short time after the first failure, then double the wait after each further failure, up to a cap. Clients that keep failing back off quickly, giving the server room. Stripe's 2017 idempotency post recommends waits proportional to 2ⁿ, where n is the number of failures so far. The other half is jitter: make each wait random, so clients that failed together don't come back together. Marc Brooker's 2015 post on the AWS Architecture Blog, "Exponential Backoff And Jitter", simulated clients contending for one resource and found that adding jitter more than halved their total calls. Of the versions it compared, "full jitter", which picks the wait uniformly between zero and the backoff value, did the least work.

This program runs that scenario with and without full jitter, retrying each client until it's served:

import heapq, random
from collections import Counter
random.seed(3)

CLIENTS = 2_000      # all of them hit an error at the same moment
CAPACITY = 100       # the server can answer 100 requests per 100 ms slot
BASE, CAP = 0.5, 5.0 # first wait 0.5 s, doubling, never more than 5 s

def wait(attempt, jitter):
    w = min(CAP, BASE * 2 ** attempt)
    return random.uniform(0, w) if jitter else w

def simulate(jitter):
    retries = [(wait(0, jitter), 0) for _ in range(CLIENTS)]   # (when, attempt)
    heapq.heapify(retries)
    arrivals, served = Counter(), Counter()
    sent, last = 0, 0.0
    while retries:
        t, attempt = heapq.heappop(retries)
        slot = int(t * 10)                      # which 100 ms slot it lands in
        sent += 1
        arrivals[slot] += 1
        if served[slot] < CAPACITY:             # the server has room: success
            served[slot] += 1
            last = t
        else:                                   # overloaded: fail, back off again
            heapq.heappush(retries, (t + wait(attempt + 1, jitter), attempt + 1))
    return sent, max(arrivals.values()), last

for jitter in [False, True]:
    sent, peak, last = simulate(jitter)
    label = "with jitter" if jitter else "no jitter  "
    print(f"{label}  requests sent {sent:6,}  busiest 100 ms: {peak:5,}  everyone served by {last:4.1f} s")

no jitter    requests sent 21,000  busiest 100 ms: 2,000  everyone served by 87.5 s
with jitter  requests sent  4,460  busiest 100 ms:   580  everyone served by  5.6 s

Without jitter, every round arrives as one spike of everyone still waiting. The server serves 100 and rejects the rest, so it takes 20 rounds, 21,000 requests and nearly a minute and a half to serve 2,000 clients, with the server overloaded at every round. With jitter, the same clients spread out: the busiest tenth of a second sees 580 requests instead of 2,000, the total traffic is roughly a fifth, and everyone is served in under six seconds. The server's capacity is identical in both runs; only the timing of the retries changed.

9.2What Stripe's own libraries do

Stripe's client libraries put all of this into practice, which makes them a useful reference. As of 2026, the Ruby library retries twice by default. Before retry n it waits 0.5 × 2^(n−1) seconds, capped at 5 seconds, then multiplied by a random factor between 0.5 and 1, a form of jitter that keeps at least half the backoff. It adds an Idempotency-Key to every POST so retries are safe. It retries timeouts, connection errors, 409 Conflict (the "key in progress" answer from 5.3), 5xx errors and 429s caused by a lock timeout, but not 429s caused by rate limiting, which would only add to the overload. And it obeys a Stripe-Should-Retry header when the API sends one, because the server knows things the client doesn't, such as whether an error was saved under the key and would just be replayed.

10.1The token bucket

Polite clients aren't enough, because not every client is polite. A merchant's script with a bug can loop on an endpoint thousands of times a second, and a merchant running a flash sale can send ten times its normal traffic. Stripe's API is shared by millions of businesses, so one client's flood must not slow Inkwell's checkout. The first defence is a rate limiter: a cap on how many requests each account may send per second, with excess requests rejected with HTTP 429 Too Many Requests.

Paul Tarjan's 2017 post on Stripe's blog, "Scaling your API with rate limiters", explains that Stripe's limiters use the token bucket algorithm. Each account has a bucket that holds up to some number of tokens. Tokens drip in at a fixed rate, and once the bucket is full, extra tokens overflow and are lost. Each request takes one token; if the bucket is empty, the request is rejected.

Two numbers give the bucket its character. The drip rate is the long-run limit, and the bucket's size is how big a burst it tolerates: an account that has been quiet has a full bucket and can spend it at once. Stripe's post says exactly this: after analysing traffic, it let accounts burst above the cap for sudden spikes such as flash sales. Here's a bucket that refills at 100 tokens a second and holds 100, fed a steady trickle, then a burst, then a sustained flood:

class TokenBucket:
    def __init__(self, rate, capacity):
        self.rate, self.capacity = rate, capacity   # tokens per second, bucket size
        self.tokens, self.last = capacity, 0.0      # start full

    def allow(self, now):
        # drip in the tokens earned since the last request, up to the brim
        self.tokens = min(self.capacity, self.tokens + (now - self.last) * self.rate)
        self.last = now
        if self.tokens >= 1:
            self.tokens -= 1
            return True
        return False                                 # empty bucket: answer 429

bucket = TokenBucket(rate=100, capacity=100)

def phase(name, start, seconds, per_second):
    n = int(seconds * per_second)
    ok = sum(bucket.allow(start + i / per_second) for i in range(n))
    print(f"{name:28} sent {n:4}  allowed {ok:4}  rejected {n - ok:4}")

phase("steady 50/s for 2 s", 0.0, 2, 50)
phase("burst: 150 in 0.1 s", 2.0, 0.1, 1500)
phase("too fast: 300/s for 1 s", 3.0, 1, 300)
phase("back to 50/s for 1 s", 4.0, 1, 50)

steady 50/s for 2 s          sent  100  allowed  100  rejected    0
burst: 150 in 0.1 s          sent  150  allowed  109  rejected   41
too fast: 300/s for 1 s      sent  300  allowed  190  rejected  110
back to 50/s for 1 s         sent   50  allowed   50  rejected    0

Read it phase by phase. At 50 a second the bucket never empties. The burst of 150 gets 109 through: the 100 tokens saved up, plus roughly 9 more that dripped in during the tenth of a second the burst lasted. During the flood the bucket starts nearly refilled (about 90 tokens, earned over the 0.9 seconds of quiet) and earns 100 more during the second, so 190 of the 300 pass and the rest get 429. Then the client slows down and everything passes again. The bucket lets a client be bursty but not fast on average, a fair rule for a shared API.

The bucket's state is two numbers per account, tokens and last, so it can live in a fast shared store. Stripe's 2017 post says its limiters run on Redis, an in-memory data store (chapter 22), so every API server checks and updates the same bucket for an account. As of 2026, Stripe's documentation gives a default global limit of 100 requests a second per account in live mode and 25 in a sandbox (the bucket sizes aren't published), and a rejected request carries a Stripe-Rate-Limited-Reason header saying which limit it hit.

10.2Four limiters, in layers

A per-account rate limit protects Stripe from one noisy client. It doesn't protect Stripe from itself, when its own capacity drops during an incident. Tarjan's post describes four limiters, each a layer of defence:

?Why drop requests on purpose?

The last two are load shedding: deliberately dropping some requests so that the important ones still succeed. It's a choice about which failures to have. When there isn't capacity for everything, refusing to list someone's old charges is a far better failure than refusing to take Maya's payment.

11.1A database that can't stop

Every design so far assumes a database underneath: idempotency key records, PaymentIntents, ledger entries, events. That database has demands of its own. It can't lose a committed write. It can't go down for maintenance, because Stripe has no quiet hour when nobody in the world is paying for anything. And it has to grow without limit, because the data never shrinks: a payment from 2014 still needs to be found for a refund, an audit or a tax return.

When Stripe launched in 2011 it chose MongoDB, a document database that stores records as JSON-like documents instead of rows in fixed tables, for developer productivity, according to Stripe's 2024 post on its document databases. No hosted database service met its needs, so Stripe built its own service on top of MongoDB Community, the open-source edition, and called it DocDB. In mid-2024 the post put DocDB at over five million queries a second, more than 10,000 distinct query shapes over petabytes of financial data, and 5,000+ collections (MongoDB's equivalent of tables) split across 2,000+ database shards, groups of machines that each hold one slice of the data, with API uptime of 99.999% through 2023.

11.2Proxies, chunks and shards

No single machine can hold petabytes or serve five million queries a second, so the data is split. Chapter 29 covers the general idea; here's how DocDB does it, from the 2024 post. Each collection's data is divided into chunks, pieces of the collection, and each chunk lives on one shard. A shard is a replica set: a primary node that takes writes and several secondary nodes that copy it, with automatic failover if the primary dies.

Applications never talk to shards directly. They send queries to a fleet of database proxy servers, written in Go, which enforce access control and admission control (refusing work when overloaded, the same instinct as 10.2), parse the query, and route it. To route, a proxy asks a chunk metadata service, which maps each chunk to the shard that holds it. Every write also flows out as a change data capture (CDC) stream: MongoDB keeps an oplog, a log of every operation that modified data on a shard, and Stripe ships each shard's oplog to Kafka, a distributed log (chapter 23), and archives it in Amazon S3.

11.3Moving a chunk without stopping

Splitting data across shards solves today's problem, and creates tomorrow's. Shards fill up, some get hot, and in quiet periods many are underused. Data has to move between shards while the payments using it keep flowing. Stripe's requirement, from the post, was that the critical moment of a move be shorter than a routine primary failover, a few seconds, so that it fits within the retries applications already make. The system that does it is the Data Movement Platform, where a coordinator service takes each migration through six steps:

Step 5 is the clever part. Why is it needed? During the switch some proxies still have the old route and some the new one. Without care, a slow proxy could write Maya's payment to shard A after the final replication, and that write would be lost when A's copy is deleted. The version token prevents it. Each proxy stamps its requests with the version it knows, and Stripe patched MongoDB so a shard refuses requests carrying a version older than the one it holds. Once A's version is raised, no stale proxy can write there, so the last replicated write is guaranteed to be the last one. A rejected request gets an error, the application retries, and by then the proxy has the new route: the same retry-and-recover pattern from section 9, now inside the database.

Stripe's post reports what this made possible. In 2023 Stripe bin-packed thousands of underused databases by migrating 1.5 petabytes of data, transparently to applications, and cut the number of DocDB shards by roughly three quarters. It also upgraded MongoDB across the fleet by moving data straight onto shards running a newer version, skipping the intermediate versions an in-place upgrade would need.

11.4Changing the shape of the data

Moving data between machines is one kind of migration; changing its shape is another. Jacqueline Xu's 2017 post "Online migrations at scale" describes how Stripe moved hundreds of millions of subscriptions out of an array inside each customer record into a table of their own, with every service running throughout, in four steps: dual write to the old and new places and backfill the old records; switch reads to the new place, after comparing both in production with GitHub's Scientist library; switch writes to the new place only; then delete the old data. Every step can be undone, and Stripe never changed more than a few hundred lines of code at once. It's the same shape as the chunk move: keep two copies in sync, check them against each other, switch when they agree.

12.1Every box, and why it's there

12.2From top to bottom

13.1The tradeoffs, in one table
