Designing Ticketmaster

1.1What it has to do

Strip away resale, venue tools and marketing, and the part of Ticketmaster that sells a big show does a short list of things:

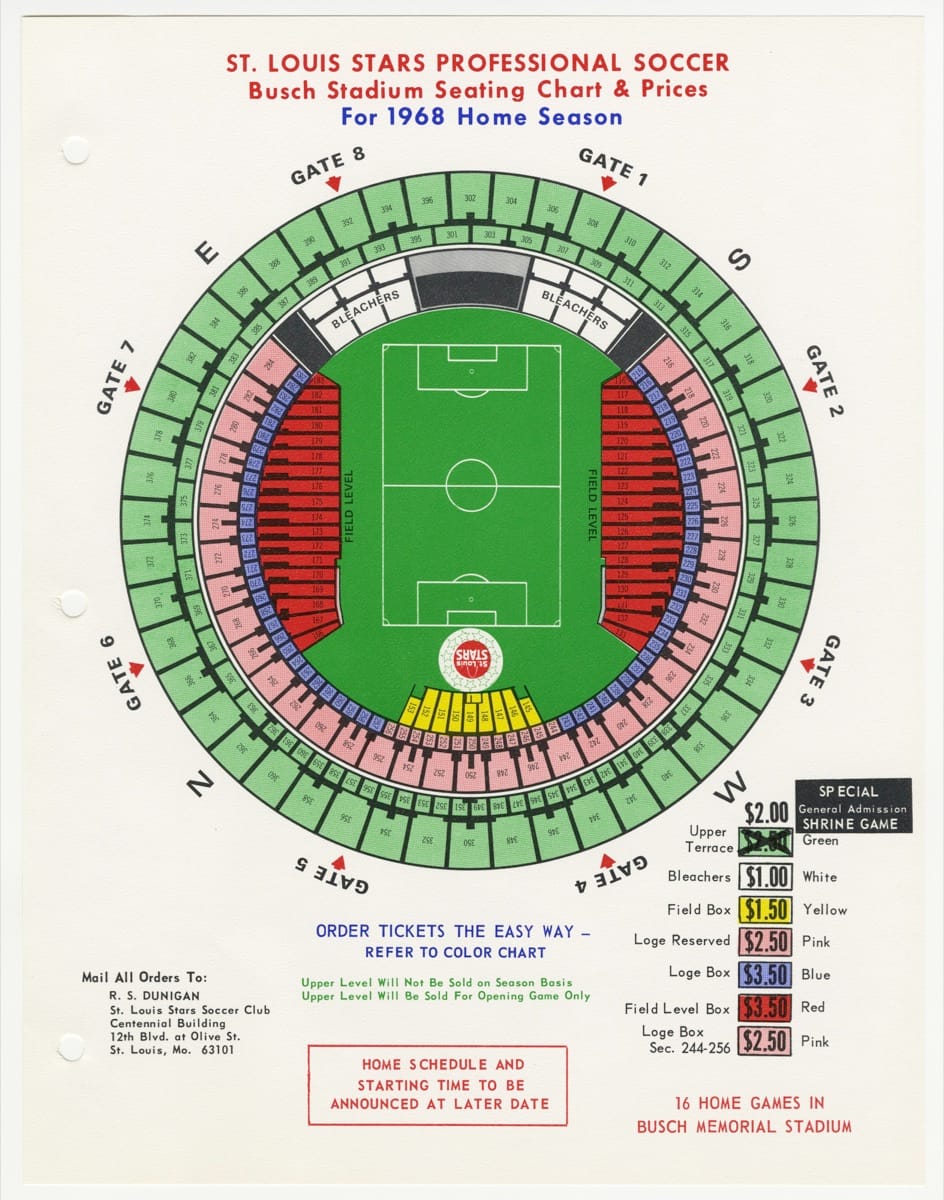

1. Show what's available: a map of the venue with the seats that are still for sale and their prices.
2. Let a fan pick seats, or ask the system for the best ones available, and keep them for the fan while they pay.
3. Take payment and turn the kept seats into sold tickets.
4. Run the on-sale: decide who gets to shop and in what order when far more people arrive than there are seats.
5. Keep bots and scalpers out, as far as possible.
6. Deliver the ticket, and let it be scanned at the gate once.

And the qualities it needs while doing that:

• Never sell a seat twice. This is the one rule that can't bend: two fans with the same seat is a fight at the stadium.
• Never strand a seat: a seat someone picked and abandoned has to go back on sale.
• Survive the spike: traffic at 10:00:01 can be thousands of times what it was at 9:55.
• Be fair, and look fair, to fans who mostly won't get tickets.
• Keep the rest of the site working while one huge sale is going on.

Compare this with the Uber case study (chapter 50). There, every request needed a different answer: the nearest car to this rider. Here, everyone wants nearly the same thing at the same instant, and the thing is scarce. Most of what follows is about that contention, many requests competing for the same few items, and about the crowd that contention attracts.

1.2How big is it?

Ticketmaster's own statement on the Eras Tour presale, published on 19 November 2022, gives the clearest numbers anyone has for a sale like this:

• Over 3.5 million people registered for the presale through Verified Fan, Ticketmaster's scheme in which fans sign up in advance and only those invited get a code to buy (section 6 looks at it closely). It was the largest registration in its history.
• About 1.5 million of them were sent codes to shop for the tour's 52 dates, 47 of them sold by Ticketmaster. The other 2 million were put on a waiting list.
• The site received 3.5 billion system requests, four times its previous peak, driven by "the staggering number of bot attacks as well as fans who didn't have codes".
• Over 2 million tickets were sold on 15 November, the most it had ever sold for one artist in a day.
• About 15% of interactions across the site ran into problems, including passcode validation errors that made fans lose tickets already in their carts.

Roughly two months later, on 24 January 2023, Live Nation's president, Joe Berchtold, told the US Senate Judiciary Committee that the sale was hit with "three times the amount of bot traffic than we had ever experienced", and that for the first time in 400 Verified Fan on-sales, bots attacked the servers that check access codes. Separately, Live Nation's chairman, Greg Maffei, told CNBC in November 2022 that 14 million people, bots included, hit the site. For scale on a normal day, Ticketmaster describes itself as processing more than 600 million tickets a year in more than 35 countries.

2.1The obvious design

Start with a database table with one row per seat for each show: the seat's ID (section 112, row F, seat 7), its price, and its status, available or sold. Sofia's seat map asks for every row and colours the available ones. When Sofia clicks Buy on seats F7 and F8, the server reads those two rows, sees that they're available, charges her card, and updates both rows to sold with her name on them.

On a quiet Wednesday, selling seats for a small club show, this works. Now put Sofia's show on it at 10:00.

2.2Two fans, one seat

Sofia isn't the only person looking at row F. Raj, a few hundred kilometres away, sees the same map and clicks the same two seats a fraction of a second after her. Here's what the server does for the two of them, interleaved the way it can happen when thousands of requests run at once:

1. Sofia's request reads F7 and F8: available.
2. Raj's request reads F7 and F8: still available, because Sofia's request hasn't written anything yet.
3. Sofia's request charges her card and writes "sold to Sofia".
4. Raj's request charges his card and writes "sold to Raj", over the top of Sofia's.

Both of them get a confirmation email. Both have been charged. Now the table says Raj, and Sofia finds out at the stadium gate. This failure has a name: a race condition, where the result depends on the exact order in which two concurrent operations happen to run. This particular shape, read a value, decide, then write based on what you read, is called check-then-act, and it's broken whenever someone else can act between your check and your act.

With two fans you'd need bad luck. At 10:00, with thousands of fans looking at the same best-available seats, you'd need good luck to avoid it. This program runs 1,000 fans against 100 seats. Each fan reads the free seats, picks one, and then writes, and the fans' steps are interleaved at random, as concurrent requests on many web servers would be. Its first run uses check-then-act; its second makes the write conditional, which the next subsection explains:

import random
random.seed(7)

SEATS, FANS = 100, 1_000

def on_sale(atomic):
    owner = {s: None for s in range(SEATS)}   # the seats table: seat -> buyer
    confirmations = []                          # "You got seat N!" emails sent

    def fan(f):
        # step 1: SELECT the free seats and pick one
        free = [s for s, o in owner.items() if o is None]
        if not free:
            return
        seat = random.choice(free)
        yield                                   # other fans run here
        # step 2: UPDATE the row
        if atomic:                              # ... WHERE owner IS NULL
            if owner[seat] is None:
                owner[seat] = f
                confirmations.append(seat)
        else:                                   # trusts what step 1 saw
            owner[seat] = f
            confirmations.append(seat)

    running = [fan(f) for f in range(FANS)]
    while running:                              # interleave fans at random
        g = random.choice(running)
        try:
            next(g)
        except StopIteration:
            running.remove(g)

    sold_twice = sum(1 for s in range(SEATS) if confirmations.count(s) > 1)
    print(f"{'conditional UPDATE' if atomic else 'SELECT then UPDATE':20}"
          f" confirmations: {len(confirmations):4}   seats sold more than once: {sold_twice}")

on_sale(atomic=False)
on_sale(atomic=True)

SELECT then UPDATE   confirmations:  587   seats sold more than once: 89
conditional UPDATE   confirmations:  100   seats sold more than once: 0

Read the first line slowly. A hundred seats produced 587 confirmations, and 89 of the 100 seats were sold to more than one person. That's because hundreds of fans read the table in the same instant, all saw the same free seats, and all acted on what they'd seen. In the second line every seat was sold exactly once and exactly 100 people were told yes.

2.3Make the check and the write one step

In the second run, the fix is to stop separating the check from the write. Instead of reading the row and then writing it, the server sends one statement that writes only if the seat is still free, and reports how many rows it changed:

UPDATE seats
   SET status = 'sold', buyer = 'sofia'
 WHERE show_id = 4217 AND seat_id IN ('112-F-7', '112-F-8')
   AND status = 'available';
-- 2 rows updated: the seats are Sofia's.
-- 0 or 1 rows updated: someone got there first; undo and tell her.

A database runs the condition and the write together, holding a lock on each row while it does, so Raj's identical statement either runs entirely before Sofia's or entirely after it. Whoever runs second finds status = 'sold' and changes nothing. This is a compare-and-set: change a value only if it still holds what you expect. (Wrapping both seats in a transaction makes the pair all-or-nothing, so Sofia never ends up with F7 but not F8; chapter 19 covers how.)

So Version 1 is fixed? Not quite, and the order of the steps in 2.1 shows why. Our server charged the card before it marked the seats sold. Paying isn't instant: Sofia has to type a card number, her bank may ask her to confirm in its app, and the card network takes a second or two to answer. That's minutes, not milliseconds. If we charge first and then try the conditional update, Raj can be charged for seats that Sofia's update took a moment earlier, and we have to refund him. If we run the conditional update first and then send her to pay, the seats are marked sold to someone who may never pay.

?Why not lock the rows until she's paid?

A database can hold a row lock for as long as a transaction stays open, so we could open a transaction, lock F7 and F8, wait for Sofia to pay, then commit. But a database transaction is meant to last milliseconds. Holding one open for five minutes per fan, for tens of thousands of fans, ties up a database connection for each of them, and anyone else who tries to read those rows with a locking read waits behind her. If her browser closes, the lock lingers until something notices. We need the seats to be Sofia's for a few minutes, without a database transaction staying open for those minutes.

3.1A third state: held, until a deadline

What we want is what a shop assistant does when you say "can you keep that one aside for ten minutes while I fetch my wallet?" The seat isn't sold, but it isn't for sale either, and if you don't come back in ten minutes it goes back on the shelf. In ticketing this is a hold: a reservation of specific seats for one buyer that ends automatically at a deadline. So a seat now has three states, and the deadline is part of the third:

• available: anyone can take it.
• held by one cart until a time: only that cart can buy it, and only before that time.
• sold: final.

Two rules make this safe, and the rest of this section is about building them. First, taking a hold must be a compare-and-set, like the conditional update in 2.3: a seat can be held only if it's available, or held but past its deadline. Second, turning a hold into a sale must check that the hold still belongs to this cart and hasn't expired. Let's build it twice, once in the database and once in Redis.

3.2A hold as a database row with a deadline

Our smallest change to Version 1 is two more columns on each seat row: who holds it, and until when.

-- seats(show_id, seat_id, price, status, holder, hold_until, buyer)

-- Take a hold: succeeds only for seats that are free, or held but expired.
UPDATE seats
   SET status = 'held', holder = 'cart-sofia-81f2', hold_until = now() + interval '8 minutes'
 WHERE show_id = 4217 AND seat_id IN ('112-F-7', '112-F-8')
   AND (status = 'available' OR (status = 'held' AND hold_until < now()));
-- Inside a transaction: commit if 2 rows changed, roll back otherwise.

-- Turn the hold into a sale: succeeds only if it's still ours and in time.
UPDATE seats
   SET status = 'sold', buyer = 'sofia', holder = NULL, hold_until = NULL
 WHERE show_id = 4217 AND seat_id IN ('112-F-7', '112-F-8')
   AND status = 'held' AND holder = 'cart-sofia-81f2' AND hold_until > now();

Notice what isn't here: nothing ever has to release an expired hold. A held seat whose deadline has passed is treated as available by the very next statement that looks at it, so expiry is lazy: it happens when someone next asks, not on a timer. A background job may still sweep expired holds back to available now and then, so that reports and the seat map look tidy, but correctness doesn't depend on it running on time. That matters because background jobs are exactly the thing that falls behind during the busiest minute of the year.

One detail is easy to miss: whose clock is now()? If each web server compared deadlines using its own clock, two servers whose clocks disagree by a few seconds would disagree about whether a hold has expired. Using the database's now() in the statement means one clock decides every deadline.

3.3A hold as a Redis key that expires

This database version works, but every hold, every failed attempt and every expiry check is a write to the system of record, in the minutes when it's busiest. A common alternative keeps holds in Redis, an in-memory key-value store (chapter 22) that can expire keys by itself. One Redis command does almost everything a hold needs:

SET hold:4217:112-F-7 cart-sofia-81f2 NX PX 480000

Reading it word by word, from the Redis documentation for SET:

• hold:4217:112-F-7 is the key: one per seat per show.
• cart-sofia-81f2 is the value: who holds it.
• NX means "only set the key if it does not already exist". If someone already holds the seat, nothing changes.
• PX 480000 sets the key to expire after 480,000 milliseconds, 8 minutes. After that, Redis behaves as if the key was never there.

Redis replies OK if Sofia got the hold, or nil if someone else holds it. Check and write are one command, so it's a compare-and-set, and Redis's own expiry is the deadline: an expired key is never returned to a reader, so expiry is lazy here too, with Redis also deleting expired keys in the background to reclaim memory.

Sofia wants two seats, though, and two separate SETs aren't all-or-nothing: she could get F7 and lose F8 to Raj in between. Redis can run a script written in Lua, a small programming language, as one indivisible step, so a short script can check every seat first and hold them only if all are free:

-- KEYS: the seat keys, e.g. hold:{4217}:112-F-7, hold:{4217}:112-F-8
-- ARGV[1]: the cart id, ARGV[2]: hold length in milliseconds
for _, k in ipairs(KEYS) do
  if redis.call('EXISTS', k) == 1 then return 0 end   -- one is taken: hold nothing
end
for _, k in ipairs(KEYS) do
  redis.call('SET', k, ARGV[1], 'PX', ARGV[2])
end
return 1

The {4217} in the key names is a hash tag for Redis Cluster, the mode in which Redis spreads keys across several servers: only the part inside the braces is hashed to decide which server stores the key, so every seat of show 4217 lands on the same server, which a multi-key script requires.

Releasing a hold early, when Sofia removes a seat from her cart, has the opposite trap. A plain DEL could delete a hold that has already expired and been taken by Raj. Redis's documentation answers this: delete only if the value is still yours, again in one script:

if redis.call('GET', KEYS[1]) == ARGV[1] then
  return redis.call('DEL', KEYS[1])
else
  return 0
end

?If Redis loses a hold, do we sell a seat twice?

Redis keeps data in memory and copies it to replicas without waiting for them, so if the server holding show 4217's keys crashes, the replica that takes over can be missing the last few holds. Sofia's hold could vanish, and Raj could hold F7 a second later. That's a real failure, but notice what it costs: two people think they're about to buy, and one of them will be disappointed at checkout. It's not a double sale, as long as the sale itself is recorded with the conditional update from 3.2 in the durable database. A hold store may be briefly wrong; the sold record must never be. This is the same sorting Uber's design did with driver locations and trips: decide how much it costs for each piece of data to be wrong, and pay for exactness only where wrong is expensive.

3.4The confirm step must check the hold

Holds fix the double sale only if the step that turns a hold into a sale checks that the hold is still yours. It's tempting to skip that check: Sofia was given a hold, she's paying, so mark the seats sold. This simulation shows why that's wrong, and also why holds need a deadline at all. Three thousand fans are let in one every 0.6 seconds for 1,000 seats. Each holds one seat for 8 minutes; 75% pay within 1 to 6 minutes, 15% abandon their cart, and 10% are slow and try to pay after 9 to 12 minutes. It runs the same fans under three policies: holds that never expire; holds that expire, with a confirm step that trusts the fan; and holds that expire, with a confirm step that checks the hold first.

import heapq, random

SEATS, FANS, TTL = 1_000, 3_000, 8 * 60      # holds last 8 minutes

def on_sale(policy):
    rnd = random.Random(42)                  # same fans for every policy
    hold = {}                                # seat -> (fan, expires_at)
    sold = {}                                # seat -> [fans who were charged]
    events = []
    for f in range(FANS):                    # one fan admitted every 0.6 s
        heapq.heappush(events, (f * 0.6, "arrive", f, None))
    late_rejected = 0

    def is_free(seat, now):
        if seat in sold:
            return False
        h = hold.get(seat)
        if h is None:
            return True
        return policy != "no expiry" and h[1] <= now   # an expired hold is free

    while events:
        now, kind, f, seat = heapq.heappop(events)
        if kind == "arrive":
            free = [s for s in range(SEATS) if is_free(s, now)]
            if not free:
                continue
            seat = rnd.choice(free)
            hold[seat] = (f, now + TTL)      # SET seat f NX PX ttl
            r = rnd.random()
            if r < 0.75:                     # pays within 1 to 6 minutes
                heapq.heappush(events, (now + rnd.uniform(60, 360), "pay", f, seat))
            elif r < 0.90:                   # abandons the cart
                pass
            else:                            # pays after 9 to 12 minutes
                heapq.heappush(events, (now + rnd.uniform(540, 720), "pay", f, seat))
        else:                                # "pay": try to turn the hold into a sale
            h = hold.get(seat)
            still_mine = h is not None and h[0] == f and (policy == "no expiry" or h[1] > now)
            if policy == "TTL, confirm checks hold" and not still_mine:
                late_rejected += 1           # card is not charged; fan is told
                continue
            sold.setdefault(seat, []).append(f)
            hold.pop(seat, None)

    oversold = sum(1 for fans in sold.values() if len(fans) > 1)
    unsold = SEATS - len(sold)
    locked = sum(1 for s in hold if s not in sold) if policy == "no expiry" else 0
    print(f"{policy:25} sold: {len(sold):4}  sold twice: {oversold:3}  "
          f"unsold: {unsold:3} (locked forever: {locked:3})  late payers refused: {late_rejected}")

for p in ["no expiry", "TTL, confirm trusts fan", "TTL, confirm checks hold"]:
    on_sale(p)

no expiry                 sold:  853  sold twice:   0  unsold: 147 (locked forever: 147)  late payers refused: 0
TTL, confirm trusts fan   sold: 1000  sold twice:  87  unsold:   0 (locked forever:   0)  late payers refused: 0
TTL, confirm checks hold  sold:  995  sold twice:   0  unsold:   5 (locked forever:   0)  late payers refused: 124

Each line is one of the failure modes we've been circling:

• No expiry: nothing is sold twice, but 147 seats, about 15%, sit in holds whose owners abandoned them and are never sold. Those are the 15% who walked away. In a real sale that's thousands of seats per show that fans can see are "taken" and that never reach anyone.
• Expiry, but the confirm step trusts the fan: every seat sells, but 87 seats are sold twice. Each is a slow payer whose hold expired, whose seat was then held and bought by someone else, and who was charged anyway when they finally paid.
• Expiry, and the confirm step checks the hold: nothing is sold twice and nothing is locked forever. The 124 late payers are refused before their card is charged, and told their time ran out. The 5 unsold seats are holds that expired after the last fan had been let in; they're available again for whoever comes next.

So both halves are needed: a deadline so abandoned seats come back, and a check at confirm time so a hold that has expired can't be turned into a sale.

3.5Where the holds should live

We now have two working hold stores. A third option comes from Ticketmaster itself.

In July 2014, Kurt Granroth of Ticketmaster wrote about the company's Inventory Service on its engineering blog, in a post called "The Tao of Ticketing". Its lowest layer, the Inventory Core, is written in C++ "with assembly bits for hyper-critical sections", and in the post's own words it "doesn't scale; and can't be distributed". That was deliberate. Searching for seats has to look across a whole event, because sections, rows and price levels overlap, and at an on-sale every "best available" search goes after the same section at once. Splitting an event across machines would mean every search taking an event-wide lock anyway. So "each event is assigned exclusively to one Core, which loads it into memory and performs the search algorithm from there", and the post reports search times measured in microseconds. A scalable service layer in front routes each request to the right Core.

That design is a single writer per event: one process owns all of one show's seats and handles requests for them one at a time. It doesn't need compare-and-set tricks, because no two requests for the same show ever run at once; the race in 2.2 can't happen. How Ticketmaster's inventory works today, twelve years after that post, is unpublished.

4.1How long should a hold last?

How long a hold lasts is a choice, and every value hurts someone. Too short, and Sofia's bank asks her to approve the payment in its app, she fumbles for her phone, and the seats are gone when she gets back. Too long, and every abandoned cart keeps seats off sale for longer, while fans in the queue watch the map show seats as taken that nobody is going to buy. Ticketmaster shows a countdown during checkout; how long it is, and whether it varies by sale, isn't something it publishes in one place, and we'll use 8 minutes as our own choice.

4.2Charging the card without charging twice

Payment is where the hold, the card network and the network between them all meet, and any message between them can be lost. Chapter 52's Stripe case study is about exactly this problem, and its main tools carry over. Two of them matter here.

First, a card payment can be split in two. An authorization asks the card's bank to set the money aside without moving it; a capture, later, takes it. An authorization that's never captured is released, and the customer is never charged. That lets us put the seat sale between the two steps: if the seat sale fails, we cancel the authorization and Sofia was never charged.

Second, every request to the payment provider carries an idempotency key, a unique ID for this attempt, so that if our server retries after a timeout, the provider recognises the retry and returns the first answer instead of charging again (chapter 52's section 5). A cart ID makes a natural key.

?What if the hold expires while the bank is still answering?

Then step 4 says no, and the authorization is cancelled. It's an unhappy ending for Sofia, but a clean one: no double sale, no charge, no refund to chase. A friendlier version probably extends the hold by a minute or two at step 2, when payment has begun, so that only fans who started paying at the last second are affected. The rule that makes it safe doesn't change: the sale is recorded only by the event owner, only for a hold that's still valid.

4.3When the error is ours

Ticketmaster's November 2022 statement mentions a failure that this design has to plan for: "passcode validation errors that caused fans to lose tickets they had carted". Those fans hadn't done anything wrong. A service the checkout depended on, here the one that checks presale codes, was failing under load, and while the fans retried, their holds ran down.

The hold clock is a promise to the fan: "these are yours for 8 minutes, if you act in time". When the platform is the reason they can't act, burning their time breaks that promise.

So far we've made the sale exact: holds that expire, a sale recorded only for a valid hold, a payment that can't charge twice. But all of it assumed fans arrive one by one. At 10:00 they don't.

5.1Why holds don't save you from the crowd

Picture the first second of the sale. Hundreds of thousands of browsers, plus the bots, send requests within a moment of 10:00:00: load the seat map, hold these seats, hold those. Every one of them for Sofia's show ends up at the single event owner from 3.5. Even at microseconds per search, a queue of a million requests in front of one process means the requests at the back wait for many seconds, their browsers time out and retry, and the retries pile on top of the original queue. Meanwhile the web servers in front each have thousands of connections open, waiting.

This is a thundering herd: a crowd of clients woken by the same event, all asking at once, where the crowd itself, and its retries, makes the system slower for everyone. Ticketmaster's 2014 post saw this coming. It says on-sales "require both queuing and prioritizing": queuing because the commerce layer could send far more requests than the Inventory Core can take, and prioritizing so that one huge on-sale doesn't overwhelm requests for everything else.

Notice what a fast sales system would do even if it never fell over: hand out seats to whoever's request reached the inventory first. The ones who reach it first are those with the fastest connection and the fastest script. So even a sale that never slowed down would have a fairness problem, and bots would win it. So the fix has to solve both: let only as many people reach the sale as it can serve, and decide who in a way that a script can't win just by being quick.

5.2A waiting room in front of the sale

People solved this long before websites: you queue at the box office, and the person at the window serves one customer at a time.

A virtual waiting room is the same arrangement in software: a separate, very simple system in front of the sale that every fan must pass through. It holds them on a waiting page, and lets them into the real sale at a controlled rate. What lets someone through is a token: a small piece of data, signed by the waiting room, that says "this person may shop for this event until this time". Our sale checks the token on every request and turns away anyone without a valid one.

The waiting room has to sit somewhere the whole crowd can reach without touching the sale. That place is the edge: servers run by a content delivery network (CDN), spread across hundreds of cities, which sit between users and the site, answer whatever they can from their own copies, and pass the rest on (chapter 25). An edge server can hand out a cached waiting page, or check a token, without asking anything behind it.

Ticketmaster describes its own version, Smart Queue, in four steps (December 2025): fans sign in and join the waiting room before the sale; once the sale starts, they're assigned a spot in the queue; they enter the sale "at a rate that minimizes check-out errors and maximizes sell-through"; then they pick seats and check out. Here is that flow as a design:

Let's look closely at the token, because it's what makes the waiting room cheap. It might carry:

An HMAC is a short code computed from the message and a secret key; anyone holding the key can check that the message is unchanged and was made by someone else holding the key, and nobody without the key can forge one. Because every edge server holds the key, every edge server can check every token on its own, with no lookup. So the sale's front door turns from "ask a database whether this person is allowed" into "check a signature", which an edge server can do tens of thousands of times a second. The token's details here are our design; Ticketmaster doesn't publish its format. Cloudflare's Waiting Room does the same job with a cookie that tracks each visitor's place, and Queue-it sends each visitor back to the site with a queue token when their turn comes.

Its own servers stay simple on purpose: a cached page, a counter of who's been admitted, and a way to hand out positions. It's the one part of the system that has to accept the whole crowd, so it does as little as possible per request.

5.3How fast to let people in

Of all the dials, the admission rate matters most, and Ticketmaster's November 2022 statement shows it being turned during an emergency: "we slowed down some sales and pushed back others to stabilize the systems. The trade off was longer wait times in queue for some fans."

To pick the rate, use Little's law (chapter 42): the number of people in a system equals the rate they arrive times how long each one stays. If we admit 1,000 fans a minute and the average fan spends 5 minutes choosing seats and paying, then about 1,000 × 5 = 5,000 fans are shopping at any moment. That's the load the sale and the event owner must handle, and we can test for it in advance. Cloudflare's Waiting Room exposes exactly these two dials: "total active users", the number of people allowed on the site at once, and "new users per minute", the rate at which they're let in.

That rate also tells Sofia the truth about her chances, if we're willing to tell her. Her show has about 70,000 seats; at three tickets an order that's roughly 23,000 orders. If Ticketmaster's historical figure holds (about 40% of invited fans go on to buy, from the 2022 statement), probably something like 58,000 admitted fans would use up the seats. Someone at position 2,143 will probably get seats. Someone at position 200,000 almost certainly won't, and at 1,000 admissions a minute they'd wait over three hours to find out. A waiting room that shows how much inventory is left, which Ticketmaster's Smart Queue page says it does, lets that fan stop waiting.

5.4First come, or random?

At 10:00:00 the waiting room has hundreds of thousands of sessions and has to put them in an order. An obvious rule is FIFO, first in, first out: whoever's request arrived first goes first. Before reading on, predict how that plays with bots in the room.

Most waiting rooms fix this with a pre-queue: a waiting page that opens some time before the sale, where it doesn't matter when you arrive, followed by a random shuffle of everyone in it at the moment the sale opens. Queue-it's documentation puts it directly: "at sale or registration start, visitors are randomized and assigned a place in line", and "visitors who arrive after the sale starts get a first-come, first-served place in the queue." Cloudflare's Waiting Room has a setting for the same thing: with "Shuffle at event start", "all users in the pre-queue will be randomly admitted at event start."

This program runs the scenario from the prediction under four rules: FIFO; a shuffle of every session; a shuffle where each account keeps only its best-placed session; and one entry per account, shuffled once.

import random
rnd = random.Random(2022)

HUMANS = 200_000              # one browser tab each
BOTS, TABS_PER_BOT = 500, 40  # 500 scalpers running 40 sessions each
FIRST = 10_000                # roughly the people who will get tickets

# Seconds after 10:00:00 at which each session's request reaches the queue.
# People react and click in 0.5 to 5 s; scripts fire within 50 ms.
humans = [("human", i, rnd.uniform(0.5, 5.0)) for i in range(HUMANS)]
bots = [("bot", b, rnd.uniform(0.0, 0.05))
        for b in range(BOTS) for _ in range(TABS_PER_BOT)]
sessions = humans + bots

def bot_share(order):
    front = order[:FIRST]
    return sum(1 for kind, _, _ in front if kind == "bot") / FIRST

# 1. FIFO: the first request to arrive after 10:00 is first in line
fifo = sorted(sessions, key=lambda s: s[2])

# 2. Pre-queue: every session waiting at 10:00 is shuffled, like a raffle
shuffled = sessions[:]
rnd.shuffle(shuffled)

# 3. Shuffle every session, then keep each account's best place
best_tab, seen = [], set()
for s in shuffled:
    if (s[0], s[1]) not in seen:
        seen.add((s[0], s[1]))
        best_tab.append(s)

# 4. One entry per account first, then shuffle
one_entry = list({(s[0], s[1]): s for s in sessions}.values())
rnd.shuffle(one_entry)

print(f"sessions: {len(humans):,} human, {len(bots):,} bot "
      f"({len(bots) / len(sessions):.0%} of all)")
print(f"FIFO by arrival time:         bots get {bot_share(fifo):6.1%} of the first {FIRST:,} places")
print(f"shuffle every session:        bots get {bot_share(shuffled):6.1%}")
print(f"shuffle, keep best per acct:  bots get {bot_share(best_tab):6.1%}")
print(f"one entry per acct, shuffle:  bots get {bot_share(one_entry):6.1%}")

sessions: 200,000 human, 20,000 bot (9% of all)
FIFO by arrival time:         bots get 100.0% of the first 10,000 places
shuffle every session:        bots get   9.0%
shuffle, keep best per acct:  bots get   4.3%
one entry per acct, shuffle:  bots get   0.3%

Read it top to bottom; each line removes one advantage:

• FIFO hands the whole front of the queue to scripts. Speed is everything.
• Shuffling every session removes the speed advantage: bots get 9%, exactly their share of sessions. But they still have 40 lottery tickets each to a person's one.
• Keeping each account's best session after the shuffle looks like "one per account" but isn't: each bot still drew 40 times and kept its luckiest draw, so bots get 4.3%, far above their 0.25% share of accounts. This is a real trap; deduplicating after the draw rewards whoever entered the draw most often.
• One entry per account, then shuffle gives each account one draw, and bots fall to their share of accounts, 0.3%. Now the only way to get more places is to have more accounts, which moves the fight to account creation and identity, the subject of section 6.

6.1What the bots want

Section 5 ended with the fight moved to accounts. To see why bots fight so hard, look at what they're after. Live Nation's Senate testimony in January 2023 described ticket scalping as a $5 billion industry in concerts alone, "largely accomplished by using bots to acquire tickets and online secondary marketplaces to sell them". Artists often price tickets well below what fans would pay, so a ticket bought at face value and resold is profit. For a scalper, every seat a bot gets is money, and a few thousand dollars spent on servers, proxies and accounts probably pays for itself many times over.

So bots do whatever gives them more seats than a person: arrive first (beaten by the shuffle), run many sessions (beaten by one entry per account), run many accounts, hold seats without buying (beaten by hold caps), and attack anything in the flow that's weaker than the front door. In 2022, that last one was the code-checking servers.

6.2Verified Fan: deciding who gets in before the day

Ticketmaster's answer is Verified Fan, which it launched in 2017; the presale for Ed Sheeran's North American tour that March was one of the first to use it, and dozens of tours followed that year. It moves the contest from the on-sale, where everything happens in seconds, to registration, days earlier, where there's time to look at each account. In the 2022 statement's words: "By requiring registrations, Verified Fan is designed to help manage high demand shows – identifying real humans and weeding out bots." Fans register for a tour; Ticketmaster screens the registrations; invited fans get a code; only verified accounts can enter the queue, and, for this sale, buyers also had to enter their code to complete a purchase.

It's also a forecasting tool, and the 2022 numbers show how.

Ticketmaster also reported results, and they're its own figures, so treat them with some care: less than 5% of the Eras Tour tickets had been sold or posted for resale by 19 November 2022, against 20 to 30% for on-sales that don't use Verified Fan.

6.3Rate limits, CAPTCHAs and attestation

Registration can't catch everything, and on the day the platform still needs defences at the door. Three are standard, and they work at different layers.

Rate limits cap how often one client can make a request: so many hold attempts per account per minute, so many requests per IP address per second. Usually the mechanism is a token bucket, the same one chapter 52 uses to protect Stripe's API. A bucket fills with tokens at a fixed rate, up to a maximum; each request spends one; a request that finds the bucket empty waits or is refused. It allows a short burst, a person clicking quickly, but caps the sustained rate, which is what a script relies on.

Rate limits have a known weakness: they're per something, and scalpers spread their traffic across thousands of accounts and residential IP addresses, each staying under the limit.

CAPTCHAs ask the client to do something that's easy for a person and hard for a program, like reading distorted text or picking out pictures of buses. They raise the cost of each automated attempt. They also annoy every real fan, and both machine-learning models and paid human solving services have made them much weaker than they were, so they work best as a challenge shown only to sessions that already look suspicious.

Attestation asks a trusted party to vouch for the client without bothering the fan. A phone app can ask the operating system to sign a statement that it's a genuine copy of the app on a real device (Apple's App Attest, Google's Play Integrity). On the web, Privacy Pass, standardised by the IETF in 2024 as RFCs 9576 to 9578, lets a device that has already proved itself to an issuer present an unlinkable token saying "a real device vouches for this request", without revealing who the person is. None of these is proof of a fan; all of them make each fake session cost more.

6.4The side doors

The 2023 testimony contains the most useful single detail of the 2022 sale for a designer: "for the first time in 400 Verified Fan onsales they came after our Verified Fan access code servers." The front door, the queue that admits only verified accounts, held. The bots went for a service that sat beside it and that every real buyer also needed. When that service struggled, real fans' checkouts failed and their holds ran out (4.3), and Ticketmaster had to slow the whole sale down. In Berchtold's words, "the attack required us to slow down and even pause our sales".

With the crowd outside and the bots thinned out, the fans who are let in all want the same thing first: to see which seats are left.

7.1Two kinds of data on one map

When Sofia is let in, the first thing she sees is the map, and every admitted fan reloads it every few seconds, because it's how you find out what's left. If each of those reloads asked the event owner for the state of 70,000 seats, we'd be back to a crowd in front of one process.

Look at what a seat map is made of, though, and it splits into two very different kinds of data.

• The geometry: where each section, row and seat is drawn, which price zone it's in, which seats are accessible. It's large (shapes for 70,000 seats) but it doesn't change during a sale. It can be built once, given a version number, and cached on every CDN server in the world, exactly like an image file.
• The availability: which seats are available right now. It's small and it changes many times a second.

Ticketmaster's interactive seat map has a history of its own. In August 2015 its engineering blog said the map was built on a Flash component, with work under way on JavaScript/SVG and HTML5 versions, an OpenGL version for mobile apps, and server-side rendering, all drawing the same venue data.

7.2Availability as a snapshot

Availability, though, is small enough to treat as one value. Give each seat in the venue a fixed number from 0 to 69,999, and store one bit per seat: 1 if it's available, 0 if not. That's 70,000 bits, about 8.75 KB, a bitmap of the whole stadium. With two bits per seat, to show "held" separately from "sold", it's about 17.5 KB, and since sold seats cluster in sections it compresses pretty well.

So the event owner, which knows the true state of every seat, writes out a fresh bitmap every second or two. That snapshot is published to the CDN with a short cache lifetime, and every fan's map loads it from there. If 50,000 admitted fans each refresh every 5 seconds, that's 10,000 requests a second, all answered by the CDN; the event owner does the work of producing one snapshot per second, however many fans are looking.

7.3When the map is wrong

A snapshot that's a second or two old will sometimes, maybe a few times a minute for a popular section, show a seat as available that somebody held a moment ago. Sofia clicks it, the hold fails, and she sees "someone beat you to it". That's the design working as intended: the map is a hint, and the hold is the decision. The alternative, a map that's never stale, would mean every view of the map going through the one process that can say for certain, and that's what we're trying to avoid.

7.4Let the server pick

There's another way to make collisions rarer: don't make fans pick from the map at all. With best available, Sofia asks for "2 seats, under $200, together" and the event owner chooses. Because one process sees the whole event, it can hand out different seats to requests that arrive together instead of letting them all collide on the same front-row pair.

The 2014 "Tao of Ticketing" post explains why this search is harder than it sounds. Fans almost always buy several seats together, so the search must find a run of contiguous seats in one row, not any few seats from a bucket. It also tries not to leave single empty seats that nobody will buy, which means looking at the seats on either side of each candidate and at the ends of the row. Layers on top, price zones, production holds, seats reserved for particular deals, each add to the cost. That's part of why the post wanted one process per event, in memory: this search has to see the whole event at once.

We now have a sale that's exact, a crowd held outside, bots thinned, and reads served from cache. All of that is for one show. Ticketmaster sells many thousands of other events, and they're still running during the Eras Tour sale.

8.1One hot event, a whole platform

Ticketmaster's 2022 statement estimated that "about 15% of interactions across the site experienced issues". The site, not just the Eras Tour sale. While the on-sale was happening, someone buying basketball tickets, or transferring a ticket to a friend, or logging in to check an order, could be caught up in it.

That happens when the hot event shares things with everything else: the same web servers, the same login service, the same database connection pools, the same payment integration. When the hot sale saturates one of them, everything that uses it slows down, and their retries make it worse. The fix is the one ships use: a bulkhead, a wall that divides a hull into compartments so that a leak floods one compartment and not the whole ship. In software, a bulkhead gives a workload its own capacity, so it can exhaust only what's its own.

8.2What has to be separated

Separating the obvious pieces is easy: the waiting room, the sale servers and the event owner are per event already. The hard part is the shared services that every compartment needs, because a bulkhead with a hole in it doesn't work. A few that matter:

• Login and accounts. Every fan in the queue signs in. Give the on-sale its own login capacity, or let the waiting room's token stand in for repeated session checks inside the sale.
• Code validation and eligibility checks. The 2022 weak spot. Run them at the moment of admission, inside the hot compartment, so the side door from 6.4 doesn't exist.
• Payment. Card processors have their own limits, and checkouts for a huge sale can exceed them. Separate rate limits for the hot event's payments keep a burst of Eras checkouts from crowding out every other purchase.
• Databases. Separate connection pools at least, so a hot event can't use every connection; separate database shards for orders if possible.

Inside each compartment, priorities decide what to drop first when it's overloaded: the 2014 post's "prioritizing" requirement. A request that completes a sale (confirming a hold that's been paid for) is worth more than one that starts a new hold, which is worth more than a map refresh. When the system is overloaded, dropping the cheap, repeatable requests first lets the ones that turn into tickets finish.

9.1Autoscaling is too slow

Most of a cloud system's capacity is added by an autoscaler, a controller that watches load and starts more servers when it rises (chapter 42). It reacts in minutes: it has to see the load, decide, start machines, and wait for them to warm up. An on-sale goes from quiet to its peak in about a second. By the time the autoscaler has reacted, the first, most important minutes of the sale are over, and the system has spent them overloaded.

So an on-sale is pre-scaled: capacity is added before 10:00, sized from a forecast. Verified Fan makes the forecast much better than a guess. Ticketmaster knew a month ahead that 3.5 million people had registered, 1.5 million had codes, and roughly 40% of those would buy. What it didn't forecast was the traffic from bots and people without codes: "unprecedented traffic", four times its previous peak. Pre-scaling has to cover the crowd you don't expect as well as the one you invited, another argument for a waiting room that can absorb almost anything at the edge.

9.2Load testing the sale

Then the forecast becomes a test. A load test sends synthetic traffic at the system to see where it breaks, before real fans find out. For an on-sale it should look like the real thing, which means:

• The shape, not just the volume: almost nothing, then everyone in the same second, then a long tail of refreshes.
• The contention: thousands of synthetic fans trying to hold the same few hundred seats, not spread evenly over the venue. An evenly spread test misses the hot-seat problem entirely.
• The attackers: bots hammering every endpoint they can reach, including the side doors from 6.4, not only the front door.
• The failures: a cache node lost, a dependency slowed down, the event owner failing over, in the middle of the peak.
• A margin above the forecast. A test at twice the previous peak would have passed and still missed a day at four times it.

Those tests also calibrate the dials from section 5: how many active shoppers the sale servers and the event owner can take, and so how many admissions a minute the waiting room should allow.

9.3Spreading the demand

One last tool is not technical at all. In the 2023 testimony, Berchtold said that in hindsight Ticketmaster could have done better by "staggering the sales over a longer period of time". The Eras Tour presale put many dates on sale over a short window, so many hot events peaked together and shared the same edge, login and payment capacity.

10.1Every box, and why it's there

Here is Sofia's whole morning on the finished design, from her registration a month earlier to the tickets in her account.

10.2From top to bottom

11.1Failures this design has to survive

11.2The tradeoffs, in one table
