Designing Valorant

1.1What it has to do

Strip away the characters and the maps, and the networked core of a shooter like Valorant comes down to a short list:

1. Put ten players in a match: pick ten people of similar skill, split them into two teams, and find a game server close to all of them.
2. Run the match: move every player around the map as they press keys and move the mouse, many times a second, and show everyone everyone else.
3. Decide every shot: when someone fires, work out whether the bullet hit, where, and for how much damage.
4. Keep it honest: a modified game client mustn't be able to teleport, fire through walls, or see enemies it shouldn't.

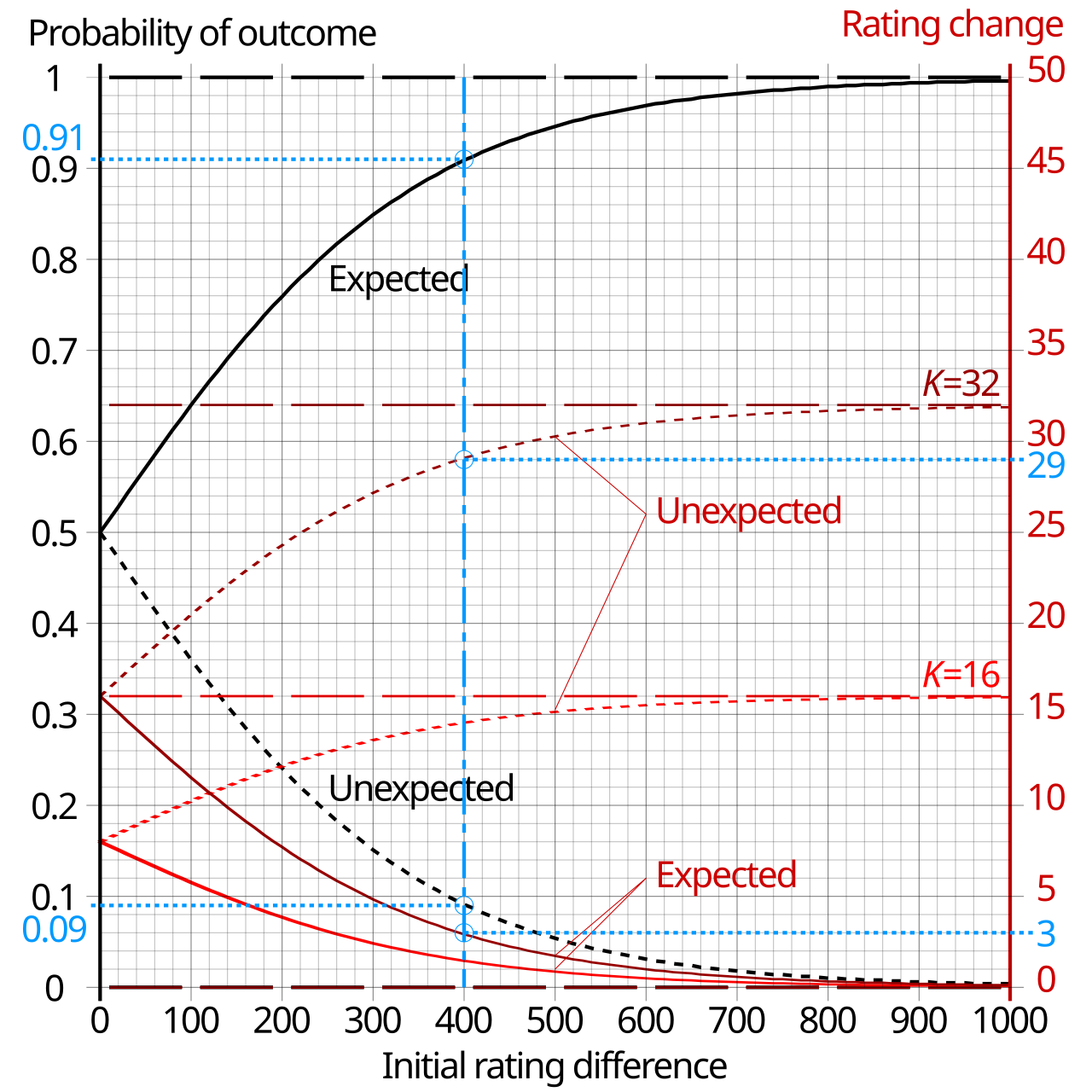

5. Record the result: who won, and how each player's rating should move.

And the qualities it needs while doing that:

• Responsive: when you press a key, your character moves at once, with no visible wait for a server.
• Fair: Riot's engineers put this as "competitive integrity", the goal that a match's outcome depends on the players' planning and execution, and not on their internet connection, their computer, Riot's servers or other players' machines.
• Consistent: all ten players must agree on what happened, especially on who died.
• Cheap enough to run for free: the game is free to play, so the servers can't cost much per match.

Compare this list with Uber's in chapter 50. Uber's hard problem was finding the right car among millions; it could afford to take a second or two. Here the population of each match is tiny, ten people, but the time scale is brutal. Gunfights in Valorant are decided by differences of tens of milliseconds, a twentieth of a second, and the internet alone adds that much between any two people. Almost everything in this case study is about time.

1.2How big is it?

Valorant launched on 2 June 2020. A year later, in June 2021, Riot said the game had more than 14 million players a month and that half a billion matches had been played in that first year. Riot hasn't published newer official totals, so we'll use those.

Inside each match, the numbers get more interesting. Riot's game servers run the match simulation 128 times a second. Each of those steps is called a tick: the server reads what every player did, moves everyone, settles any shots, and sends the new state out. 128 ticks a second means one tick every 7.8125 milliseconds. Riot's target for the network was that 70% of players should have a ping, the time for a message to reach the server and a reply to come back, of 35 milliseconds or less.

2.1The obvious design

The most obvious design has no game server at all. Each of the ten players' computers runs the whole game. When Leo moves, his computer sends "I'm now at this spot" straight to the other nine. When he fires and his computer works out that the bullet hit Ana, it sends "I hit Ana in the head" to everyone, and they all mark her dead. Computers that talk to each other directly like this, with no central server, are called peers, and the arrangement is peer-to-peer.

It looks attractive. Nobody pays for servers, and each message goes directly from one player to another without a detour through a data centre, which can make it faster.

2.2Where it breaks

It breaks three ways, and each is fatal on its own.

• Nobody is in charge. Ana's computer and Leo's computer each decided the duel on their own copy of the room, and those copies differ, because each learns about the other's movement only after a network delay. With no referee, the game must either pick one story by some rule, or let the players' screens disagree about who's alive. In a game where one death can lose a round, neither is acceptable.
• Anyone can lie. If a player's computer is trusted to say "I hit Ana", then a modified copy of the game can say it whenever it likes, through walls, from across the map. A cheater doesn't even need to aim. Peer-to-peer turns every player's computer into a source of truth, and some of those computers belong to cheaters.
• It doesn't scale with the slowest connection. Each player has to send every update to nine others, so the upload from a home connection is multiplied by nine, and some homes have very little upload. Many home routers also block incoming connections from strangers, so two players often can't reach each other directly at all. And a player on a bad connection degrades the game for all nine others, not just themself.

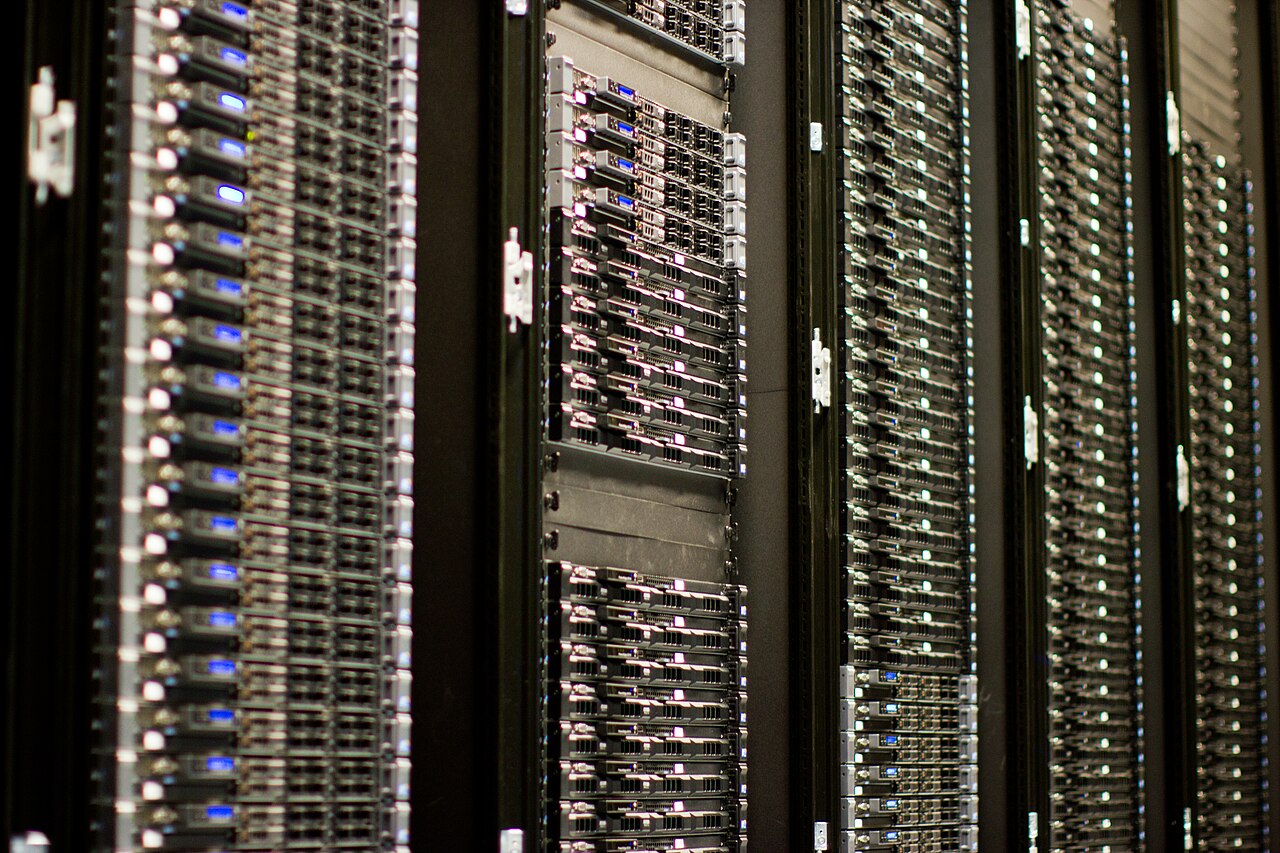

All three have one fix: put one computer in charge: a game server run by Riot, in a data centre, that holds the one true copy of the match. Players send it only what they did, their key presses and mouse movements. It works out what happened and tells everyone. A server that holds the final say like this is called authoritative.

3.1Running the match one tick at a time

An authoritative server runs the match as a loop. It can't run the simulation continuously, because a computer only does things in steps, so it advances the world in small, fixed slices of time. Each tick, the server does the same five things:

1. Read inputs: collect the inputs that have arrived from all ten players since the last tick.
2. Simulate: move every player according to their inputs, and apply physics such as gravity and collisions with walls.
3. Settle shots: for every shot fired, decide what it hit.

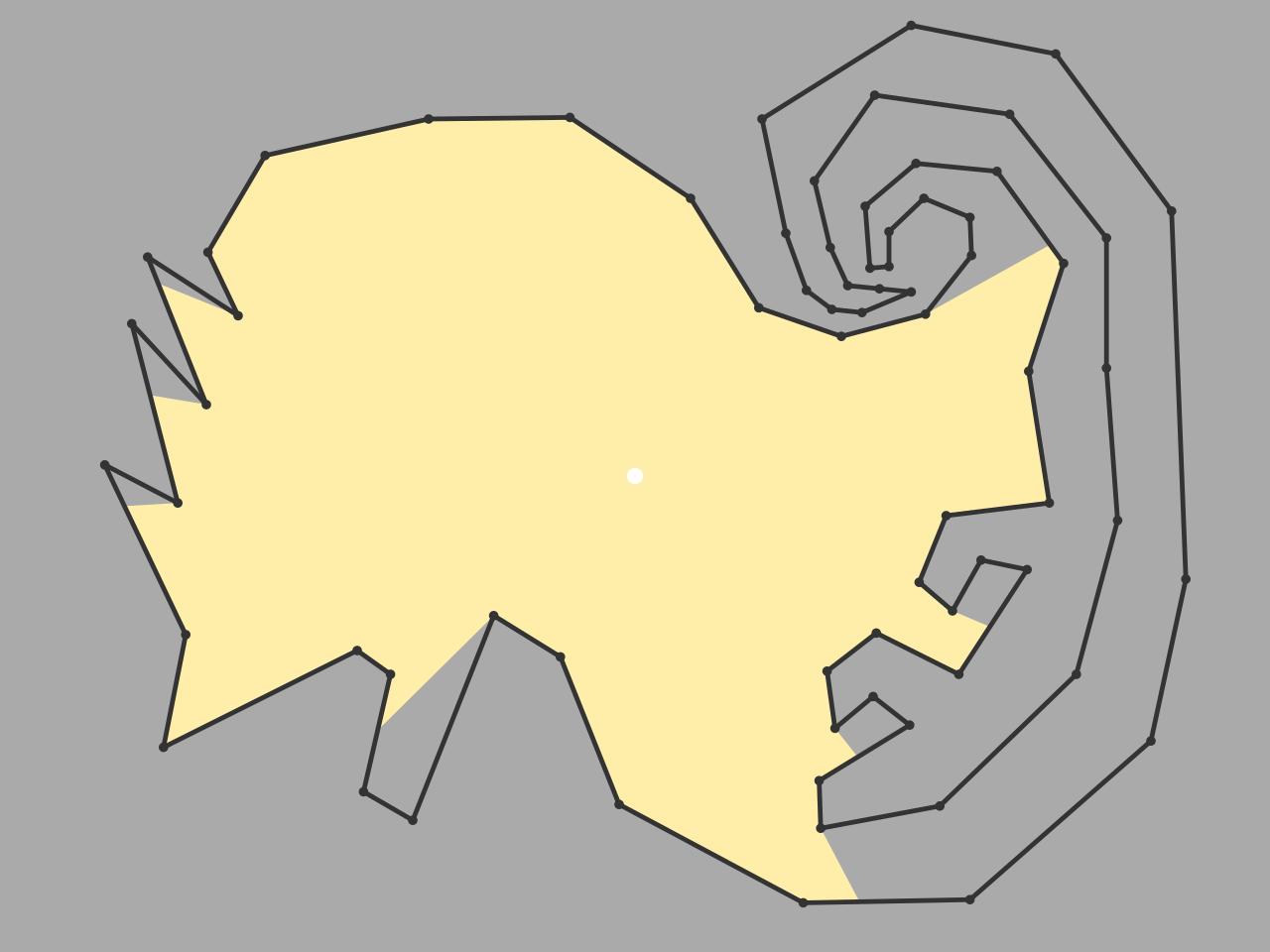

4. Decide visibility: work out which players each client is allowed to know about (section 9).
5. Send state: send each client a message describing the new state of the world it's allowed to see.

Fixed steps have a quiet benefit that turns out to be important later. Because both the server and every client advance movement in exactly the same slices, 128 per second, Riot's clients number each slice. Leo's "move 408" means the same 7.8 ms of the match on his machine and on the server. That shared numbering is what lets the two compare notes about what happened in a given move, which section 4 relies on.

3.2Why 128 ticks a second?

The tick rate is a direct tradeoff between precision and cost. Everything the server learns waits, on average, half a tick before it's acted on, and then a tick to be processed and sent out, so a slower tick adds delay to everything. At 20 ticks a second, a tick is 50 ms; at 64 it's about 16 ms; at 128 it's under 8 ms. Faster ticks also mean that movement and shots are sampled more finely, so less happens "between" two snapshots of the world.

Riot's 2020 article on the choice says the deciding reason was gameplay. Valorant is a game about holding positions: Ana crouched behind her crate is supposed to have the advantage over Leo, who has to walk into her view. If network and tick delays let attackers round a corner and kill a defender before the defender can react, holding a position stops working, and the game's design falls apart. Section 6 shows exactly how tick rate enters that calculation.

3.3The frame budget

A tick that takes the full 7.8 ms uses a whole CPU core for one match. Riot's 2020 article on its 128-tick servers works the budget out like this. To be affordable, a core had to run more than three matches. Three matches in 7.8125 ms gives each about 2.6 ms per tick, and keeping 10% of the core back for the operating system and other software leaves 2.34 ms for each match's tick. When the team first measured, a server frame took about 50 ms, twenty times over budget.

Getting from 50 ms to under 2 ms was a long list of changes, each a lesson in where server time goes. Riot reported these, among others:

The final result was under 2 ms per frame, inside the 2.34 ms budget. Notice how mixed the list is: one change is in the game's own code, one in the engine, two in hardware and two in how the operating system places work on the machine. A frame budget this tight makes everything visible. One detail from the same article shows how shared the machine is: one match alone on a host took about 1.5 ms a frame, but with 168 matches running, each took about 5.7 ms, mostly because the matches were evicting each other's data from the CPU's shared cache (chapter 2 covers why that hurts).

So now we have a referee that's fast enough. But putting it in Mumbai has created a new problem for Ana in Pune and Leo in Delhi. Every key they press has to travel to Mumbai and back before they see its effect.

4.1Waiting for the server feels terrible

Leo's ping to Mumbai is roughly 50 ms. With a purely authoritative server, here's what happens when he presses D to strafe right: his computer sends the input, the server applies it on the next tick, sends back his new position, and only then does his screen show him moving. His character starts moving 50 ms or more after he pressed the key, plus a few frames of buffering. Every step, every turn, feels like walking through syrup. Players notice delays far smaller than that.

So stop waiting. Leo's computer runs the same movement code as the server, so when he presses D, it moves his character on screen immediately, assuming the server will agree. This is called client-side prediction. It's safe to try because movement is deterministic: given the same starting position and the same keys held for the same 7.8 ms move, the client's code and the server's code compute the same result. Riot describes exactly this: clients predict their own movement locally, and the fixed 128-per-second move size is what makes the client's and server's results comparable, move for move.

4.2When the prediction is wrong

Usually the prediction matches. Sometimes it doesn't: another player bumped Leo, an ability slowed him, or a packet was lost. The server's answer is authoritative, so the client has to accept it. But it can't jump straight to the position in the server's message, because that message is old. By the time it arrives, Leo has already pressed more keys, and his screen shows where those keys took him.

Gabriel Gambetta's well-known series on client-server game architecture works this out with a small example. Suppose the server is 250 ms away and each key press moves a character one square. The player presses right twice, and the client predicts x = 12. Then the server's reply to the first press arrives, saying x = 11. If the client jumps to 11, the character twitches back a square, and then forward again when the second reply arrives.

A better fix is to number every input and keep a copy of each one until the server confirms it. Each message from the server carries the number of the last input it has processed. When a correction arrives, the client:

1. throws away its saved inputs up to and including that number, because the server has accounted for them;
2. sets its own position to the server's position;
3. replays every saved input the server hasn't processed yet, on top of that position.

The result is the server's truth plus Leo's latest key presses. Once those presses arrive, the server will compute the same thing. This is called server reconciliation.

Behind this sits a small data structure. The client keeps a ring buffer, a fixed-size array used as a queue that wraps around, of its recent moves. Each slot holds a move number, the input (which keys were held, the view angles, whether the fire button was down) and the position the client predicted after it. At 128 moves a second and a 50 ms ping, only roughly seven moves are ever waiting for confirmation, so a buffer of a few hundred slots covers even a terrible connection. Riot's article adds two details. When the server's result differs, only the affected player is corrected, usually by snapping straight to the right position, and the other nine players see that player move smoothly. And the server keeps its own short queue of each player's incoming moves, just long enough to absorb uneven arrival times. If a move hasn't arrived when the server needs it, the server guesses, usually by assuming the player is still holding the same keys as in the last move it received.

?Why does Leo predict his own movement, but not his shots' results?

Prediction is safe when being wrong is cheap to undo. If Leo's position is off by 2 cm, the client slides or snaps him back and nobody notices. A kill can't be undone: if Leo's client showed Ana dying, played the sound and updated the scoreboard, and the server then disagreed, Ana would come back to life on his screen. So clients predict the cosmetic parts of a shot, the muzzle flash, the recoil, the bullet hole in the wall, but the hit, the damage and the death come only from the server.

So Leo's own movement now feels instant. But that only works for Leo's own character, because only Leo's computer knows which keys Leo is pressing. What does Leo's computer show for Ana?

5.1Other players arrive in jumps

Leo's computer can't predict Ana, because it doesn't know what Ana will do next. All it has is the stream of messages from the server, each describing where Ana was on some tick. Each of these messages is a snapshot: the state of the world, or the part of it this client may see, as of one tick.

A naive way to draw Ana is to put her wherever the latest snapshot says. That breaks in two ways. Snapshots arrive in steps, so even at 128 a second, Ana would move in small jerks, and any frame that renders between two snapshots shows her frozen. Worse, the internet doesn't deliver packets at a steady rhythm. Some arrive early, some late, some not at all. The variation in arrival times is called jitter, and with it, Ana would stutter, freeze and leap.

Engines fix this by drawing other players slightly in the past. Leo's client holds back the most recent snapshot or so, and draws Ana at a position blended between the last two snapshots it has. If it has Ana at x = 0.70 m on tick 9,230 and at x = 0.74 m on tick 9,231, and the frame being drawn falls halfway between those ticks, Ana is drawn at 0.72 m. Drawing a value between two known samples like this is called interpolation, and applied to other players it's entity interpolation.

5.2How far in the past?

The client has to stay far enough behind that the next snapshot has usually arrived before it's needed. If it stays too close, a late packet leaves it with nothing to interpolate towards, and it must either freeze Ana or guess where she's going, which is called extrapolation and is often wrong, since players change direction constantly. If it stays far behind, Ana moves smoothly but is drawn where she was a long time ago.

How long a client deliberately waits before using what arrives is called its buffer, and the two engines give very different answers about its size. Valve's Source engine, used by Counter-Strike: Source and Team Fortress 2, interpolates over 100 ms by default, long enough to survive one lost snapshot at its typical update rates. Riot's 2020 article says Valorant targets about one tick of buffered movement on clients, and an average of half a tick on servers. At 128 Hz, one tick is under 8 ms. That's possible only because snapshots come so often; a lost packet costs 7.8 ms of buffer, not 50. Riot also lets players change the client-side buffering, trading smoothness on a bad connection against delay on a good one.

Interpolation fixed the stutter, but it moved a cost somewhere else. Leo now sees Ana where she was a few milliseconds ago, and Ana sees Leo where he was a few milliseconds ago. In a duel at a doorway, those milliseconds are the whole game.

6.1Why Leo sees Ana before Ana sees Leo

Go back to the doorway. Leo strafes into it. Leo's own screen shows his strafe at once, thanks to prediction, and the moment he's in the doorway, Ana is on his screen. She's been sitting still, so the slightly old picture of her is also correct.

Ana's screen is another matter. For Leo to appear on it, his movement has to travel from his PC to the server, wait for a tick, be simulated, be sent to Ana's PC, wait in her interpolation buffer, and be drawn on her next frame. All that time, Ana is staring at an empty doorway that already has Leo in it. The head start this gives the player who moves into view is called peeker's advantage, and every online shooter has it. Riot's article calls it out by name as one of the three problems its netcode had to solve.

Riot's article puts this into an equation. Leo's head start is the one-way trip from Leo to the server, plus the trip from the server to Ana (if both have the same ping, the two halves add up to one round trip), plus about two ticks of buffering on the server, plus about three frames of buffering and drawing on Ana's computer. Nothing in that sum is about skill.

6.2Putting numbers on it

This program fills in the sum for a few setups. The server term is two ticks, the client term is three of the holder's frames, and the network term is the round trip:

def peekers_advantage(rtt_ms, tick_hz, fps):
    server = 2 * 1000 / tick_hz   # about two server frames of buffering
    client = 3 * 1000 / fps       # about three client frames of buffering
    return rtt_ms + server + client

setups = [
    # (round trip ms, server tick rate, holder's frame rate)
    (35, 20, 60),
    (35, 64, 60),
    (35, 128, 60),
    (35, 128, 144),
    (80, 128, 144),
]
for rtt, tick, fps in setups:
    adv = peekers_advantage(rtt, tick, fps)
    print(f"{rtt:3} ms ping, {tick:3} Hz server, {fps:3} fps -> peeker's head start {adv:5.1f} ms")

 35 ms ping,  20 Hz server,  60 fps -> peeker's head start 185.0 ms
 35 ms ping,  64 Hz server,  60 fps -> peeker's head start 116.2 ms
 35 ms ping, 128 Hz server,  60 fps -> peeker's head start 100.6 ms
 35 ms ping, 128 Hz server, 144 fps -> peeker's head start  71.5 ms
 80 ms ping, 128 Hz server, 144 fps -> peeker's head start 116.5 ms

Read the lines from top to bottom. Going from 20 to 64 ticks saves almost 70 ms; going on to 128 saves roughly another 16. The third line is the setup Riot's article uses, 128 ticks, 35 ms round trip and 60 frames a second, and it comes to about 101 ms, which Riot reports as about 40 ms (28%) less than its starting baseline of about 141 ms. The fourth line is the same setup with a 144 Hz monitor: about 71 ms, matching Riot's figure of a 49% reduction. And the last line shows that ping still dominates. An 80 ms connection costs as much as all the tick and frame improvements together save.

Now we can settle the opening scene with numbers. Say Ana's reaction time is 180 ms, which is very fast, and Leo's is 220 ms, a bit slower. With a 100 ms head start, Leo's shot leaves at 220 ms after he entered the doorway, while Ana's leaves at 100 + 180 = 280 ms. Leo wins by 60 ms despite being 40 ms slower. From Ana's chair, she reacted faster and lost.

6.3What Riot did about it

Every term in the sum is something Riot attacked:

Riot also measured how much each millisecond matters. Its team put top players into peeking duels across a matrix of tick rates, latencies, frame rates and weapons. The winner of a duel often came down to 20 to 50 ms. Skilled players could detect changes of about 10 ms, and a 10 ms change in peeker's advantage, which seems tiny, could swing a matchup from the holder winning 90% of the time to the peeker winning 90% of the time.

Some of the fixes aren't networking at all. Riot lists game-design levers that give time back to the holder: maps shaped so a peeker's shoulder appears before their head, guns that are inaccurate while moving so a peeker must stop before firing accurately, and hit tagging, where being hit by a non-lethal shot briefly slows a player down.

So peeker's advantage can be made smaller but never zero; the speed of light sees to that. Which brings us back to the shot itself. Leo fired at Ana's head as drawn on his screen. That picture of Ana was a few milliseconds old, and by the time his shot reaches Mumbai it's older still. Where should the server check whether the bullet hit?

7.1The naive check misses shots that should hit

An obvious way for the server to settle Leo's shot is to take the direction he fired in, trace a line from his gun, and see what it touches in the world as it is now, on the server's current tick. That's wrong for any target that moves.

Picture a different duel: this time Ana is the one running across the doorway at 5 m/s, and Leo is holding. Leo's screen shows Ana where she was one interpolation buffer ago. He puts his crosshair on her chest and clicks. His click then takes half his round trip to reach the server. By the time the server checks, Ana has run on, and the line from Leo's gun passes behind her. Leo did everything right on the only screen he has, and the server calls it a miss. Players call this bad hit registration, and Riot's article lists it as the second of its three netcode problems.

A better rule is for the server to judge the shot against what the shooter saw. Each shot carries the moment of the match the shooter was looking at, and the server keeps a short history of where every player was, and what pose their body was in, on every recent tick. To check the shot, it temporarily moves every other player back to where they were at that moment, traces the line, and then puts them back. This is called lag compensation, or rewind. Valve's documentation for the Source engine describes the rule as working out when the command was executed on the shooter's screen: the server's current time, minus the shooter's network delay, minus their interpolation delay. Riot's article describes the same idea: the client sends the time it was viewing when it fired, and the server rewinds to it.

7.2Try it: rewinding a running target

This program puts Ana's body, 50 cm wide, running across a doorway at 5 m/s; past x = 1.0 m she's behind the wall. Leo's screen shows tick 20, with Ana's centre at 0.78 m, and he fires right at it. The server either checks Ana where she is when the shot arrives, or rewinds her to tick 20, with a limit of 200 ms on how far back it will go:

TICK = 1 / 128   # seconds per server tick
SPEED = 5.0      # the target runs across a doorway at 5 m/s
WALL = 1.0       # past x = 1.0 m the target's body is behind the wall
HALF = 0.25      # half the width of the target's body, in metres

def target_x(t):
    return SPEED * t                     # the target starts at x = 0 at t = 0

# the server records where the target was on every tick
history = {n: target_x(n * TICK) for n in range(256)}

def judge(ping_ms, rewind, max_rewind_ms=200):
    seen = 20                            # the shooter's screen shows tick 20...
    aim = history[seen]                  # ...with the target at x = 0.78 m
    arrives = seen * TICK + TICK + ping_ms / 1000   # one tick of interpolation + the round trip
    if rewind:
        back = min(arrives - seen * TICK, max_rewind_ms / 1000)
        x = history[round((arrives - back) / TICK)]
    else:
        x = target_x(arrives)            # where the target is right now
    hit = abs(aim - x) <= HALF
    hidden_now = target_x(arrives) - HALF > WALL
    return hit, x, hidden_now

for ping in (20, 60, 150, 300):
    for rewind in (False, True):
        hit, x, hidden_now = judge(ping, rewind)
        mode = "rewind" if rewind else "no rewind"
        note = "  but the target is already behind the wall" if hit and hidden_now else ""
        print(f"ping {ping:3} ms, {mode:9}: target checked at x={x:.2f} m -> {'HIT' if hit else 'miss'}{note}")

ping  20 ms, no rewind: target checked at x=0.92 m -> HIT
ping  20 ms, rewind   : target checked at x=0.78 m -> HIT
ping  60 ms, no rewind: target checked at x=1.12 m -> miss
ping  60 ms, rewind   : target checked at x=0.78 m -> HIT
ping 150 ms, no rewind: target checked at x=1.57 m -> miss
ping 150 ms, rewind   : target checked at x=0.78 m -> HIT  but the target is already behind the wall
ping 300 ms, no rewind: target checked at x=2.32 m -> miss
ping 300 ms, rewind   : target checked at x=1.33 m -> miss

Read the output from the top. (The program checks only the body's horizontal position, so "hit" means the bullet's line crossed her body.)

• 20 ms, no rewind: a hit, but only because Ana's body is wide; she had moved 14 cm and the line still crossed her. At low ping, a naive server gets lucky.
• 60 ms, no rewind: a miss. Ana has run 34 cm on, and Leo's perfect shot passes behind her. With rewind, the server checks her at 0.78 m, exactly what Leo saw: a hit.
• 150 ms, rewind: a hit, but by the time the shot reaches the server, Ana's whole body is already past the wall edge. On Ana's own screen she reached cover, and then died anyway. This is the price of lag compensation, and players know it as "I got shot behind the wall".
• 300 ms, rewind: a miss. The shot would need rewinding about 310 ms, the limit is 200 ms, so the server only goes back 200 ms, where Ana was at 1.33 m.

7.3Favour the shooter, within limits

Lag compensation is a decision about whose screen wins when two screens disagree. With rewind, the shooter's screen wins: if your crosshair was on the target as you saw it, you hit. This is called favouring the shooter, and Blizzard's developers described Overwatch's netcode with the same phrase in 2016. Whoever is being shot at pays, who sometimes dies after reaching cover. The higher the shooter's ping, the further back the server rewinds, and the worse it gets for the target.

The data structure is another ring buffer, this time on the server: for each player, one slot per tick for the last few hundred milliseconds, holding their position and the pose of their body, since a crouching or leaning player's head is somewhere else. With 128 ticks a second and a cap of a few hundred milliseconds, that's a few dozen slots per player, ten players per match. Riot's 128-tick article adds the costly part: the hitbox poses come from running character animation on the server. That made animation one of the biggest items in the frame budget, and it's why the team animated only every fourth tick and blended between saved poses when rewinding.

7.4So who hit whom first?

Now the opening duel, as the server sees it. Leo's shot arrives first, because he started his reaction about 100 ms earlier. The server rewinds Ana to the tick Leo was viewing, finds his line passes through her head, and applies the damage. Ana is dead on the server as of that tick.

Ana's shot arrives a few ticks later. On her screen she had Leo in her sights, and with rewind, her aim would check out. But the server processes events in order, and by the time it reaches her shot, she's already dead in the authoritative state, so her shot does nothing. This is the general rule in authoritative designs: the server's order of processing is the order in which things happened, and a dead player's later input has no effect. (Riot hasn't published how it breaks ties between two shots processed in exactly the same tick.) Ana's client, which played her muzzle flash and maybe a hit sound, gets corrected by the next snapshot: she's dead.

So the answer to "who shot first" is never "whoever clicked first in real time". Nobody can know that, since no single clock watched both clicks. The answer is "whoever's shot the server processed first, judged against what that shooter saw". Everything in sections 3 to 7 is about making that answer agree with what players feel happened.

The rewind needs the server to know a great deal about each player, and the clients need to hear about it 128 times a second. What exactly is being sent?

8.1Inputs up, snapshots down

Two kinds of message flow between each client and the server. Going up, the client sends its inputs: for each move, its number, which buttons were held (forward, back, left, right, jump, crouch, walk, fire, each one bit), the view angles (where the mouse is pointing) and, for shots, the tick the client was viewing. That's a few bytes per move. Going down, the server sends snapshots.

Both go over UDP, not TCP (chapter 10 covers both). TCP delivers bytes in order and resends anything lost, which sounds right but is fatal here: if one packet is lost, every packet behind it waits until the lost one is resent and arrives, at least one more round trip. For a game, a snapshot that arrives late is useless, because a newer one is already on the way. UDP delivers each packet independently, or not at all, and lets the game decide what to do about losses. The usual answer for inputs is redundancy: each packet carries the newest move plus the last few unacknowledged ones, so one lost packet costs nothing.

8.2Making snapshots small

Snapshots are the heavy direction, sent to ten clients 128 times a second, so every byte counts. Three tricks shrink them, and real engines use all three:

1. Quantise. A position stored as three 32-bit floating-point numbers has far more precision than anyone can see. Positions to the nearest centimetre fit in 16-bit integers on a map a few hundred metres across, and angles in 16 bits are precise to about 0.005°.
2. Send only what changed. Most of a player's fields, their health, armour and weapon, don't change from one tick to the next. Mark the changed fields with a bitmask and send only those. This is called delta compression.
3. Delta against what the client has confirmed. The delta must be relative to a snapshot the client confirmed receiving. If the server encoded each snapshot against the previous one and a packet was lost, the client couldn't decode anything after it. So each client tells the server the last snapshot it got, and the server encodes against that one.

This program builds a snapshot of ten players and encodes it three ways. In this tick six players moved and turned and one took damage:

import random, struct
random.seed(7)

FIELDS = ["x", "y", "z", "yaw", "pitch", "health", "armor", "weapon", "flags"]

def player():
    return {"x": random.uniform(-60, 60), "y": random.uniform(-60, 60), "z": 0.0,
            "yaw": random.uniform(0, 360), "pitch": 0.0,
            "health": 100, "armor": 50, "weapon": 3, "flags": 0}

def raw(p):        # floats as they sit in memory: 5 x 4 bytes + 4 x 1 byte
    return struct.pack("<5f4B", p["x"], p["y"], p["z"], p["yaw"], p["pitch"],
                       p["health"], p["armor"], p["weapon"], p["flags"])

def q(p, f):       # quantize: positions to the centimetre, angles to 1/65536 of a turn
    if f in ("x", "y", "z"):
        return struct.pack("<h", round(p[f] * 100))
    if f in ("yaw", "pitch"):
        return struct.pack("<H", round(p[f] / 360 * 65536) % 65536)
    return struct.pack("<B", p[f])

def quantized(p):
    return b"".join(q(p, f) for f in FIELDS)

def delta(old, new):   # player index + 16-bit mask of changed fields + those fields
    out = b""
    for i, (a, b) in enumerate(zip(old, new)):
        changed = [f for f in FIELDS if q(a, f) != q(b, f)]
        if changed:
            mask = sum(1 << FIELDS.index(f) for f in changed)
            out += struct.pack("<BH", i, mask) + b"".join(q(b, f) for f in changed)
    return out

acked = [player() for _ in range(10)]          # the last snapshot the client confirmed
now = [dict(p) for p in acked]
for p in now[:6]:                               # six players moved and turned this tick
    p["x"] += 0.05; p["y"] -= 0.03; p["yaw"] += 1.5
now[7]["health"] = 61                           # one took a hit

full_raw = sum(len(raw(p)) for p in now)
full_q = sum(len(quantized(p)) for p in now)
d = len(delta(acked, now))
for name, size in [("raw floats", full_raw), ("quantized", full_q), ("delta vs acked", d)]:
    print(f"{name:15} {size:4} bytes/tick  x 128 ticks = {size * 128 / 1000:5.1f} KB/s per client")

raw floats       240 bytes/tick  x 128 ticks =  30.7 KB/s per client
quantized        140 bytes/tick  x 128 ticks =  17.9 KB/s per client
delta vs acked    58 bytes/tick  x 128 ticks =   7.4 KB/s per client

Quantising cuts the snapshot from 240 to 140 bytes, and sending only the changes cuts it to 58: for each of the six movers, a one-byte player index, a two-byte field mask and six bytes of x, y and yaw, and for the injured player, the index, the mask and one byte of health. The last column multiplies by 128 snapshots a second, and shows why the three tricks matter at this tick rate. (Real snapshots also carry projectiles, abilities, the spike and sounds, and every UDP packet carries 28 bytes of headers, so real traffic is higher; Riot hasn't published Valorant's.)

Delta compression has one more failure mode. If a client stops acknowledging, because of a long burst of packet loss, the server's deltas grow, since they're relative to an older and older snapshot, until it's cheaper to send a full one.

8.3Push events, don't poll for them

Riot's biggest single server optimisation, from section 3.3, was about this same problem. Unreal Engine's standard way of keeping clients up to date, property replication, is a form of polling: every frame, the server compares each replicated variable against what each of the ten clients last received, to find what changed. Riot's article calls that an anti-pattern for state that rarely changes, and replaced many such variables with remote procedure calls (RPCs), messages the server sends explicitly when an event happens, like "the spike was planted". For those variables, that was 100 to 10,000 times faster. It's the same choice as chapter 50's push channel replacing polling, made inside a single process.

There's one thing the server deliberately leaves out of each snapshot, and it isn't to save bytes.

9.1Wallhacks read what the server sent

Ana's game client draws only the enemies she can see. But if the snapshot it received includes the positions of all five attackers, those positions are sitting in her computer's memory, whether or not they're drawn. A wallhack is a cheat that reads them and draws the enemies through walls. Kernel-level anti-cheat software, Riot's is called Vanguard, tries to stop programs reading the game's memory, but any defence on the player's own computer is a defence on territory the cheater controls.

The stronger defence is not to send the information at all. If the server sends Ana only the enemies her character could plausibly see, a wallhack has nothing to show. Riot's anti-cheat lead described Valorant's version of this in April 2020 and named it after a feature of Riot's other big game: fog of war. In League of Legends, the server has never told players where unseen enemies are, so wallhacks were never a problem there. Valorant's version is built on Unreal Engine's network relevancy: an enemy who isn't relevant to a client stops getting updates and is hidden on that client until they become relevant again.

9.2Doing it cheaply, and without pop-in

The first prototype did the obvious thing: for each enemy and each player, once per tick, trace lines of sight from the player's eye, ten rays in all, to the corners of the enemy's bounding box, to their camera and to their centre. It worked, but it was expensive. Relevancy was being calculated over 350 times per frame in a ten-player match, frame times doubled, and the server dropped from 128 to 64 ticks. At first, fog of war took 50% of the frame.

So the team precomputed. The map is divided into cells, and a lookup table, computed offline, records which cells can see which. This is called a potentially visible set (PVS), an idea from 1990s game engines. It's deliberately optimistic: if any part of one cell could see any part of another, the pair is marked visible. A visibility check becomes a table lookup. With that and other changes, such as letting a gun inherit the visibility of the player holding it, fog of war came down to under 2% of server frame time, and it also saves bandwidth, since hidden players generate no updates.

Latency is the second problem, again. If the server starts sending Leo's position only when he becomes visible to Ana, the first snapshot that includes him arrives a ping later, and he pops into existence already in the doorway, which is worse than peeker's advantage. So the server looks ahead: it stretches each player's bounding box in the direction they're moving, by their velocity times a look-ahead time chosen to be longer than the expected ping, and tests that stretched box. Leo's position starts reaching Ana's computer just before he rounds the corner. That leaves a wallhack a sliver of warning, which is the compromise.

Now the server is fast, fair and careful about what it sends. That leaves the biggest term in the peeker's advantage sum, the one the server can't touch: the network between the players and Mumbai.

10.1Distance sets a floor

Light in optical fibre travels at roughly two-thirds of its speed in a vacuum, roughly 200,000 km a second, or 200 km per millisecond. A round trip covers the distance twice, so every 100 km between a player and the server adds at least 1 ms of ping, before any router has touched the packet. Leo in Delhi is roughly 1,150 km from Mumbai in a straight line, so his ping can't be below roughly 12 ms even on a perfectly straight fibre, and real fibre doesn't run in straight lines.

So the first fix is more servers in more places. Riot's 2020 target of 35 ms for 70% of players means a server within a few hundred kilometres of most players, with room left for routers and buffers. Riot added server locations as the player base grew, including Mumbai for India, and Amazon's case study of the launch says Riot used AWS Outposts, Amazon's racks installed in other facilities, to place game servers closer to players, cutting latency by 10 to 20 ms.

10.2The internet takes the cheap route, not the fast one

Distance is the floor, but the route is often much worse than the floor. The internet is a collection of separate networks, run by internet service providers (ISPs) and long-haul carriers, that agree to carry each other's traffic. Which way a packet goes between them is decided by BGP, the Border Gateway Protocol, in which each network announces which destinations it can reach. Networks choose among the routes they hear by business rules, mostly by what's cheapest for them.

Riot described the result in 2015, when it began working on this for League of Legends. Backbone providers and ISPs route traffic to the lowest-cost path, not the lowest-latency one. Its example: traffic from San Francisco to Portland that went via Los Angeles, Denver and Seattle, taking 70 ms instead of the 14 ms a direct route might take, five times longer. Each extra hop is also another router that can drop packets, and game traffic is unusually exposed to that: League of Legends' game messages averaged about 55 bytes, against the 1,500-byte packets most traffic uses, and routers' input buffers fill by packet count, not size, so small game packets fill them about 27 times faster.

10.3Riot Direct: building its own backbone

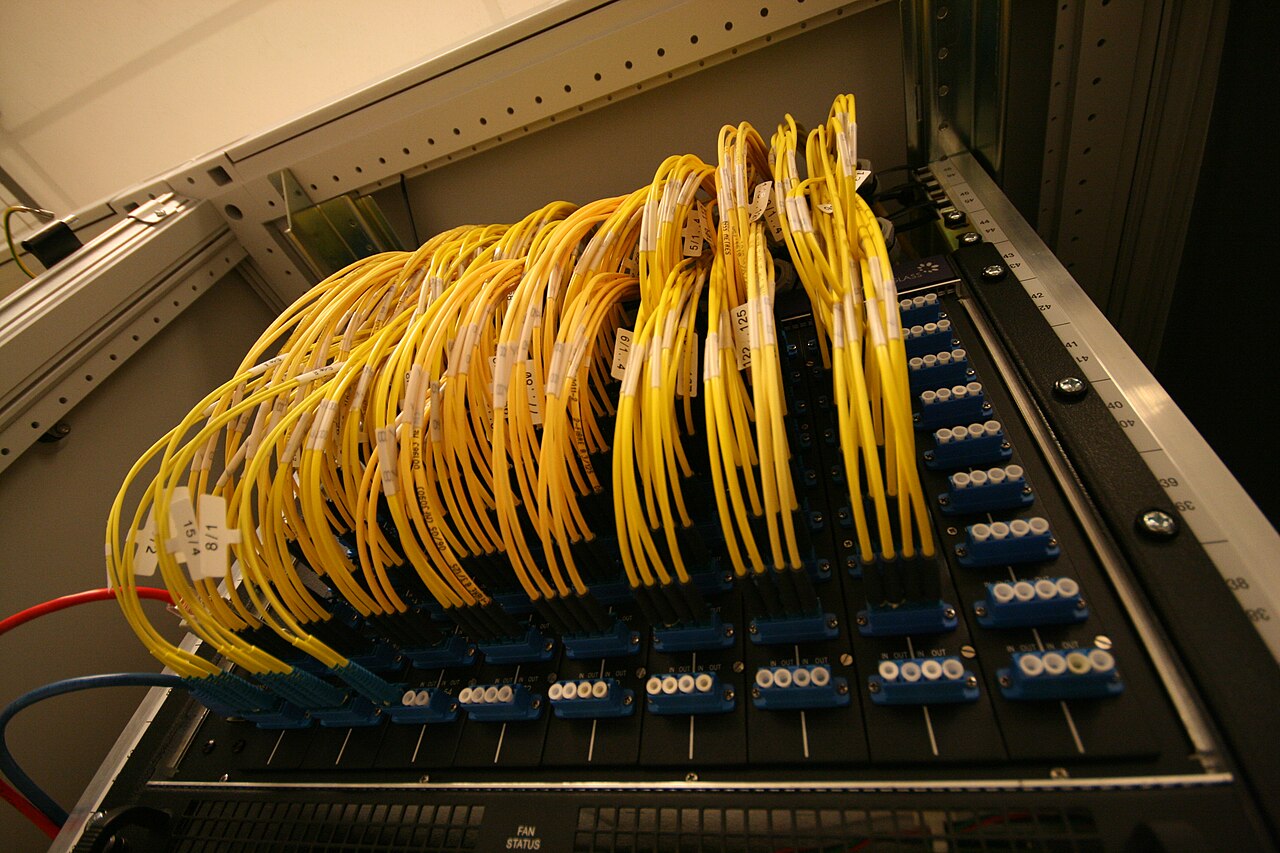

Riot's answer, described in 2016, was to run its own network, which it calls Riot Direct. It placed routers in large internet hubs, ten of them in the United States at the time, linked them with leased fibre, and then struck agreements to connect directly to as many ISPs as it could. Two networks connecting directly to exchange traffic is called peering. Once Riot peers with a player's ISP near the player, the player's packets leave the ISP's network almost immediately and travel the rest of the way on Riot's own network, straight to the game servers, instead of wandering across carriers chosen for cost.

Riot reported the effect for League of Legends players in North America. As peering came online over about nine months in 2014 and 2015, the share of players under 80 ms rose from 31% to 50%; when Riot then moved its game servers to Chicago, the share jumped to 80% overnight. By 2016 Riot had network presence on every continent except Africa and Antarctica. Valorant launched on top of that network in 2020, with the 35 ms target.

The network gets Ana and Leo to the server quickly, but only if the server they're both on is near both of them. That's the job of the system that put them in the same match in the first place.

11.1Skill as a number

Before any of this, someone had to choose Ana, Leo and eight others. A good match needs players of similar skill, on servers close to all of them, found without a long wait. For skill, every competitive game keeps a number per player, and updates it after each match based on whether the result was a surprise.

Arpad Elo's system is the classic one, adopted by chess federations from the 1960s. Each player has a rating, and the difference between two ratings predicts the result: in the usual form, a player rated 400 points above another is expected to win roughly 91% of the time. After the game, each rating moves by a fixed factor K times the difference between what happened and what was expected. A favourite who wins gains a little; an underdog who wins gains a lot.

Elo has two weaknesses for a game like Valorant. It treats every rating as equally certain, though a new player's number is a guess and a veteran's is well established; Mark Glickman's Glicko system (1995) adds an uncertainty to each rating that shrinks as games are played, so new players' ratings move fast and settle later. And Elo rates one player against one, but Valorant is five against five; Microsoft's TrueSkill (2006), built for Xbox Live, rates individuals from team results, keeping both a skill estimate and an uncertainty per player.

11.2Valorant's two numbers

Riot hasn't published Valorant's rating formula. What it has said, in a March 2021 developer post, is that each player has two numbers. The hidden one is the matchmaking rating (MMR), which players never see and which is used to build fair matches. Riot describes it as a giant ladder of all players: win and you climb, pushing others down; lose and you're pushed down. The visible one is the rank, with rank rating (RR) points within it, deliberately kept slightly separate from MMR so that ranks don't swing wildly or demote instantly after a promotion. New and reset players are placed at the low end of where the system thinks they belong, and their rank then converges towards their MMR as they play. Glicko and TrueSkill formalise that same shrinking uncertainty.

12.1Every box, and why it's there

12.2From top to bottom

13.1Failures this design has to survive

13.2The tradeoffs, in one table
