Designing Discord

1.1What it has to do

A few words first, because Discord's vocabulary is a little unusual. What the app calls a server (Starfall's community), Discord's engineers call a guild, and we'll use that word for it so it can't be confused with the computers that run everything. A guild contains channels such as #general, and a channel contains messages. Each member can see some channels and not others, depending on the roles they have in the guild.

Stripped down, the part of Discord we're designing has to do five things:

1. Deliver a message in real time to every member who's online and allowed to see the channel.
2. Keep every message forever, and let anyone scroll back through a channel's history, or jump to a message from years ago.
3. Support edits, deletes and reactions on stored messages.
4. Show the member list: who's in the guild, grouped by role, with who's online.
5. Track what each person has read, with an unread marker and a count of mentions per channel.

And the qualities it needs:

• Fast: a message appears for everyone within a second or so.
• Huge rooms: a single guild can have millions of members and a million online at once.
• Permanent: messages are never thrown away, unless someone deletes them.
• Predictable: loading a channel takes about the same time whether the channel is busy or quiet, new or old.

Two of these break with WhatsApp's design straight away. WhatsApp deletes a message from its servers once it's been delivered (chapter 49, section 3.2), so its storage only ever holds what's in transit. Discord keeps everything, so its storage only grows. And a WhatsApp group tops out at 1,024 members, small enough to copy each message into every member's mailbox. Copying Aiko's message into 2.4 million mailboxes would turn one message into 2.4 million writes, and #general gets several messages a second. So Discord stores one copy of each message, in the channel, and every reader fetches it from there. Chapter 49 calls this fan-out on read, and the rest of this case study follows from it.

1.2How big is it?

Discord says it had more than 90 million people using it every day at the end of 2025. Its engineering posts give the numbers that shape the design. In January 2017 it was storing more than 120 million new messages a day, up from 40 million a day in July 2016. By the start of 2022, its message database held trillions of messages on 177 machines. In October 2023, the largest guild, Midjourney's, had more than 10 million members, over a million of them online at any time, and Discord said that across a few years it had pushed the largest guilds from tens of thousands of online users to almost two million.

That square is the reason big guilds are hard. Storage grows with the number of messages, and that's manageable: add disks. Fan-out grows with messages times listeners, and in a guild both grow together. Sections 5 and 6 come back to it. First, though, the messages have to be stored somewhere, and that's where Discord's first design ran into trouble.

2.1Discord's 2015 design

Discord built its first version in just under two months, in early 2015. Clients connected to a gateway: a fleet of servers that hold one long-lived WebSocket connection per client and push events down it, for the reasons chapter 49 gives in its section 2 (a server that knows first should tell the phone, not wait to be asked). An API server handled requests such as "send this message" and "give me the last 50 messages in #general". Every message went into a single MongoDB database, replicated for safety but not split across machines, in one collection with an index on channel ID and creation time.

An index here is a sorted structure, a B-tree, that maps (channel, time) to where each message sits on disk. "The last 50 messages in #general" becomes a walk along 50 neighbouring entries of the index, followed by 50 lookups of the messages themselves. When the index and the messages are in memory, that's fast. In November 2015, at about 100 million stored messages, they stopped fitting in memory, and response times became unpredictable.

?Why does falling out of memory hurt so much?

Because of how people use Discord. Discord's 2017 post on this migration describes three kinds of guild. Voice-chat guilds send a message or two every few days; when someone opens one of their channels, the last 50 messages are scattered across months of the database, and each could be a separate trip to disk. Private guilds of friends send something like 100,000 to a million messages a year but rarely scroll back, so their older messages are almost never in memory. Big public guilds like Starfall send millions of messages a year, but people mostly read the last hour, which does stay in memory. So reads were spread almost randomly over the whole data set, and reads and writes were roughly half and half. Once the data was larger than memory, a large share of reads went to disk, and a disk read costs about a hundred times more than a memory read even on an SSD (chapter 9). Adding memory to one machine only delays the day the data outgrows it again.

2.2What the replacement must do

Discord wrote down what it wanted from the replacement. It had to scale linearly, so that doubling the machines doubles the capacity. It had to fail over automatically when a machine died. It had to need little care, because, in 2017, Discord's backend was four engineers with no dedicated operations staff. It had to be proven technology, and its performance had to be predictable: Discord's alerts fired when the API's 95th-percentile response time, the time within which 95 of every 100 requests finish, went over 80 milliseconds. And Discord didn't want a cache like Redis or Memcached in front of it, since that would be one more system to run and keep consistent.

"Scale linearly" means the data must be split across many machines, each holding a part. Chapter 29 covers the general problem. For us, the question is which part each machine gets, and that choice turns out to decide almost everything about how well the store works.

3.1Partitions: keep a channel together

Around the turn of 2016 Discord chose Apache Cassandra, a database that spreads data over a ring of machines, as the only one it found that met all of those requirements. Cassandra's data model is the thing to understand first, because Discord's design is mostly a choice of keys.

Every table in Cassandra has a partition key. Cassandra hashes it to a number, called a token, and the token decides which machines store the row. Rows with the same partition key always live together, on the same machines, so reading many of them is one request to one place. Within a partition, rows are kept sorted by a second part of the key, the clustering key, so reading a range of them in order is a single sequential scan.

Every question Discord asks of messages is about one channel: the newest 50 in #general, the 50 before this one, the messages around a link from a search result. So the channel ID is the natural partition key, and every channel's messages sit together on three machines. For the clustering key, Discord wanted the messages sorted by time, and that needs an ID that sorts by time. That's where Discord's IDs come in.

3.2Snowflake IDs: a timestamp you can sort

Every ID in Discord, for a user, a guild, a channel or a message, is a 64-bit number called a Snowflake, a scheme Twitter published in 2010. Its idea is to build the ID out of the time it was made, so that sorting IDs sorts by time, and to make each one unique without any server asking any other server.

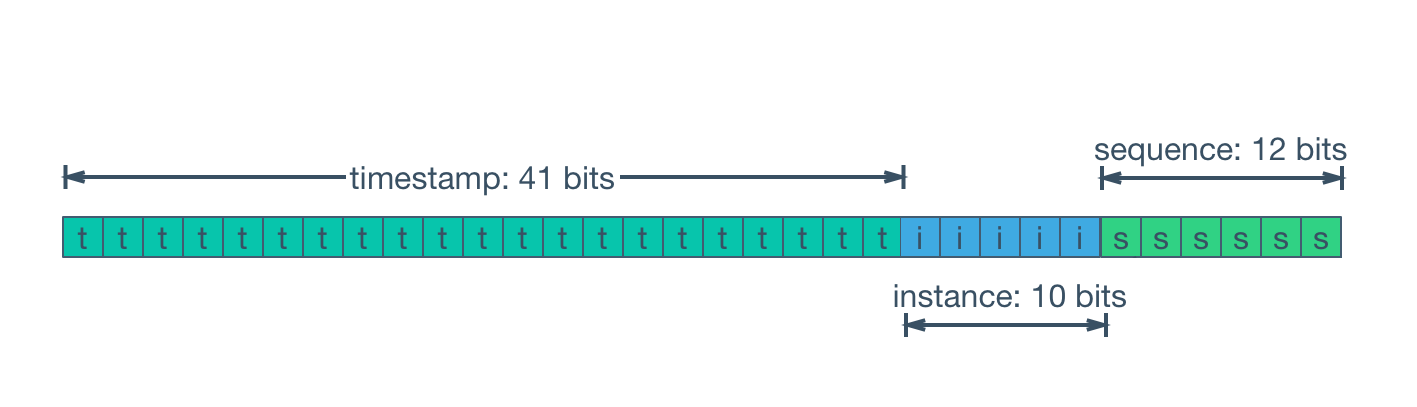

Discord's developer documentation gives the layout:

Three properties fall out of the layout. Because the timestamp is in the high bits, a bigger ID was made later, so sorting by ID sorts by time to the millisecond. Because each process has its own worker and process number, two processes can never make the same ID, so no coordination is needed. And because the counter has 12 bits, one process can make 4,096 IDs in the same millisecond before it has to wait for the next. 42 bits of milliseconds run out about 139 years after 2015.

With that ID, Discord's 2017 table looked like this, simplified in the post to a few of its 16 columns:

CREATE TABLE messages (
  channel_id bigint,
  message_id bigint,
  author_id bigint,
  content text,
  PRIMARY KEY (channel_id, message_id)
) WITH CLUSTERING ORDER BY (message_id DESC);

Read the primary key (channel_id, message_id) as: partition by channel, and within the channel keep messages sorted by Snowflake, newest first (DESC). "The latest 50 in #general" is now the first 50 rows of one partition.

3.3Partitions that never stop growing

That table has a problem you can spot by thinking about #general a year later. A partition holds every message the channel has ever had, and Discord never deletes anything. When Discord first imported its existing messages, some partitions were already over 100 MB. Cassandra will technically accept partitions up to 2 GB, but a huge partition can't be split across machines, so the three machines holding it carry all of its load. It also makes every background task that touches it, rewriting its files or repairing its copies, slow and memory-hungry. Discord's 2017 post puts it this way: just because it can be done doesn't mean it should.

So cut each channel's history into time slices. Discord looked at its largest channels and found that ten days of messages, even in the busiest, would comfortably stay under 100 MB. So it added a bucket to the partition key: a number for each ten-day window since the epoch, worked out from the Snowflake.

CREATE TABLE messages (
   channel_id bigint,
   bucket int,
   message_id bigint,
   author_id bigint,
   content text,
   PRIMARY KEY ((channel_id, bucket), message_id)
) WITH CLUSTERING ORDER BY (message_id DESC);

Those double parentheses make (channel_id, bucket) the partition key together. Each channel is now a series of partitions, one per ten days, and each lands on its own three machines somewhere on the ring. Because the bucket comes from the Snowflake's timestamp, anyone holding a message ID can work out which partition it lives in without asking anything.

Reading gets one extra step. To load #general, the API works out the bucket for "now" and reads the newest messages from that partition. If it gets fewer than 50, it moves to the previous bucket, and so on back towards the bucket in which the channel was created (the channel's own Snowflake says when that was). For Starfall's #general, one bucket is always enough. For a quiet channel it isn't.

This program computes buckets the way Discord's 2017 post does: shift the Snowflake right by 22 bits to get its milliseconds, and divide by the number of milliseconds in ten days. It unpacks the example ID from Discord's documentation, buckets a few dates, then looks at three channels with very different traffic, assuming maybe 200 bytes stored per message (an illustration; Discord doesn't publish an average).

import math
from datetime import datetime, timezone

DISCORD_EPOCH = 1420070400000            # 1 Jan 2015, in milliseconds
BUCKET_SIZE = 1000 * 60 * 60 * 24 * 10   # ten days, in milliseconds

def unpack(snowflake):
    ms = snowflake >> 22                 # top 42 bits: ms since the epoch
    worker = (snowflake >> 17) & 0x1F    # 5 bits
    process = (snowflake >> 12) & 0x1F   # 5 bits
    increment = snowflake & 0xFFF        # 12 bits
    return ms, worker, process, increment

def make_bucket(snowflake):
    return (snowflake >> 22) // BUCKET_SIZE

# The example ID from Discord's API documentation
sf = 175928847299117063
ms, w, p, inc = unpack(sf)
when = datetime.fromtimestamp((ms + DISCORD_EPOCH) / 1000, timezone.utc)
print(f"id {sf}: {when:%Y-%m-%d %H:%M:%S} UTC, worker {w}, process {p}, increment {inc}")
print(f"  bucket {make_bucket(sf)}  -> partition key (channel_id, {make_bucket(sf)})")

# Make an ID for any moment, then bucket it
def snowflake_at(dt, inc=0):
    ms = int(dt.timestamp() * 1000) - DISCORD_EPOCH
    return (ms << 22) | inc

for d in ["2015-01-05", "2015-01-11", "2023-03-06", "2026-10-10"]:
    s = snowflake_at(datetime.fromisoformat(d + "T12:00:00+00:00"))
    print(f"{d}: bucket {make_bucket(s)}")

# Three channels, about 200 bytes stored per message
for name, per_day in [("#general (giant server)", 300 * 60 * 24),
                      ("#book-club (small server)", 3 * 60 * 24),
                      ("#lfg (voice-heavy server)", 1 / 3)]:
    per_bucket = per_day * 10
    print(f"{name:26} {per_bucket:>11,.0f} msgs/bucket {per_bucket * 200 / 1e6:>8.1f} MB"
          f"   buckets read for the latest 50: {math.ceil(50 / per_bucket)}")

id 175928847299117063: 2016-04-30 11:18:25 UTC, worker 1, process 0, increment 7
  bucket 48  -> partition key (channel_id, 48)
2015-01-05: bucket 0
2015-01-11: bucket 1
2023-03-06: bucket 298
2026-10-10: bucket 430
#general (giant server)      4,320,000 msgs/bucket    864.0 MB   buckets read for the latest 50: 1
#book-club (small server)       43,200 msgs/bucket      8.6 MB   buckets read for the latest 50: 1
#lfg (voice-heavy server)            3 msgs/bucket      0.0 MB   buckets read for the latest 50: 16

In the first two lines, the Snowflake is taken apart: the documentation's example ID was made on 30 April 2016 by worker 1, process 0, as that process's eighth ID in that millisecond (the counter starts at 0). Next, the dates show buckets ticking over every ten days from the start of 2015: by today, channels are on bucket 430.

Now the last three lines, where the bucket size cuts both ways. The quiet #lfg channel, with a message every three days, has to read 16 partitions, each a separate request that might go to a different machine, to show 50 messages. And #general at 300 messages a minute (five a second) packs over four million messages, about 860 MB, into a single ten-day bucket, far past the 100 MB that ten days was chosen to stay under in 2017. Ten days was right for the busiest channels of 2017. Guilds kept getting bigger, and the bucket size was fixed in the key.

3.4Hot partitions

Size isn't the only problem with #general's current bucket. For the next ten days every new message in the channel goes to that one partition, and so does every read of the latest messages, almost every read there is. Those requests all land on the same three machines out of hundreds, however many machines the cluster has. A partition that gets far more traffic than its share is called a hot partition, and it's the price of keeping a channel together.

3.5How Cassandra writes, and what a delete is

To follow what went wrong next, we need to know how Cassandra stores rows on each machine. Like most databases built for heavy writes, it uses a log-structured merge tree (LSM tree), which chapter 18 covers in depth. In short: a write goes into a sorted table in memory, the memtable, and to a log for safety. When the memtable fills, it's written out in one go as an immutable sorted file called an SSTable. Files are never edited. A newer version of a row goes into a newer file, and a read checks the memtable and the files, newest first, merging what it finds.

Left alone, files pile up and every read has to check more of them. So in the background Cassandra merges files together, keeping only the newest version of each row. That merging is called compaction, and it costs disk bandwidth and CPU that would otherwise serve requests.

Now, how do you delete a row from a file you're not allowed to edit? You write a marker into a newer file that says "this row is deleted as of time T". That marker is a tombstone. Reads see the tombstone and hide the row. Compaction eventually drops both the row and the tombstone, but not straight away: a tombstone must survive long enough to reach all three copies of the partition, or a machine that missed the delete could later hand the old row back to the others and bring it back to life. Cassandra keeps tombstones for a grace period, ten days by default, during which a nightly repair compares the copies and fixes any that differ.

Two details of Cassandra's model caught Discord out while it ran both databases side by side. First, every write is an upsert: writing a row that doesn't exist creates it, and the latest write of each column wins. A user editing a message at the same moment another user deleted it could leave behind a row that held only the key and the new text, with no author. Discord's fix was to treat a message with no author as deleted. Second, writing a null into a column is itself a delete, so it writes a tombstone. Discord's code wrote all 16 columns every time, and an average message used only 4, so each message created about 12 needless tombstones. Discord fixed it by writing only the columns that have values.

3.6One message behind millions of tombstones

About six months after the switch to Cassandra, the cluster became unresponsive. Machines were spending ten seconds at a time paused in garbage collection, over and over.

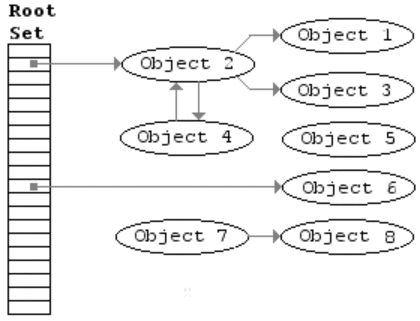

Cassandra runs on the Java virtual machine, and Java frees memory with a garbage collector: from time to time it finds objects the program can no longer reach and reclaims their memory. Some of that work needs the program to stop while it happens, a pause that's normally a few milliseconds.

It was caused by one channel in a public guild for the game Puzzles & Dragons. Someone had used the API to delete millions of its messages, leaving one. Loading that channel took 20 seconds. Can you see why, from the last section?

Discord made two fixes. It cut the tombstone grace period from ten days to two, which was safe because repairs ran every night, so a delete reached all copies well within two days. And it made the read path remember which buckets of a channel are empty and skip them, so a channel emptied by mass deletion costs at most one bucket's scan. Discord also noted the deeper worry: big partitions put pressure on the garbage collector during compaction too, and nothing about that would get better as channels grew.

By January 2017 Discord had 12 Cassandra machines, each copy of the data stored three times, with nearly a terabyte of compressed data per machine. Reads took under 5 milliseconds and writes under one in testing, and Discord moved the rest of its live data onto Cassandra. What nobody knew yet was how that would hold up as "billions" became "trillions".

4.1What 177 machines felt like

By early 2022 the message cluster had 177 Cassandra machines holding trillions of messages, and Discord's 2023 post describes it as a "high-toil" system: the on-call engineers were paged often, and latency was unpredictable. Every problem we've met so far had grown with it.

Hot partitions spread their pain. Discord reads and writes at quorum: two of the three copies must answer before a request succeeds (chapter 28). When a big guild's current bucket got hammered, the three machines holding it slowed down, and every other request that needed those machines as part of its quorum slowed down too, including requests for unrelated quiet channels. Compaction fell behind on busy machines. That left more files for every read to check, so reads got slower, so less capacity was left for compaction. Discord's way out was what it called a "gossip dance": take a machine out of rotation, let it compact without serving traffic, put it back, repeat. And garbage-collection pauses were long enough that an engineer sometimes had to reboot a machine by hand.

None of these had a single fix inside Cassandra. Discord's answer came in two parts: a different database underneath, and a new layer in front of it.

4.2ScyllaDB: the same model, no garbage collector

ScyllaDB is a reimplementation of Cassandra in C++. It speaks the same query language and stores data the same way, as LSM trees on a ring, so Discord's tables and keys could move over unchanged. Three things about it appealed to Discord. It has no garbage collector, because C++ programs free memory explicitly. It splits each machine's data by CPU core, a design ScyllaDB calls shard-per-core: each core owns its own slice of the data and its own memory and never shares them, so one hot partition can only overload one core instead of the whole machine. And it promised faster repairs, the nightly job that had grown heavier with every terabyte.

Discord didn't start with messages. By 2020 every other database it ran had moved to ScyllaDB, and messages stayed on Cassandra, because Discord's tests found ScyllaDB too slow at reading a partition in reverse order. Reading newest first is almost every message query, so that was a blocker until the ScyllaDB team improved it.

Discord also changed what sits under the database. Cloud machines offer local SSDs, which are fast but lose their contents if the machine dies, and network-attached disks, which are durable but slower. Discord combined them in what it called a super-disk: reads are served from the local SSDs, and every write is mirrored with software RAID onto a network disk, so the data survives a lost machine.

4.3Data services and request coalescing

Half of the fix doesn't involve the database at all. Go back to Aiko's moment: the moderator posts that the game is back, mentioning everyone, and in the next few seconds tens of thousands of people click on #general. Every one of their apps asks the API for the latest 50 messages in the same channel. Each request turns into a read of the same partition on the same three machines. Tens of thousands of identical questions, each answered from scratch.

Discord's fix, added between its API and its databases, is a set of small services it calls data services, written in Rust. Each one offers roughly one endpoint per database query, called over gRPC (a protocol for calling a function on another machine, chapter 63), and contains no business logic. What makes them useful is two features.

The first is request coalescing. If a data service is already waiting on the database for "latest messages in #general" and a second request for the same thing arrives, it doesn't send a second query. It attaches the second request to the one already in flight, and when the answer arrives, it goes to everyone who asked. However many people ask in those few milliseconds, the database sees one query.

A second feature makes the first one work. Coalescing only helps if identical requests reach the same data service instance. So each request carries a routing key, for messages the channel ID, and the API picks the instance by consistent hashing on that key (chapter 29). Every request for #general goes to the same instance, the one place where they can meet and be merged.

How much does coalescing save? It depends on how many requests arrive while one query is in flight. This program simulates readers opening #general after an @everyone mention, arriving at random over the next few seconds with most in the first half-second, and a database query that takes 5 ms. It counts how many queries reach the database with and without coalescing.

import random
random.seed(7)

QUERY_MS = 5          # one database read of the latest messages takes 5 ms

def plain(arrivals):
    return len(arrivals)                  # every reader runs its own query

def coalesced(arrivals):
    queries, busy_until = 0, -1.0
    for t in sorted(arrivals):
        if t >= busy_until:               # nothing in flight: start a query
            queries += 1
            busy_until = t + QUERY_MS
        # otherwise: wait for the query already in flight and share its answer
    return queries

# Someone posts @everyone in #general. Readers open the channel over the next
# few seconds; most arrive in the first half-second.
for readers in [100, 10_000, 200_000]:
    arrivals = [random.expovariate(1 / 500) for _ in range(readers)]  # ms
    print(f"{readers:>7,} readers: {plain(arrivals):>7,} queries without coalescing, "
          f"{coalesced(arrivals):>4,} with")

    100 readers:     100 queries without coalescing,   70 with
 10,000 readers:  10,000 queries without coalescing,  461 with
200,000 readers: 200,000 queries without coalescing,  762 with

Look at how the "with" column grows. With 100 readers spread over a few seconds, most arrive when nothing is in flight, so coalescing saves little: 70 queries. With 10,000 readers, it saves 95%. With 200,000, it saves more than 99.6%, and the number of queries hardly grows at all, because it can never exceed the length of the burst divided by the query time, a few hundred 5 ms windows. Coalescing does the most for the hottest keys, exactly the ones that hurt. The database stops seeing how popular a channel is.

4.4Moving trillions of messages

With the data services in place, Discord had to move the data itself, without downtime. It started writing every new message to both Cassandra and ScyllaDB, so that from a cut-over point onwards ScyllaDB had everything new. Old messages still had to be copied. ScyllaDB's own migration tool, built on Spark, estimated three months. Discord's engineers wrote a replacement in Rust in an afternoon. It read token ranges, slices of the ring, from Cassandra, wrote them into ScyllaDB, and recorded each finished range in a local SQLite database so it could resume after a crash. Its estimate was nine days, at up to 3.2 million messages a second.

It stalled at 99.9999% complete. The last few token ranges contained huge runs of tombstones that had never been compacted away, and reading through them timed out, the problem from section 3.6 once again. Compacting that range on Cassandra took seconds, and the copy finished. Discord then sent a small share of reads to both databases and compared the answers, and in May 2022 it made ScyllaDB the primary store.

The p99 latency is the time within which 99 of every 100 requests finish, so it describes the slow requests, the ones people notice. Both ranges shrank to a single steady number, and that's what "predictable" meant in Discord's 2017 wish list. In December 2022 the World Cup final between Argentina and France produced a spike in Discord's message traffic for every goal, penalty and half-time, and the graph Discord published of that night is labelled in coalesced messages per second.

That settles where Aiko's message lives. It doesn't yet say how it reaches the 320,000 people who are watching #general live, and that path never touches the database at all.

5.1A process per guild

Discord's real-time side is written in Elixir, a language that runs on the same virtual machine as Erlang, called the BEAM. Chapter 49's section 4.1 explains why WhatsApp chose Erlang for its connection servers: each connection gets its own process, a tiny independent program inside the virtual machine that costs a few kilobytes, has its own memory, and talks to other processes only by sending them messages. Millions of them run on a handful of CPU cores.

Discord uses two kinds of process. Each connected client has a session process on a gateway machine, which owns that client's WebSocket. Each guild has exactly one guild process, on one of a set of guild machines, which knows the guild's channels, roles and members and which sessions are connected to it. Discord's 2023 post calls the guild process the central routing point for everything that happens in the guild.

So when Aiko's message has been stored, an event saying "new message in #general" is handed to the Starfall guild process. It works out who should see it: every connected member with permission to read #general, and sends a copy to each of their session processes. Each session then pushes it down its WebSocket to the app.

We've simplified the path from API to guild process here, because Discord hasn't published exactly how the event travels between them. What it has published, in detail, is what happened inside the guild process as guilds grew.

5.2One process can only do one thing at a time

A process handles one message at a time, in order. That's what makes it simple to program, because the guild's state can't change underneath you halfway through, and it's also its limit, because a guild process can never use more than one CPU core.

Discord's 2017 post, written when it reached nearly five million concurrent users, says the original design worked well for guilds of up to about 25 people. By then the /r/Overwatch guild had up to 30,000 people online. Sending one message from one process to another, Erlang's send, cost between 30 and 70 microseconds of the sender's time in Discord's measurements, because the sending process could be paused by the scheduler partway through. At peak, publishing a single event from a big guild took between 900 milliseconds and 2.1 seconds. Meanwhile new events kept arriving, and the guild process's queue of unhandled messages grew. Engineers had to switch off features that generated messages to keep big guilds alive.

5.3Manifold: one send per machine

Discord's first fix, in 2017, was a library it called Manifold, later open-sourced. It starts from a simple observation: Starfall's 320,000 sessions don't live on 320,000 machines. They live on a modest number of gateway machines, each with many thousands of sessions. So instead of sending the event 320,000 times, the guild process groups the destination sessions by the machine they're on, and sends one message to each machine, carrying the event and the list of sessions on that machine. On each receiving machine, a Manifold process splits the list among workers, one per CPU core, and they do the local sends in parallel.

Machine counts and per-machine numbers in the animation are illustrative; a guild this size probably spans many more gateway machines. What Manifold does is real: it takes the per-session cost off the guild process and spreads it over every core of every gateway machine, and it cuts the network traffic between machines too, since each event crosses the network once per machine instead of once per session. In 2017 that was enough for the biggest guilds of the day.

5.4Passive sessions and relays

Manifold makes each send cheaper, but the number of sends still grows with the square of the guild's size. By 2022 the Midjourney guild was heading for a million people online, and Discord needed to remove work, not only spread it.

A first cut came from noticing what most members are doing. Someone in 50 guilds is probably looking at one of them, if any. The other 49 are icons in the sidebar. Their apps need to know very little about those guilds: maybe that there's something unread, and whether they were mentioned. They don't need every message, every typing indicator and every member coming online. Discord made those connections passive: a member who is in a guild but hasn't opened it gets a passive session for it, which receives far less, and becomes active when they click on it. Discord's 2023 post says around 90% of the user–guild connections in large guilds were passive, so the fan-out work dropped by about 90%. Because the work grows with the square of the size, a tenfold cut in work buys only about a threefold increase in how big a guild can be, as the post also points out.

That 15,000 is a real number. An earlier change, made before Midjourney, had let guilds grow from tens of thousands into the hundreds of thousands. It was to split the guild process's job in two. The guild process keeps the guild's state: channels, roles, members, permissions. Fanning out moves to a set of relay processes that sit between the guild and the sessions. Each relay holds the connections to up to 15,000 sessions and does the fan-out for them, including the permission checks: whether each of its members may see #general. The guild process sends Aiko's message once to each relay, and the relays do the rest in parallel, on different machines.

Relays brought their own surprise. Each relay needs to know about the members it serves, to check their permissions, and at first each relay held a full copy of the guild's member list. For Midjourney that meant dozens of copies of a list of tens of millions of members in memory, and starting a new relay stalled the guild for tens of seconds while it copied the list over. Discord fixed this by sending each relay only the members it needs, a tiny percentage of the whole, according to the post.

5.5When one mention means checking millions of people

Some events are harder than an ordinary message. When the moderator posted "servers are back, @everyone", the guild had to work out which members can see that channel, all 2.4 million of them, to decide whom to notify. Discord's 2023 post says those checks can take many seconds, and a guild process busy for many seconds isn't handling any other events.

So Discord moved the guild's member data into ETS, a table built into the BEAM that many processes can read at once without copying. Expensive jobs like an @everyone check are handed to separate worker processes that read the member table directly, while the guild process carries on with new events. ETS also helped with something that happens every day: when a guild process moves to another machine, during a deploy or maintenance, its member data, which can be several gigabytes, has to be copied over. With ETS the old guild keeps serving while the copy happens, instead of stalling for minutes.

Even the cleanup of memory caused trouble. Discord tried giving the fan-out step its own process, to take more work off the guild, and performance got much worse. BEAM's garbage collector was to blame: large data passed between processes is tracked separately, and a small threshold made the busy process run full collections, copying a heap gigabytes in size to reclaim a couple of hundred kilobytes. Raising that threshold (an Erlang setting called min_bin_vheap_size) to a few megabytes fixed it, and the change became a clear win. It's the same lesson as Cassandra's pauses in section 3.6, met again in a different runtime: at this scale, how a system frees memory can decide how fast it is.

6.1A sorted list that changes every second

On the right of Aiko's window is the member list: members grouped by role (Moderators, then Online, then Offline), sorted by name within each group. In a guild where hundreds of people come online and go offline every second, that list is never still. Now the problem: what does Discord send to Aiko's app so that it can draw it?

Not the whole thing. 2.4 million names, with their roles and statuses, is many megabytes, and it would change hundreds of times a second. But Aiko's window only shows maybe 40 rows at a time. So the app tells the server which part of the list it's looking at, and the server sends just those rows, and after that only the changes that affect them: "insert Ken at position 12", "remove row 30". Discord's 2019 post on this describes it as sending down only the updates for the visible portion of the member list. This is what people call a lazy member list. Exact messages the client sends to ask for a range aren't part of Discord's documented API for bots, so we'll stick to what the post describes.

6.2The data structure behind it

Behind that animation is a demanding data structure. For every join, leave and status change, the guild has to insert or remove an entry in a sorted list of possibly millions, and say at what index it landed, so that clients whose window covers that index can be told. A hash set is no use, because it has no order. A plain sorted array is ordered but inserting at the front means shifting every entry after it. In Elixir, whose data is immutable, it's worse: inserting into a list means building a new list. Discord's 2019 post gives the example of a guild with 100,000 members, where each join built a new 100,001-entry list.

Discord's 2019 post walks through its attempts, measured at 250,000 entries:

What made the difference is the idea in the fourth row. Instead of one long sorted list, keep a sorted list of small sorted chunks. To insert, find the right chunk (a binary search over the chunks' first entries), and insert into that small chunk. When a chunk grows too big, split it in two. The index of an entry is the sizes of the chunks before it plus its position in its own chunk. Every operation touches one small chunk and the short list of chunks, never the whole list.

Finally, Discord wrote it in Rust and call it from Elixir as a NIF (native implemented function), a function compiled to machine code that the BEAM calls directly, built with a library called Rustler. Mutable memory in Rust removed the copying that immutable Elixir data forced, and inserts took between 0.61 and 3.68 microseconds across sizes from 5,000 to a million entries. Discord open-sourced it as SortedSet, and in 2019 it was running every guild's member list, the biggest then having 200,000 members.

?Why not keep the member list in a database?

Because it changes far too often and has to answer instantly. A member coming online changes the list, and in a big guild that happens hundreds of times a second. Each change needs its new index computed and sent to the right clients within moments. Keeping the list in the guild process's memory means a change costs microseconds and no network trip. The durable facts, who is a member and with which roles, are stored in a database; the sorted, live view of them is rebuilt in memory when the guild process starts.

7.1One WebSocket, many events

Every event in this chapter so far, Aiko's message, Ken coming online, a member-list update, reaches the app through one connection: the WebSocket between Aiko's app and her session process on a gateway machine. Chapter 49 covers why a persistent connection beats polling, so here are only the details that are specific to Discord, from its developer documentation.

When a client connects, the gateway's first message is Hello, carrying a heartbeat interval (45,000 ms in the documentation's example). From then on the client sends a heartbeat every interval, so both sides notice a dead connection. The first heartbeat waits a random fraction of the interval, so that a million clients reconnecting after an outage don't all heartbeat in the same instant, the reconnection-storm problem from chapter 49's section 4.3. The client then identifies itself, and the gateway sends a Ready event with the state it needs to start: its guilds, channels and settings. A dropped connection can be resumed, replaying missed events without starting again. And every event, for every member, flows down this one connection, so its size matters. On Discord's scale, every byte per event is multiplied by what is probably billions of events a day.

7.2Compressing the whole stream

Discord has compressed this connection since late 2017, at first with zlib, which made messages roughly 2 to 10 times smaller. zlib uses the DEFLATE algorithm, which works in two steps. First it replaces repeated text with short references back to an earlier copy: "the text 40 bytes back, 12 bytes long". Then it encodes the result with a Huffman code. A Huffman code gives short bit patterns to common symbols and longer ones to rare ones.

The first step only helps if there's something earlier to point back to. A single MESSAGE_CREATE event is a few hundred bytes of JSON with field names like "channel_id", "author" and "mention_everyone", each appearing once. Compressed on its own, there's little repetition inside it. But the event before it on the same connection had all the same field names, and likely the same channel ID, guild ID and some of the same authors. So Discord compresses the connection as one continuous stream: a single compressor lives for the whole connection, and after each event it flushes, so the event can be sent at once, without forgetting what came before. Each new event can then point back into previous events. zlib keeps up to 32 KB of history to point back into.

In 2024 Discord moved to Zstandard (zstd), a newer compressor from Facebook, released in 2015. Discord first tried it as a dark launch, compressing real traffic with zstd to measure it while users still received zlib. That first test did worse than zlib: an average MESSAGE_CREATE came out over 750 bytes with zstd against about 250 with zlib. Discord's zstd setup was compressing each event on its own, while zlib was streaming. Discord added streaming support to the Elixir zstd library it used and contributed it back, and then MESSAGE_CREATE came out at 166 bytes against zlib's roughly 270, a compression ratio up from about 6 to almost 10, and in under half the time.

You can see both effects with Python 3.14, which has zstd built in. This program makes a thousand events shaped like gateway MESSAGE_CREATE events, in one channel, from a pool of 200 authors, and compresses them four ways: each event on its own and as a stream, with each compressor.

import json, random, zlib
from compression import zstd             # Python 3.14+
random.seed(3)

words = "gg nice the new model is out who wants to play tonight lol same here".split()
authors = [{"id": str(random.randrange(10**17, 10**18)), "username": f"user{random.randrange(10**5)}",
            "global_name": None, "avatar": "%032x" % random.getrandbits(128)} for _ in range(200)]

def message_create(i):                   # a made-up event shaped like a gateway dispatch
    return json.dumps({"t": "MESSAGE_CREATE", "s": i, "op": 0, "d": {
        "id": str(1290000000000000000 + i * 4194304), "channel_id": "1029384756102938475",
        "guild_id": "662267976984297473", "type": 0, "tts": False, "pinned": False,
        "mention_everyone": False, "mentions": [], "attachments": [], "embeds": [],
        "author": random.choice(authors),
        "content": " ".join(random.choices(words, k=random.randint(2, 12)))}}).encode()

events = [message_create(i) for i in range(1000)]
raw = sum(map(len, events))

def per_message_zlib():                  # a fresh compressor for every event
    return sum(len(zlib.compress(e, 6)) for e in events)

def stream_zlib():                       # one compressor for the whole connection
    c = zlib.compressobj(6)
    return sum(len(c.compress(e) + c.flush(zlib.Z_SYNC_FLUSH)) for e in events)

def per_message_zstd():
    return sum(len(zstd.compress(e, level=6)) for e in events)

def stream_zstd():
    c = zstd.ZstdCompressor(level=6)
    return sum(len(c.compress(e, mode=c.FLUSH_BLOCK)) for e in events)

print(f"{'uncompressed':22} {raw / len(events):6.0f} bytes per event")
for name, f in [("zlib, per message", per_message_zlib), ("zstd, per message", per_message_zstd),
                ("zlib-stream", stream_zlib), ("zstd-stream", stream_zstd)]:
    total = f()
    print(f"{name:22} {total / len(events):6.0f} bytes per event   ratio {raw / total:4.1f}")

uncompressed              445 bytes per event
zlib, per message         279 bytes per event   ratio  1.6
zstd, per message         300 bytes per event   ratio  1.5
zlib-stream                73 bytes per event   ratio  6.1
zstd-stream                53 bytes per event   ratio  8.3

The two "per message" lines reproduce Discord's surprise from the dark launch: compressed one at a time, neither compressor gets much below 300 bytes, and zstd does slightly worse than zlib. Streaming is the fix. Streaming cuts the size by a factor of four or more for both, because each event mostly points back at earlier ones. And zstd now wins clearly, with a smaller output than zlib's stream. Its much larger window probably explains part of that: an author who last spoke 80 events ago is more than 32 KB back, out of zlib's reach but well inside zstd's. Synthetic events make the exact numbers different from Discord's, but the order of the four lines is the same as in Discord's 2024 post.

Discord tuned zstd's settings, including the window size, and tried training a dictionary, a set of common byte sequences given to both ends in advance. The dictionary shrank the big Ready payload only from 306,745 to 306,098 bytes, made MESSAGE_CREATE slightly worse, and was dropped as not worth the complexity.

7.3Sending passive sessions less

That 2024 project also found a bigger saving in what was being sent, not how it was packed. Passive sessions from section 5.4 received a PASSIVE_UPDATE_V1 event that sent the full current state of the parts of the guild they tracked. Those events were about 2% of all events dispatched but about 35% of all gateway bytes. A new version, PASSIVE_UPDATE_V2, sends only what changed since the last update, and it cut that share to under 5%, about a fifth of all gateway traffic saved. Together, zstd streaming and the smaller passive updates cut the gateway bandwidth used by Discord's clients by almost 40%. Both changes rolled out in the first half of 2024.

8.1One record per person per channel

Aiko's message has been stored and delivered. One small piece is left: the white dot next to #general in the sidebar of everyone who hasn't seen it yet, and the red number on any channel where someone mentioned them. Discord calls the record behind this a read state: one per user per channel, with counters such as the number of mentions, updated atomically and often reset to zero. Discord hasn't published the full layout, but probably the simplest way to decide "is anything unread?" is to compare the Snowflake of the last message you read with the newest message in the channel. Snowflakes sort by time, so one comparison answers it.

Discord's 2020 post on the Read States service gives the scale. There are billions of read states. Read states are touched when a client connects, every time a message is sent, and every time someone reads a channel. Each machine keeps an in-memory cache holding tens of millions of read states, least recently used first out, and the fleet handles hundreds of thousands of cache updates a second. Writing each update straight to the database would be far too much, so the cache is the working copy. When a read state changes, a write to Cassandra is scheduled 30 seconds later, and when one is pushed out of the cache, it's written then. That turns hundreds of thousands of updates a second into tens of thousands of database writes, because a read state that changes ten times in 30 seconds is written once.

8.2Garbage collection again: Go to Rust

Discord had written the service in Go, and every two minutes or so its latency and CPU spiked. Go's garbage collector runs at least once every two minutes whether or not memory is short, and with tens of millions of read states in the cache, each collection had to scan all of them, even though almost none had become garbage. Tuning the collector changed nothing visible, and shrinking the cache made the spikes smaller but sent more reads to the database, raising the 99th-percentile latency.

Discord rewrote the service in Rust, where memory is freed the moment its owner is done with it and there's no collector to scan the heap. The first port, finished in May 2019, had no spikes, and after optimising (including switching the cache's map from a hash map to a B-tree map to use less memory) it beat the Go version on every metric Discord tracked. With no collector to scan the heap, a bigger cache no longer meant longer pauses, so Discord gave the machines more memory and raised the cache's capacity again.

9.1Every box, and why it's there

9.2From top to bottom

10.1Failures this design has to survive

10.2The tradeoffs, in one table
