RPC, gRPC & QUIC

1.1Two programs that need to talk

Many companies split a large application into smaller programs, each owning one job and its own data, and each run by its own team. Each of these programs is called a service. Our shop has an orders service that keeps track of orders, and a payments service that is the only program allowed to talk to the bank, so card details stay in fewer hands.

In exchange, the orders service can no longer call payments code directly. They run as separate processes on separate machines, with separate memory, so a pointer to an order in one means nothing to the other. Everything one sends the other has to travel as bytes over a network connection.

You could write that by hand every time: open a TCP connection (chapter 10 covers what TCP promises), write some bytes describing the request, read bytes back, and work out what they mean. Every call site would repeat the same plumbing, and each team would invent its own format. In 1984 Andrew Birrell and Bruce Nelson described a way to hide all of it, in a paper called "Implementing Remote Procedure Calls".

1.2Stubs: making a remote call look local

Their idea was to generate the plumbing. You write a short description of the functions a service offers and the types of their arguments. A tool reads that description and generates two pieces of code. On the caller's side it generates a function called Charge with exactly the signature you described, which packs the arguments into bytes, sends them, waits for the reply and unpacks it. That generated function is called a stub. On the server's side it generates the matching code that receives the bytes, unpacks them, calls your real Charge implementation and sends back whatever it returns.

Packing values into bytes is called serialization (or marshalling), and unpacking them is deserialization. A language for these descriptions is called an interface definition language, or IDL. A call that goes through all this is a remote procedure call, or RPC: to the programmer it looks like calling a procedure, and the procedure runs somewhere else.

Nearly every service-to-service system since works this way, from Sun RPC, the protocol under NFS in the 1980s, to Google's internal system Stubby, whose open-source successor, gRPC, appeared in 2015. Most of this chapter is about gRPC, the most widely used of them today. But the problems start before any of its layers, with the idea itself.

1.3What the disguise hides

A stub can change how a remote call looks, and nothing else. In 1994 four engineers at Sun Microsystems, Jim Waldo, Geoff Wyant, Ann Wollrath and Sam Kendall, wrote "A Note on Distributed Computing", arguing that treating remote calls as local ones was a mistake, and naming four differences no stub can hide:

It's the third row that bites. Walk through what can happen to our Charge call after the orders service sends it:

• The request is lost on the way. Payments never sees it, the card isn't charged, and the orders service waits for a reply that will never come.
• Payments crashes before charging. Same outcome as above, from the orders service's point of view: silence.
• Payments charges the card, then crashes before replying. The money has moved, and the orders service still sees only silence.
• Payments charges the card and replies, and the reply is lost. The money has moved, and once more the orders service sees silence.

All four look identical from the caller's side. After a while with no answer, the orders service must choose: give up, and perhaps leave a paid order marked unpaid, or try again, and perhaps charge the card twice.

The fix is to make the operation safe to repeat. An operation is idempotent when doing it twice has the same effect as doing it once. Charging a card isn't, so the caller attaches a unique idempotency key, such as k-7719 for this checkout, and payments remembers the keys it has processed and returns the stored result for a repeat. Chapter 31 builds this in Idempotency keys. Section 2 adds the key to the message, and section 5 needs it.

1.4The eight wrong assumptions

Around the same time, a list circulated at Sun of assumptions that programmers new to networks tend to make without noticing. It's usually credited to L Peter Deutsch, with the eighth item added by James Gosling, and it's known as the fallacies of distributed computing. Each one is false, and each shows up somewhere in this chapter:

Everything after this builds layers that cope with them. First comes the one the stub does before anything is sent: turning order_id="ord_8812", amount_cents=4999, currency="USD" into bytes.

2.1The obvious encoding: JSON

The most familiar way to write structured data as bytes is JSON, the text format that grew out of JavaScript's object syntax. Our call's arguments become:

{"order_id":"ord_8812","amount_cents":4999,"currency":"USD"}

That's 60 bytes. It's easy to read, every language can parse it, and you can type it into curl by hand. Three things about it cost something, though. The field names travel with every message: "amount_cents" is 14 bytes spent saying which field the next 4 bytes belong to, and it's sent again on every one of millions of calls. And 4999 is stored as four characters of text, so the receiver has to parse decimal digits back into an integer. And nothing checks that the sender and receiver agree on what fields exist: if the orders team renames amount_cents to amount, the payments service silently reads a missing field as zero.

The first two cost size and speed, and the third costs safety, which matters more as the number of teams grows. All three have the same fix: agree on the fields ahead of time, in a file both sides compile from, so the message only needs to carry values.

2.2A schema with numbered fields

That file is a schema, a description of each message's fields and their types. Protocol Buffers (protobuf for short) is Google's schema language and binary format, and it's the IDL that gRPC uses by default. Here is the payments service's schema:

syntax = "proto3";
package payments.v1;

service Payments {
  rpc Charge(ChargeRequest) returns (ChargeReply);
}

message ChargeRequest {
  string order_id     = 1;
  int64  amount_cents = 2;
  string currency     = 3;
}

message ChargeReply {
  string charge_id = 1;
  string status    = 2;
}

The stub generator reads the service block, which lists the methods. In the message blocks, what matters is the number after each =. That number, the field number, is what goes on the wire instead of the name. A receiver looks the number up in its own copy of the schema to learn that field 2 is amount_cents, an integer. Names stay in the source code, and only numbers travel.

Each field on the wire is written as a short record: a key saying which field this is and how its value is laid out, then the value. The key is called the tag. It packs two things together: the field number, and a small number called the wire type that tells the reader how to find the end of the value. Two wire types cover our message. Wire type 0, VARINT, is for integers (and booleans and enums). Wire type 2, LEN, is for anything with a length, such as strings, raw bytes and nested messages: the value is preceded by its length in bytes. It's computed as field_number << 3 | wire_type, meaning the field number shifted left three bits with the wire type in the bottom three.

Integers, including the tag itself and every length, are written as varints, short for variable-length integers. A varint stores a number seven bits at a time, lowest bits first. Each byte uses its top bit as a flag meaning "more bytes follow", and its other seven bits for the number. So a number under 128 fits in one byte, a number under 16,384 fits in two, and small numbers, the most common kind, stay small on the wire.

Let's encode 4999 by hand. In binary it's 1001110000111, thirteen bits. The lowest seven bits are 0000111, which is 7. More bits remain, so this byte gets its top bit set: 10000111, which is 0x87. What's left is 100111, which is 39, or 0x27. Nothing remains after that, so its top bit stays clear. 4999 is therefore the two bytes 87 27.

2.3Encoding a Charge by hand

The program below does that for the whole message, with no protobuf library. varint() is the seven-bits-at-a-time loop, and tag() builds a key from a field number and a wire type. Each string is a tag, a varint length and the bytes; the integer is a tag and a varint. separators stops json.dumps from adding spaces to the JSON version.

import json

def varint(n):
    out = bytearray()
    while True:
        low7 = n & 0x7F
        n >>= 7
        if n:
            out.append(low7 | 0x80)   # more bytes follow
        else:
            out.append(low7)          # last byte
            return bytes(out)

def tag(field, wire_type):
    return varint(field << 3 | wire_type)

VARINT, LEN = 0, 2
order_id, amount_cents, currency = "ord_8812", 4999, "USD"

pb = (tag(1, LEN) + varint(len(order_id)) + order_id.encode()
      + tag(2, VARINT) + varint(amount_cents)
      + tag(3, LEN) + varint(len(currency)) + currency.encode())

js = json.dumps({"order_id": order_id, "amount_cents": amount_cents,
                 "currency": currency}, separators=(",", ":")).encode()

print("4999 as a varint:", varint(4999).hex(" "))
print("protobuf:", pb.hex(" "))
print("protobuf bytes:", len(pb))
print("JSON:    ", js.decode())
print("JSON bytes:", len(js))

4999 as a varint: 87 27
protobuf: 0a 08 6f 72 64 5f 38 38 31 32 10 87 27 1a 03 55 53 44
protobuf bytes: 18
JSON:     {"order_id":"ord_8812","amount_cents":4999,"currency":"USD"}
JSON bytes: 60

Read the protobuf line in three records. 0a is the tag for field 1 with wire type 2 (1 shifted left three bits is 8, plus 2 is 10, which is 0x0a). 08 is the length, eight bytes, and 6f 72 64 5f 38 38 31 32 is ord_8812 in ASCII. Next, 10 is field 2 with wire type 0 (16 plus 0), followed by our hand-made 87 27. Last, 1a is field 3 with wire type 2, 03 is the length and 55 53 44 is USD. These are the same 18 bytes the official protobuf library produces for this message.

The protobuf form is 18 bytes against JSON's 60, about a third, and nearly all the saving comes from leaving the names out. Decoding is cheaper too: the reader never scans for quotes or parses digits, because each tag says exactly how to read what follows.

?Why are field numbers 1 to 15 special?

Because the tag is itself a varint. A field number up to 15, shifted left three bits, still fits in seven bits, so its tag takes one byte. Fields 16 to 2047 take two bytes per tag. So the protobuf guide recommends giving 1 to 15 to the fields that are set most often.

Negative numbers are a trap. Those in an int32 or int64 field are stored as 64-bit two's complement, so every negative value takes the full ten bytes of a varint, and a refund of amount_cents = -1 costs eleven bytes for that one field. For fields that are often negative, protobuf's sint32 and sint64 use ZigZag encoding, which maps 0, -1, 1, -2 to 0, 1, 2, 3, so small negative numbers stay small.

2.4Changing the schema without breaking anyone

Schemas change. Section 1.3 ended with a decision to send an idempotency key with every Charge, so the orders team adds a field:

message ChargeRequest {
  string order_id        = 1;
  int64  amount_cents    = 2;
  string currency        = 3;
  string idempotency_key = 4;   // new
}

Orders deploys first. For a while, the new orders service sends field 4 to a payments service still built from the old schema, which has never heard of field 4. What should the old reader do with it?

The wire type answers that. Even without knowing what field 4 means, the reader can see from its tag that it's wire type 2, so it reads the length and skips that many bytes. Bytes it can't place are kept as unknown fields, and proto3 libraries keep them when they re-serialize the message, so a service that passes the message along doesn't strip them. Below is a decoder that knows only the old three fields. Its second half shows what goes wrong when a field number is reused.

def read_varint(buf, i):
    n = shift = 0
    while True:
        b = buf[i]; i += 1
        n |= (b & 0x7F) << shift
        shift += 7
        if not b & 0x80:
            return n, i

def decode(buf, known):
    """Decode with an OLD schema: known = {field number: name}."""
    i, fields, unknown = 0, {}, []
    while i < len(buf):
        key, i = read_varint(buf, i)
        field, wire_type = key >> 3, key & 7
        if wire_type == 0:                       # VARINT
            value, i = read_varint(buf, i)
        elif wire_type == 2:                     # LEN
            length, i = read_varint(buf, i)
            value, i = bytes(buf[i:i + length]), i + length
        else:
            raise ValueError("wire type not handled here")
        if field in known:
            fields[known[field]] = value
        else:
            unknown.append((field, value))       # skipped, but kept
    return fields, unknown

old_schema = {1: "order_id", 2: "amount_cents", 3: "currency"}

# A newer orders service added: string idempotency_key = 4;
new_msg = bytes.fromhex("0a 08 6f 72 64 5f 38 38 31 32 10 87 27"
                        "1a 03 55 53 44 22 06 6b 2d 37 37 31 39")
print(decode(new_msg, old_schema))

# Someone deleted amount_cents and reused number 2 for int64 amount_micros.
# $49.99 = 49,990,000 micros, sent by the new code:
reused = bytes.fromhex("0a 08 6f 72 64 5f 38 38 31 32 10 f0 92 eb 17 1a 03 55 53 44")
print(decode(reused, old_schema))

({'order_id': b'ord_8812', 'amount_cents': 4999, 'currency': b'USD'}, [(4, b'k-7719')])
({'order_id': b'ord_8812', 'amount_cents': 49990000, 'currency': b'USD'}, [])

The first line is the safe case. Our old reader decoded its three fields correctly and set field 4, the key k-7719, aside as unknown. Adding a field broke nothing.

The second line is the dangerous case. Suppose a later developer decides cents are too coarse, deletes amount_cents, and adds int64 amount_micros = 2, reusing the number because it looked free. A new sender encodes $49.99 as 49,990,000 micros. An old reader sees field 2, wire type 0, a valid varint, and has no way to know the meaning changed. It reads 49,990,000 cents: $499,900. Nothing failed to parse, and no error was raised anywhere.

That's why protobuf has the reserved statement. When you delete a field, you list its number (and its name, for the JSON form) as reserved, and the compiler refuses to let anyone use them again:

message ChargeRequest {
  reserved 2;
  reserved "amount_cents";
  string order_id        = 1;
  string currency        = 3;
  string idempotency_key = 4;
  int64  amount_micros   = 5;
}

Here are the rules that follow from the wire format:

A second trap comes from leaving defaults out. In proto3, a plain field set to its default (zero, an empty string, false) isn't written at all, so a reader can't tell "set to zero" from "not sent". When that difference matters, mark the field optional, and the library records whether it was set.

We now have 18 bytes, or 26 with the key. They need a connection to travel on, and the first one most services reach for is HTTP.

3.1The Charge call as an HTTP request

HTTP is the protocol browsers use to fetch pages, and its version 1.1 is plain text over a TCP connection. A request is a line naming the method and the path, then lines of headers, a blank line, and a body. Our Charge call could travel like this:

POST /payments.v1.Payments/Charge HTTP/1.1
Host: payments.internal
Content-Type: application/x-protobuf
Content-Length: 26

<26 bytes of protobuf>

The Content-Length header is what lets the receiver find the end of the body. TCP delivers a stream of bytes with no boundaries in it, so a protocol on top of TCP has to mark where each message ends, either with a length or with a delimiter. HTTP/1.1 does both: headers end at a blank line, and the body's length is given in a header.

Opening a TCP connection costs a round trip, one message out and its answer back, and setting up TLS on it, the encryption chapter 35 walks through in the TLS handshake, costs at least one more. So the orders service doesn't open a fresh connection per call. It keeps the connection open after the reply and sends the next request on it, which HTTP/1.1 calls keep-alive and does by default.

3.2Head-of-line blocking

Keep-alive saves the handshakes, but it has a rule that hurts. On one HTTP/1.1 connection, responses come back in the order the requests were sent, because a response carries no label saying which request it answers. So a client normally sends one request and reads the whole response before sending the next.

Now suppose the orders service has two calls to make on the same connection: a Charge that waits on the bank and takes two seconds, and a GetStatus for a different order that payments can answer from memory in a millisecond. If Charge goes first, GetStatus waits behind it for two seconds, though payments could have answered it almost at once. A fast item stuck behind a slow one at the front of a queue is called head-of-line blocking, after the shopper with a full trolley at the front of the checkout line.

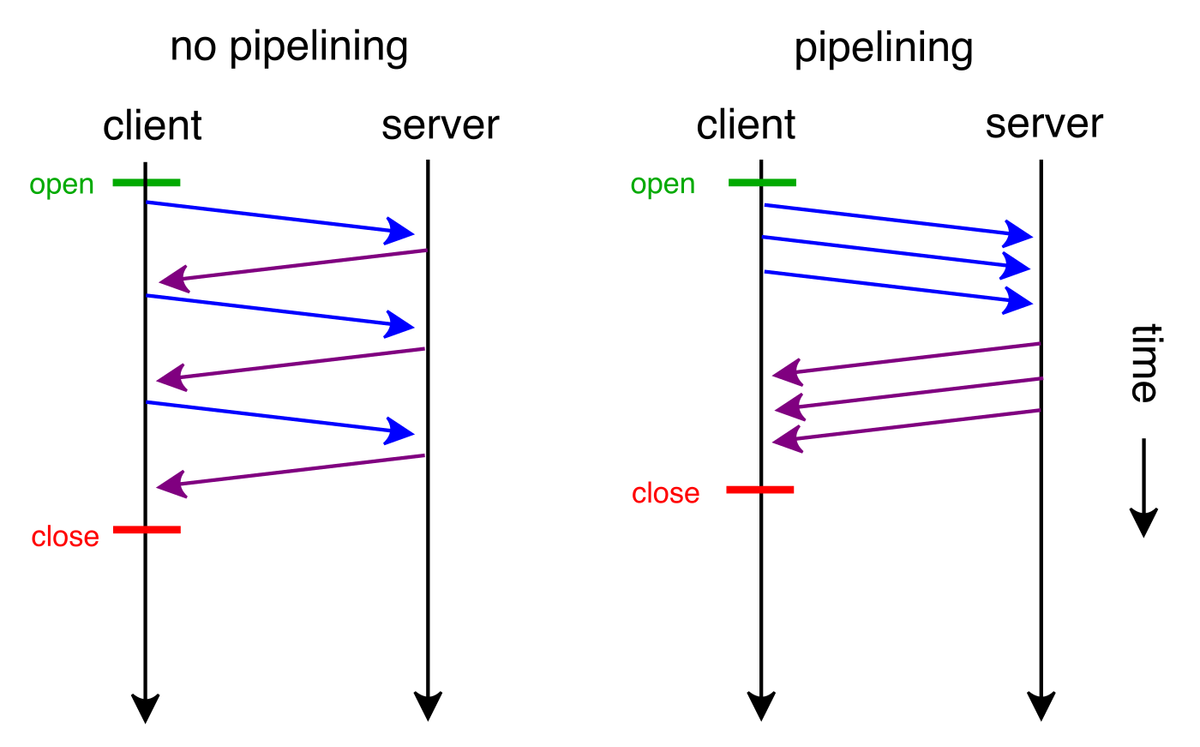

HTTP/1.1 tried a partial fix called pipelining: the client sends several requests without waiting for each response.

Pipelining also ran into proxies and servers that handled it badly, and browsers ended up shipping it switched off. In practice, HTTP/1.1 means one request in flight per connection.

3.3Connection pools

If each connection can carry only one call at a time, the only way to make several calls at once is to open several connections. A client that keeps a set of open connections and lends one to each call is using a connection pool. Browsers settled on about six connections per host for the same reason.

How big must the pool be? Chapter 16's Little's law says the number of calls in flight equals the arrival rate times the time each call takes. At 500 Charge calls a second taking 40 ms each, about 20 are in flight, so the orders service needs about 20 connections. If the bank slows down and calls take 2 seconds, the same traffic needs about 1,000.

Each connection paid a TCP and a TLS handshake when it opened and holds kernel buffers on both machines. And when the bank slows down, the pool runs dry, new calls queue inside the orders service for a free connection, and the slowdown spreads to calls that have nothing to do with the bank.

Many calls, one connection each. What we'd like is many calls on one connection, each answered as soon as it's ready, in whatever order. That needs the responses to carry a label saying which request they belong to, and that is the change HTTP/2 made.

4.1Frames and streams

HTTP/2, published in 2015 and revised as RFC 9113 in 2022, keeps everything HTTP means (methods, paths, headers, status codes) and changes how it's written on the connection. Instead of text, each side sends small binary chunks called frames. Every frame starts with the same nine-byte header: three bytes of length, one byte of type, one byte of flags, and four bytes holding a stream identifier.

A stream is one request and its response. Each new request gets the next unused stream number, and every frame belonging to that request or its response carries that number. Streams opened by the client use odd numbers, 1, 3, 5 and so on, and streams opened by the server use even numbers, so the two sides never pick the same one. A request is a HEADERS frame (type 1) carrying the method, path and headers, followed by DATA frames (type 0) carrying the body. The last frame of each direction carries a flag called END_STREAM.

Because every frame is labelled, frames from different streams can be interleaved on the one connection, and the receiver sorts them back out by stream number. Sending many independent conversations over one connection this way is called multiplexing. Here is our orders service making three calls at once to payments over a single connection:

That removes head-of-line blocking at the HTTP level, and replaces the pool with one connection that can carry hundreds of calls at once. Before the first request, each side sends a SETTINGS frame with its limits. One of them, SETTINGS_MAX_CONCURRENT_STREAMS, caps how many streams may be open at once; RFC 9113 recommends no fewer than 100.

?Why binary frames instead of text?

Because a text protocol has to be scanned to find where each part ends, and two programs that scanned differently disagreed about where a request ended, a long-running source of bugs and security holes in HTTP/1.1. A frame states its length up front, the same reason protobuf puts lengths in front of strings.

4.2Compressing the headers: HPACK

With the body down to 26 bytes, the headers are now the biggest part of each call. Every request repeats :method POST, the path, the host, the content type and any authorization token, often several hundred bytes saying almost exactly what the previous request said. (In HTTP/2 the method, path, scheme and host become pseudo-headers whose names start with a colon, :method, :path, :scheme and :authority.)

Compressing them with gzip was tried first, and it leaked secrets: in the attack called CRIME, an attacker who could add text to a victim's requests guessed a cookie one character at a time, watching for the guess that made the compressed request shrink. So HTTP/2 uses HPACK (RFC 7541), a compressor built for headers that only ever matches whole values.

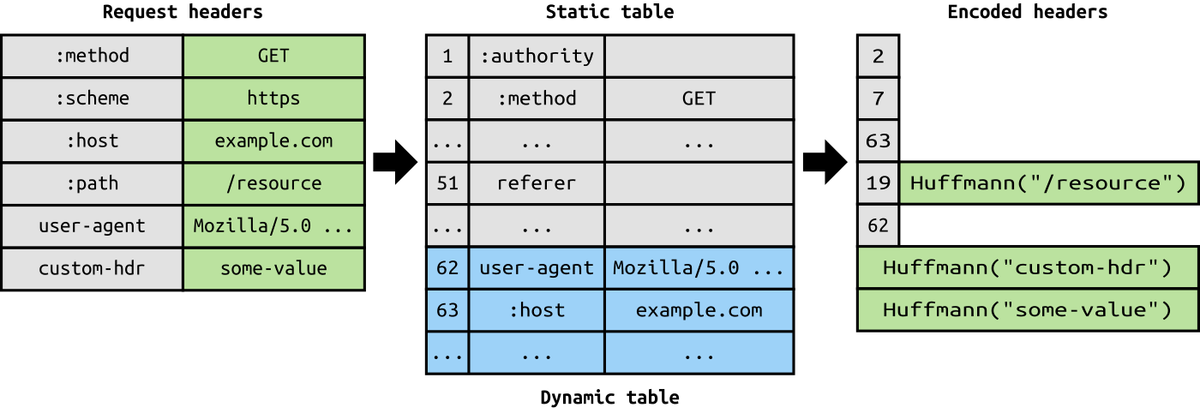

HPACK replaces repeated headers with small numbers that index into tables both sides keep. A static table of 61 common headers is built into the protocol: entry 2 is :method: GET, entry 3 is :method: POST. A dynamic table is built up during the connection: when a header is sent for the first time, both sides add it to their dynamic table, and from then on it's sent as a one-byte index. Header values that aren't in either table can be shortened with a fixed Huffman code, which gives frequent characters shorter bit patterns.

For the orders service, sending Charge after Charge on one connection, the second request's headers shrink to a handful of bytes, nearly all indexes into the dynamic table, whose default size is 4,096 bytes.

There's a catch, and it matters in section 8. Both sides must apply table updates in exactly the order they were made, so HPACK assumes that header frames arrive in the order they were sent, across all streams. Over TCP, they always do.

4.3Flow control

Multiplexing creates a new problem. Suppose one stream is a large download, such as a nightly export of all charges, and the receiving program reads it slowly. Its data piles up in the receiver's memory, and one greedy stream can hold up the rest.

So HTTP/2 adds its own flow control, the receiver's way of telling a sender how much more it may send, on top of TCP's (chapter 10's receive window). Each stream has a window, and so does the connection as a whole. Both start at 65,535 bytes. Every DATA frame uses up window, and a sender that has used it all must stop on that stream until the receiver sends a WINDOW_UPDATE frame granting more. A slow reader of the export stops granting window to that stream, and the other streams keep flowing. Only DATA frames count against the window, so control frames and headers always get through.

A sender can have at most one window of data in flight per round trip, so 65,535 bytes is small for a fast link with a long round trip. The main gRPC implementations grow the window during the connection, sizing it from round trips they measure with PING frames.

4.4What multiplexing costs

One connection carrying many streams means a server has to do more bookkeeping per connection, and attackers found a way to exploit it. In 2023, an attack called HTTP/2 Rapid Reset (CVE-2023-44487) opened streams and cancelled them at once with an RST_STREAM frame, over and over. The cancelled streams no longer counted against the concurrent-stream limit, yet each one had already made the server start work. Google reported an attack peaking above 398 million requests per second. Servers now count cancellations and close connections that send too many.

HTTP/2 gives us labelled, interleaved, flow-controlled streams over one connection. That's very nearly what an RPC system needs, and gRPC is built directly on it.

5.1One Charge call, frame by frame

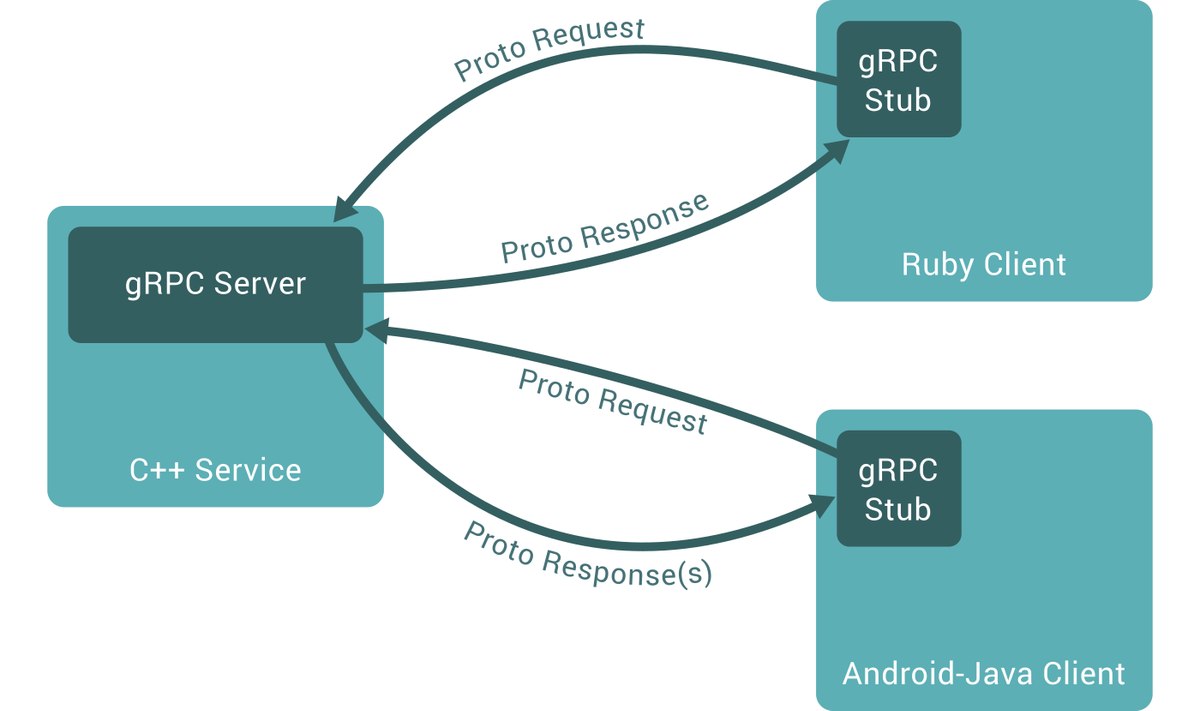

gRPC maps each call to one HTTP/2 stream. Its rules are written down in a short document in the gRPC repository, PROTOCOL-HTTP2.md. The request is a HEADERS frame followed by DATA frames, and the method being called becomes the path: / plus the full service name, / and the method name. Our call goes to /payments.v1.Payments/Charge.

Inside the DATA frames, each protobuf message is preceded by five bytes: one byte saying whether the message is compressed, and four bytes giving its length, most significant byte first. gRPC calls this a length-prefixed message. It needs its own length because HTTP/2 frame boundaries mean nothing to gRPC: a large message may be split across several DATA frames, and several small ones may share one, so the reader uses the prefix to find each message's end.

The program below wraps our 18-byte ChargeRequest in the gRPC prefix, then puts that in an HTTP/2 DATA frame for stream 1 with the END_STREAM flag set. struct.pack(">BI", ...) writes a one-byte and a four-byte unsigned integer in big-endian order, and the frame's three-byte length is the last three bytes of a four-byte integer.

import struct

charge = bytes.fromhex("0a 08 6f 72 64 5f 38 38 31 32 10 87 27 1a 03 55 53 44")

# gRPC: 1-byte compressed flag, 4-byte big-endian length, then the message
grpc_msg = struct.pack(">BI", 0, len(charge)) + charge

# HTTP/2 frame header: 24-bit length, 8-bit type, 8-bit flags, 31-bit stream id
DATA, END_STREAM, stream_id = 0x0, 0x1, 1
header = struct.pack(">I", len(grpc_msg))[1:] + struct.pack(">BBI", DATA, END_STREAM, stream_id)

print("gRPC prefix:   ", grpc_msg[:5].hex(" "))
print("frame header:  ", header.hex(" "))
print("bytes on the connection:", len(header + grpc_msg),
      f"({len(header)} frame + 5 gRPC + {len(charge)} message)")

gRPC prefix:    00 00 00 00 12
frame header:   00 00 17 00 01 00 00 00 01
bytes on the connection: 32 (9 frame + 5 gRPC + 18 message)

The gRPC prefix reads: not compressed (00), length 0x12, which is 18. The frame header reads: length 0x17, which is 23 (prefix plus message), type 00 for DATA, flags 01 for END_STREAM, and stream 1. So the body costs 32 bytes on the connection, and with HPACK the headers of a repeat call add only a few more. Here is the whole call, including the reply:

A call with one request and one response, like this, is called a unary call. The te: trailers header looks odd, since it asks for something the server sends anyway. It's there so that a proxy in the middle that can't pass trailers through fails loudly at the start, before a call depends on them.

5.2Status codes and trailers

Look at where the result went. The HTTP status in the first response HEADERS frame is 200, and the real outcome, grpc-status, arrives in a second HEADERS frame after the body. Headers sent after the body are called trailers.

?Why put the status at the end?

Because for many calls the server doesn't know the outcome until it has sent the body. A call that streams ten thousand records can fail on record nine thousand, and by then the response headers left long ago. Putting the status in trailers gives every call, short or long, one place to report how it ended. When a call fails before any reply is sent, such as a bad argument, the server sends a single HEADERS frame that is headers and trailers at once, which the spec calls Trailers-Only.

gRPC defines seventeen status codes, numbered 0 to 16. These are the ones the orders service has to handle for Charge:

DEADLINE_EXCEEDED and INTERNAL are section 1.3's silence with a name attached. A status code tells you how the call ended for the caller, and for those two it says nothing certain about what the server did.

5.3Deadlines and cancellation

Section 1.3 left the orders service waiting for an answer that might never come. The fix is to decide in advance how long to wait. A deadline is the point in time after which the caller no longer wants the answer. gRPC sends it with the request as grpc-timeout, a number of at most eight digits followed by a unit letter: H for hours, M minutes, S seconds, m milliseconds, u microseconds and n nanoseconds. Our 800m means 800 milliseconds. By default gRPC sets no deadline at all, so a client that never sets one can wait forever, and the gRPC docs tell you to always set one.

Deadlines matter most across several hops, and our call sits in the middle of a chain. Our phone gave the shop's API one second for checkout; the API spent 150 ms before calling orders, and orders 50 ms before calling payments. If each hop picked its own timeout, payments might work for seconds on a checkout the phone abandoned long ago. Instead, each server passes the remaining time to its own calls. Because gRPC sends a duration, the receiver works out the deadline on its own clock, so clocks that disagree between machines don't matter. Java and Go pass deadlines on by default when the incoming call's context is used for the outgoing call; C++ needs it switched on. Chapter 40 covers deadlines across hops in general; here is ours:

When a deadline passes, or a caller gives up, the client sends an HTTP/2 RST_STREAM frame with the error code CANCEL, which ends the stream without closing the connection. This is cancellation, and it's only half automatic. gRPC can't interrupt your handler mid-task, so a handler doing long work has to check whether its call was cancelled and stop. Calls it makes using the incoming call's context are cancelled for it in Java, Go and C++.

5.4Streaming calls

Because a gRPC call is an HTTP/2 stream, and a stream can carry any number of DATA frames each way, a call doesn't have to be one request and one reply. gRPC has four kinds:

In the schema, the word stream before an argument or a return type is all it takes: rpc WatchCharge(WatchRequest) returns (stream ChargeEvent);. Each message on a streaming call is length-prefixed exactly as in section 5.1, and the trailers come once, at the very end.

Streams save starting a new call per message, at a cost that's easy to miss: a stream is pinned to its connection, and so to one server, for as long as it lasts. The gRPC performance guide warns that streams "cannot be load balanced once they have started", which section 5.6 comes back to.

5.5Retries and hedging

Back to section 1.3's decision: when a call fails, should the orders service try again? gRPC can do it for you, following a retry policy that the service owner publishes in a configuration document called the service config:

"retryPolicy": {
  "maxAttempts": 4,
  "initialBackoff": "0.1s",
  "maxBackoff": "1s",
  "backoffMultiplier": 2,
  "retryableStatusCodes": ["UNAVAILABLE"]
}

maxAttempts counts the first try, and values above 5 are treated as 5. Waits between attempts grow from initialBackoff by backoffMultiplier up to maxBackoff, each multiplied by a random factor between 0.8 and 1.2, so that a thousand clients that failed at the same moment don't all retry at the same moment too. Chapter 40 covers retries, backoff and jitter in general. Two things here are specific to gRPC.

First, the call's deadline covers all the attempts. A Charge with 800 ms left doesn't get 800 ms per try; when the deadline passes, the call fails, however many attempts remain.

Second, look at retryableStatusCodes. UNAVAILABLE usually means payments never started the work, so retrying it is safe even for Charge. Adding DEADLINE_EXCEEDED or INTERNAL would retry calls that may already have charged the card, which is safe only with the idempotency key. gRPC can't mark a method idempotent; that judgement is yours, method by method.

Even with no policy, gRPC retries by itself in one narrow case: when it knows your server code never saw the call, because the request never left the client or never got past the server's gRPC library. These are called transparent retries.

Retries are dangerous at scale: if payments is overloaded, every client retrying four times multiplies the load on a service that's already drowning. So gRPC can throttle them per server. With "retryThrottling": {"maxTokens": 10, "tokenRatio": 0.1}, each client keeps a count that starts at 10, drops by 1 on each failure and rises by 0.1 on each success, and stops retrying while the count is at or below half of maxTokens. A server can also put grpc-retry-pushback-ms in its trailers, to say how long to wait or that the client shouldn't retry at all.

The other policy is hedging, which chapter 16 introduces as hedged requests. Instead of waiting for a failure, the client sends the same call again after a delay if no answer has come, possibly to a different server, takes whichever answer arrives first, and cancels the rest:

"hedgingPolicy": { "maxAttempts": 3, "hedgingDelay": "0.2s", "nonFatalStatusCodes": ["UNAVAILABLE"] }

Hedging cuts the slow tail of response times by running some calls more than once on purpose, so it's only for methods that are safe to run several times. A hedged GetStatus is fine; a hedged Charge without an idempotency key charges customers twice.

5.6Why gRPC breaks L4 load balancing

Payments doesn't run on one machine. Say it runs as five copies behind one address, with a load balancer spreading the work. Chapter 34 explains the two kinds in Layer 4 or layer 7: an L4 balancer sees only addresses and ports and chooses a backend once per TCP connection, and an L7 balancer reads each request and chooses per request.

Now put that next to what we've built. Our orders service opens one HTTP/2 connection to the payments address. An L4 balancer picks a backend when it opens, and every call the orders service ever makes goes there, while four copies sit idle. Section 4's improvement, many calls on one long-lived connection, is exactly what defeats a balancer that thinks in connections. Three fixes are standard:

• Client-side balancing. The client looks up all five backend addresses, from DNS or a service registry, connects to each and spreads calls itself. gRPC's round_robin policy does this; the default, pick_first, doesn't.
• An L7 proxy. A proxy that understands HTTP/2, such as Envoy, ends the client's connection and sends each call to a backend of its choosing. A service mesh puts one next to every service.
• Cycling connections. The server closes each connection after a maximum age (MAX_CONNECTION_AGE in gRPC) by sending GOAWAY, the frame that tells a client to finish its current streams and reconnect. Each reconnect is a fresh L4 choice, so load evens out roughly, over time.

So far every call has happened inside a data centre, over short, clean links. Now move the caller somewhere less friendly.

6.1One lost packet

The customer is checking out on the shop's phone app, on a train. It talks to the shop's API over HTTP/2, one connection carrying several calls, just like orders and payments. On the checkout screen it makes three calls at once: Checkout, GetCart and ListOffers. Their replies come back interleaved over a mobile network where packets are lost far more often than inside a data centre.

Recall what TCP promises (chapter 10's What each protocol promises): an ordered stream of bytes. The receiving kernel holds on to any bytes that arrive after a gap, and hands nothing past the gap to the program until the missing bytes have been re-sent and have arrived. TCP has no idea that the bytes belong to three different HTTP/2 streams. As far as it's concerned there is one stream, and it has a hole in it.

This is head-of-line blocking again, one layer down. HTTP/2 removed it between requests, and TCP brings it back between packets. With HTTP/1.1 and six connections, a lost packet stalled only the one connection it belonged to; with HTTP/2's single connection, it stalls every call at once.

6.2Counting the damage

A small model makes the cost concrete. Six packets carry the three replies, two each, interleaved. They're due to arrive one millisecond apart from 51 ms, and packet 2, half of GetCart, is lost; its re-sent copy arrives at 155 ms. The program computes when each call's last byte reaches the app, once with TCP's rule (a packet waits for every earlier packet on the connection) and once with a rule where each stream is ordered on its own (a packet waits only for earlier packets of its own call). Section 7 builds that second rule.

# Six packets carry the replies to three calls, interleaved on one connection.
# Packet k arrives at 50 + k ms. Packet 2 is lost; its resend arrives at 155 ms.
packets = [(1, "Checkout"), (2, "GetCart"), (3, "ListOffers"),
           (4, "Checkout"), (5, "GetCart"), (6, "ListOffers")]
arrive = {k: 50 + k for k, _ in packets}
arrive[2] = 155

def tcp_delivery(k):
    # TCP hands bytes to the app strictly in order: packet k waits for 1..k-1
    return max(arrive[j] for j in range(1, k + 1))

def quic_delivery(k):
    # QUIC orders bytes per stream: packet k waits only for its own stream
    stream = dict(packets)[k]
    return max(arrive[j] for j, s in packets if s == stream and j <= k)

print(f"{'call':<11}{'TCP (HTTP/2)':>14}{'QUIC (HTTP/3)':>15}")
for call in ("Checkout", "GetCart", "ListOffers"):
    last = max(k for k, s in packets if s == call)
    print(f"{call:<11}{tcp_delivery(last):>11} ms{quic_delivery(last):>12} ms")

call         TCP (HTTP/2)  QUIC (HTTP/3)
Checkout           155 ms          54 ms
GetCart            155 ms         155 ms
ListOffers         155 ms          56 ms

In the TCP column every call finishes at 155 ms, the moment the re-sent packet arrives. In the second column only GetCart, the call that lost a packet, waits that long, and Checkout and ListOffers finish about 100 ms sooner. The loss cost one call a round trip instead of costing all three.

Inside a data centre this rarely matters, because loss is rare and round trips are tiny. On a mobile network, with round trips of 100 ms or more and frequent loss, it decides whether a screen fills in as data arrives or freezes whenever a packet goes missing.

6.3Why not fix TCP?

The obvious fix is to teach TCP about streams. People have tried, and the reason it didn't happen says a lot about the internet.

TCP lives in the kernel, so changing it means changing every phone, laptop and server, and phones keep old kernels for years. Worse, TCP crosses many middleboxes, devices in the network such as firewalls and the address-sharing routers called NATs (network address translators), and many of them read, rewrite or drop TCP packets whose options they don't recognise. Google's QUIC paper puts it bluntly: "even modifying TCP remains challenging". A protocol the network has come to depend on in every detail, so that it can no longer change, is said to have ossified.

So the fix was built somewhere middleboxes can't interfere, and somewhere that can be updated with an app: in user space, on top of UDP, with almost everything encrypted. That is QUIC.

7.1Streams the network can't see

QUIC started at Google in 2013 and was standardised by the IETF in 2021 as RFC 9000. It runs on UDP, which chapter 10 describes as delivering separate datagrams with no promises at all. Nearly every network passes UDP, because DNS depends on it, and UDP adds almost nothing of its own, so QUIC can build everything TCP did, and more, inside the UDP payload, where the network can't see it.

A QUIC connection carries streams, as HTTP/2's did, but now the streams belong to the transport itself. Each QUIC packet carries one or more frames, and a STREAM frame says which stream its bytes belong to and at what offset within that stream. Each stream gets its own reassembly buffer at the receiver. A lost packet leaves a gap only in the streams whose bytes it carried, and every other stream's bytes are handed to the application as soon as they arrive. That's the second column of section 6.2's output.

Stream numbers work a little differently from HTTP/2's. The lowest two bits of a QUIC stream ID say who opened it and whether it carries data both ways: client-opened two-way streams are 0, 4, 8 and so on, and server-opened ones are 1, 5, 9. Kinds 2 and 3 are one-way streams, and section 8 uses them.

Packets have their own numbers, separate from stream offsets, and a packet number is never reused: re-sent data goes out in a new packet with a higher number. TCP re-sends a segment under its original sequence number, so when an acknowledgement arrives the sender can't tell which copy it's for, and its measurement of the round trip suffers. QUIC's unique numbers remove that doubt.

7.2One handshake instead of two

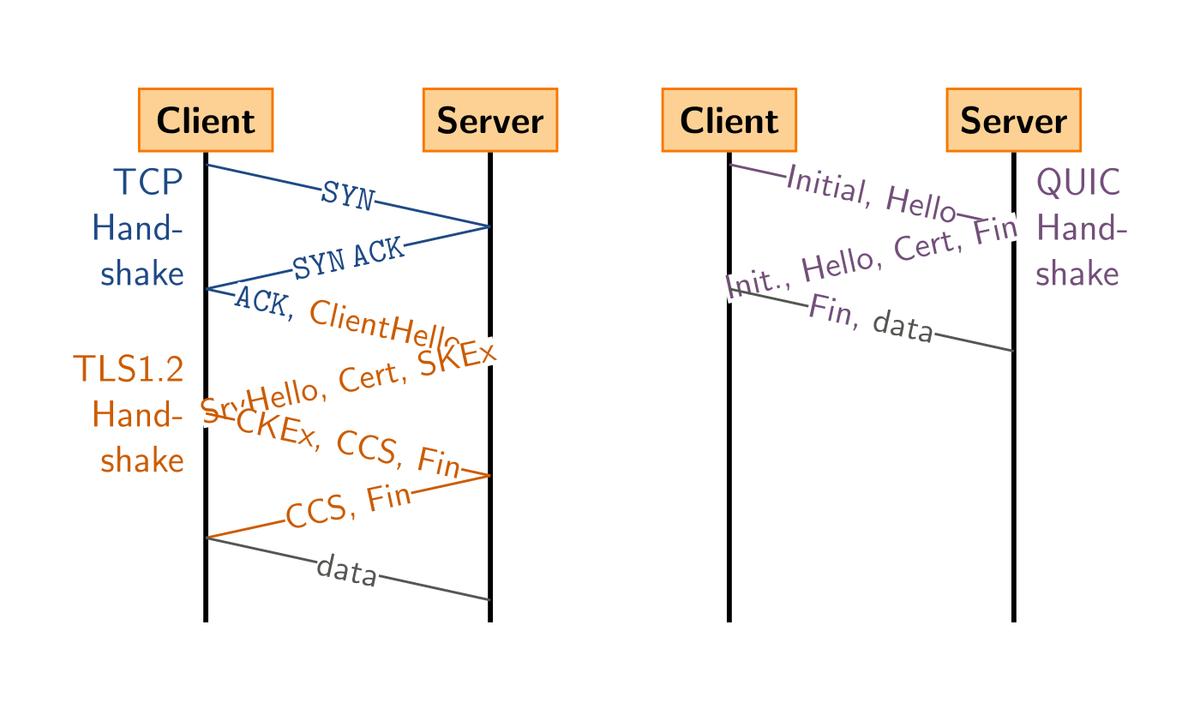

Over TCP, a new connection pays twice before the first request: one round trip for TCP's handshake, then at least one more for TLS. A phone on a train with a 150 ms round trip spends 300 ms before it can even send Checkout.

QUIC folds both into one. QUIC uses TLS 1.3 for its handshake (RFC 9001 says how), but carries the TLS messages inside QUIC's own packets instead of on top of a finished transport connection. The client's very first packet contains the TLS ClientHello with its key share, the same message chapter 35 walks through in One handshake, step by step; the server's reply contains its ServerHello, certificate and Finished; and the client can send its request along with its own Finished. After one round trip, transport and encryption are both ready.

The first packet has two safety rules. A client's first datagram must be padded to at least 1,200 bytes, and until the server has confirmed the client's address, it may send no more than three times what it has received. Together they stop an attacker from forging a tiny packet with a victim's address and getting a large certificate fired at the victim, an amplification attack.

Almost everything after the first packets is encrypted, packet numbers and acknowledgements included, so a middlebox sees a small header and then ciphertext. It can't come to depend on what it can't read, and that's QUIC's cure for ossification.

7.30-RTT, and what can be replayed

One round trip is good. A phone that talked to the same server recently can do better. As in TLS 1.3, the server hands the client a session ticket, and next time the client can send a request in its very first flight, encrypted with keys from the ticket, before the server has replied at all. This is 0-RTT, and chapter 35 covers it in Resumption and 0-RTT. In Google's 2017 measurements, about 88% of QUIC connections from desktop browsers completed with a 0-RTT handshake, because people mostly revisit the same sites.

0-RTT data has the same weakness here as in TLS: an attacker who records the first flight can send it again, and the server can't tell the copy from the original. RFC 9001 is direct about who has to deal with it: "the responsibility for managing the risks of replay attacks with 0-RTT lies with an application protocol." QUIC itself is safe from replays, because its own frames are idempotent. What isn't safe is whatever your request does.

For the phone app, that splits the calls neatly. GetCart and ListOffers are reads, so a replay does no harm, and sending them in 0-RTT makes the checkout screen appear one round trip sooner. Checkout charges a card. It must not be accepted from 0-RTT data unless the server can rule out a replay, and the idempotency key from section 2.4 lets it do that. Otherwise the server should answer 425 Too Early, which tells the client to send it again once the handshake is done.

7.4Walking off the Wi-Fi: connection IDs

The train pulls out of the station, and the phone loses the platform's Wi-Fi and switches to the cellular network. Its IP address changes.

A TCP connection is identified by four numbers: the two IP addresses and the two ports (chapter 34 adds the protocol and calls it the 5-tuple). Change any of them and, as far as the server is concerned, packets are arriving for a connection that doesn't exist. Every TCP connection the app had is dead. The app has to notice, which can take a timeout, then open new connections and pay the TCP and TLS handshakes again, and any call that was in flight has to be retried, which brings back section 1.3's question of whether Checkout already happened.

QUIC identifies a connection by a connection ID instead, a value of up to 20 bytes that each side chooses for the other to put in its packets. A server finds the connection by its ID, whatever address the packets come from. Here's the switch:

This is connection migration. Only the client may start one, and a server that can't support it says so in its handshake with disable_active_migration. The path check stops anyone forging packets with a valid ID from a victim's address to make the server send its data there. The same mechanism handles a more common problem quietly: NATs often change the port they assign to a UDP flow after a short idle period, which would break a connection identified by address and port.

The catch is on the server side. A load balancer that hashes the 5-tuple (chapter 34's L4 balancers) sends packets from address B to a different server that has never heard of the connection. Migration needs the balancer to route by connection ID, usually by having each server encode its identity into the IDs it hands out; the IETF drafted a standard scheme for this, called QUIC-LB, though the draft hasn't become an RFC.

7.5Loss recovery and congestion control in user space

QUIC still has to do everything TCP did to share the network fairly: acknowledge, detect loss, re-send, and run congestion control, the sender's estimate of how much the network can carry, which chapter 10 calls the congestion window. RFC 9002 describes QUIC's version. It declares a packet lost once three later packets are acknowledged, as TCP does, and its default congestion controller is based on TCP's NewReno, though implementations may use others such as CUBIC or Google's BBR.

The difference is where this code runs. TCP's congestion control is in the kernel. QUIC's is a library inside the application, Chrome or the YouTube app or a server process, running in user space, the ordinary memory of a program outside the kernel. That's what let QUIC evolve quickly: Google's paper describes changes made "at application update timescales", tried on a fraction of users and rolled out or back with the next release, where a TCP change takes years to reach every kernel.

It has costs too. Every application ships its own transport, so a bug in one QUIC library isn't fixed by a kernel update, and the work a kernel does once, efficiently, for every program is now done by each program separately. That's where section 9.2's CPU bill comes from.

QUIC is a transport: it moves streams of bytes. Our requests still need HTTP on top, and HTTP/2 can't be dropped onto QUIC unchanged.

8.1HTTP mapped onto QUIC streams

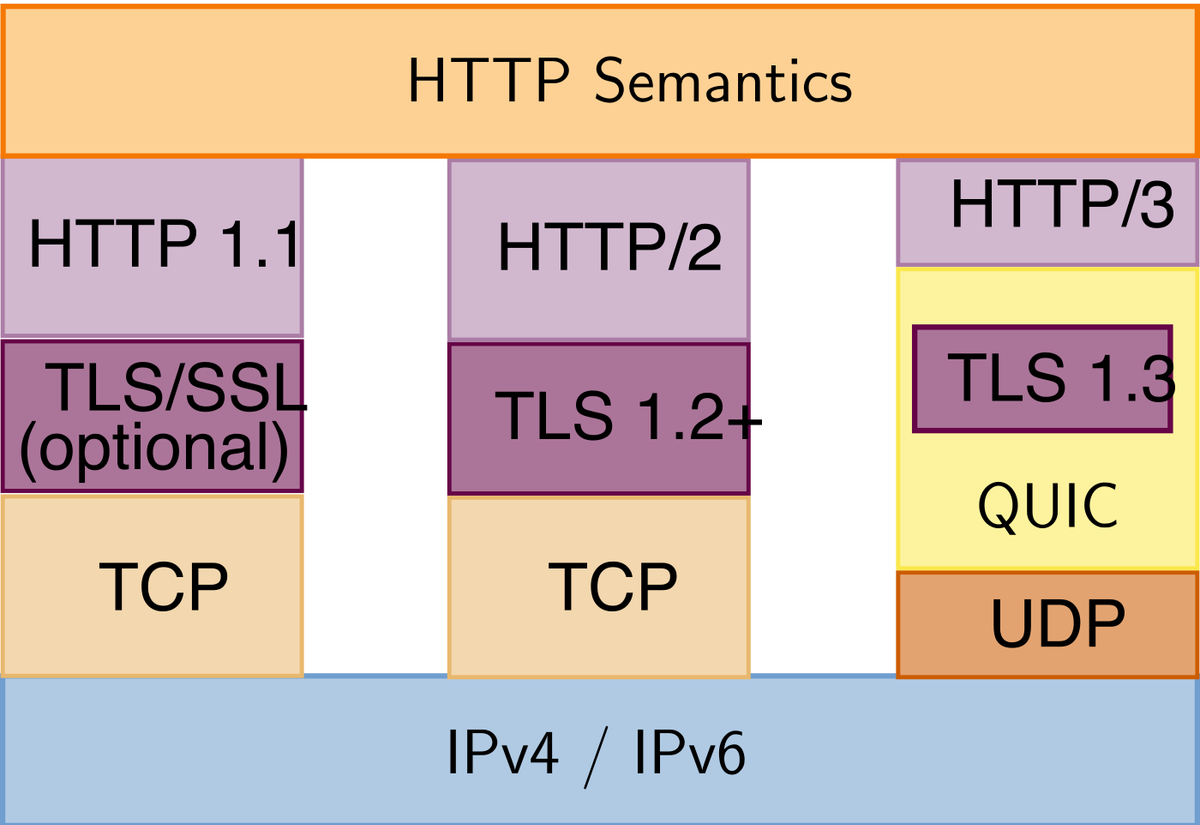

HTTP/3, RFC 9114 from 2022, is HTTP carried over QUIC. Most of HTTP/2's machinery is no longer needed, because QUIC now provides it: each request and response travels on its own QUIC stream, so HTTP/3 needs no stream numbers of its own and no flow control of its own. What remains is small. A request stream carries a HEADERS frame and DATA frames, much as before. Each side also opens a one-way control stream for settings and connection-wide messages such as GOAWAY.

A client can't know in advance whether a server speaks HTTP/3, since it would be on a different transport and port. So the first visit goes over TCP, using HTTP/2 or HTTP/1.1, and the server advertises HTTP/3 in a response header called Alt-Svc (alternative service): alt-svc: h3=":443"; ma=86400 means "HTTP/3 is available on UDP port 443 of this host, and you may remember that for 86,400 seconds". h3 is the name HTTP/3 uses in ALPN, the protocol negotiation inside the TLS handshake that chapter 35 describes. Newer clients can also learn it before the first connection, from an HTTPS record in DNS.

The program below asks three sites which HTTP version they negotiated for a normal request, using curl's -w '%{http_version}' to print it, and then prints each site's alt-svc header, if any. -I asks for headers only.

for h in www.google.com www.cloudflare.com www.wikipedia.org; do
  curl -s -o /dev/null -w "$h  negotiated HTTP/%{http_version}\n" https://$h/
  curl -sI https://$h/ | grep -i '^alt-svc'
done

www.google.com  negotiated HTTP/2
alt-svc: h3=":443"; ma=2592000,h3-29=":443"; ma=2592000
www.cloudflare.com  negotiated HTTP/2
alt-svc: h3=":443"; ma=86400
www.wikipedia.org  negotiated HTTP/2

All three connections used HTTP/2, because this curl was built without HTTP/3 support, so it couldn't take up the offer. Google and Cloudflare both advertise h3 on port 443. Google remembers the offer for 2,592,000 seconds, 30 days, and also lists h3-29, a draft version of the protocol from before the RFC, for old clients. Wikipedia's servers sent no alt-svc header, so a browser would stay on HTTP/2 there. A browser that has seen the header tries QUIC on its next connection to the site.

8.2QPACK: header compression without ordering

HTTP/3 still wants header compression, and section 4.2 left a warning about HPACK: both sides must apply dynamic-table updates in the order they were made, which HPACK gets for free because TCP delivers every stream's headers in one global order. QUIC deliberately removed that order. If request A's headers add an entry to the table and request B's headers refer to it, B's headers could now arrive first, referring to an entry that doesn't exist yet.

QPACK (RFC 9204) keeps HPACK's static table, dynamic table and Huffman coding, and changes how the dynamic table is kept in step. Table updates travel on their own one-way encoder stream, and acknowledgements return on a decoder stream. A header block that uses a dynamic entry says which table version it needs, and if that update hasn't arrived, its request waits: a small head-of-line blocking that each side limits with SETTINGS_QPACK_BLOCKED_STREAMS, which defaults to zero. With that default, an encoder refers only to entries the decoder has already acknowledged, giving up a little compression so that no stream ever waits on another. QPACK's static table also has 99 entries, against HPACK's 61.

?Why go to all this trouble for headers?

Because headers are most of the bytes in a small call. Our Charge body was 18 bytes, and its uncompressed headers several hundred. On a phone where every packet is a chance to be lost, fitting a request into one packet instead of two matters.

The protocols are now in place. Whether they work for our customer on the train depends on things the RFCs don't control.

9.1When UDP is blocked

Some networks block UDP, apart from DNS, or limit its rate, usually because a firewall was configured long before QUIC existed. A client that only spoke QUIC would fail there. So clients race: they try QUIC and TCP together and use whichever connects first. In Google's 2017 paper, Chrome gave QUIC a head start, delaying its TCP attempt by up to 300 ms, and fell back to TCP if the QUIC handshake failed.

The paper also measured how often that happens. In November 2016, 95.3% of YouTube video clients that tried QUIC used it successfully. 4.4% couldn't use it at all, mostly in corporate networks behind firewalls, and another 0.3% were on networks that seemed to rate-limit UDP. Google didn't find any whole internet provider blocking QUIC. The fallback is why a blocked network makes QUIC invisible to the user, instead of breaking the app.

9.2What it costs the CPU

Moving the transport into user space has a price on servers. Google's paper reports that when they started measuring YouTube traffic over QUIC, "QUIC's server CPU-utilization was about 3.5 times higher than TLS/TCP". Its three big costs were cryptography, sending and receiving UDP packets, and keeping QUIC's own state. After optimising all three, they brought it down to "approximately twice that of TLS/TCP".

Chapter 10 shows why. The kernel's TCP path has had decades of tuning, and help from the network card, which cuts one large send into packets and merges received packets into larger chunks. A QUIC server instead makes a system call per UDP datagram, each costing on the order of the 250 ns that chapter 10 measures per write(), before any encryption. Linux can now send or receive many datagrams per call, and since 4.18 can let the kernel or card split one large buffer into datagrams (UDP generic segmentation offload), which recovers much of the gap.

9.3How much of the web uses it

Google's paper estimated that in 2017, before QUIC was a standard, it already carried over 30% of Google's outgoing traffic and about 7% of all internet traffic. Since the RFCs:

The two sources measure different things. Cloudflare counts requests, so it reflects which clients connect and how often. W3Techs counts websites that offer HTTP/3, a figure pushed up by the large CDNs from chapter 35, which enable it for every customer. Together they say HTTP/3 is widely offered, and that about a fifth of the requests reaching one of the largest networks use it, a share that barely moved between 2024 and 2025. Most of the rest come from older clients, networks that block UDP, and automated traffic from libraries that speak only HTTP/1.1 or HTTP/2.

Google also reported what QUIC bought: on average, Search responses 8.0% faster on desktop and 3.6% on mobile, and 18.0% fewer YouTube rebuffering stalls on desktop and 15.3% fewer on mobile. The gains were largest where round trips were long and loss high: desktop search latency improved by 13.2% in India, against 1.3% in South Korea.

9.4Inside the data centre

That pattern explains where QUIC is used. Between orders and payments, round trips are well under a millisecond, loss is rare, connections live long so handshakes are paid once, and nobody walks off a Wi-Fi network. Every QUIC advantage shrinks, and its CPU cost doesn't. So service-to-service gRPC still runs over HTTP/2 almost everywhere, and the gRPC protocol document describes only HTTP/2. A separate gRPC proposal from 2021 defines gRPC over HTTP/3, and the implementation it lists is gRPC for .NET, whose client has supported HTTP/3 since .NET 6.

So the shop ends up with two wires. The phone talks to the shop's edge over HTTP/3 and QUIC, where the network is long, lossy and changing. The edge turns each request into gRPC over HTTP/2 for the short, clean hop to orders and then payments. Through both, the deadline and the idempotency key travel the whole way.

10.1Thrift, Cap'n Proto, Connect and JSON-RPC

gRPC isn't the only answer, and each alternative made a different trade:

One more name comes up often. Browsers can't use gRPC directly, because JavaScript in a browser can't read HTTP/2 trailers or control framing. gRPC-Web is a variant that moves the trailers into the body so browsers can call gRPC services, usually through a proxy that translates.

Whatever the system, this chapter's questions apply to it: how compact the encoding is and how it survives schema changes, what blocks what on a connection, how deadlines travel, and what a retry can do twice.

11.1The numbers side by side

Here are the chapter's numbers together:

11.2The phone on the train

Now put the round trips to work on the customer's checkout. Take a 150 ms round trip on the cellular network, the figure chapter 35 uses for a bad mobile link, and count only network waiting, before any server does any work:

The third row comes with section 7.3's condition: the cart and offers can arrive in 150 ms from a resumed connection, but Checkout itself waits for the handshake unless the server can rule out a replay. The fourth row hides more than its number. Detecting that a TCP connection is dead can take seconds of timeouts, and a Checkout that was in flight has to be retried safely, which only the idempotency key makes possible.

12.1Tools

Each tool answers a question the chapter raised.

# What does a gRPC service offer, and does a call work? (sections 2 and 5)
grpcurl -plaintext payments.internal:50051 list
grpcurl -plaintext -d '{"order_id":"ord_8812","amount_cents":4999,"currency":"USD"}' \
  -max-time 0.8 payments.internal:50051 payments.v1.Payments/Charge

# Decode raw protobuf bytes without the schema (section 2.3)
printf '\x0a\x08ord_8812\x10\x87\x27\x1a\x03USD' | protoc --decode_raw

# Which HTTP version does a server negotiate, and does it offer HTTP/3? (sections 4 and 8)
curl -sI --http2 https://host/ -o /dev/null -w '%{http_version}\n'
curl -sI https://host/ | grep -i alt-svc
curl --http3-only -sI https://host/          # needs a curl built with HTTP/3

# Every HTTP/2 frame on a connection (section 4)
nghttp -nv https://host/

# How many connections does the client really hold to each backend? (section 5.6)
ss -tn state established '( dport = :50051 )'

# gRPC's own logs: transport events, retries, deadlines (section 5)
GRPC_GO_LOG_VERBOSITY_LEVEL=99 GRPC_GO_LOG_SEVERITY_LEVEL=info ./orders
GRPC_TRACE=http,retry GRPC_VERBOSITY=debug ./orders     # C-core based clients

For QUIC, packet captures are nearly useless because almost everything is encrypted. Instead, QUIC libraries write a structured event log called qlog, and the qvis tool draws it as a timeline of packets, losses and congestion window. Chrome records its own network events from chrome://net-export, and qvis can read those too.

12.2Rules that hold up

1. Never reuse a protobuf field number. Mark deleted fields reserved, both number and name (section 2.4).
2. Set a deadline on every call, and pass the incoming one on. gRPC's default is to wait forever (section 5.3).
3. Retry only UNAVAILABLE by default. Retry or hedge anything else only on methods that are safe to run twice (section 5.5).
4. Put an idempotency key on every call that changes state. It's what makes retries, hedges, 0-RTT and connection loss survivable (sections 1.3, 5.5 and 7.3).
5. Don't put gRPC behind a plain L4 balancer. Use client-side balancing, an L7 proxy, or at least a maximum connection age (section 5.6).
6. Keep a TCP path for every QUIC endpoint. Some networks block UDP (section 9.1).
7. Route QUIC by connection ID at the balancer if you want migration to work (section 7.4).

12.3What you trade for what

12.4Symptom, cause, fix
