VPC & Cloud Networking

1.1A range of addresses, and slices of it

An IP address is four numbers from 0 to 255 separated by dots, such as 10.0.2.47. Underneath, the four numbers are 32 bits, and everything about address ranges comes from deciding how many of those 32 bits are fixed and how many are free. Some ranges are set aside for private networks that can't be reached from the public internet, and the block that starts with 10. is the most popular of them. Anyone is allowed to use it, which, as we'll see, is both its convenience and its problem.

You write a range as an address, a slash and a number: 10.0.0.0/16. That number says the first 16 bits are fixed, so every address in the range starts with 10.0, and the remaining 16 bits can be anything. Sixteen free bits give 2^16 = 65,536 addresses. A range written this way is called a CIDR block, and the number after the slash is its prefix length. A bigger prefix length means more bits fixed and fewer addresses: /24 fixes the first 24 bits and leaves 8 free, so 256 addresses.

Your private network in the cloud is called a VPC (virtual private cloud), and the first thing you give it is one CIDR block. Then you cut that block into smaller ones, each called a subnet.

Each subnet also has to say where it lives. A cloud provider groups its data centres by city: us-east-1, for example, is a set of separate buildings in northern Virginia, and a set like that is called a region. Each building or group of buildings inside a region, with its own power and cooling, is an availability zone, usually shortened to AZ. A subnet is pinned to exactly one AZ. So your VPC is a range of addresses, and each subnet is a slice of it that lives in exactly one zone. For our two servers we'll use a /16 for the VPC, one /24 for the web server in zone A and another for the database in zone B:

1.2Trying it: the arithmetic

Python's standard library can do this arithmetic for us. This script starts from 10.0.0.0/16, cuts it into /24 subnets with subnets(new_prefix=24), and lists the usable host addresses of the first subnet with hosts(). At the end it uses overlaps() to compare pairs of ranges, a test that will matter at the end of this section. Save it as cidr.py and run it with python3 cidr.py.

import ipaddress

vpc = ipaddress.ip_network("10.0.0.0/16")
subnets = list(vpc.subnets(new_prefix=24))
print(f"VPC {vpc}: {vpc.num_addresses:,} addresses")
print(f"  cut into /24 subnets: {len(subnets)} subnets of {subnets[0].num_addresses} addresses each")
print(f"  first three: {[str(s) for s in subnets[:3]]}")

first = subnets[0]
hosts = list(first.hosts())
print(f"\nSubnet {first}: {first.num_addresses} addresses")
print(f"  usual usable hosts (all but network + broadcast): {len(hosts)}  ({hosts[0]} .. {hosts[-1]})")
print(f"  AWS reserves 5 per subnet, so {first.num_addresses - 5} usable")

a, b, c = (ipaddress.ip_network(x) for x in ("10.0.0.0/16", "10.0.128.0/17", "10.1.0.0/16"))
print(f"\n{a} overlaps {b}: {a.overlaps(b)}    (two VPCs with these ranges can't be peered)")
print(f"{a} overlaps {c}: {a.overlaps(c)}   (these can)")

VPC 10.0.0.0/16: 65,536 addresses
  cut into /24 subnets: 256 subnets of 256 addresses each
  first three: ['10.0.0.0/24', '10.0.1.0/24', '10.0.2.0/24']

Subnet 10.0.0.0/24: 256 addresses
  usual usable hosts (all but network + broadcast): 254  (10.0.0.1 .. 10.0.0.254)
  AWS reserves 5 per subnet, so 251 usable

10.0.0.0/16 overlaps 10.0.128.0/17: True    (two VPCs with these ranges can't be peered)
10.0.0.0/16 overlaps 10.1.0.0/16: False   (these can)

A /16 holds 65,536 addresses and splits into 256 /24 subnets of 256 addresses each. Its first three are 10.0.0.0/24, 10.0.1.0/24 and 10.0.2.0/24, so the two subnets of our running example are the second and the third. The script worked out everything except the AWS rule that five addresses per subnet are reserved, because that's documented behaviour and not a calculation. Textbook networking would give you 254 usable addresses in a /24, and AWS leaves you 251. The next subsection shows where the five go.

1.3The five addresses you don't get

The five are the same in every subnet. Two of them are the first and last address of the range, which ordinary networking has reserved for decades, and the other three are the cloud provider's own. The figure shows a /28, with the reserved addresses greyed out.

?Why does subnet size matter on Kubernetes?

Kubernetes runs your programs as pods, small groups of containers that are started and stopped as a unit. On EKS, Amazon's managed Kubernetes, the default networking plugin (the VPC CNI) gives every pod its own address from your subnet, as though it were a server. So the number of pods you can run is tied to how big your subnets are, and a subnet carved small on day one caps the cluster later.

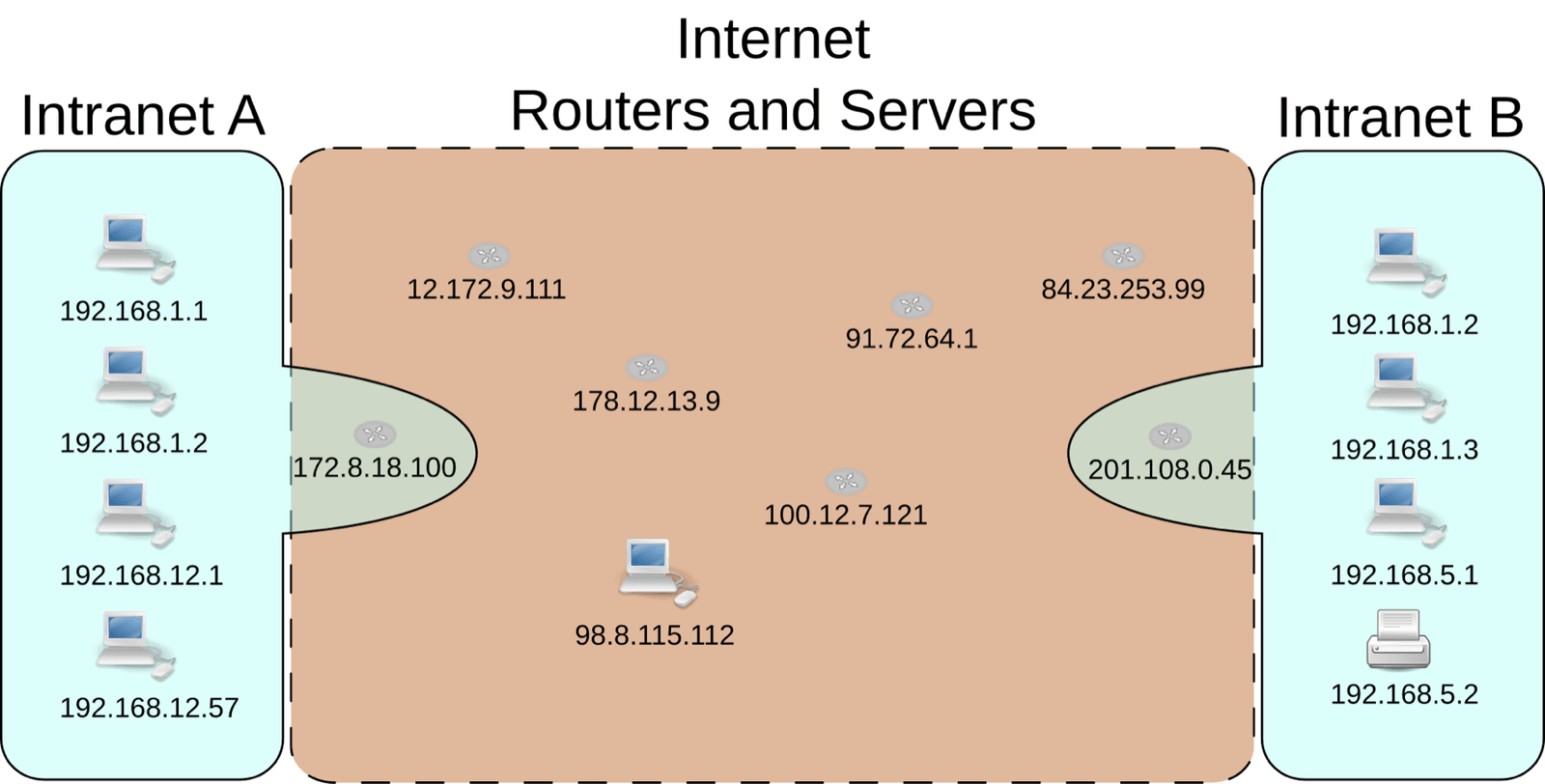

1.4Ranges must not overlap

Back to the last two lines of the script's output, which carry the most important rule here. Two networks can only be joined if their ranges don't overlap. Joining two VPCs so they can reach each other by private address is called peering, and 10.0.0.0/16 against 10.0.128.0/17 shows why it can't work: the second range sits entirely inside the first, so an address such as 10.0.130.5 would belong to both networks and nobody could say which one a packet meant. Against 10.1.0.0/16 there's no overlap, and peering is fine.

A range that's too small runs out of addresses as services grow, and a range that's too large uses up space you may want for other networks. Both are hard to fix after the fact. A third trap is more subtle, and it's the one that leads to the rest of the chapter. Every tutorial uses 10.0.0.0/16, so thousands of customers of the same cloud pick that exact range, and thousands of them have a server at 10.0.2.47. All of them share one physical network, and each expects only their own database to answer. How does the provider keep them apart?

2.1The provider's problem

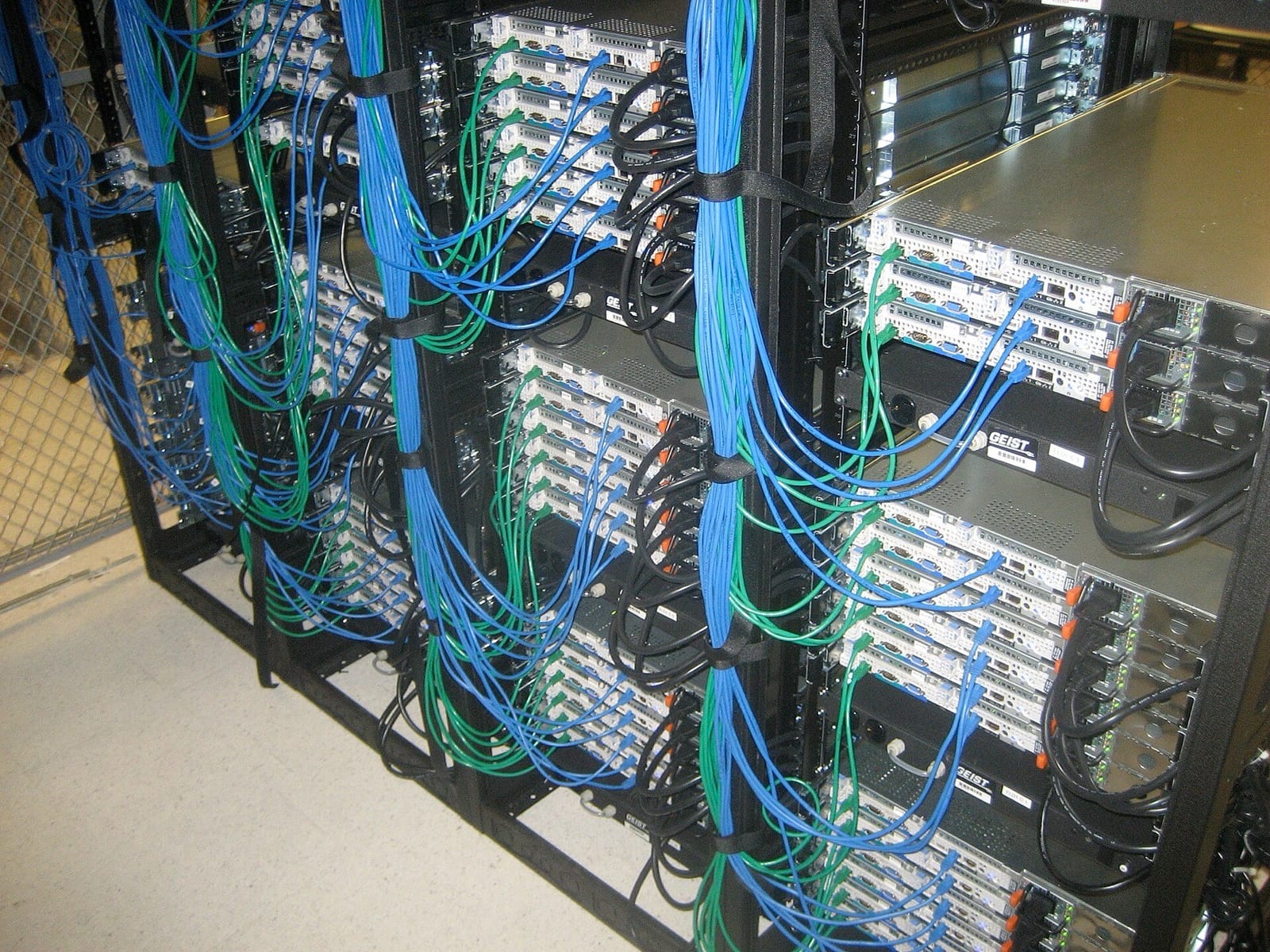

Put yourself in the provider's position. You have rooms full of physical servers, called hosts, joined by one large physical network. Each host runs many customers' virtual machines at once, which are whole computers simulated in software and kept apart by a program called a hypervisor (chapter 47 covers how). The instances from the opening are virtual machines like these, so our web server and database are each running on some host, alongside strangers. Customer A wants a private network, and so does customer B. Both want the addresses 10.0.0.0 to 10.0.255.255, and neither may ever see the other's packets.

?Why not give each customer their own switches?

Because customers create networks by clicking a button, thousands of times a day. You can't run separate cables and switches for every one of them. The isolation has to come from software, on hardware everyone shares.

2.2Fake it in the network card

Software needs one place where every packet is certain to pass, and there is one: the network card of the host the packet is leaving. Cloud hosts have a card that does the networking for all the virtual machines on the host, taking that work away from the main processor. AWS calls its card Nitro.

Give each card a table. For every virtual machine on the host, the card knows which customer's network the machine belongs to. For every address in that network, it knows which physical host the machine behind that address is running on. The table's key is the pair of the network and the address, so customer A's 10.0.2.47 and customer B's 10.0.2.47 are two different entries with two different answers.

Now watch our web server send one packet to 10.0.2.47. A packet is one small chunk of data with a destination address on the front. The card looks up where this customer's 10.0.2.47 lives and finds a physical host. It then puts the whole packet inside a new outer packet addressed to that physical host, with a label saying which customer's network it belongs to. Putting one packet inside another like this is called encapsulation. The shared physical network, usually called the substrate, carries the outer packet and never looks inside it. The card at the other end removes the outer packet and hands the original to the right virtual machine, and only that one.

This is what the console does when you create a subnet or launch an instance: it adds entries to these tables and sends them out to the cards that need them. Everything you think of as "your VPC" is stored as entries like these.

Notice who made the forwarding decision in that scene: the card on host 1, before the packet left. That's where the reserved .1 address from section 1 comes in.

2.3Trying it: a card's table in twenty lines

You don't need a cloud account to see the idea. This script keeps a card's table as a Python dictionary whose keys are pairs of a network and an address, and send either wraps and forwards a packet or finds no entry. (A real card only holds the entries for the networks of the machines on its host. The toy keeps both customers in one table so you can see the keys side by side.) After three sends it deletes one entry and tries again.

# What a host's network card keeps: (customer network, private IP) -> physical host
table = {
    ("A", "10.0.1.12"): "host-1",
    ("A", "10.0.2.47"): "host-7",
    ("B", "10.0.2.47"): "host-3",
}

def send(network, dst):
    host = table.get((network, dst))
    if host is None:
        return f"{network} -> {dst}: no entry, packet dropped, no error"
    return f"{network} -> {dst}: wrap, tag it '{network}', send to {host}"

for network, dst in [("A", "10.0.2.47"), ("B", "10.0.2.47"), ("B", "10.0.1.12")]:
    print(send(network, dst))

del table[("A", "10.0.2.47")]
print("-- entry for A's 10.0.2.47 removed --")
print(send("A", "10.0.2.47"))

A -> 10.0.2.47: wrap, tag it 'A', send to host-7
B -> 10.0.2.47: wrap, tag it 'B', send to host-3
B -> 10.0.1.12: no entry, packet dropped, no error
-- entry for A's 10.0.2.47 removed --
A -> 10.0.2.47: no entry, packet dropped, no error

Look at the first two lines: the same destination address went to two different hosts, because the key included the network. Now the last two lines. When there's no entry the function doesn't raise an exception or send anything back. The packet goes nowhere, and the sender would see a connection that never completes. Hold on to that, because section 6 is full of it.

Right now the card only knows about addresses inside one network. It still has no way to decide what to do with a packet for an address outside the VPC, and nothing yet says which packets are allowed. Those two decisions are the next pieces of the table.

3.1Route tables, and the gateways they point at

When web sends a packet to 10.0.2.47, the card can answer from the table in section 2 because that address belongs to the VPC. If the destination were 203.0.113.9, an address on the public internet, the card would have no entry. A route table is the list that tells it what to do: one row per range of destinations, each pointing at a target. For the subnet that holds web, two rows would be enough:

When more than one row matches, the most specific one wins, so local beats the catch-all row for addresses inside the VPC. The gateway in the second row is what connects your VPC to the outside world, and there are two kinds you meet first:

Our database belongs in a private subnet: nobody on the internet should be able to start a connection to it, though it may still need to reach out, to download updates for example, which is what a NAT gateway is for.

3.2Security groups and NACLs

Routing says where a packet can go. The next question is whether it's allowed to. To answer it we need a name for the thing a rule is attached to. Every virtual machine has a virtual network card, called an ENI (elastic network interface), with its own hardware address and its own private IP addresses. Our web server's ENI holds 10.0.1.12, and the database's holds 10.0.2.47. A rule needs to name which program on the database is being reached, and that's what a port does. A port is a number from 0 to 65535 that, together with the address, picks out one program on a machine. Our database is Postgres, which listens on port 5432, so web connects to 10.0.2.47 port 5432.

A security group, often shortened to SG, is the rule list attached to an ENI. Each rule says "allow this kind of traffic", such as "allow connections to port 5432 from the web servers", and anything not allowed is dropped. The Nitro card checks the sending instance's security group before a packet leaves the host and the receiving instance's group before it's delivered.

What matters most is that a security group remembers connections. If web is allowed to open a connection to db, the reply travels back without needing a rule of its own, because the card has seen the first packet and knows the reply belongs to it. A rule set that remembers connections like this is called stateful.

There's a second, older filter at the edge of each subnet, the NACL (network access control list). It's a numbered list of allow and deny rules, checked in order until one matches, with a final rule that denies anything no earlier rule allowed. The NACL a VPC starts with allows all traffic in both directions, so it does nothing until someone edits it or adds a new one. A NACL is also stateless: every packet is judged alone, with no memory of the one before. We'll set the two side by side, because the difference between them causes more outages than any other part of a VPC:

Section 6 shows what the last row does to an unsuspecting engineer.

3.3Which pieces are real

Here's every piece we've met, with where it lives. The control plane is the part of the cloud that takes your clicks and API calls and decides what should be true. Notice how many rows say "nowhere physical".

A VPC is mostly a set of facts the control plane distributes to hosts, and enforcement happens at the edge, on the machine your instance is running on. We have all the pieces now, and we can follow a single packet through them.

4.1From socket write to delivery

Our web server is in zone A, and the database is in zone B. The web server's program calls connect() on 10.0.2.47, port 5432. TCP is the protocol that gives programs reliable connections, and a TCP connection starts with the sender transmitting a small first packet called a SYN, and the receiver answering with a SYN-ACK, so a successful connection is first of all that pair of packets crossing. Here's the trip of the SYN, one step at a time, and notice that the physical network is involved at exactly one step.

Two places in this trip enforce isolation: the wrap on the way out and the unwrap on the way in, because those are where the network label is added and checked. Everything between them is ordinary networking on a network that knows nothing about you. (A NACL on either subnet would be checked as well. We left it out of the scene because the NACL a VPC starts with allows everything; section 6 shows what happens when someone changes that.)

4.2The mapping service

That lookup in the third frame needs a place to get its answers from. The central directory the card asks is called the mapping service, and AWS has described it publicly in its re:Invent networking talks. The card asks the mapping service which physical host currently holds that private IP. It gets back a substrate address, and the card wraps the packet with it. A card also keeps recent answers in a cache, so most packets never wait for the service.

?Why is the first packet to a new destination sometimes slower?

Because a cache entry has to come from somewhere, and when a card has no entry for a destination it has to ask. That extra lookup is a likely source of first-connection latency (extra waiting before the first data flows) that never reproduces under load, though there's no published figure for it.

?How can an instance move to another host and keep its IP?

Because the private IP belongs to the ENI and not to the hardware. When an instance is stopped and started on a different physical host, or an ENI is attached to a different instance, the control plane updates the mapping entries and the address follows. Nothing about the address was ever tied to a particular machine.

Our packet arrived, and from web's point of view the VPC behaved like a flat network it owns. The next section looks at what you were promised, since it's less than a real network offers in some places and more in others.

5.1What it guarantees

Each follows from the design. Packets can't leak because the table has no entry linking two networks unless you create one, and addresses are stable because they're entries and not wires.

5.2What it does not

?Why can't overlapping VPCs peer?

Because the table can't tell their addresses apart. If both VPCs contain 10.0.2.9, a lookup for that address has two answers, and the card has no way to choose. This is the section 1 overlap test in its real form. If two overlapping VPCs have to talk anyway, you can't peer them. The options are renumbering one, putting a private NAT layer between them, or using PrivateLink, which exposes one specific service from one VPC to the other without joining the networks.

Since a VPC is a table, most things that go wrong with it are an entry that says "drop", or a ceiling that's quietly reached. Neither one sends anything back to the sender.

6.1A reply that gets dropped: the NACL

From section 3, a security group remembers connections and a NACL doesn't. Here's the same request from web to db through each. The NACL sits on db's subnet and is configured the way many people do it: one rule allowing inbound port 5432, and then the final deny-everything rule. A connection has a port at each end. When web connects, its kernel picks a random high port for its own end of the connection, called an ephemeral port, and Linux usually picks from 32768 to 60999. The reply from db is addressed to that port, and it has to leave db's subnet to get there.

It almost works: the SYN arrives, db answers, and the answer vanishes. The client retransmits the SYN and eventually gives up, which looks exactly like an application hang.

6.2The blackhole route

Consider a private subnet whose route table sends 0.0.0.0/0 to a NAT gateway, so its servers can reach the internet. A teammate deletes the gateway during a cleanup. On an ordinary network, a router that can't deliver a packet usually sends back a short error notice saying "destination unreachable", using ICMP, the protocol routers use for messages like that. The sender's kernel sees the notice and fails the connection at once. Think about what you'd expect here before reading on.

Here's what happens to the route table, and to a packet from a server in that subnet:

Look back at the toy in section 2. A blackhole route and a missing table entry fail the same way, silently. Find the blackholes with one query:

aws ec2 describe-route-tables \
  --query 'RouteTables[].Routes[?State==`blackhole`].[DestinationCidrBlock,GatewayId]' \
  --output text

--query filters the API's answer down to routes whose state is blackhole and prints each one's destination and the gateway it still points at. Empty output means no blackholes. Run it after any teardown; it takes a second and rules out one whole class of silent failure.

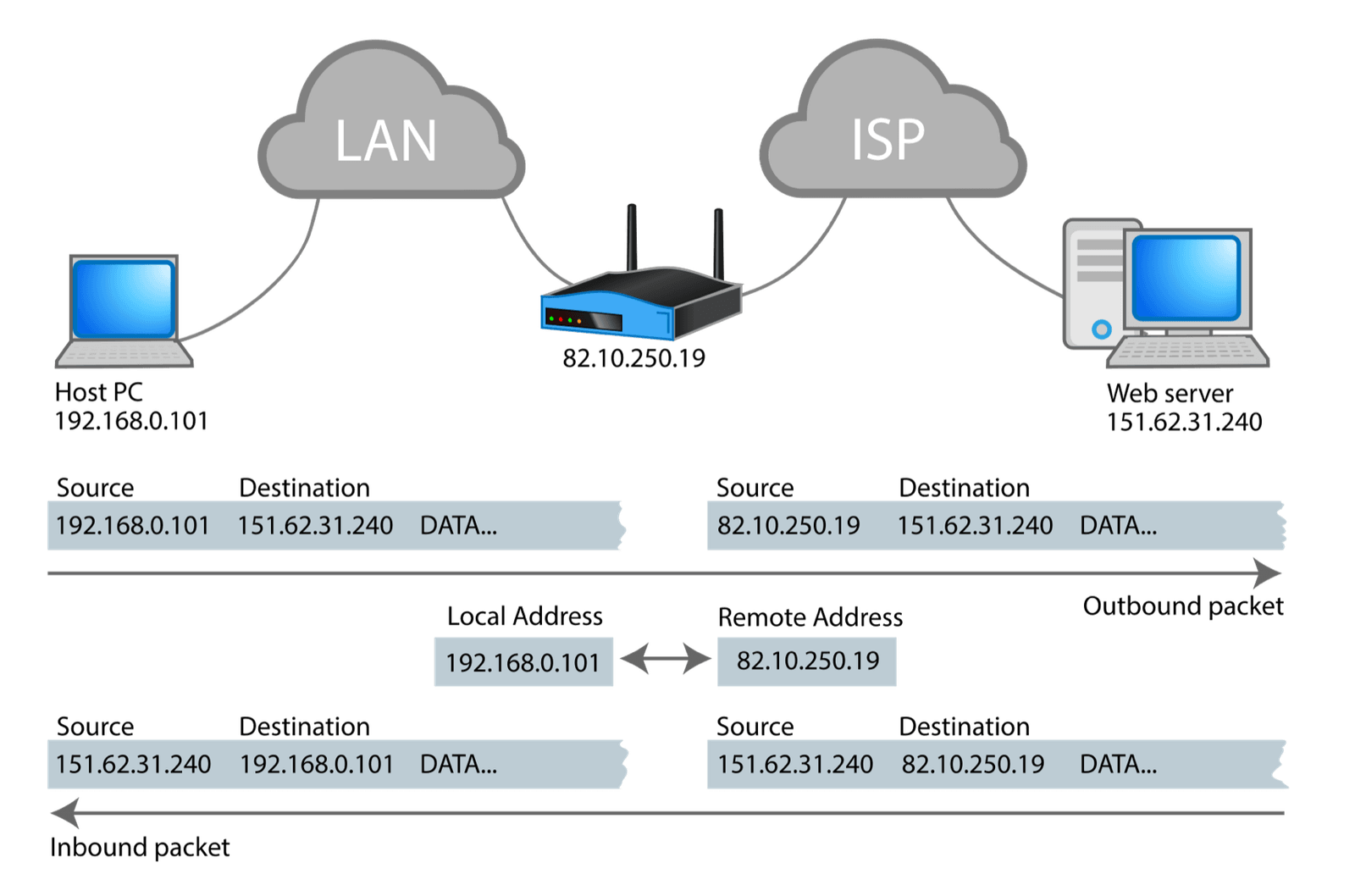

6.3NAT gateway port exhaustion

A NAT gateway that hasn't been deleted has a problem of its own. It rewrites each outgoing packet's source address to its own public one. But a connection is identified by four values: source address, source port, destination address and destination port. Once every connection leaves with the gateway's single address, two connections to the same destination can only be told apart by their source port, so each one needs a port of its own for as long as it stays open. Port numbers only go up to 65535, so for any one destination they run out.

AWS documents the ceiling as roughly 55,000 simultaneous connections from one NAT gateway to a single destination address and port. Past that, new connections fail, and the gateway counts each failure in a metric called ErrorPortAllocation, which it reports to CloudWatch, AWS's monitoring service.

?Why do unrelated services fail at the same time?

Because the limit is per destination, on a gateway everyone shares. Everything works, then a batch job fans out (opens a great many connections at once) to one third-party API, and other services start failing to connect. Nothing in your application changed. You ran out of tuples, the combinations of four values that identify connections.

Mitigations, in order of how much they help:

6.4Allowances you didn't know you had

Every instance size comes with network ceilings: a limit on bytes per second, a limit on packets per second, and a limit on how many connections the card can track at once. Crossing one shows up as packet loss with no error anywhere in your application. The ENA driver counts each time a ceiling is hit, and almost nobody looks. ethtool -S prints a network driver's statistics, and grep keeps the lines that matter:

ethtool -S eth0 | grep -E 'allowance_exceeded'

You get five counters back. The output below shows the shape, with <n> standing for a count that will differ on every machine:

bw_in_allowance_exceeded: 0
bw_out_allowance_exceeded: <n>
pps_allowance_exceeded: 0
conntrack_allowance_exceeded: <n>
linklocal_allowance_exceeded: 0

bw is bandwidth, pps is packets per second, and linklocal covers the traffic to the provider's own services such as DNS. They're counters, so any non-zero value is cumulative since boot and tells you nothing about when. Sample them on an interval, or you can't tell a burst last Tuesday from a problem happening now.

A non-zero conntrack_allowance_exceeded means the Nitro card's connection tracking table is full. That's the table that lets security groups remember connections, and it fills from a scan, a huge fan-out, or half-open connections (handshakes that started and never finished) piling up.

6.5MTU, and the 9001 you probably aren't getting

The final silent failure depends on packet size. The MTU (maximum transmission unit) is the largest packet a link will carry. Inside a VPC the MTU is 9001 bytes, so web and db can exchange packets of about 9 KB. Traffic leaving through an internet gateway is limited to 1500 bytes, and paths through some other gateway types are smaller still. The smallest MTU along the whole route between two machines is called the path MTU, and it's the size that matters.

?Why do small requests work while large ones hang?

A sender can mark a packet DF ("don't fragment"), which forbids a router from chopping it into smaller pieces. When such a packet is too large for the next link, the router drops it and sends back an ICMP "fragmentation needed" message, so the sender learns to use smaller packets. Plenty of security groups and on-prem firewalls drop that ICMP, so the sender never hears and keeps sending packets that are too big. This is called a PMTU black hole (PMTU for path MTU): small requests fit and work, and large ones hang forever.

# Find the real path MTU, without trusting anyone's documentation
tracepath 10.0.2.47
ping -M do -s 8973 10.0.2.47      # 8973 + 28 bytes of header = 9001

tracepath reports the path MTU hop by hop. ping -M do sets the DF flag, and -s 8973 sets the payload size; the 28 extra bytes are the IP and ICMP headers, which brings the packet to exactly 9001. If it fails and a smaller size works, something on the path has a smaller MTU.

None of these failures show up on a bill, but the next problem does.

7.1The line items that surprise people

Two asymmetries do most of the damage. Cross-AZ is billed in both directions: a gigabyte pays $0.01 as it leaves one zone and another $0.01 as it enters the other, so a chatty service pair split across zones costs twice what a napkin estimate suggests. And NAT charges for processing on top of the transfer charge, so the same gigabyte can be billed twice on one hop.

7.2$4,200 a month for one chatty pair

Our web and db are in different zones on purpose: if a power failure takes out zone A, the database in zone B survives, and the same goes for running copies of a service in several zones. That safety is what turns into a bill. Take two services exchanging 40 KB per request, each running copies in three AZs, with requests spread evenly over the copies. Two of the three copies a caller might pick are in another zone, so roughly two-thirds of calls cross a zone boundary.

The 2.6M is the number of seconds in a month. Nothing is misconfigured in that scenario; it's the documented rate applied to a normal architecture.

The fix is to send each request to a copy of the service in the caller's own zone whenever one is healthy, which is called zone-aware routing. With zone-aware routing in place, that number falls to roughly zero, and the cross-zone path is kept for when a zone fails. It only works where consistency allows: a database with a single primary copy, like our db, lives in one zone, so writes from the other zones still have to cross.

We've now met every way this chapter's request can fail or cost money. What's left is the practical side: when web can't reach db, in what order do you check things?

8.1Answering 'why can't A reach B'

Every failure in section 6 shows up as the same symptom, a request that times out, so you need an order for narrowing it down. The fastest order runs from the cheapest check to the most expensive, which means the step most people start with comes fourth:

1. Reachability Analyzer. An AWS tool that reads your route tables, SGs, NACLs and gateways, works out on paper whether web can reach db, and names the piece that blocks it. It sends no packets. (section 3)
2. Blackhole routes. The query in section 6.2.
3. NACLs, both directions. Stateless means the return path needs its own rule, and the ephemeral range is the usual gap. (section 6.1)
4. Flow logs, filtered to REJECT. Flow logs record each accepted or rejected connection per ENI, so these tell you that something was dropped, and by which ENI.
5. Only then, tcpdump on the instance. It records the packets the instance's interface sees.

?Why not start with flow logs?

They're where people start, and they're the slowest useful step. They show rejects but not why: a REJECT line doesn't say whether the SG or the NACL did it.

Debugging starts after something breaks. Several of the failures in section 6 build up quietly beforehand, so a few numbers are worth watching all the time.

8.2What to watch continuously

Most rows come from sections 6 and 7. One is new: a NAT gateway forgets a connection that has sent nothing for 350 seconds, and counts each one it drops in IdleTimeoutCount. Neither end is told when it happens; the server behind the gateway only finds out when it next sends on that connection and gets a reset back. Cost Explorer is AWS's billing breakdown tool.

8.3Rules that hold up

1. Choose ranges as though you'll merge with another company. Pick a /16 that isn't 10.0.0.0/16, and keep a list of the ranges you've used.
2. Size subnets with the five reserved addresses and any pods in mind. A /28 holds 11.
3. Query for blackhole routes after every teardown.
4. Give every NACL an outbound rule for the ephemeral port range, or leave NACLs at their defaults and rely on security groups.
5. Use VPC endpoints for cloud services and one NAT gateway per zone, and pool connections to anything you call a lot.
6. Ship the ethtool -S counters yourself. They aren't in CloudWatch by default.
7. Route to same-zone targets where consistency allows.

8.4What you give up

8.5Symptom, cause, fix

8.6Where you meet this in the wild
