Designing Cloudflare

1.1What it has to do

Strip away the product names and Cloudflare's core job, for a site like Kaapi Kadai, comes down to a short list:

1. Answer for the site's name. Its DNS points the name at Cloudflare's addresses instead of the shop's own server, which from now on we'll call the origin.
2. End the encrypted connection close to the visitor, so the TLS handshake (chapter 35) costs a short round trip instead of a long one.
3. Drop attack traffic before it uses up anything that matters, at every layer from raw packets up to HTTP requests.
4. Filter requests with the site's security rules: the web application firewall (WAF), bot detection, rate limits.
5. Serve from cache whatever can be cached, and fetch the rest from the origin efficiently.
6. Run the site's own code at the edge, if it has any, such as Kaapi Kadai's delivery-date calculation.
7. Apply configuration changes everywhere, quickly: when the shop's owner adds a firewall rule or the shop moves to a new server, every machine has to know.

And the qualities it needs while doing that:

• Close to everyone: a visitor's packets should reach a Cloudflare server within a few milliseconds.
• Bigger than any attack: the network as a whole has to absorb floods larger than any one site, and any one data centre, could carry.
• Invisible when it works: a shopper shouldn't be able to tell that the shop is under attack.
• Never the cause of the outage: a service sitting in front of a fifth of the web can take a fifth of the web down with it.

This list differs from our other case studies in one way that shapes everything. Uber and Discord each serve their own product. Cloudflare serves other people's products, millions of them, with no idea in advance which one will be attacked next or which one will suddenly get popular. Any capacity it sets aside for one customer or one job sits idle while the attack lands somewhere else.

1.2How big is it?

Cloudflare publishes its size in its blog posts and threat reports, and it has grown quickly. In May 2019 it described its network as 180 locations. By the start of 2020 it was 200 cities, and by the end of 2024 it was 330. Its network capacity, the total traffic its links can carry, went from 35 terabits a second (Tbps) at its first DDoS report in 2020 to 321 Tbps in January 2025, 388 Tbps in July 2025 and 500 Tbps in April 2026. Its network page in October 2026 lists 335+ cities in 125+ countries and more than 13,000 interconnections with other networks.

Traffic grew just as fast. Cloudflare's 2025 Year in Review reports an average of over 81 million HTTP requests a second through the year, with peaks above 129 million, and about 67 million DNS queries a second. In October 2024 it described itself as the reverse proxy for nearly 20% of all websites.

Attacks kept pace. Here are the records Cloudflare has reported for floods measured in bits per second, the kind that fill links:

Cloudflare's report for the first half of 2026, published in August, gave no new record, but counted 935 network-layer attacks above 1 Tbps in those six months. Across 2025 its systems mitigated 47.1 million DDoS attacks, about 5,376 every hour. So the attack on Kaapi Kadai in our story, a few terabits, is big but no longer unusual.

2.1The obvious design

The simplest way to protect Kaapi Kadai is to rent a big machine somewhere, say in a data centre in Virginia with a fat link to the internet, and put a reverse proxy on it. Point the shop's DNS at the proxy's address, and let it terminate TLS, check each request against some rules, keep a cache of the photos and pages that don't change, and forward everything else to the origin in Bengaluru. Attack traffic hits the proxy instead of the shop, and the proxy, with more bandwidth and CPU than the shop, throws it away.

It breaks in two ways, and they pull in opposite directions.

First, distance. Chennai to Virginia is roughly 14,000 km. Light in optical fibre covers roughly 200,000 km a second, so a round trip takes at least 140 milliseconds before any routing detours, and real paths are longer. A fresh HTTPS page load needs a TCP handshake, a TLS handshake and then the request itself, so Divya waits for several of those round trips before the first byte of the page arrives. Every visitor far from Virginia pays it.

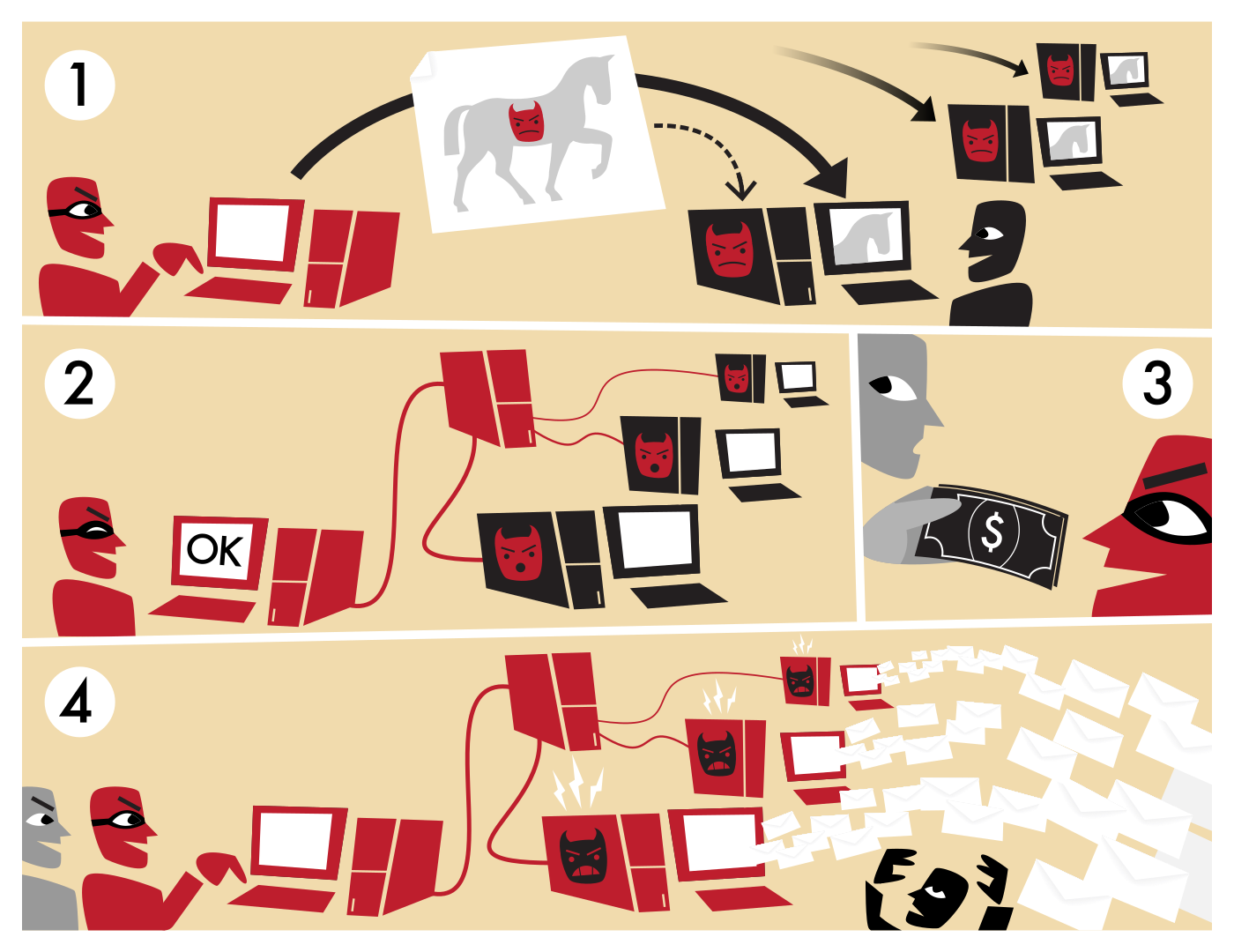

Second, the attack. A botnet's machines are everywhere, but they all aim at one address, so the internet's routing carries all of the flood to one building. That site needs links bigger than the biggest attack, and we've just seen that the biggest attacks are tens of terabits. No single site has that.

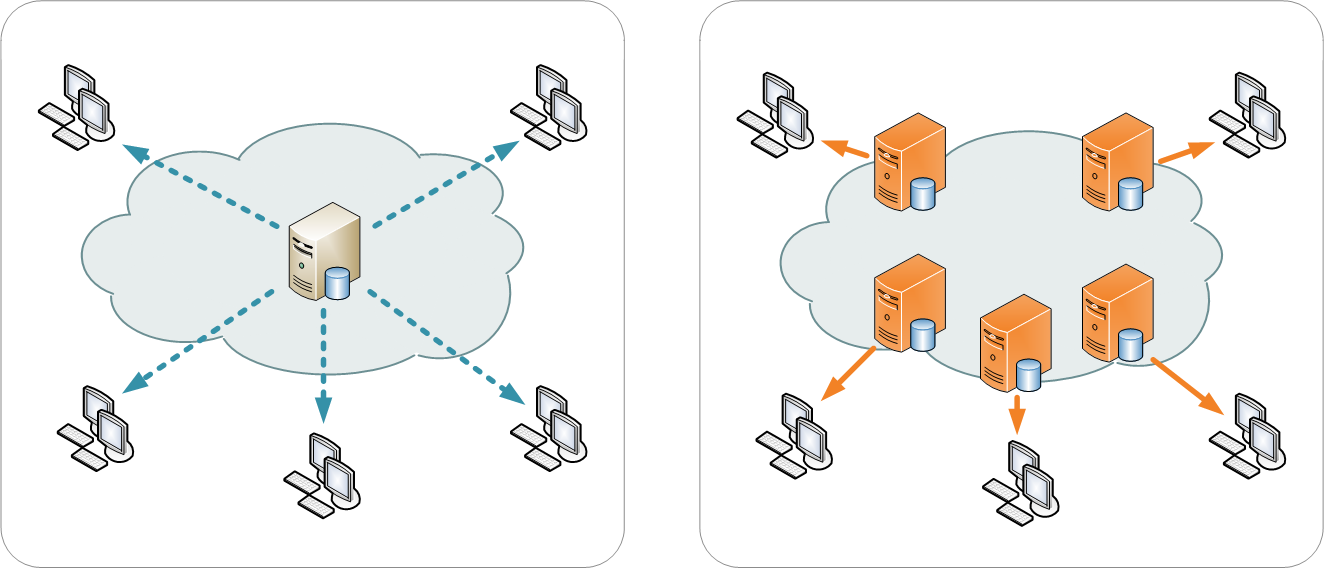

So the fix for both problems is the same: be in many places at once. But "many places" raises two new questions. How does a visitor's packet find the nearest place, when Kaapi Kadai has only one address? And what goes in each place?

3.1Anycast: the same address everywhere

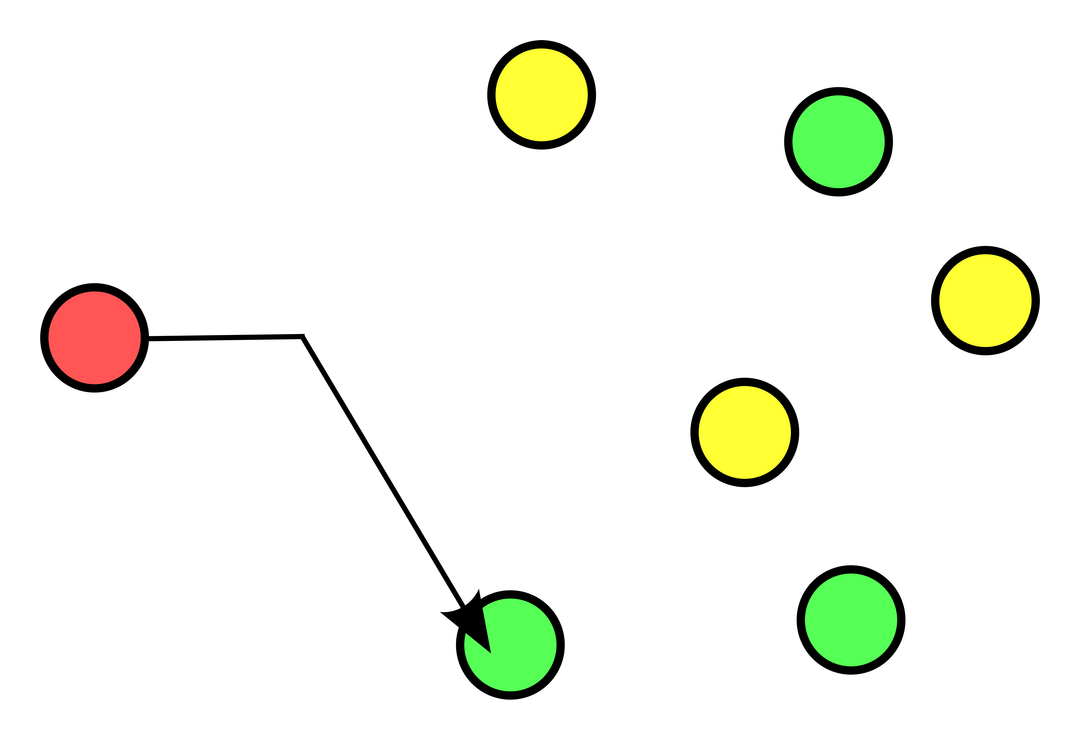

The first question has an answer you've met in chapter 35: anycast. Every Cloudflare data centre announces the same blocks of IP addresses to the networks around it, using BGP, the protocol networks use to tell each other which addresses they can reach. Each router that hears several announcements picks the one that looks closest by its own policy. So Divya's phone, on a Chennai mobile network, reaches the Cloudflare data centre in Chennai (its airport code is MAA), while a shopper in Frankfurt reaches Frankfurt, both using the same address for Kaapi Kadai. Chapter 35 walks through how that works and what happens when a site withdraws; here we care about what it does to an attack.

What it does is split the attack automatically. Bots in Brazil reach Cloudflare's São Paulo data centre, the bots in Vietnam reach Hanoi, the bots in the US reach a dozen American cities. Nobody has to decide where to send the junk; the internet's own routing spreads it out, the same way it spreads out Divya and the shopper in Frankfurt. That's exactly the sharing we needed in the Think in section 1.2, and it's why the 7.3 Tbps attack was "detected and mitigated in 477 data centers across 293 locations", in Cloudflare's words.

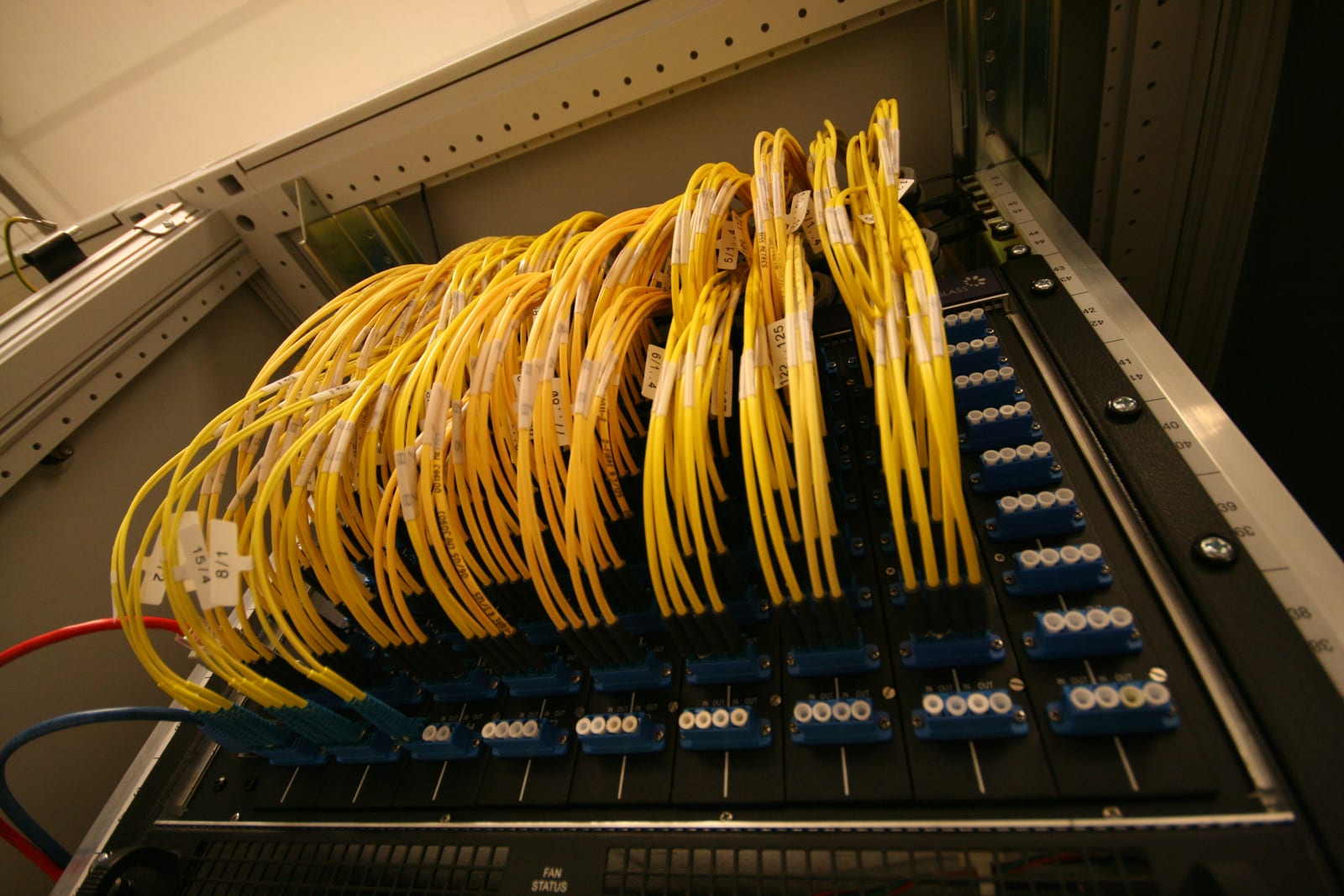

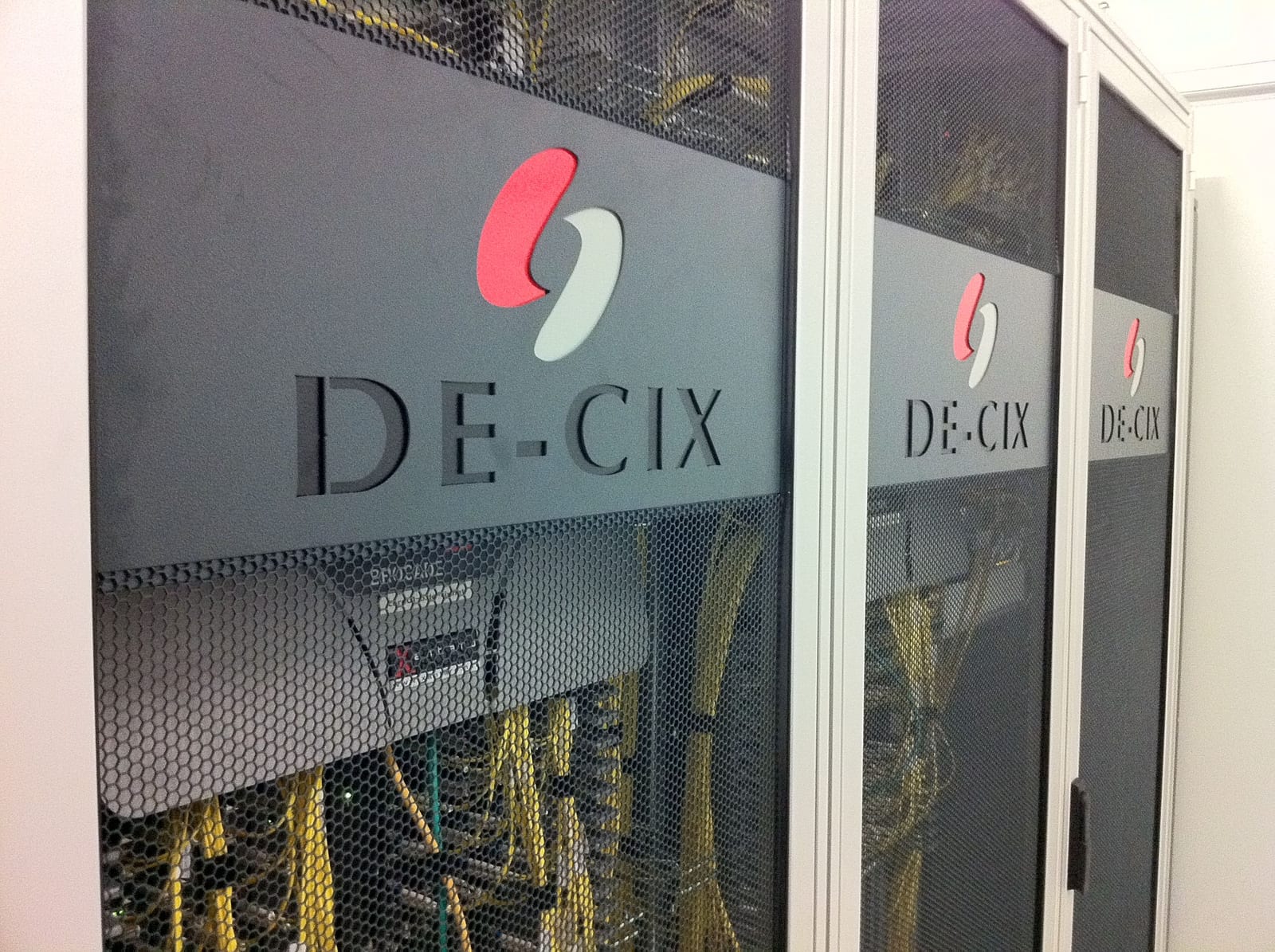

For anycast to work this well, Cloudflare has to be inside or right next to the networks people use. That's why the 13,000 interconnections matter as much as the 335 cities. Many of them are made at internet exchange points (IXPs), buildings where dozens or hundreds of networks plug into a shared switch and swap traffic directly, without paying a transit provider in between. A Cloudflare rack at the Chennai exchange is a few metres of cable from the mobile network Divya is on.

3.2What goes in each city?

The second question is less obvious. Say Cloudflare has a few dozen servers in Chennai. Which jobs should they do?

A textbook answer is to specialise. Put a few machines in front as scrubbers, built only to filter packets. Behind them, a tier of TLS terminators. Behind those, WAF machines, then cache machines, then machines that run customer code. Each tier is sized for its job and built from the right hardware. Plenty of networks are built like this.

Trouble is, each tier has to be sized for its own worst day, and their worst days don't coincide. On the day Kaapi Kadai is attacked, the scrubbers in Chennai are overwhelmed while the cache servers next to them sit at 20%. On a normal day, the scrubbers sit idle. And an attack that doesn't look like a flood, millions of perfectly valid HTTPS requests for example, lands on the TLS and WAF tiers, which were sized for normal traffic.

Cloudflare made the opposite choice early. Its 2016 post on how its architecture stops large attacks says it plainly: "every server in every rack is able to answer every type of request." A 2019 post repeats it: "All software pieces are running on all the servers." Every server in Chennai runs the packet filter, the load balancer, the TLS terminator, the WAF, the cache, the Workers runtime and the DNS server. When an attack arrives, every core in the city can help drop it; when a cache-heavy day arrives, every disk in the city can help serve it.

3.3One server

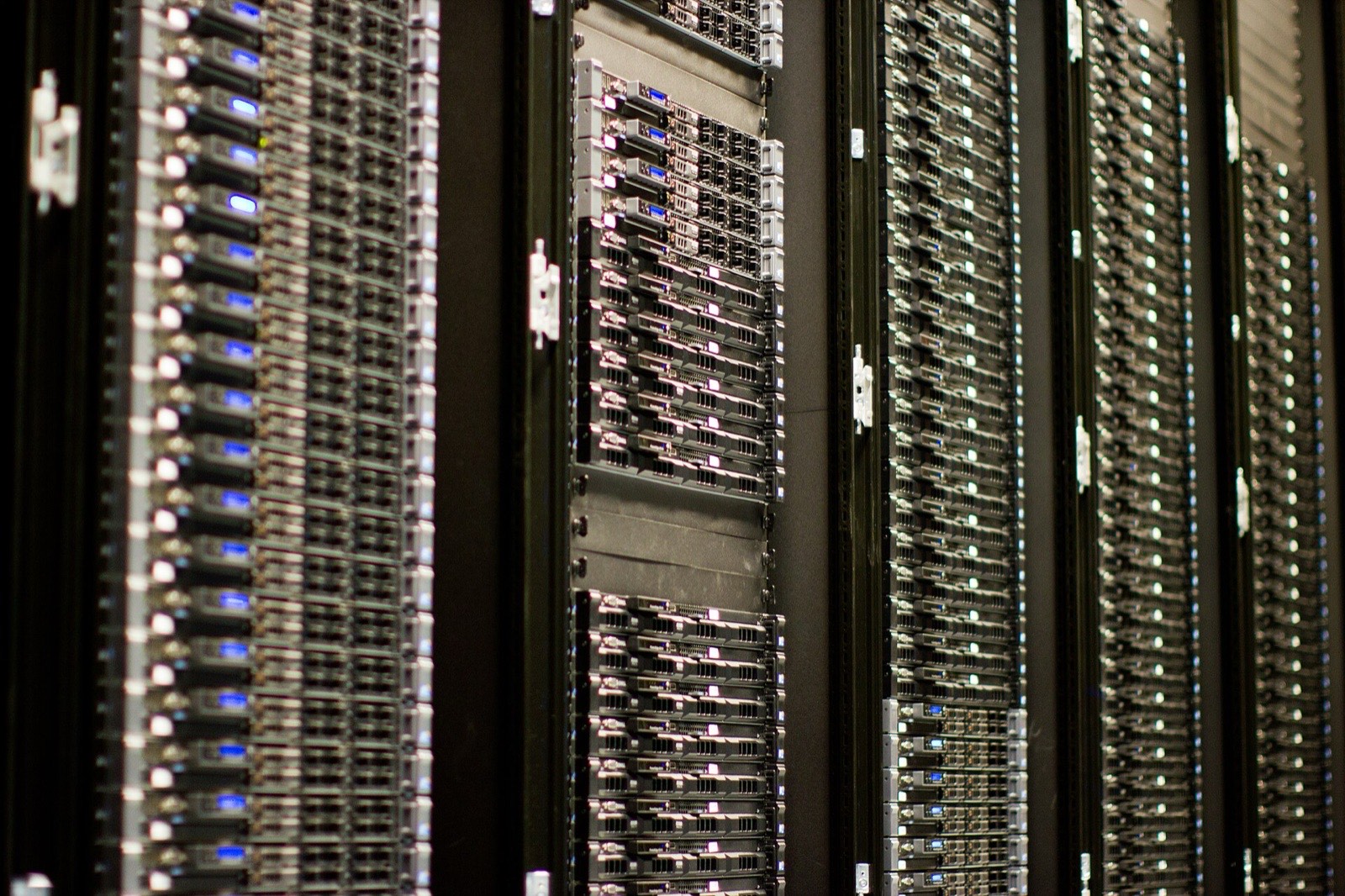

So it's worth looking at the machine that does all of this. Cloudflare's twelfth-generation server, described in September 2024, has one AMD EPYC 9684X processor with 96 cores and 1,152 MB of on-chip cache, 384 GB of memory, 16 TB of flash storage and a dual-port 25 Gbps network card, and draws about 600 watts. It serves more than twice the requests a second of the generation before. Its thirteenth generation, announced in March 2026, moves to a 192-core AMD EPYC chip. They're ordinary servers; what makes them unusual is that thousands of them are identical, in hundreds of cities, all running the same software.

Here is the path one packet takes through one of those servers, from the wire up. Each layer is a section of this chapter.

The packet filter comes first, because Kaapi Kadai's flood is arriving right now, and every cycle a junk packet spends further up this stack is a cycle stolen from Divya.

4.1What the defender sees

Let's look at the flood the way a server in Chennai sees it. Most of what arrives on its network card is ordinary: TCP packets to port 443 carrying HTTPS, some UDP packets to port 443 carrying QUIC (chapter 63), DNS queries. Mixed in, at a far higher rate, are the attack's packets. In a typical volumetric attack, one that aims to fill links, they're UDP packets, often with random source and destination ports so that no single port looks unusual, and their source addresses may be forged.

Each one, taken alone, looks like a valid packet. What gives the flood away is what the packets have in common. A botnet runs the same program on every bot, so its packets tend to share something the program fixes: the same packet length, the same bytes in the payload, the same unusual flag combination, the same IP header options. Defenders call a description of that shared trait a fingerprint, for example "UDP, length 1,240 bytes". Detection means finding the fingerprint, and mitigation means dropping every packet that matches it, and nothing else, at millions of packets a second.

Cloudflare's DDoS reports describe what these floods look like from the receiving end, and that's as far as this chapter goes: what a defender can see in its own traffic, and what it does about it.

4.2Version 1 of detection: send samples to a central brain

You can't examine every packet in detail at line rate, so the first move is sampling: look at a random small fraction, say one packet in every few thousand, and assume the sample looks like the whole. Cloudflare's 2018 post on its packet filter, L4Drop, describes doing exactly this inside the network driver, by comparing a random number against a threshold for each packet and copying the lucky ones into a ring buffer for analysis. What rate Cloudflare uses isn't published.

Cloudflare's first automatic mitigation system, Gatebot, described in 2017, gathered those samples from the whole network into its core. Two large servers, with 48 cores between them, ran "streaming algorithms" over them, found attacks, and pushed rules back out to the edge. It engaged "between 30 and 1500 times a day."

A central brain has an obvious weakness, and it gets worse as the network grows: the samples have to travel to the core and the rules have to travel back, which takes time, and the core sees the whole world's traffic at once, which makes it big and expensive to run. An attack aimed at one customer in Chennai doesn't need a global view to be spotted. It needs a fast look at Chennai's traffic.

4.3Detection on every server: dosd

So in mid-2019 Cloudflare moved detection to the edge. Its 2021 deep dive describes dosd (the DoS daemon): "This system runs on every single server in all our edge data centers." The 2021 post credits it with detecting 98.6% of network-layer attacks; Gatebot stayed in the core for the large, slow-building ones.

Cloudflare's 2025 post on the 7.3 Tbps attack spells out what dosd does with its samples. It "looks for patterns in the packet samples, such as finding commonality in the packet header fields," then generates many permutations of those fingerprints to find the most accurate one. It counts how many samples match each permutation, "and using a data streaming algorithm, we bubble up the fingerprint with the most hits." When thresholds are exceeded, the fingerprint is compiled into a rule that drops matching packets, in the form of a small eBPF program, code the Linux kernel checks for safety and then runs on every packet (chapter 48). And "each server gossips (multicasts) the top fingerprint permutations within a data center, and globally," so a fingerprint found in Chennai protects Mumbai and Frankfurt too. Cloudflare's documentation gives the time from the start of an attack to mitigation as "up to three seconds on average."

4.4Counting fingerprints in a small space

Look at what dosd is counting. Each sampled packet has many header fields, and a fingerprint is any combination of them with their values: "UDP", "length 1,240", "UDP and length 1,240", "destination port 37,112 and TTL 50", and so on. With five fields there are 31 combinations per packet, and most of them, the ones that include a random port, are unique to that packet. Counting each one exactly means a hash table entry for every combination ever seen, hundreds of thousands of entries for a few seconds of samples, almost all of them counting to 1. We only care about the few that count very high, the heavy hitters.

Cloudflare's posts say only "a data streaming algorithm"; which one dosd uses is unpublished. But a standard answer to "find the heavy hitters in a stream using little memory" is a structure Cloudflare does document elsewhere: its Pingora proxy counts requests per key for rate limiting with a count-min sketch, as its 2023 post "How Pingora keeps count" describes. Here's how one works.

A count-min sketch is a small grid of counters, a few rows deep and a few thousand wide, with one hash function per row. To count a key, hash it once per row and add one to the counter it lands on in each row. To read a key's count, hash it the same way and take the smallest of the counters it lands on. Many keys share each counter, so every counter holds the key's own count plus whatever else collided there. That means the estimate can be too high, never too low. Taking the minimum across rows picks the row where the key was luckiest with its collisions. With w counters per row, the error is at most a small multiple of the total count divided by w, with high probability; more rows make "high probability" higher.

For our purpose that error doesn't matter. A fingerprint that matches 80% of the samples stands far above the noise, and a fingerprint that matches one packet can't be pushed anywhere near it by collisions.

This program puts it together. It simulates 2,000,000 packets reaching one server, 80% of them from a flood that randomises ports and TTL (the "time to live" hop counter) but always sends 1,240-byte UDP packets, and 20% from shoppers using HTTPS and QUIC. It samples 1 in 100, counts every combination of fields in a count-min sketch of 4 rows by 4,096 counters, and lists the fingerprints that match more than half the samples, most specific first. Both the matches function and the ground-truth labels are there only to check the answer; a real server never knows which packets are which.

import random, hashlib
from itertools import combinations
random.seed(7)

FIELDS = ["proto", "dst_port", "src_port", "length", "ttl"]

def shop_packet():                      # shoppers: HTTPS over TCP, some QUIC over UDP
    proto = random.choice(["tcp", "tcp", "tcp", "udp"])
    return (proto, 443, random.randint(1024, 65535),
            random.randint(60, 1500), random.choice([52, 56, 64, 116, 128]))

def attack_packet():                    # the flood: ports and TTL vary, the size never does
    return ("udp", random.randint(1, 65535), random.randint(1024, 65535),
            1240, random.randint(40, 64))

class CountMin:
    def __init__(self, width, depth):
        self.w, self.d = width, depth
        self.rows = [[0] * width for _ in range(depth)]
    def _cells(self, key):              # one independent hash per row
        for r in range(self.d):
            h = hashlib.blake2b(key.encode(), digest_size=8, salt=bytes([r]) * 16)
            yield r, int.from_bytes(h.digest(), "little") % self.w
    def add(self, key):
        for r, c in self._cells(key):
            self.rows[r][c] += 1
    def estimate(self, key):            # the smallest counter: never below the truth
        return min(self.rows[r][c] for r, c in self._cells(key))

def fingerprints(pkt):                  # every combination of 1 to 5 header fields
    for k in range(1, len(FIELDS) + 1):
        for idx in combinations(range(len(FIELDS)), k):
            yield " & ".join(f"{FIELDS[i]}={pkt[i]}" for i in idx)

def matches(fp, pkt):
    return all(str(pkt[FIELDS.index(part.split("=")[0])]) == part.split("=")[1]
               for part in fp.split(" & "))

# 2,000,000 packets arrive; the server looks at 1 in 100 of them.
sketch, candidates, seen = CountMin(width=4096, depth=4), set(), []
for _ in range(2_000_000 // 100):
    is_attack = random.random() < 0.8
    pkt = attack_packet() if is_attack else shop_packet()
    seen.append((pkt, is_attack))
    for fp in fingerprints(pkt):
        sketch.add(fp)
        if sketch.estimate(fp) >= 1000:  # remember anything that gets busy
            candidates.add(fp)

flood = [p for p, a in seen if a]       # the truth, which the server never gets to see
shop = [p for p, a in seen if not a]
distinct = len({fp for p, _ in seen for fp in fingerprints(p)})
print(f"sampled packets: {len(seen):,}")
print(f"distinct fingerprints: {distinct:,}   sketch counters: {4 * 4096:,}")
print("fingerprints seen in over half the samples, most specific first:")
heavy = sorted((fp for fp in candidates if sketch.estimate(fp) > len(seen) / 2),
               key=lambda fp: (-fp.count("&"), -sketch.estimate(fp)))
for fp in heavy:
    true = sum(matches(fp, p) for p, _ in seen)
    hit = lambda group: sum(matches(fp, p) for p in group) / len(group)
    print(f"  {fp:24} estimate {sketch.estimate(fp):>6,}  true {true:>6,}"
          f"  drops {hit(flood):6.1%} of flood, {hit(shop):5.1%} of shoppers")

sampled packets: 20,000
distinct fingerprints: 451,170   sketch counters: 16,384
fingerprints seen in over half the samples, most specific first:
  proto=udp & length=1240  estimate 16,176  true 16,074  drops 100.0% of flood,  0.0% of shoppers
  proto=udp                estimate 17,221  true 17,105  drops 100.0% of flood, 26.3% of shoppers
  length=1240              estimate 16,202  true 16,074  drops 100.0% of flood,  0.0% of shoppers

The first two lines are the point of the data structure: there were over 450,000 distinct fingerprints in the samples, and the sketch kept 16,384 counters, about 28 times fewer, while still finding the three that matter. Compare each estimate with the true count next to it. Every estimate is a bit high, by roughly 100 to 130, which is the collision noise, and never low.

Those three heavy fingerprints are where the choice gets interesting. "proto=udp" matches the whole flood, and also 26% of the shoppers, because QUIC runs over UDP. Dropping it would block every shopper whose browser uses HTTP/3. "proto=udp & length=1240" matches the whole flood and none of the shoppers. That's why the search prefers the most specific fingerprint that still covers the flood, and why dosd tries many permutations: the best rule is the narrowest one that catches the attack.

4.5Dropping it in the driver: l4drop

Once dosd has a fingerprint, the cheapest place to act on it is the earliest one: the network driver, before the kernel spends anything on the packet. Chapter 48 explains XDP, the hook that runs an eBPF program on each packet as the driver receives it and lets it return a verdict such as drop or pass. Cloudflare's XDP filter is l4drop. Its 2018 post describes the pipeline: rules are turned into a C program, compiled to eBPF with Clang, and loaded into the driver. In that post one server dropped over 8 million packets a second during an attack with its overall CPU use up by only about 10%.

Cloudflare's 2020 post on its load balancer adds how the pieces fit on one machine: the l4drop code "is dynamically generated by xdpd based on information it receives from attack detection systems", where xdpd is a daemon that chains several XDP programs, l4drop first and then the load balancer of the next section, on every server.

So for Kaapi Kadai's flood the sequence is: the first packets of the flood reach the Chennai servers and pass, because there's no rule yet; within seconds dosd has counted enough samples, compiled the rule and loaded it; from then on each junk packet is thrown away in the driver, before the kernel has spent anything on it. Divya's packets, which don't match, go up the stack.

Floods of packets are only one kind of attack. What about floods that aren't junk packets? The 201-million-requests-a-second "HTTP/2 Rapid Reset" attack of August 2023 came from roughly 20,000 machines making valid-looking HTTPS requests and cancelling them at once. Packets like those pass l4drop, because they're real TCP connections carrying real TLS. Those are caught higher up, by the same idea, fingerprinting and rules on every server, applied to HTTP requests in the proxy. To get there, the packets first have to reach a server that can handle their connection, and in a city with many servers, that is its own problem.

5.1Spreading packets across the servers

Divya's packets have reached the Chennai data centre, which has many servers. Which one gets her connection?

A router at the front of the data centre can spread packets itself, with ECMP (equal-cost multipath, chapter 34): it hashes each packet's addresses and ports and picks one of the servers by the hash, so every packet of one connection lands on the same server. Cloudflare relied on ECMP alone until 2020, and its post that year lists the problems. When a server is added or removed, routers often rehash, which can send existing connections to the wrong server and break them. Routers limit how many servers can be in one ECMP group. And ECMP can't balance by load: it splits connections evenly, even if one server is busy with an expensive customer and another is idle.

So Cloudflare built Unimog, its own layer-4 load balancer, described in September 2020. Chapter 34 compares it with Google's Maglev, Facebook's Katran and GitHub's GLB, and covers the general problem of keeping connections alive while the set of servers changes. Here we'll look at what makes Unimog unusual, and at the trick it uses for that problem.

What makes it unusual is that there's no load-balancer tier. "Unimog makes every server into a load balancer." The router sprays packets across the servers with ECMP, and on every server, an XDP program running right after l4drop decides which server should handle each packet. If that's this server, the packet goes up the stack. If not, it's wrapped in a small UDP header (GUE, the same encapsulation GitHub's GLB uses) and sent across the data centre's internal network to the right one. It doesn't matter which server the router picked, because every server makes the same decision.

5.2A table of buckets, and the second hop

The decision uses a forwarding table: an array of buckets, each holding the address of a server. Unimog hashes a packet's addresses and ports to pick a bucket, and the bucket names the server. Unimog's table has many more buckets than servers, "more than 100 times the number of servers", tens of thousands of buckets in a big city, so that load can be shifted in small steps by reassigning a few buckets at a time.

Reassigning a bucket is where the trouble starts. Suppose the bucket for Divya's connection moves from server s3 to server s10, which has just joined. Her next packet goes to s10, which has never heard of her connection, and has no choice but to reset it. Her page load fails halfway.

Unimog's answer, borrowed from a 2018 research system called Beamer, is to give each bucket two slots: the new server and the previous one. In the post's words, the second slot keeps the previous server so that a packet can be "forwarded again on a second hop when necessary." A new connection's first packet, the SYN, always goes to the first server, so new connections start on s10. Any other packet goes to s10 too, but if s10 has no socket for that connection, it forwards the packet to the server in the second slot, s3, which does. Cloudflare calls this daisy chaining. Old connections finish on their old server, new ones start on the new one, and nobody is reset.

This program measures what the second slot buys. Ten servers share a table of 1,024 buckets and hold 20,000 open connections. An eleventh server joins and takes 1/11 of the buckets. We count how many connections would end up on a server that doesn't have them, three ways: with no table at all, picking a server as the hash modulo the number of servers; with the bucket table but only its first slot; and with Unimog's second hop.

import random, hashlib
random.seed(3)

BUCKETS = 1024                           # about 100 buckets per server, as in Unimog

def h(conn):                             # hash of the connection's addresses and ports
    return int.from_bytes(hashlib.blake2b(conn.encode(), digest_size=8).digest(), "little")

# 10 servers share the table round-robin; 20,000 shoppers' connections are open.
servers = [f"s{i}" for i in range(10)]
table = [servers[b % 10] for b in range(BUCKETS)]
conns = [f"203.0.113.{random.randint(1, 254)}:{random.randint(1024, 65535)}"
         for _ in range(20_000)]
owner = {c: table[h(c) % BUCKETS] for c in conns}   # the server holding each connection
sockets = {s: {c for c in conns if owner[c] == s} for s in servers + ["s10"]}

# Server s10 joins. Hand it 1/11 of the buckets, taken evenly from the others.
new = list(table)
moved = random.sample(range(BUCKETS), BUCKETS // 11)
for b in moved:
    new[b] = "s10"

def hash_mod_n(c):                       # no table: hash mod the number of servers
    return (servers + ["s10"])[h(c) % 11]

def first_hop_only(c):                   # the new table, nothing else
    return new[h(c) % BUCKETS]

def with_second_hop(c):                  # Unimog: new owner first; if it has no socket
    first = new[h(c) % BUCKETS]          # for this connection, pass it to the old owner
    return first if c in sockets[first] else table[h(c) % BUCKETS]

print(f"open connections: {len(conns):,}, buckets moved to s10: {len(moved)}")
for route in (hash_mod_n, first_hop_only, with_second_hop):
    broken = sum(route(c) != owner[c] for c in conns)
    print(f"{route.__name__:16} {broken:>6,} connections reset ({broken / len(conns):.1%})")

open connections: 20,000, buckets moved to s10: 93
hash_mod_n       18,212 connections reset (91.1%)
first_hop_only    1,833 connections reset (9.2%)
with_second_hop       0 connections reset (0.0%)

Hash modulo N moves almost every connection when N changes from 10 to 11, 91% of them, because nearly every hash gives a different remainder. With the bucket table, only the connections in the 93 reassigned buckets move, about 9%, the share we handed to the new server. And the second hop saves even those: none are reset.

There are two limits. First, the chain is only two long, so a bucket that changes twice while a connection is open can still break it; Unimog prefers to move "the least-recently modified buckets" for that reason. And it all depends on the server checking for a socket, which is cheap for TCP but needs a different arrangement for UDP, where for Unimog "new flows go to the second-hop server."

5.3Balancing by load

The table also lets Unimog do what ECMP couldn't, balance by how busy each server is. One server in each data centre runs the conductor, with standbys ready to take over. It reads each server's processor use from Prometheus, Cloudflare's metrics system, and shifts buckets away from busy servers towards idle ones, with "adjustments made to the forwarding table … proportional to the deviation from the average." Cloudflare reported that Unimog costs under 1% of processor time and its core is about 1,000 lines of C.

That completes the trip through the network layers: Divya's packet has survived the flood, been picked by a server that's not overloaded, and been handed to that server's TCP stack. TLS terminates there, as in chapter 35. Now an HTTP request has to be answered, and that's the proxy's job.

6.1What the proxy does with Divya's request

Divya's request is GET / for Kaapi Kadai's homepage, plus requests for its CSS, scripts and the tumbler photo. For each one, the proxy has to look up Kaapi Kadai's configuration, run the WAF rules and bot scoring, decide whether the response can come from cache, and if not, fetch it from the origin in Bengaluru and pass it back.

For most of Cloudflare's history that was done by NGINX, the open-source web server, extended with Lua scripts through the OpenResty framework. Its core, which Cloudflare calls FL and its 2025 post calls "the brain of Cloudflare", was "built more than 15 years ago". In front of the origin sat a second NGINX-based service that handled the cache lookups and origin fetches.

NGINX is a fine proxy for one website. It has a weakness that only shows at Cloudflare's scale, and it's about connections to the origin.

6.2The connection pool that didn't share

Opening a new connection to an origin costs a TCP handshake and a TLS handshake, two or more round trips, plus CPU on both ends. So a proxy keeps a pool of open connections to each origin and reuses them. If Divya's request can go down a connection that's already open to the Bengaluru server, it skips all that.

NGINX runs as several separate worker processes, typically one per CPU core, and each worker keeps its own pool. Cloudflare's 2022 post explains what that meant: "When a request lands on a certain worker, it can only reuse the connections within that worker. When we add more NGINX workers to scale up, our connection reuse ratio gets worse because the connections are scattered across more isolated pools."

There was a second cost. In NGINX each request is served start to finish by one worker, so one slow or expensive request ties up its worker's core while the others may be idle, which is uneven load across the cores. And there was safety: NGINX is written in C, which isn't memory safe, and the Lua on top was safer but slower and untyped.

6.3Pingora

In 2022 Cloudflare described its replacement for the origin-facing proxy, Pingora, written in Rust. Its key choice was threads instead of processes, to "share resources, especially connection pools, easily." Pingora runs on the Tokio async runtime with work stealing, so a core that's idle can take queued tasks from a busy one, and every thread in the process can reuse every pooled connection.

Here's what that September 2022 post reported:

• Across all customers, Pingora made a third as many new origin connections per second. For one large customer the reuse ratio went from 87.1% to 99.92%, "160x" fewer new connections.
• Median time to first byte fell by 5 ms and the 95th percentile by 80 ms, which the post credits to the shared connections and not to faster code.
• It used about 70% less CPU and 67% less memory than the old service for the same traffic.
• It served over a trillion requests a day, and in its first few hundred trillion requests, it hadn't crashed because of its own code.

In February 2024 Cloudflare released Pingora as open source under the Apache 2.0 licence, as a Rust framework for building proxies (it's a library you build your own proxy with, not a ready-made binary). By then, the post says, it had handled "nearly a quadrillion" requests.

Then the same idea reached the brain. In July 2024 Cloudflare started rewriting FL in Rust as FL2, built on its Rust proxy framework Oxy, with each feature as a module in a strict order checked at compile time. Its September 2025 post reports FL2 using less than half the CPU of FL1 and responding about 10 ms faster at the median; by March 2026 Cloudflare said it had "migrated from FL1 to FL2." Hold on to FL2, though. Section 10 has a story in which a single line of it matters.

The proxy now decides what to do with Divya's request. For the tumbler photo, the answer is almost always "it's in the cache." The interesting question is which cache.

7.1One city, one cache

Chapter 35 covers what a CDN cache stores and how a cache key is built from the URL and some headers. Here the problem is where the copies live.

Inside the Chennai data centre, it would be wasteful for every server to keep its own copy of the tumbler photo. Instead, Cloudflare's 2025 post on Workers cold starts states the rule plainly: "Each data center contains one logical HTTP cache, and that cache is sharded across every server in the data center." The server that handles Divya's request hashes the cache key onto a consistent hash ring of the servers in the city (chapter 29) and asks the server that owns that key. So the city holds one copy of each object, and adding a server moves only a small share of the keys.

7.2When Chennai doesn't have it

Now suppose the photo isn't in Chennai's cache. Maybe Divya is the first shopper in Chennai to load it today. What happens then? The naive answer is that Chennai fetches it from the origin.

That's fine for one city. But Kaapi Kadai's link is a share of Divya's friend group, and it's been forwarded around. Shoppers in 300 cities might each be the first in their city. Each city misses independently, and the origin, a one-gigabit server in Bengaluru, gets 300 requests for the same photo, which is close to the problem caching was supposed to solve.

The fix is tiered caching: misses in a small, "lower-tier" data centre go to a larger "upper-tier" data centre, and only upper tiers may go to the origin. Cloudflare's 2021 post on Smart Tiered Cache Topology describes how the upper tier is picked for each origin: Cloudflare's data centres measure their latency to the origin, as the time to complete a TCP handshake, and the one with the lowest median over 24 hours wins, with the runner-up as a fallback, re-run every hour. For Kaapi Kadai, the winner is probably Bengaluru, or maybe Chennai itself. Now 300 misses become one request to the origin, and 299 requests between Cloudflare data centres. Since September 2021, tiered caching has been free on all plans.

Cloudflare later added two more layers. Regional Tiered Cache (2023) puts an extra tier in each region for sites whose upper tiers are far away. And Cache Reserve (announced May 2022, generally available October 2023) is "a large, persistent data store that is implemented on top of R2", Cloudflare's object storage. Ordinary caches evict whatever was least recently used when they need space, so a rarely-viewed product photo falls out within hours or days. Cache Reserve keeps an object for 30 days after its last request, and each request resets the clock. It only takes objects with a freshness lifetime of at least 10 hours.

The HTML of Kaapi Kadai's homepage is different: it carries the delivery date for Divya's pincode, so it can't be the same for everyone, and can't be cached as is. Kaapi Kadai could compute it at the origin, in Bengaluru, for every visitor. Or it could compute it in Chennai, next to Divya, if Cloudflare will run the shop's code.

8.1Containers are too heavy

Kaapi Kadai's owner has written a short JavaScript function: read the visitor's pincode from a cookie, look up the delivery estimate, put it in the cached HTML, return the page. Cloudflare's product for running code like this is Workers. But what runs it?

In the late 2010s the obvious answer was a container or a lightweight VM per customer (chapters 11 and 47), the way AWS Lambda works. Cloudflare's 2018 post "Cloud Computing without Containers" explains why that doesn't fit an edge network. Count what it costs. A basic Node.js Lambda function doing nothing used about 35 MB of memory. Cold starts, launching a new one, took "between 500 milliseconds and 10 seconds". Now remember that every server runs every service, and every customer's code may need to run in every city. Thousands of customers times 35 MB each, on every server, in 330 cities, doesn't fit, and a half-second cold start would cost Divya far more than the round trip to Bengaluru it was meant to save.

8.2Isolates

The idea Cloudflare used comes from the browser. Chrome's JavaScript engine, V8, can run many separate programs in one process, each in its own isolate: a separate heap and a separate set of global objects, so code in one isolate can't see or touch another's objects. Chrome uses this to keep tabs apart (alongside separate processes, as chapter 44 discusses). Workers uses it to keep customers apart.

Cloudflare's 2018 post gives the numbers. One process "can run hundreds or thousands of Isolates." Sharing the runtime between isolates brings the per-function memory "around 3 MB" instead of 35. And "Isolates start in 5 milliseconds." Switching between isolates in one process also avoids the cost of switching between processes, which the post put at up to 100 microseconds.

Five milliseconds is a pretty small cost, and Cloudflare then hid it completely. Its 2020 post on cold starts describes the trick: the first message of a TLS handshake, the ClientHello, names the site the visitor wants (the SNI field, chapter 35). As soon as Chennai's server sees kaapikadai.in in Divya's ClientHello, it tells the Workers runtime to start loading the shop's Worker. The handshake still has a round trip to go, and the Worker is ready before the HTTP request arrives.

That works when Chennai's servers have room to keep the Worker loaded. With hundreds of servers in a big city and a small site, they often don't: Cloudflare's 2025 post on cold starts works through an example in which a Worker's requests, spread across a city of 300 servers, reach each server about once every five hours, so it's evicted between requests and every request is a cold start. Its fix is the one from the cache: send that Worker's requests to one server in the city, chosen with the same kind of consistent hash ring. Cloudflare reported that forwarding a request this way adds under a millisecond, only about 4% of enterprise requests needed it, and the share of cold requests fell from 0.1% to 0.01%.

Today's limits, from the Workers documentation in October 2026: 128 MB of memory per isolate, 10 ms of CPU time per request on the free plan and up to five minutes on paid plans, and the average Worker uses about 2.2 ms of CPU per request.

8.3Thousands of strangers in one process

Isolates buy their efficiency by putting many customers' code in the same operating-system process, and Cloudflare's 2026 post on Spectre says the number can be "tens of thousands of tenants." That's a much thinner wall than a VM or even a process, and chapter 44 explains why thin walls worry people: Spectre lets code read memory it shouldn't by measuring tiny timing differences after the CPU guesses wrong, without any bug in the software.

Cloudflare's 2020 post on the Workers security model lists its layers of defence, and they read like a checklist of what Spectre needs:

Under all of that, the whole runtime runs in a Linux sandbox with namespaces and seccomp, no filesystem and no network access except through the supervising process. And in September 2025 Cloudflare added hardware help: memory protection keys (MPK), a feature of recent x86 processors, let a process tag pages of its memory with one of a handful of keys (up to 15 available on a modern x86-64 processor, about 12 usable here) and switch which keys are readable in a single instruction. Each isolate gets a random key, so a stray read into another isolate's memory hits a hardware trap, in "92% of cases" according to Cloudflare's 2025 post. A 2026 follow-up described an internal attack that leaked about 12 bits a second against an older setup, and said it had been fixed.

Kaapi Kadai's Worker runs, the page comes back with Divya's delivery date, and her page is done. But the Worker had to exist on that Chennai server first, along with the shop's WAF rules, its cache settings and its DNS records. Every one of those changes whenever the owner clicks a button, and the change has to reach every server in every city.

9.1Pushing a change to every machine

The flood has made Kaapi Kadai's owner nervous, so she logs into the dashboard and adds a firewall rule: block requests from a country she doesn't ship to. Cloudflare's 2025 Code Orange post describes the expectation: a new security rule "reaches 90% of servers on the network within seconds." How?

One naive answer is to have every server ask a central database for each site's configuration when a request arrives. That puts a round trip to the core on every request, and makes the core a single point of failure for the whole network. Another is a cache on every server, filled from the core. That works until you ask how stale it may be: a firewall rule that takes ten minutes to arrive is ten minutes of attack.

So the design that's needed is the opposite of a request-time lookup: every server holds a complete, local copy of all the configuration it might need, and changes are pushed to every copy as they happen. Reads are then local and take microseconds, and the hard part is the pushing.

9.2Quicksilver

Cloudflare's store for this is Quicksilver, described in March 2020. Its predecessor was Kyoto Tycoon, an open-source key-value store, and the post lists why it was replaced: in 2015 Cloudflare ran eight instances holding 100 million key-value pairs with about 200 changes a second; writes blocked reads, and in Cloudflare's tests two writers pushed 99.9th-percentile read latency over a second; running without fsync for speed corrupted databases "multiple times a day"; and the project's last release was in 2012. Keeping it running took 48 hours of engineers' time a week.

Quicksilver kept the shape and replaced the parts:

• Storage is LMDB, an embedded database that keeps its file memory-mapped and never overwrites data in place, so readers never wait for writers and a crash can't leave a half-written page.
• All writes go through one place. Changes are collected in one core data centre and given increasing sequence numbers, so the configuration history is a log.
• Distribution is a tree. Servers replicate from main nodes, which replicate from top mains, which read the log at the root. Each replica asks for "everything after sequence number N", so a machine that was offline catches up by replaying what it missed, and secondary mains keep a week of history for that.
• Everything is checksummed. Each value has a CRC, logs carry a running hash, and each database has a unique ID, so a corrupted or mixed-up copy is detected instead of served.

Quicksilver has grown a lot since. In 2020 Quicksilver served 2.5 trillion reads a day on 90,000 database instances. Its two-part 2025 update describes a store of over five billion key-value pairs, 1.6 TB in total and growing by half in a year, serving over three billion key lookups a second, with 90% of reads in under a millisecond. That growth forced a change of shape: 1.6 TB on every server, in ten instances for different products, stopped fitting. Quicksilver v2 keeps the full data set only on a few servers with large disks. Each data centre holds a cache sharded across its servers, by now a familiar pattern: 1,024 logical shards grouped onto servers, with a local cache in front. Most lookups for keys that don't exist, ten times more common than lookups for keys that do, are answered by Bloom filters, and the worst instance's cache hit rate is above 99.99%.

?Why not use a consensus system like etcd for this?

Because the problem is the opposite shape. Consensus (chapter 27) is about a few replicas agreeing on each write before it counts, which costs round trips between them on every write and limits how many replicas there can be. Quicksilver has one writer, the root, and so needs no agreement; it has an enormous number of readers, and needs every one of them to catch up quickly and read locally. A single ordered log, copied down a tree, gives that.

10.12 July 2019: one regular expression

At 13:42 UTC on 2 July 2019, a Cloudflare engineer deployed a small change to the WAF's rules for detecting cross-site scripting. It was meant to be harmless: the new rule was in "simulate" mode, logging matches and blocking nothing. But even in simulate mode, as the postmortem notes, a rule still has to run on every request. Within seconds the CPUs serving HTTP traffic on machines all over the world were at nearly 100%, and visitors to Cloudflare sites got 502 errors. Traffic fell by about 80%. It lasted 27 minutes.

The rule contained this regular expression:

(?:(?:\"|'|\]|\}|\\|\d|(?:nan|infinity|true|false|null|undefined|symbol|math)|\`|\-|\+)+[)]*;?((?:\s|-|~|!|{}|\|\||\+)*.*(?:.*=.*)))

Cloudflare's postmortem points at the part that mattered: .*(?:.*=.*), which behaves like .*.*=.*. Read it as "anything, then anything, then an equals sign, then anything." The WAF ran it with PCRE, a backtracking regex engine, the same kind used by Perl, Python and JavaScript. A backtracking engine tries to match greedily and, when it fails, backs up and tries the next possibility. For .*.*=.* on text without an =, it tries every way of splitting the text between the two .*s, and each one fails at the =. Then, since the pattern isn't anchored, it starts again one character later. That's a number of steps that grows with the cube of the input's length. A request with a long header that happened to have no = sent the CPU into a loop that would take longer than anyone would wait.

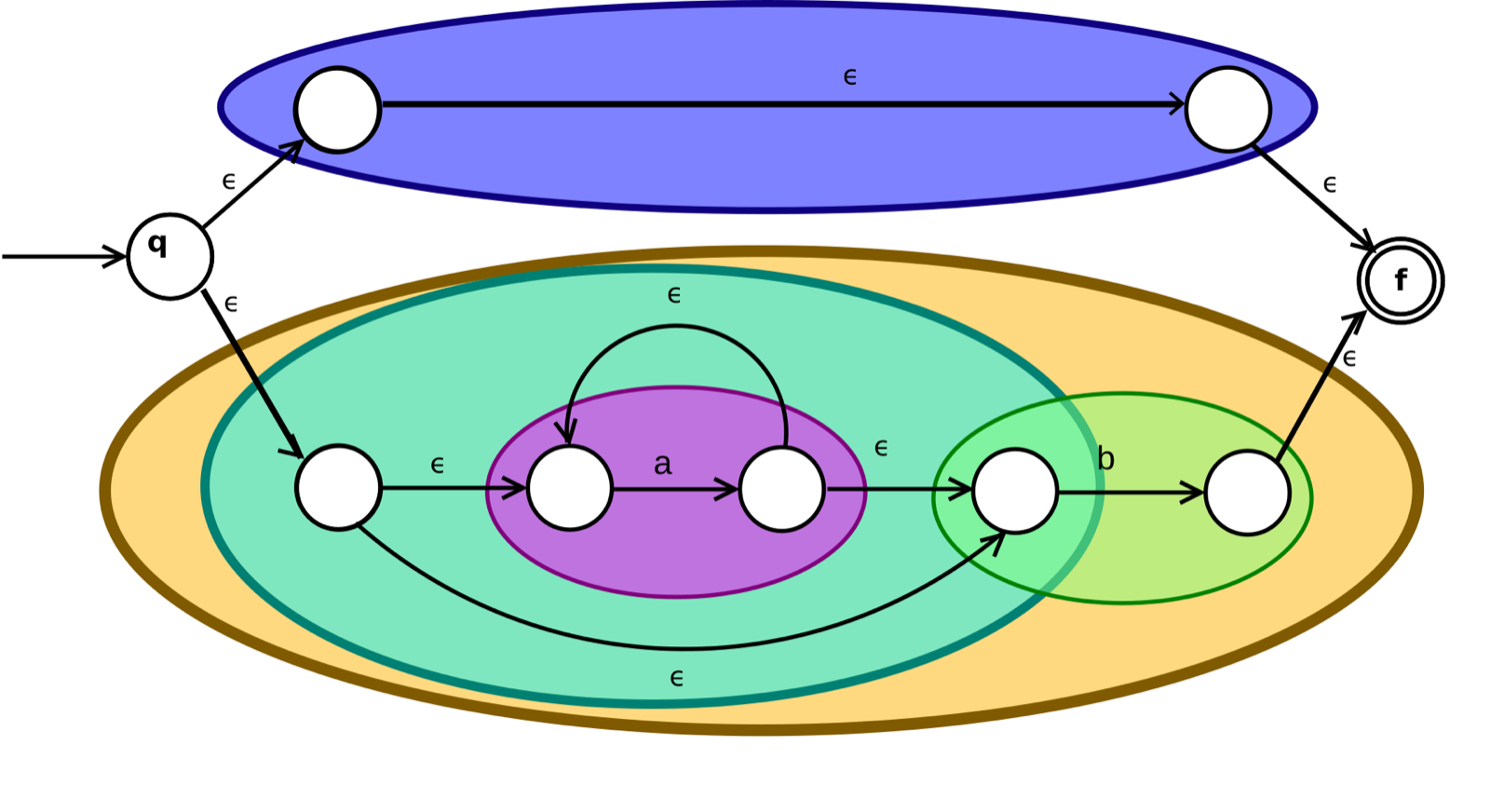

What the postmortem committed to was an engine with "run-time guarantees": RE2 or Rust's regex crate. Those compile the pattern into an automaton and track all the positions the pattern could be in at once, reading each character only once. This program counts the work both ways for .*.*=.* on texts of xs with no =:

# The heart of the July 2019 WAF rule was .*(?:.*=.*), which is the same as .*.*=.*
# Two ways to run it on text that contains no '=' at all (so it can never match).
PATTERN = [(".", True), (".", True), ("=", False), (".", True)]   # .* .* = .*

def backtracking(text):
    """How Perl, PCRE, Python and JavaScript engines work: try, then back up."""
    steps = 0
    def match(t, i):                       # pattern token t, text position i
        nonlocal steps
        steps += 1
        if t == len(PATTERN):
            return True
        ch, star = PATTERN[t]
        ok = lambda c: ch == "." or ch == c
        if star:                           # greedy: take as much as possible, then give back
            k = i
            while k < len(text) and ok(text[k]):
                k += 1
            for j in range(k, i - 1, -1):
                if match(t + 1, j):
                    return True
            return False
        return i < len(text) and ok(text[i]) and match(t + 1, i + 1)
    found = any(match(0, start) for start in range(len(text) + 1))
    return found, steps

def automaton(text):
    """How RE2 and Rust's regex crate work: track every possible state at once."""
    def close(states):                     # a starred token may also be skipped
        out = set(states)
        for t in sorted(states):
            u = t
            while u < len(PATTERN) and PATTERN[u][1]:
                u += 1
                out.add(u)
        return out
    steps, states = 0, close({0})
    for c in text:
        nxt = set()
        for t in states:
            steps += 1
            if t < len(PATTERN):
                ch, star = PATTERN[t]
                if ch == "." or ch == c:
                    nxt.add(t if star else t + 1)
        states = close(nxt | {0})          # a match may also start at the next char
    return len(PATTERN) in states, steps

print(f"{'chars':>6} {'backtracking steps':>19} {'automaton steps':>16}")
for n in (10, 20, 40, 80, 160, 320):
    text = "x" * n
    (f1, b), (f2, a) = backtracking(text), automaton(text)
    assert f1 == f2 == False
    print(f"{n:>6} {b:>19,} {a:>16,}")

 chars  backtracking steps  automaton steps
    10                 363               30
    20               2,023               60
    40              13,243              120
    80              95,283              240
   160             721,763              480
   320           5,616,323              960

Read down the columns. Each time the input doubles, the backtracking count goes up about eight times: 2,023, then 13,243, then 95,283. That's the cube. Meanwhile the automaton's count just doubles, three steps per character. At 320 characters the gap is already more than 5,000 times, and an HTTP request can carry several kilobytes of headers and body. Cloudflare's own appendix counts the steps differently and gets different numbers, but the same shape: thousands of steps for 20 characters.

But the regex was only the trigger. Why did one regex take down everything? The postmortem lists four reasons:

• No staged rollout. Cloudflare's software went out in stages, first to a data centre that only employees' traffic passes through, then to a small number of customers in an isolated location, then to many customers, then everywhere. WAF rules skipped all of that and went out through Quicksilver, "because of the need to respond rapidly to threats." So a rule reached every machine in about the time it takes to read this sentence.
• A missing guard. A protection against a single rule using too much CPU had been "removed by mistake during a refactoring of the WAF weeks prior."
• An engine without limits. PCRE has no bound on backtracking work.
• Every server, every service. The WAF ran on the same CPUs as everything else on every server, so a WAF problem became an everything problem.

It ended with a global kill switch: at 14:07 an engineer ran a "global terminate" that turned the WAF off on every machine, and traffic recovered within two minutes. Cloudflare committed to switching the WAF to RE2 or Rust's regex engine, brought back the CPU guard, added performance tests for rules, and changed the procedure so that rule changes roll out in stages like software, keeping emergency global pushes for active attacks.

10.218 November 2025: a file that doubled

Six years later the trigger was different and the shape was the same. Cloudflare's postmortem of 18 November 2025 calls it the company's "worst outage since 2019."

Cloudflare's bot detection uses a machine-learning model that reads a feature file, a list of the properties it scores requests on. A query against a ClickHouse database regenerated that file every five minutes and pushed it to every server. At 11:05 UTC a change to the database's permissions made the query start returning each column twice, once from each of two databases, because the query never said which database it meant. So the file doubled in size, past 200 features.

Proxy code that loaded the file had a limit of 200 features, "well above our current use of ~60", because it preallocated memory for them. In FL2, the new Rust proxy, that limit was checked, the check returned an error, and the code called unwrap() on the result: a Rust shortcut that means "I'm sure this worked; if it didn't, crash." It hadn't worked, so the proxy thread crashed: thread fl2_worker_thread panicked: called Result::unwrap() on an Err value. Sites on FL2 returned 5xx errors. Sites still on the old FL1 didn't crash, but every request got a bot score of zero, which blocked legitimate visitors for any customer with rules on bot scores.

What made it confusing was the five-minute cycle. ClickHouse was being updated gradually, so each run of the query might hit an updated node or an old one, and the network flipped between broken and fine every few minutes, which seemed to the engineers on call more like an attack than a bug. By coincidence, Cloudflare's status page, hosted elsewhere, went down at the same time. Core traffic recovered at 14:30, after engineers stopped the file's generation and pushed a known-good copy by hand, and everything was normal by 17:06 UTC.

Cloudflare's lessons are general ones: treat configuration files generated inside the company with the same suspicion as user input; have more global kill switches; and don't let a component crash on bad data when it could keep using the last good data.

10.3Code Orange: fail small

Then, on 5 December 2025, it happened again, smaller. An engineer turned off an internal WAF testing tool through the global configuration system, which, the postmortem says, "does not perform gradual rollouts, but rather propagates changes within seconds to the entire fleet." A latent bug in FL1's Lua code, attempt to index field 'execute' (a nil value), made about 28% of Cloudflare's HTTP traffic fail for 25 minutes. In FL2, the Rust rewrite, the same case didn't fail.

Two weeks later Cloudflare announced "Code Orange: Fail Small", a company-wide priority to make configuration behave like software. Its May 2026 completion post describes what changed:

• Every configuration change rolls out in stages. A new system called Snapstone packages configuration changes, including generated data files like the November feature file and flags like the December one, and releases them gradually with health checks, the way software already was.
• Health-mediated deployment everywhere. Each team defines the metrics that mean a change is healthy; Cloudflare's deployment system watches them at each stage and rolls back automatically.
• Fail stale. A component that receives bad configuration keeps using the last good one where it can, and fails open or closed by explicit choice where it can't.
• Cohorts. Systems such as the Workers runtime now run separate copies for different groups of customers, and releases go to the free-plan copy first, reaching the most critical ones last.
• Break glass. Backup ways in for 18 key services, so engineers aren't locked out of the tools they need by the outage they're fixing, which happened in 2019 too.

11.1Divya's request, end to end

11.2From top to bottom

12.1Akamai, Fastly, CloudFront and Google

Cloudflare's design is one answer. Other big edge networks made different choices about the same questions, and the comparison shows which parts are forced and which are taste.

Akamai is the oldest. Its 2010 paper describes 61,000 servers in nearly 1,000 networks in 70 countries, and explains why so many: "Even the largest network has only about 5% of Internet access traffic," and it takes "well over 650 networks to reach 90%." So Akamai put servers inside ISPs, deeper than anycast at exchange points reaches. Its site in 2026 lists 4,400+ points of presence in 130+ countries. That paper also describes phased configuration rollouts with health checks at each step, sixteen years before Cloudflare's Code Orange made them universal.

Fastly went the other way, "placing fewer, more powerful POPs at strategic markets," in its network page's words (June 2026), with 622 Tbps of capacity. Fewer, bigger sites probably mean higher cache hit rates per site, at the cost of more distance to some users. Its cache servers run a fork of Varnish, programmed in Varnish's configuration language (VCL).

AWS CloudFront has the tiered-cache layering of section 7 (see the table). Google's front end faces the same problem for Google's own services: each one that faces the internet registers with the Google Front End (GFE), which terminates TLS and reports to a central DoS service, with Maglev (2016) balancing at layer 4 beneath it and Espresso (2017) steering traffic out of Google's edge.

13.1Failures this design has to survive

13.2The tradeoffs, in one table
